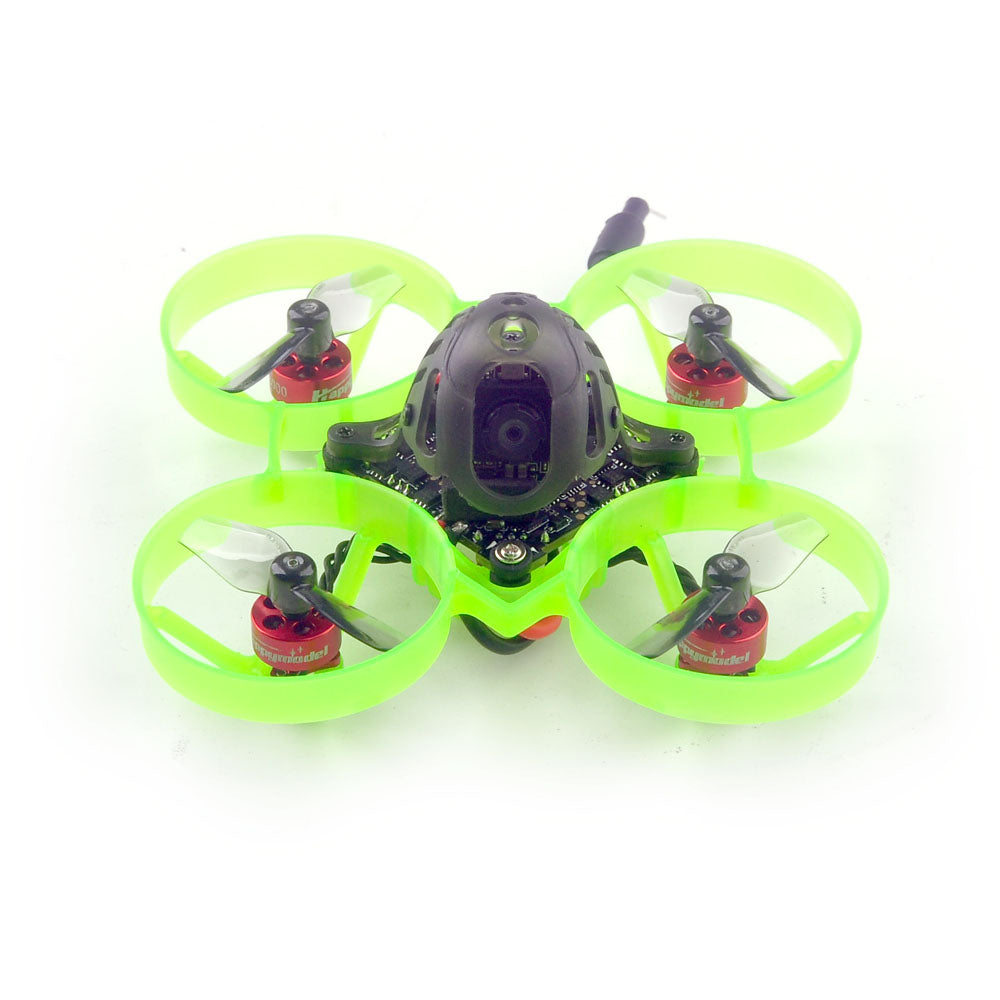

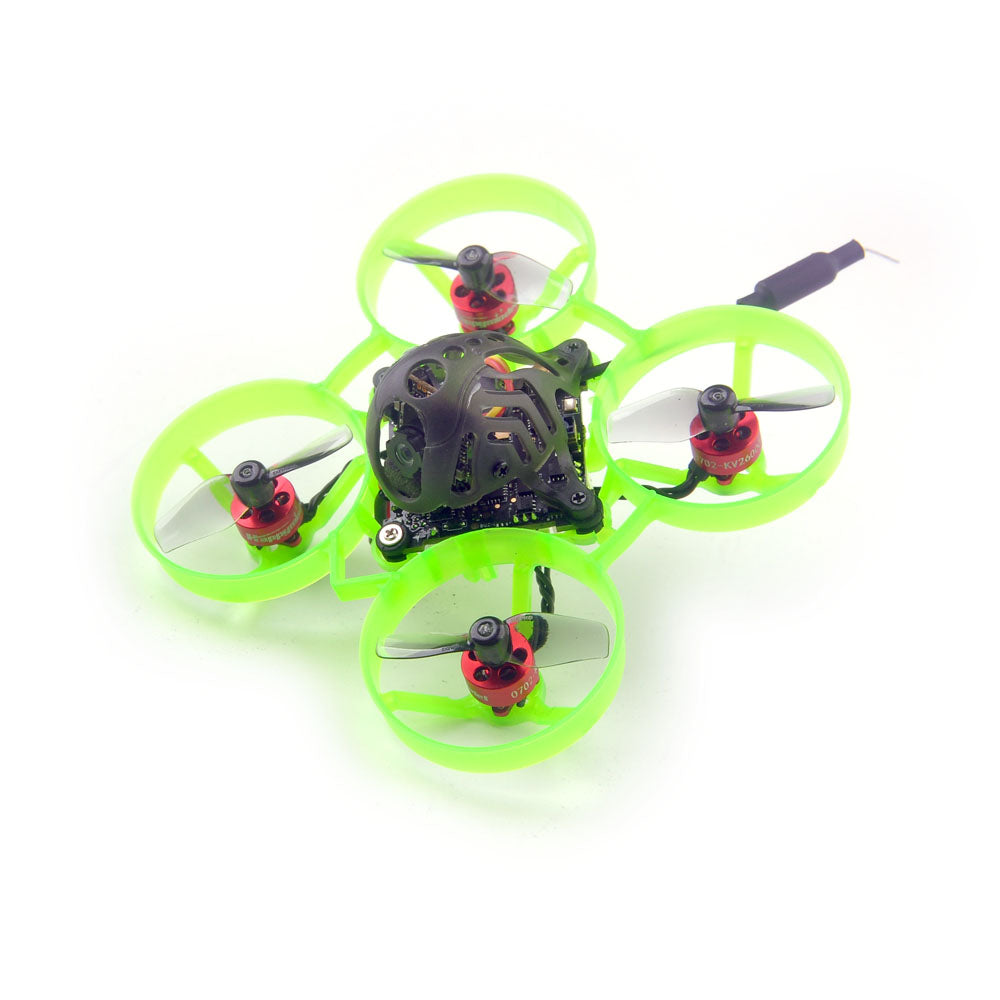

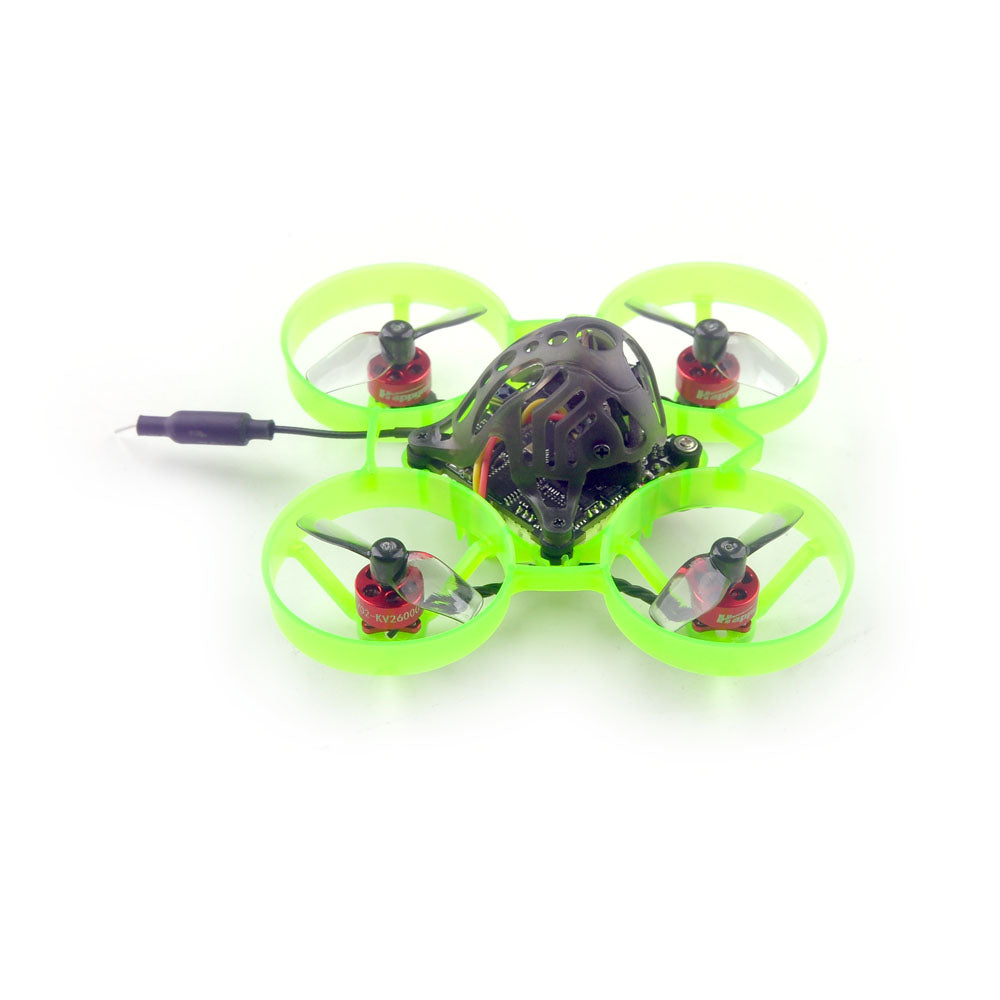

Happymodel Mobula6 ELRS 1s 65mm Brushless FPV Brushless Whoop Race Edition 25K

Name: Happymodel Mobula6 ELRS 1s 65mm Brushless FPV Brushless Whoop Race Edition 25K
Brand: HAPPYMODEL
Price: 175.26 AUD
Availability: OutOfStock

$175.26 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Out of stock

View full details

ExpressLRS is currently the most popular remote control link system. It has the characteristics of low latency and high packet rate, and its link quality is very reliable. Now we are about to release Mobula6 equipped with ExpressLRS RC link system, the new Mobula6 elrs would coming out with a new 0702 brushless motor, that would be the lightest brushless motors all over the world. We’re sure this would be a good option for you in the Tiny Whoop Season.

Update Log:

Mobula6 ELRS 2.4Ghz version comes with Updated ELRSF4 2G4 V3.1 flight controller since 25th Feb
V3.1 Version flight controller Updated
MPU6000 changed to ICM20689 because of MPU6000 discontinued
Onboard VTX changed to OPENVTX support 0mw~400mw
Pre-install Betaflight firmware which support ELRS V2.0 TX firmware

Check out our Mobula 6 and Parts collection and our entire Happymodel Products!
regular mobula 6 frsky edition

Description:

Brand: Happymodel
Item Name: Mobula6 ELRS 2.4GHz 1S 65mm Brushless whoop drone BNF version
Wheelbase: 65mm
Size: 80mm*80mm*37mm
Weight: 18.7g
Voltage:1S

Specifications:

Motor

KV: Race = KV25000
Configu-ration:9N12P
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ9.5mm*14mm
Weight(g):1.46g
No.of Cells(Lipo):1S only

Propellers:

HQprop31mmx2
Center Thickness:5mm
Prop Disk Diameter:31mm
Center Hole Inner diameter:1.0mm
Weight:0.2g

Flight controller:

ELRS F4 2G4 flight controller V3.1 built-in SPI expresslrs 2.4G receiver
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: ICM20689
Board size: 28.5 * 28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in ExpressLRS 2.4G receiver
Built-in 5V 1A BEC
Built-in voltage detection

Onboard 4in1 ESC:

MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT600

Onboard SPI ExpressLRS 2.4GHz Receiver:

Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHzAntenna : SMD antenna
Telemetry output Power: <12dBmReceiver protocol: SPI ExpressLRS
Could bind with Happymodel ES24TX , ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX module ExpressLRS version 1.0.0 or 1.0.1 both compatible

Onboard 5.8g VTX:

Output power: 25mw~200mw
Frequency: 37CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 37 channels
With Race band Smartaudio ready

Runcam Nano3:

Model: RunCam Nano 3
Image Sensor: 1/3″ CMOS
Horizontal Resolution: 800TVL
Lens : 2.1mm(M8) FOV 160°
Signal System: PAL/NTSC Non Switchable
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm

Lipo Battery:

Capacity:300mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Size: 57mmx12mmx7mm
Weight: 8gConnector: PH2.0

Package Includes:

1 x Happymodel Mobula6 ELRS 2.4GHz 1s 65mm Brushless FPV Brushless Whoop Drone
1 x HQPROP 31mm bi-blade propellers(4cw+4ccw)
2 x 1S 300mah 30C LiHV Battery
1 x 1S Lipo/LIHV USB Charger
1 x Propeller disassemble tool
