HappyModel Mobula7 1S HD Micro FPV 75mm Whoop Drone 1080 DVR RunCam Split3 Lite BNF ELRS

HappyModel Mobula7 1S HD Micro FPV 75mm Whoop Drone 1080 DVR RunCam Split3 Lite BNF ELRS2.4Mobula7 1S...
Vendor: HAPPYMODEL
Availability: Out Of Stock
$289.95
$289.95
Subtotal: $289.95
1_7ba8bf39-3eff-462e-a3cf-9ef5ab12d82c

HappyModel Mobula7 1S HD Micro FPV 75mm Whoop Drone 1080 DVR RunCam Split3 Lite BNF ELRS

$289.95

HappyModel Mobula7 1S HD Micro FPV 75mm Whoop Drone 1080 DVR RunCam Split3 Lite BNF ELRS

$289.95

HappyModel Mobula7 1S HD Micro FPV 75mm Whoop Drone 1080 DVR RunCam Split3 Lite BNF ELRS2.4



Mobula7 1S HD version is a light and efficiency 75mm brushless whoop which provide 1080P HD video record function. A highly integrated AIO Flight Controller, supports ESC with a maximum current output of 12A. We added blackbox for this 1s 75mm HD recorder whoop. Now it could support gyroflow. Although the external blackbox is not install perfectly and insert SD card is not friendly to most of the people, however we still think it's really excited for this small whoop could record a video with gyroflow steady and keep safe flying.

Features:

  • X12 5-IN-1 AIO flight controller
  • VTX Power up to 400mw
  • ELRS V2.0 Support
  • NEW RS0802 KV20000 motors
  • 1080P HD Video record
  • Blackbox Ready support GYROFLOW
  • Smooth and powerful
  • Compatible for 1S Lipo/LIHV
  • Recommend 1S 450mah/550mah/650mah batteries (Not include)

Specifications:

  • Brand Name: Happymodel
  • Item Name: Mobula7 1S HD 75mm Micro FPV whoop drone
  • Wheelbase: 75mm
  • Size: 99mm*99mm*45.5mm
  • Weight: 33g

Receiver option:

  • SPI 2.4GHz ELRS V2.0

Package includes:












































Item Name Qty
Mobula7 1S 75mm whoop Drone Frame (Mobula7 v4 frame) 1
Option1: X12 ELRS V2.0 flight controller built-in SPI ELRS 2.4G receiver 1
External Blackbox Module support gyroflow 1
RS0802 KV20000 brushless motor 4
Gemfan 1610-2 bi-blade propellers(4cw+4ccw) 1
Runcam Split3-Lite Camera+1080P DVR 1
1S series balance charging board 1
Propeller disassemble tool 1



Spare parts specifications:









































Motor Mode: RS0802 KV20000
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ10.5mm*13.5mm
Weight(g):2.0g
No.of Cells(Lipo):1S only
Propellers Weight:0.24g
Material:PC
Pitch:1 inch
Props Dia:40mm
Center Thickness:5mm
Center Hole Dia:1.5mm
Flight controller X12 ELRS V2.0 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: ICM20689(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw
Built-in ExpressLRS 2.4G,Frsky D8/D16
Built-in voltage detection
Built-in current sensor
Onboard 4in1 ESC Power supply: 1S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: Z_H_30_REV16_7.HEX
Default protocol: DSHOT300
Support Bluejay firmware
When use Blujay firmware with 48khz, should set startup power to 1100/1200
Onboard SPI ExpressLRS 2.4GHz Receiver Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna : Enameled copper wire length 30mm
Telemetry output Power: <12dBm
Receiver protocol:  SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Module
Couldn’t flash separately ExpressLRS firmware
Onboard 5.8g OPENVTX Firmware version: OPENVTX
Smartaudio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)
Runcam Split3-Lite Model: RunCam Split3-Lite
Field of View(FOV):Recording FOV 165°(FPV FOV: 165 ° @16:9, 130 ° @4:3)
Video Resolution:1080@60fps/1080@50fps/1080@30fps/720@60fps
Video File Format: MOV
Image Resolution:2 MP
TV Mode: NTSC (720*480)/PAL (720*576) Switchable
Interface: JST 1.25mm / UART and SH 1.0mm
Max Micro SD Card Supported  64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III)
Hole Distance of Installation: 25.5*25.5mm
PCB Size: 29*29mm
Lens Module Size: 14*14mm
Lens Specs: M9
Power Input: DC 5-20V(Non-direct power supply from battery. Powered directly with battery will generate surges and burn the camera.)
Working Current: 450mA @5V

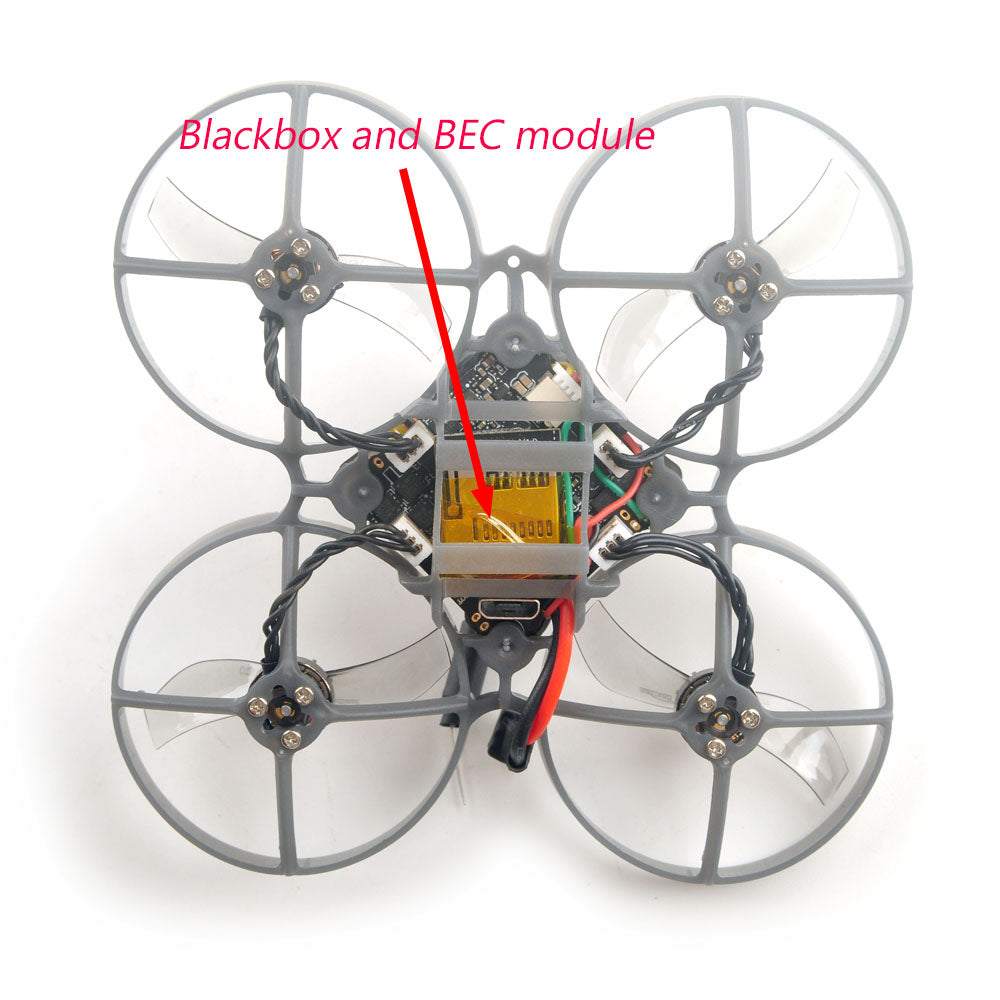

External Blackbox Size:18*15.5*4.5
With Built-in Voltage booster module
Weight:1.5gram
SD Card support max to 32GB
SD Card need to use FAT32 Format
Notes: Need to careful to insert the TF SD Card , and don't pull it out while install the battery.
