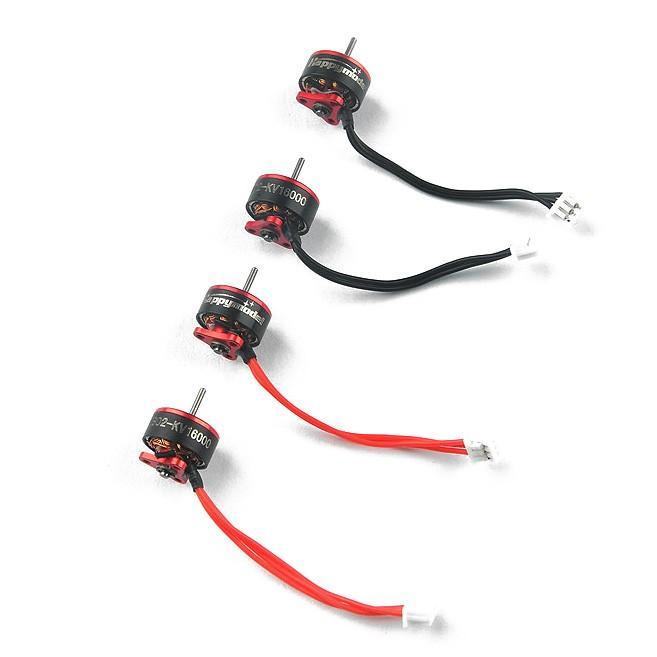

Happymodel SE0802 1-2S 19000KV Brushless Motor for Mobula 6 RC Drone

Red wire is setup for CW rotation
Black wire setup for CCW rotation

Brand name: Happymodel
Item name: SE0802 1-2S brushless motor
KV: 19000KV
Shaft Diameter: 1.0mm
Configuration: 9N12P
Stator Diameter: 8mm
Stator Length: 2mm
Motor Dimension(Dia.*Len): Φ10.5mm*14.9mm
Terminals: JST1.25mm
No.of Cells(Lipo): 1-2S
Wire length(include connector): 40mm
Weight: 1.9g
Features:
Super tiny only 1.9g
Double E-clip design, prevent Motor bell from flying off
Good Dynamic balance
Package Included:
1 x SE0802 brushless motor
