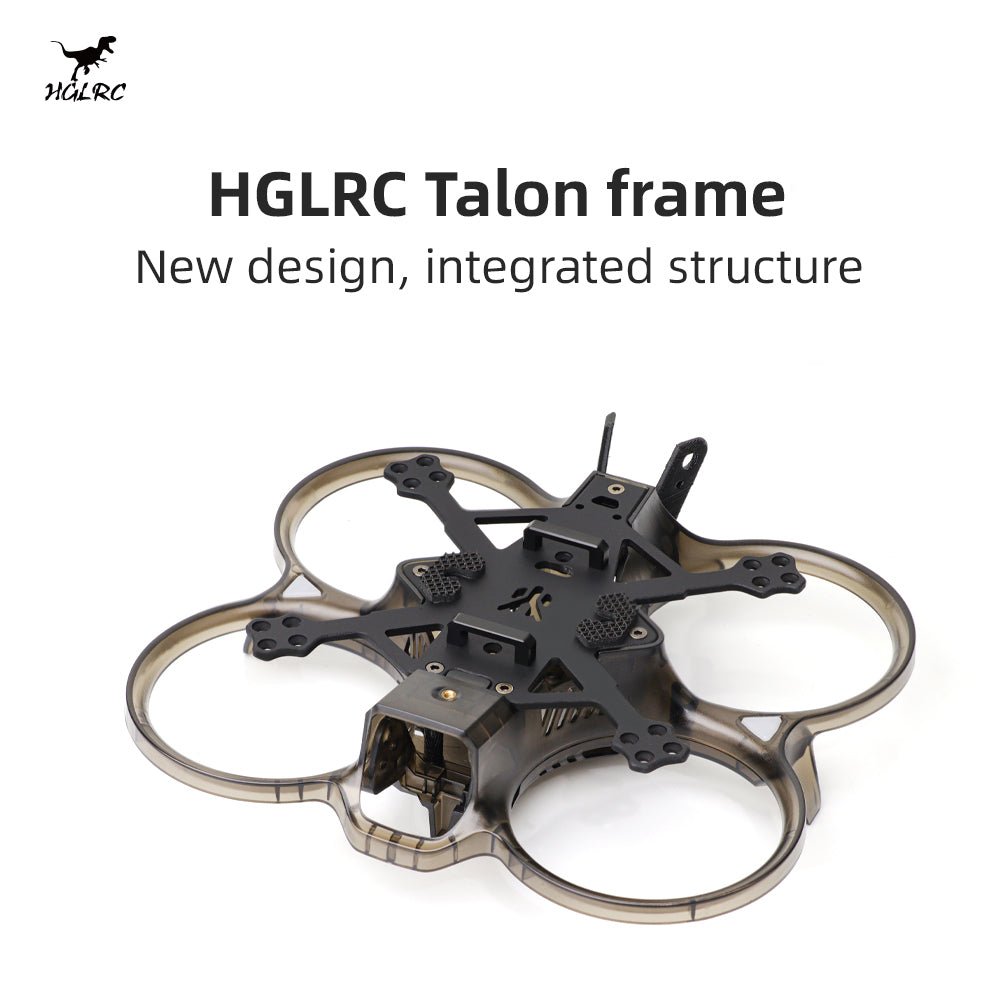

HGLRC 2-inch Talon frame for cinewhoop - Black

introduction: The HGLRC Talon frame set is on the market, a new one-piece modular design 2-inch drone, the fuselage shell adopts multi-color open mold injection molding parts to create a colorful and novel visual effect, lightweight and smooth fuselage body, and comprehensively improve the flight texture!

Features:

Fully open mold injection molding parts, the fuselage is fully wrapped and integrated;

Lightweight and smooth fuselage body, feel the light and smooth flight experience;

New modular design, the image transmission system, power system, and frame shell are completely independent, the bare machine is clear, making assembly more convenient;

It has 25.5*25.5mm and 20*20mm fixed positions for the image transmission system, compatible with the installation of a variety of high-definition and analog image transmission systems;

CNC metal heat sink, no fear of high temperature of image transmission;

Comes with a special silicone shock-absorbing pad for 19mm and 20mm cameras, which makes the filming more stable;

Can carry a naked Gopro, and shoot better;

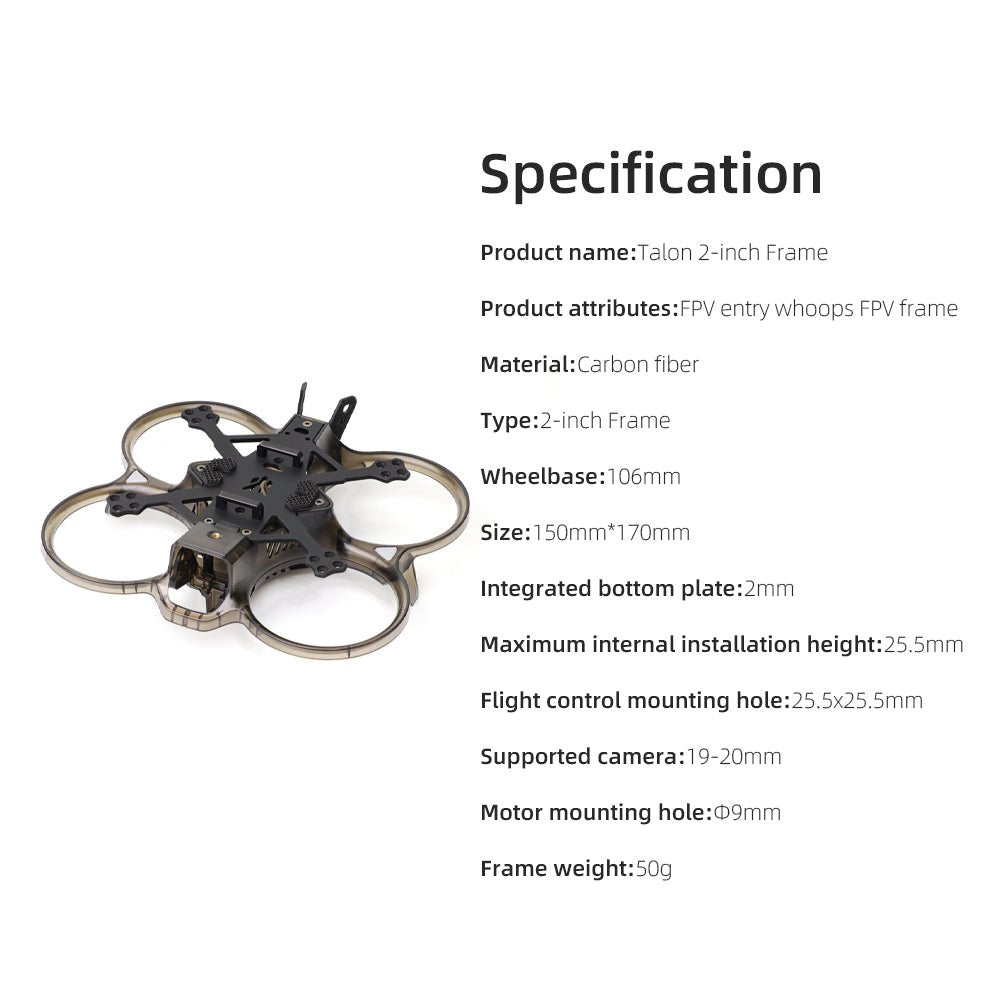

Drone parameters:

Frame: Talon frame

Flight control installation hole: 25.5mm*25.5mm

Motor installation hole: 9mm*9mm

Image transmission installation hole: 20mm*20mm, 25.5mm*25.5mm

Wheelbase: 106mm

External dimensions: 150mm*170mm

Applicable propeller blade diameter: 2 inches

Frame weight: 46g

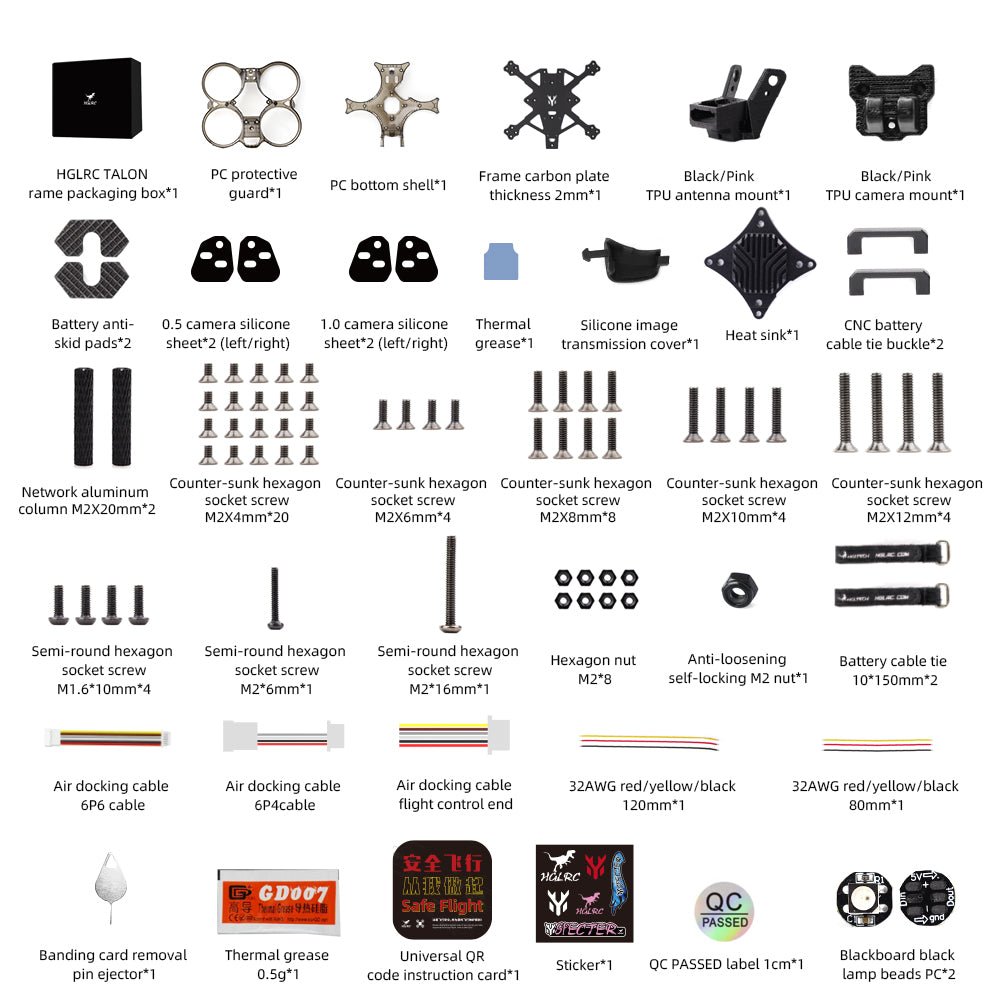

Shipping list:

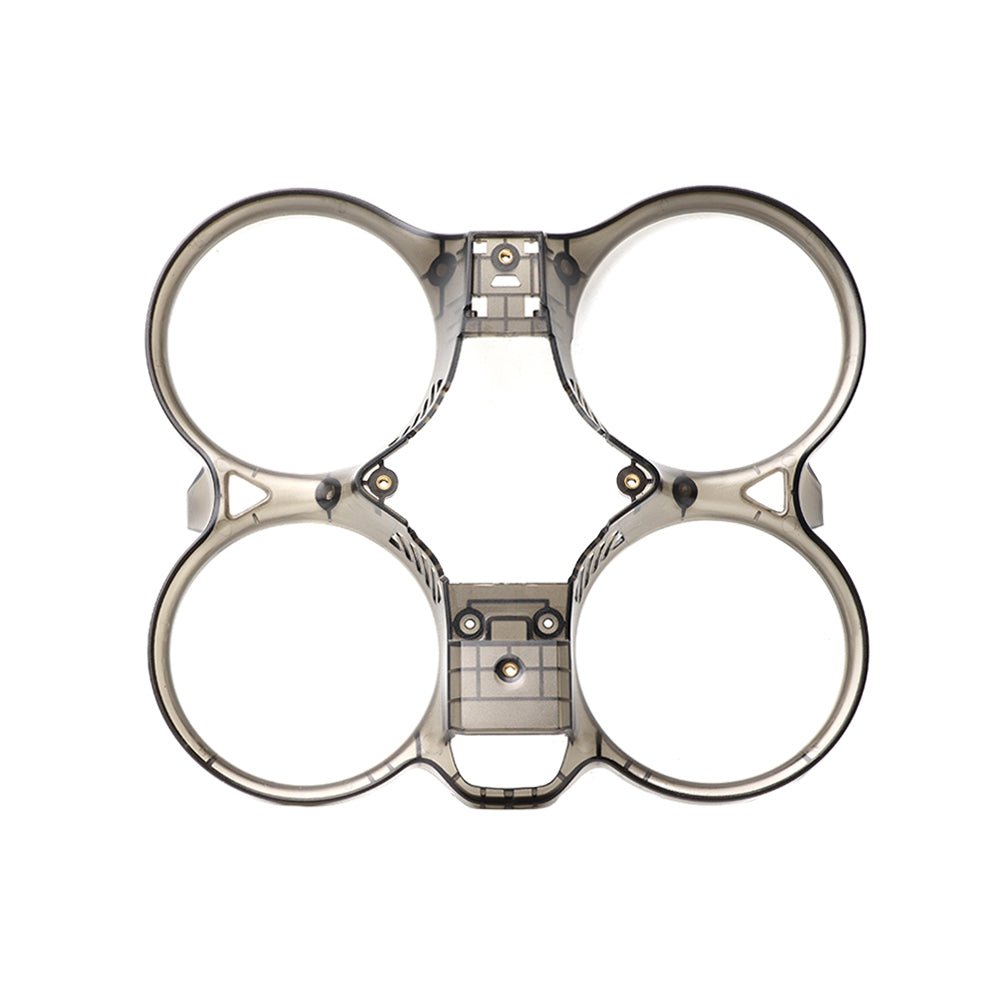

Protective guard*1

Bottom shell*1

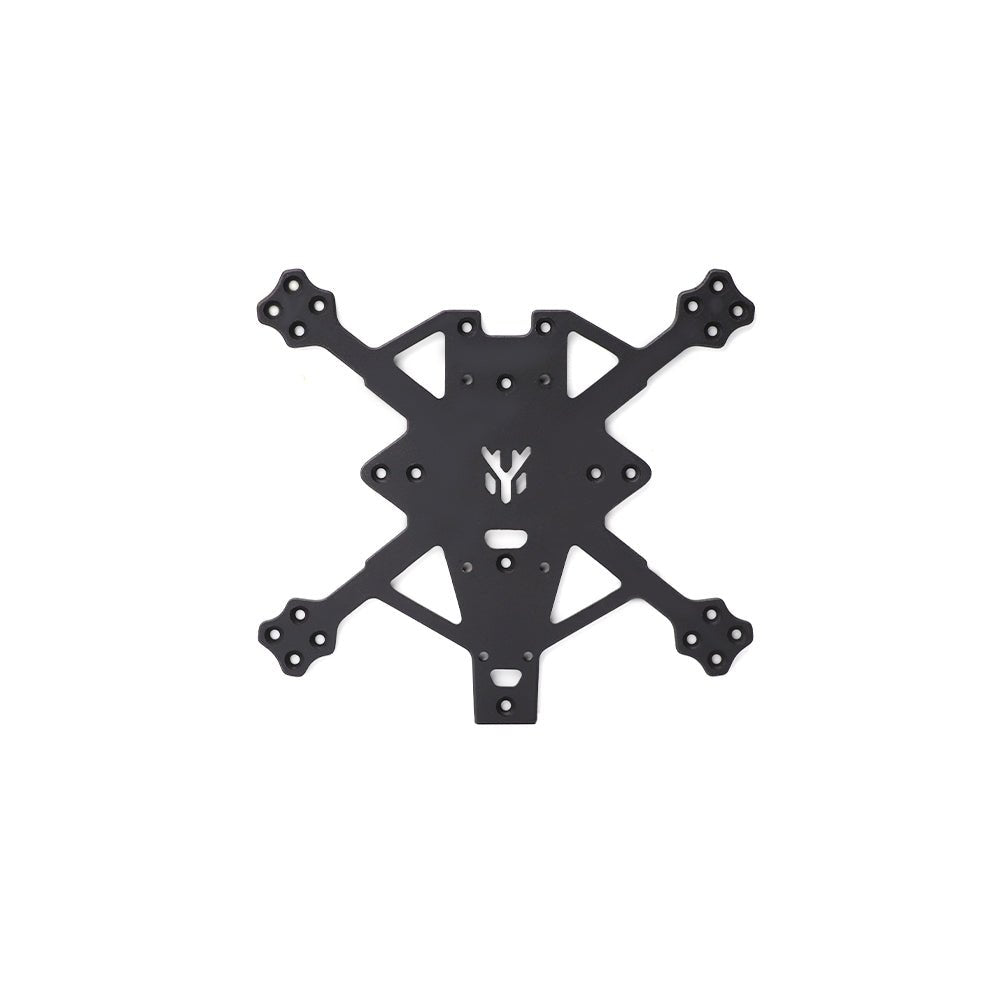

Frame carbon plate*1

Silicone image transmission cover*1

CNC battery tie buckle*2

Antenna mount*1

Camera mount*1

LED (pre-installed on the guard)*2

Battery anti-skid pad*2

0.5mm camera silicone sheet*2

1.0mm camera silicone sheet*1

Thermal grease (for HD)*1

Thermal grease sheet (for Zeus 800mw image transmission)*1

Net-shaped aluminum column M2X20*2

Counter-sunk hexagon socket M2X4*20

Counter-sunk hexagon socket M2X6* 4

Counter-sunk hexagon socket M2X8*8

Counter-sunk hexagon socket M2X10*4

Counter-sunk hexagon socket M2X12*4

Semi-circular hexagon socket M1.6X10*4

Semi-circular hexagon socket M2X6*6

Semi-circular hexagon socket M2X16*1

Anti-loosening self-locking M2 nut*1

Hexagon M2 black nylon nut*8

Battery tie 10X150mm*2

Air docking cable 6P6 line*1

Air docking cable 6P4 line*1

Air docking cable flight control end*1

Frequency matching and card removal pin ejector*1

32AWG red 120mm*1

32AWG yellow 120mm*1

32AWG black 120mm*1

32AWG red 80mm*1

32AWG yellow 80mm*1

32AWG black 80mm*1
