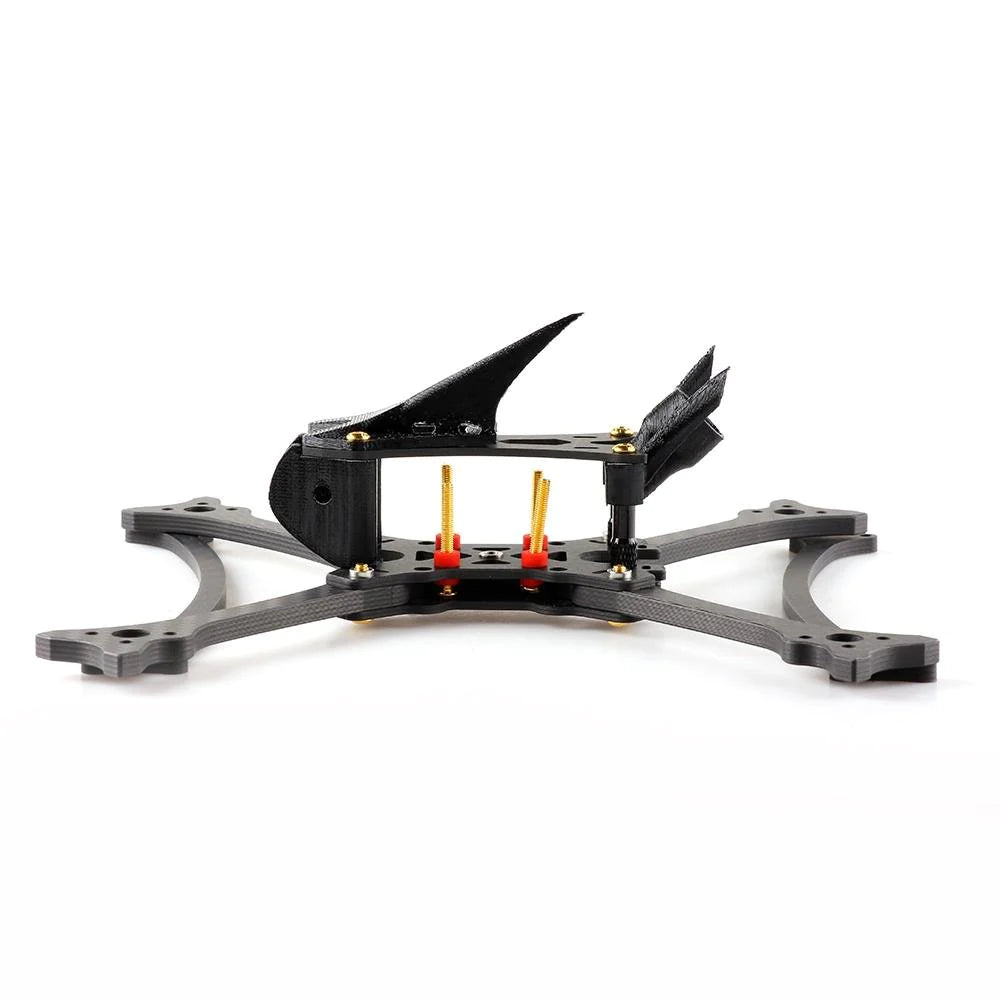

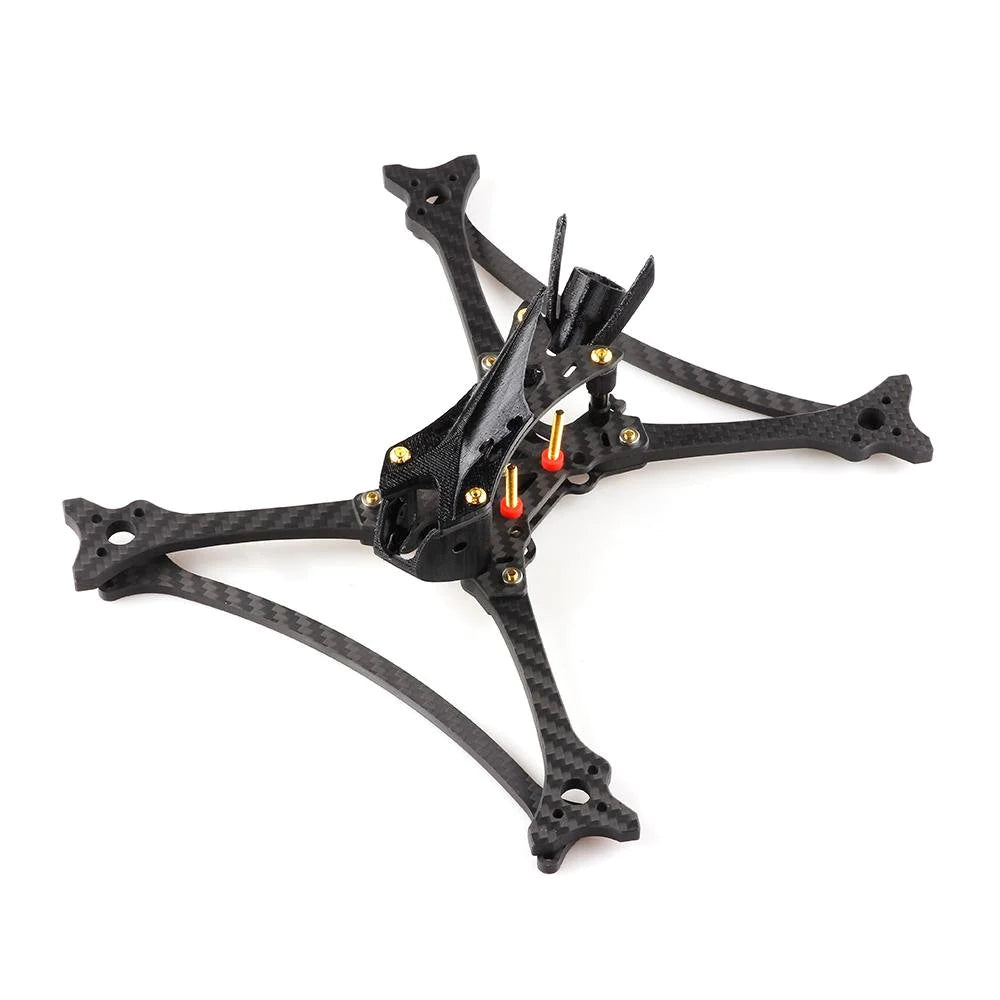

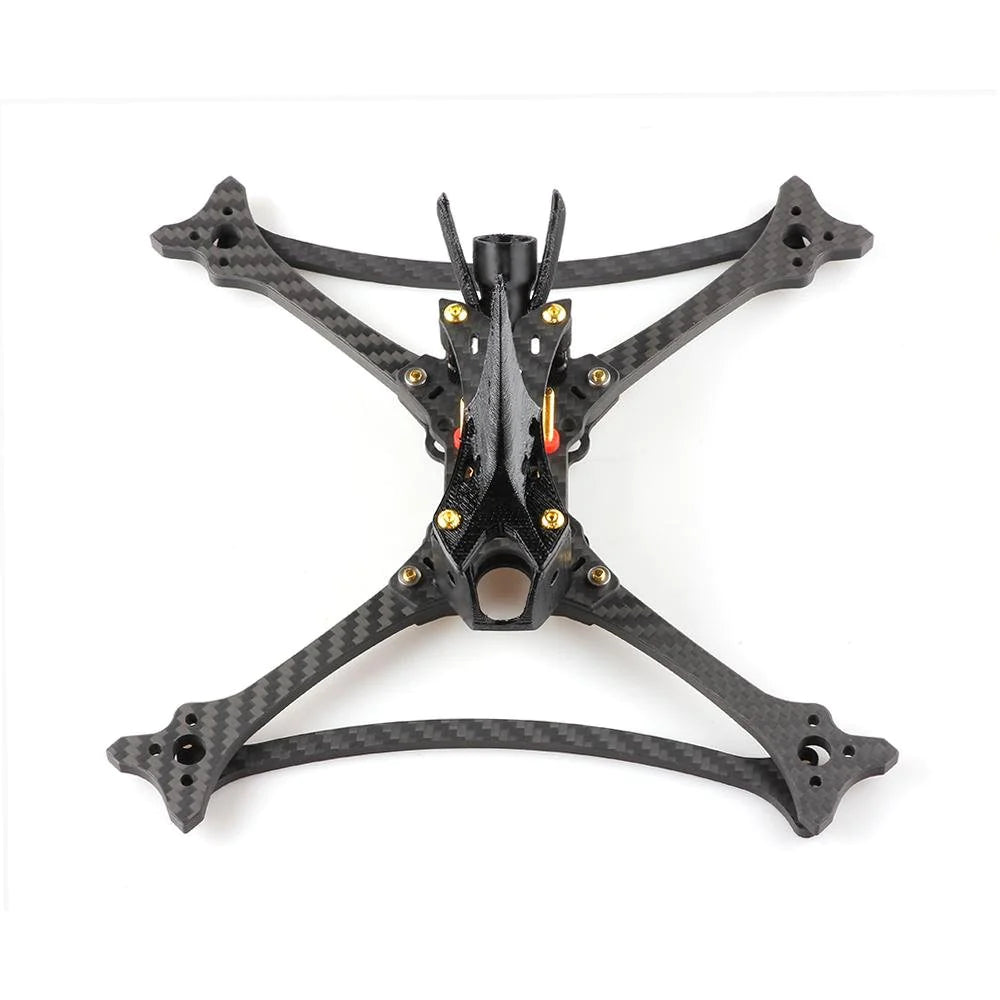

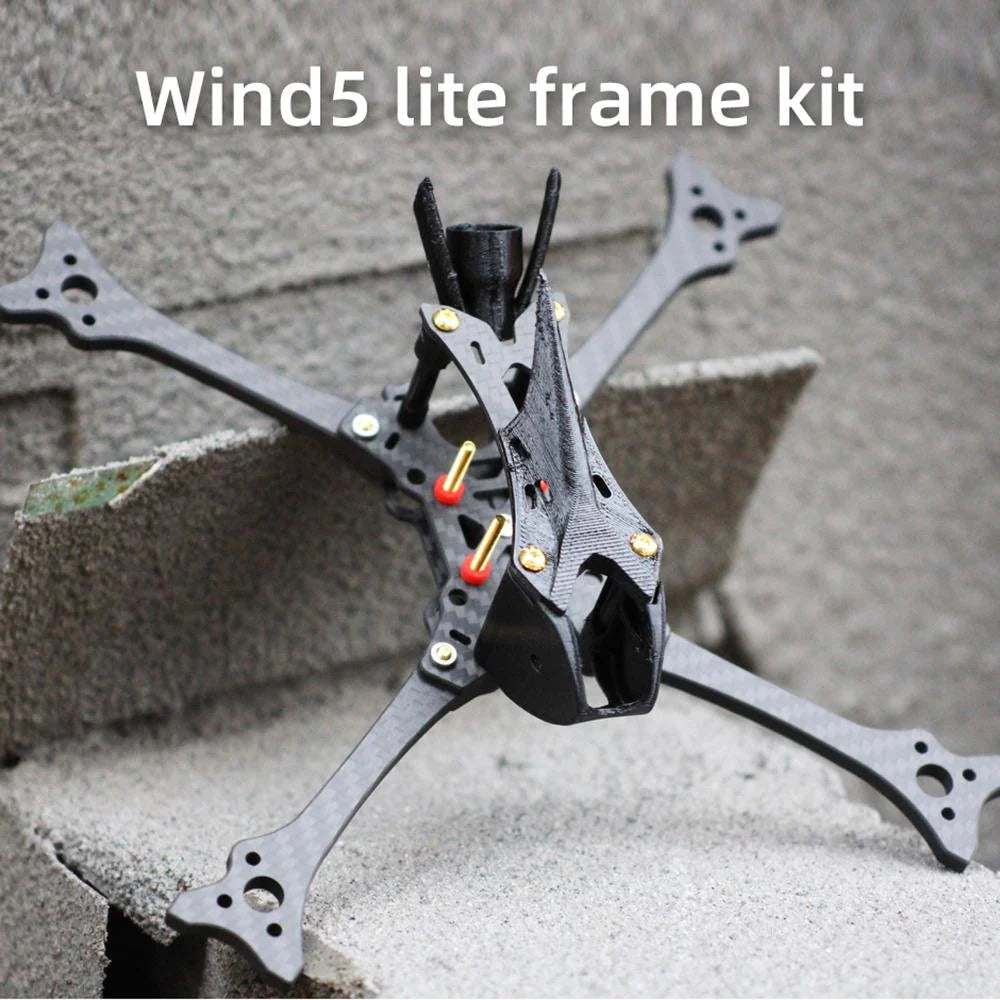

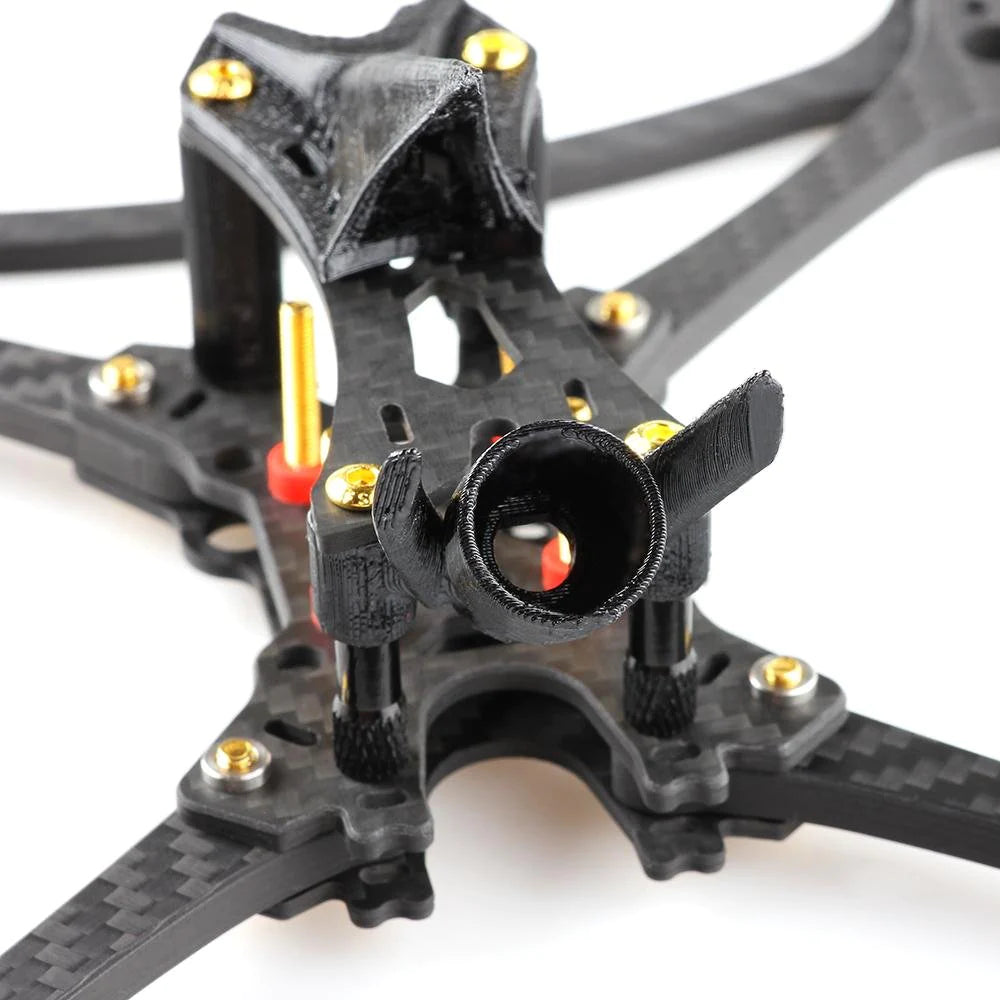

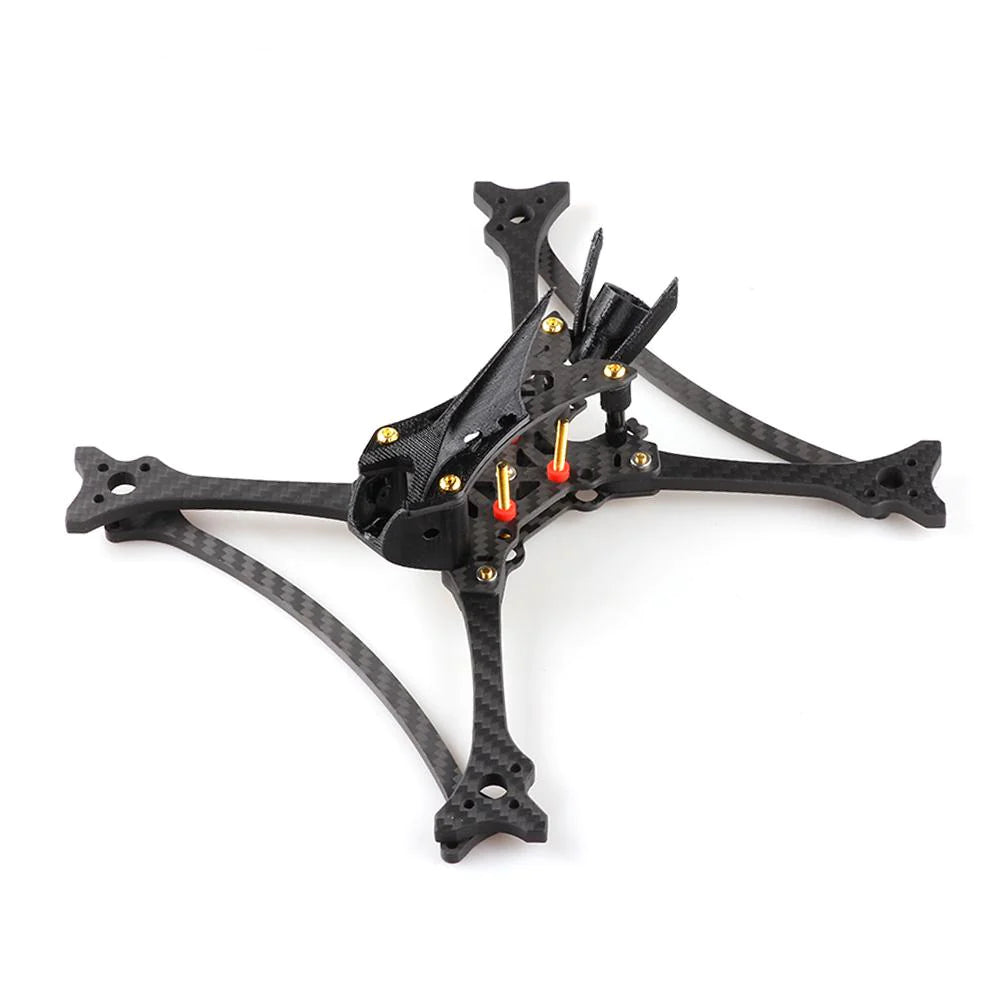

HGLRC Wind5 Lite True X FRAME Kit 5 Inch for FPV Racing

HGLRC Wind5 Lite True X FRAME Kit 5 Inch for FPV Racing Drone Vista Nebula Nano and Pro
Brand Name:HGLRC
Model:Wind5 Lite Frame Kit
Material:3K Carbon Fiber
Type:5" frame
Wheelbase:208mm
size:148*148mm
Top plate thickness:2mm
Bottom plocte thickness:2mm
Middle plate thickness2.5mm
Arm Thickness:5mm
Top and middle plate spacing:32mm
Installation holes:20x20/30.5x30.5mm
Support camera:19mm

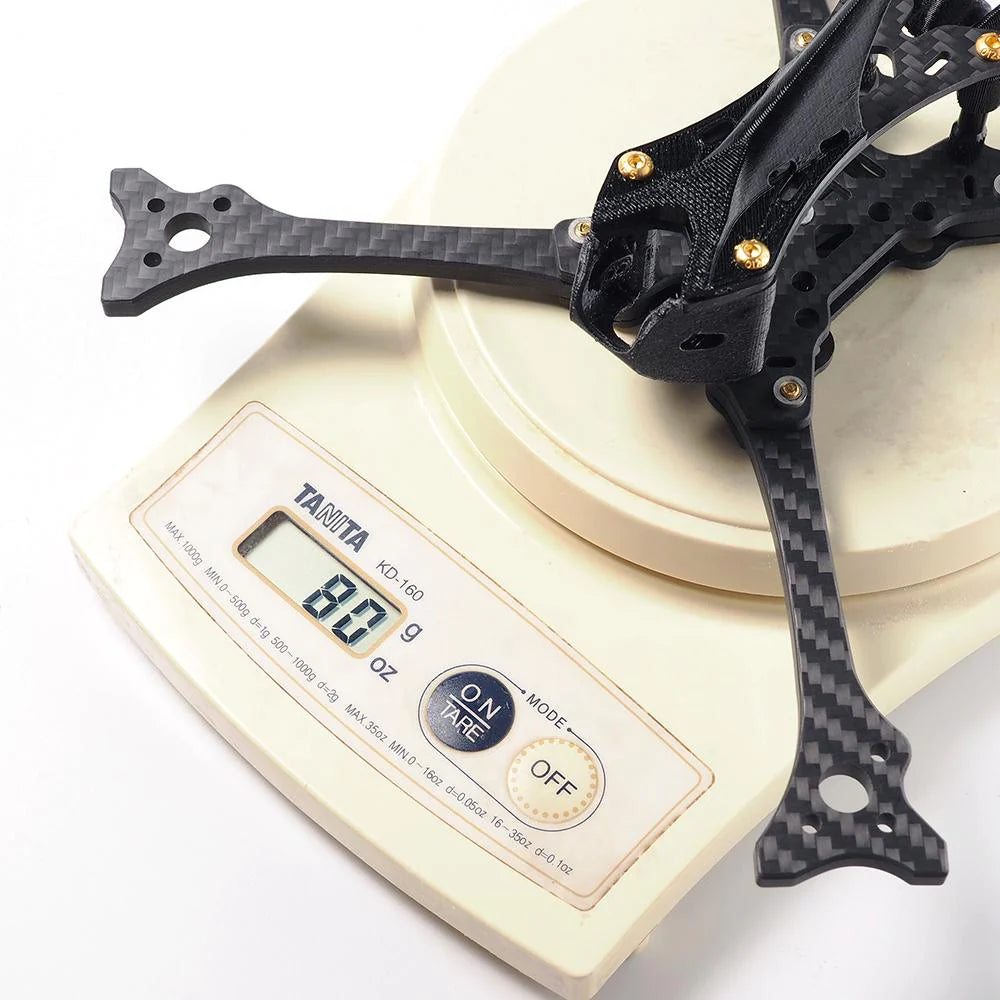

Weight:80g
Motor mounting holes:∅16
Features:

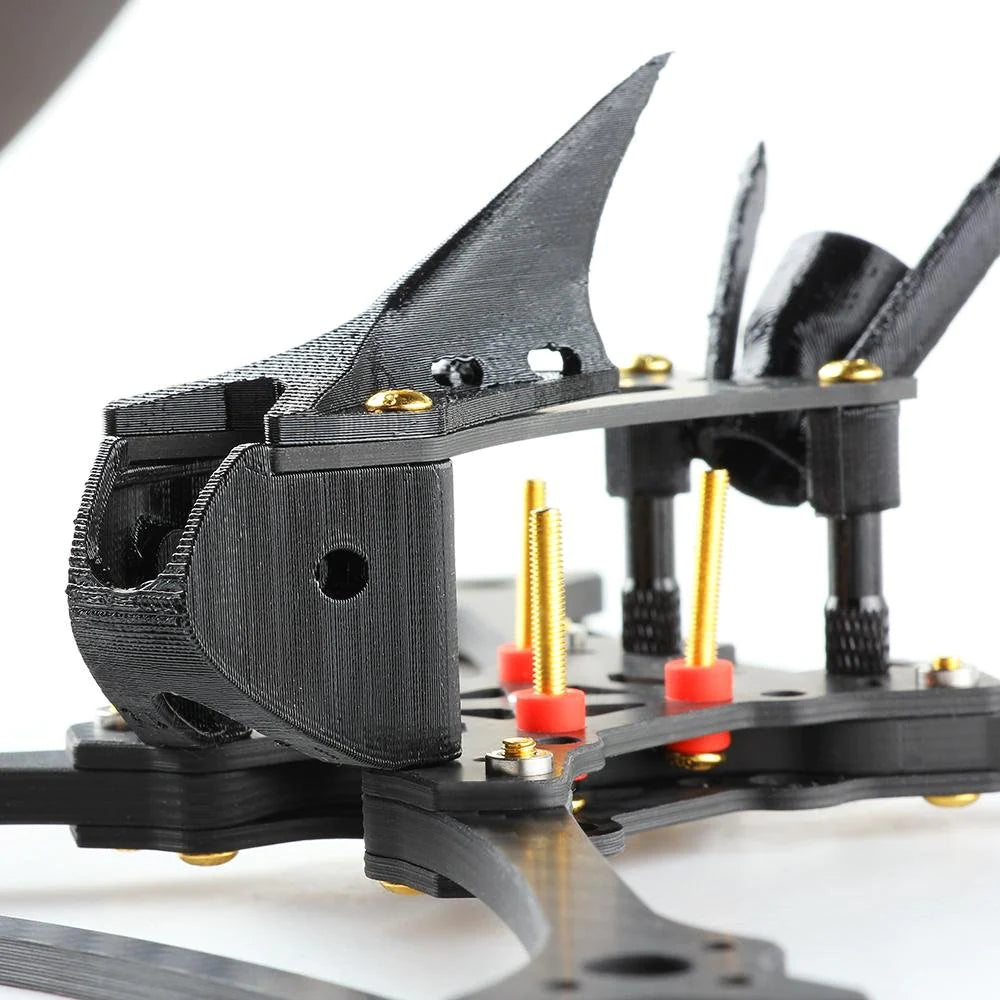

Flight control installation damping system
4mm protective bar
SMA antenna Mount
Camera Mount
Anti-turtle Shark Fin

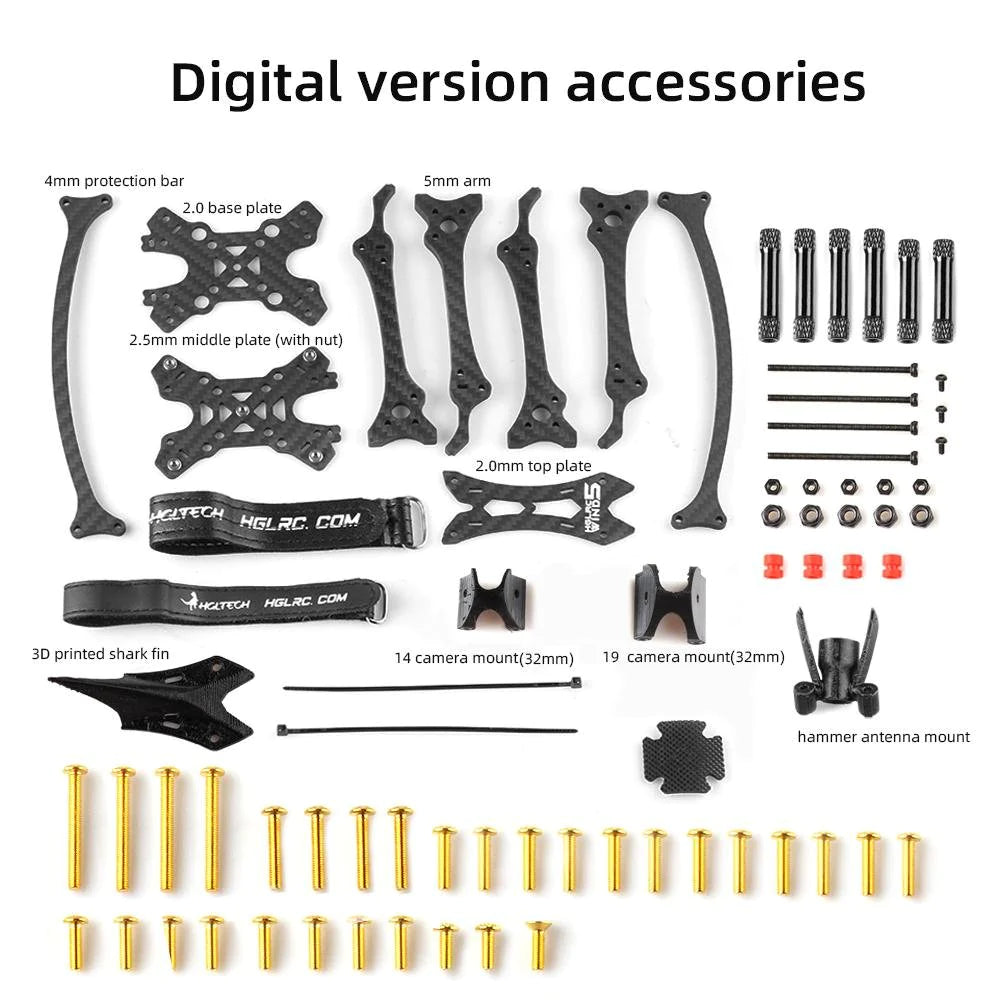

Package Included:
1x 2mm top plate
1x 2mm bottom plate
1x 2.5mm middle plate
4x 5mm arm
2x 4mm protective bar
4x M3*32mm black aluminum column
2x M3*30mm black aluminum column
4x round head screw M2*35
4x round head screw M3*16
12x round head screw M3*12
1x Sink head screw M3*10
2x round head screw M3*10
8x round head screw M3*8
2x round head screw M2*4
4x M2 Self-tightening nut
4x M3*6.6 shock absorber ball
1x Battery cable tie 15x250mm
1x Battery cable tie 20x250mm
1x Battery Anti-slip tape
2x strap
1X Anti-turtle Shark Fin
1X TPU hammer antenna mount
1X TPU Camera Nebula Pro Mount
Recommended Parts:( Not Included )
Flight Controller:Kiss/F4/F7 FC
Motor:2207/2306/2408
ESC:35A-65A
Camera:14x14/19x19mm size
Propeller:Sector 5 - 5.2 Inch
Battery:4S 1300mAh ~ 6S 1800mAh
HGLRC Wind5 Lite True X FRAME Kit 5 Inch for FPV Racing Drone
Brand Name:HGLRC
Model:Wind5 Lite Frame Kit
Material:3K Carbon Fiber
Type:5" frame
Wheelbase:208mm
size:148*148mm
Top plate thickness:2mm
Bottom plocte thickness:2mm
Middle plate thickness2.5mm
Arm Thickness:5mm
Top and middle plate spacing:25mm
Installation holes:20x20/30.5x30.5mm
Support camera:14mm
Weight:80g
Features:
Flight control installation damping system
4mm protective bar
SMA antenna Mount
Camera Mount
Anti-turtle Shark Fin

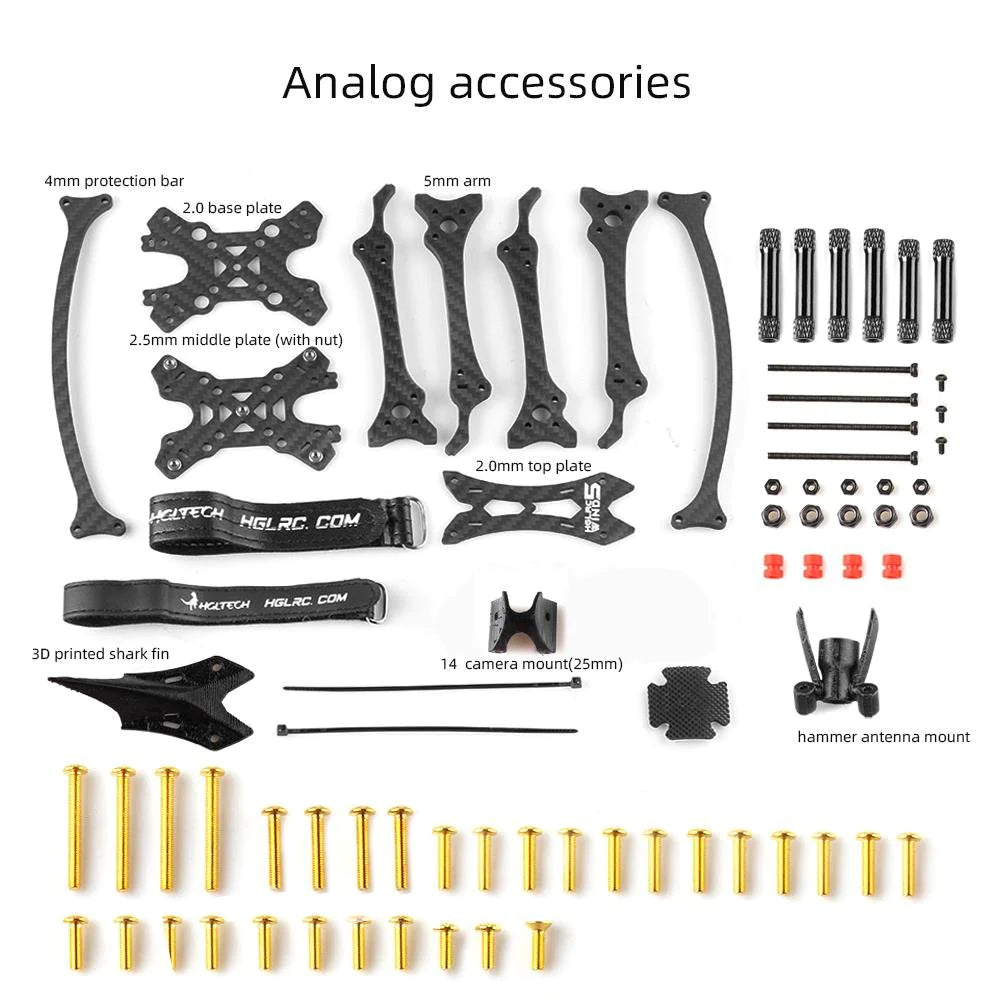

Package Included:
1x 2mm top plate
1x 2mm bottom plate
1x 2.5mm middle plate
4x 5mm arm
2x 4mm protective bar
4x M3*25mm black aluminum column
2x M3*23mm black aluminum column
4x round head screw M3*25
4x round head screw M3*16
12x round head screw M3*12
1x Sink head screw M3*10
2x round head screw M3*10
8x round head screw M3*8
2x round head screw M2*4
4x M3 Self-tightening nut
4x M3*6.6 shock absorber ball
1x Battery cable tie 15x250mm
1x Battery cable tie 20x250mm
1x Battery Anti-slip tape
2x strap
1X Anti-turtle Shark Fin
1X SMA antenna Mount
1X Camera Mount
Recommended Parts:( Not Included )
Flight Controller:Kiss/F4/F7 FC
Motor:2207/2306/2408
ESC:35A-65A
Camera:14x14mm size
Propeller:Sector 5 - 5.2 Inch
Battery:4S 1300mAh ~ 6S 1800mAh
