iFlight Mach R5 HD 6S w- Caddx Vista Polar HD Digital System ELRS 2.4

In response to our customer needs, this is our answer for all the racers in out there: The iFlight Mach R5 BNF! Equipped with XING2 2506 motors for more torque and efficiency as well as high speed and consistent lap times. We use Beast F7 55A AIO, the most powerful of our iFlight AIOs available currently. Quick-swap arm assembly for easy repair on your flying spot or race day. Enhanced canopy design with low wind resistance for maximum speed and efficiency.

• HD version: Caddx Polar

FEATURES:

• Super durable design, 6mm arms and 7075 CNC middle plate
• Super lightweight but superpower with our newest XING2 2506 motors
• 55A powerful Beast AIO power at small footprint
• New Caddx Vista Nabula nano HD version

HIGHLIGHTS:

• XING2 2506 1850KV motors
• Beast F7 55A AIO board (SKU:B010373）
• Caddx Nebula Nano Digital HD System Kit

PRE-TUNED & PRE-SETUP:
-Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
-To restore lost tunes or updates, please check our linked article on "Firmware/Factory Dumps"
-Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!
-Please check our linked article on "How to disable Angle-Mode, activate Acro-Mode"
FRAME // ：Mach R5

• -Wheelbase: 215mm
• -Main body dimension: 152*152mm
• -Arm thickness: 6mm
• -Bottom plate thickness: 3mm
• -Top plate thickness: 2.5mm
• -Middle Plate thickness: 2.5mm CNC 7075 aluminum alloy
• -TPU Camera plate
• -FC: 30.5*30.5/25.5*25.5mm/20*20mm
• -FPV Cam: 14mm /19mm Micro / 20mm

FC // Beast F7 AIO
Specifications:

• MCU: BGA-STM32F745
• Gyro: MPU6000
• Blackbox: 16Mb Onboard Flash
• BEC output: 5V 2.5A
• Barometer: DPS310
• Connector: Micro-USB
• OSD: AT7456E
• FC Firmware：IFLIGHT_F745_AIO
• Mounting pattern: 25.5*25.5mm φ3mm
• Dimensions: 32.5*32.5mm
• Weight: 8.5g

ESC // 55A 2-6S
Specification:

• UARTs: 5
• Current Sensor: Yes
• Input: 2-6S LIPO
• Current scale: 200
• Constant: 55A / Burst: 60A
• BLHeli: BLHeli-S
• Telemetry: no
• ESC Firmware: BlheliS G-H-30 BLS
• Mounting pattern: 25.5*25.5mm/Φ3mm
• Dimensions: 32.5*32.5mm

Mach R5 HD Quad BNF Included Components and Parts

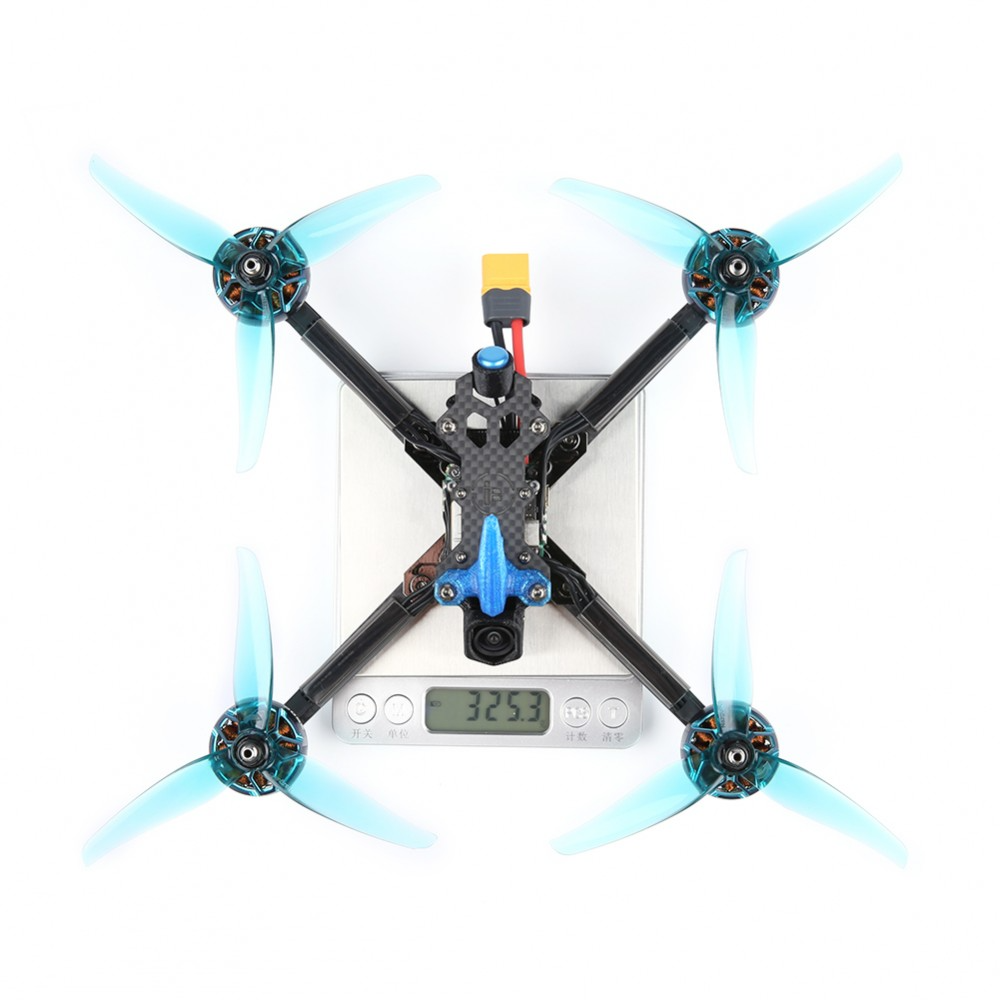

Prebuilt and tested Quadcopter

• 1x Mach R5 HD Frame
• 1x Caddx Polar Digital HD System Kit
• 1x Sigma LHCP Ipex/UFL 5.8g antenna
• 2sets x Nazgul R5 3-blades (Set of 4 - Color may vary)
• 1x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)
