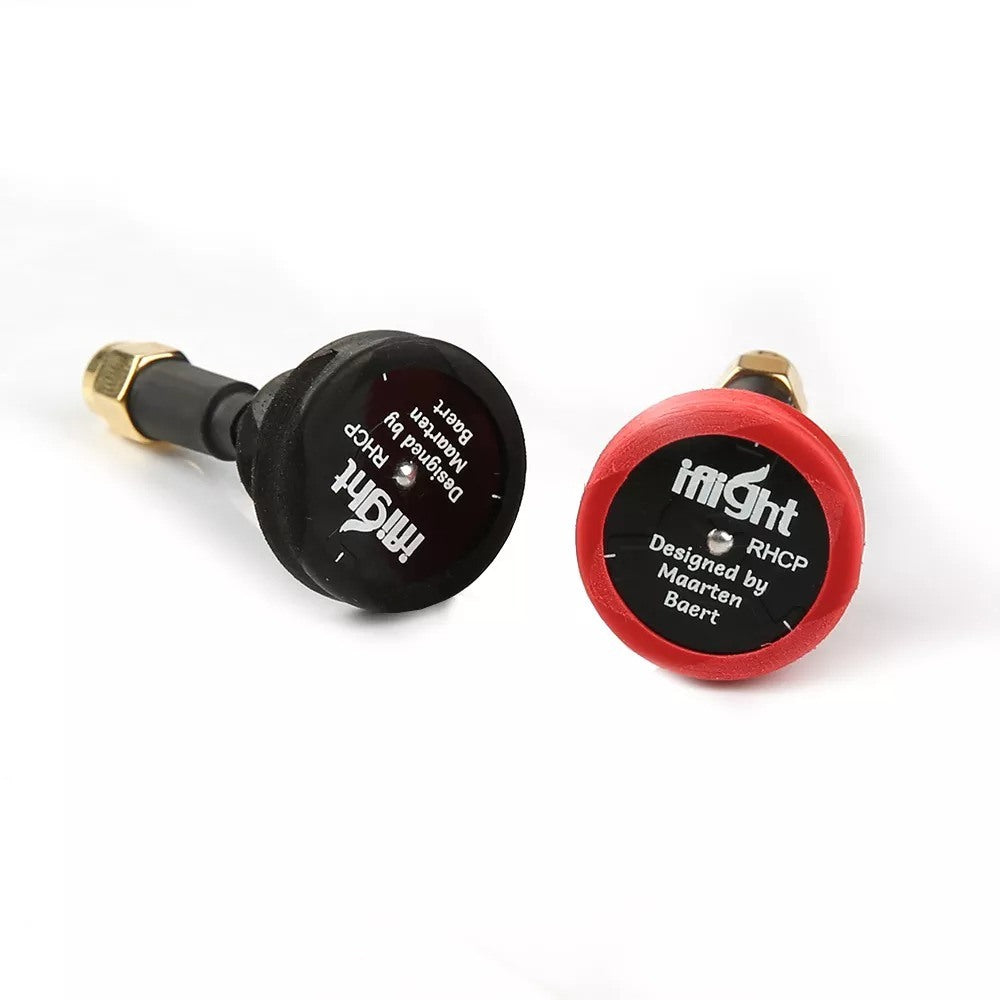

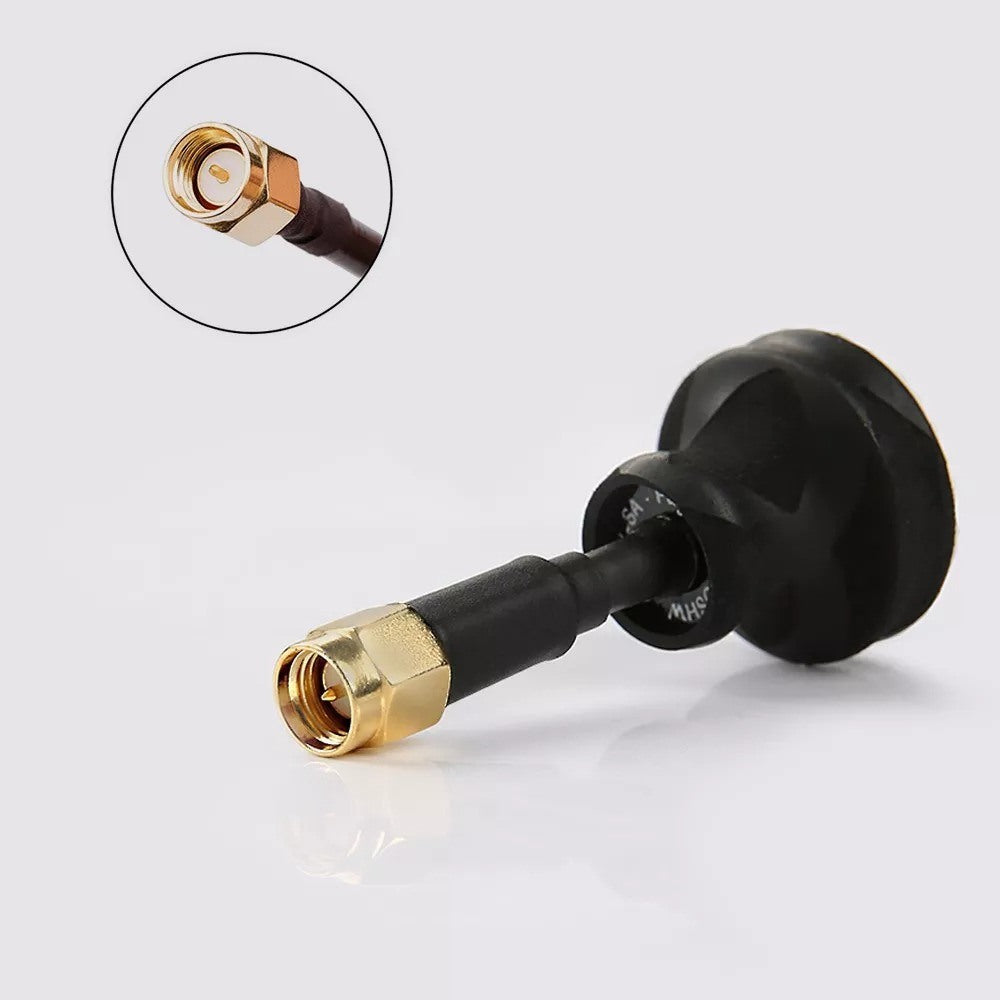

iFlight Pagoda 2 5.8GHz FPV Antenna 50mm SMA Black
iFlight Pagoda 2 5.8GHz FPV Antenna 50mm SMA Black
iFlight Pagoda 2 5.8GHz FPV Antenna 50mm SMA Black
iFlight Pagoda 2 5.8GHz FPV Antenna 50mm SMA Black

iFlight Pagoda 2 5.8GHz FPV Antenna 50mm SMA Black

Specification:Brand Name: iFlightCenter frequency: 5.8 GHz                      Bandwidth:...
Vendor: I-FLIGHT
Availability: Out Of Stock
$9.90
$9.90
Subtotal: $9.90
iFlight Pagoda 2 5.8GHz FPV Antenna 50mm SMA Black

iFlight Pagoda 2 5.8GHz FPV Antenna 50mm SMA Black

$9.90

iFlight Pagoda 2 5.8GHz FPV Antenna 50mm SMA Black

$9.90

Specification:
Brand Name: iFlight
Center frequency: 5.8 GHz

Bandwidth: 500 MHz (5.55 – 6.05 GHz)
Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
Axial ratio: < 1.3
Radiation efficiency: 95%
Bandwidth: 500 MHz (5.55 - 6.05 GHz)
Match: S11 < -20 dB, voltage standing wave ratio < 1.22 (at center frequency)
Axial ratio: < 1.3
Radiation efficiency: 95%
Bandwidth: 500 MHz (5.55 - 6.05 GHz)
Center frequency: 5.8 GHz

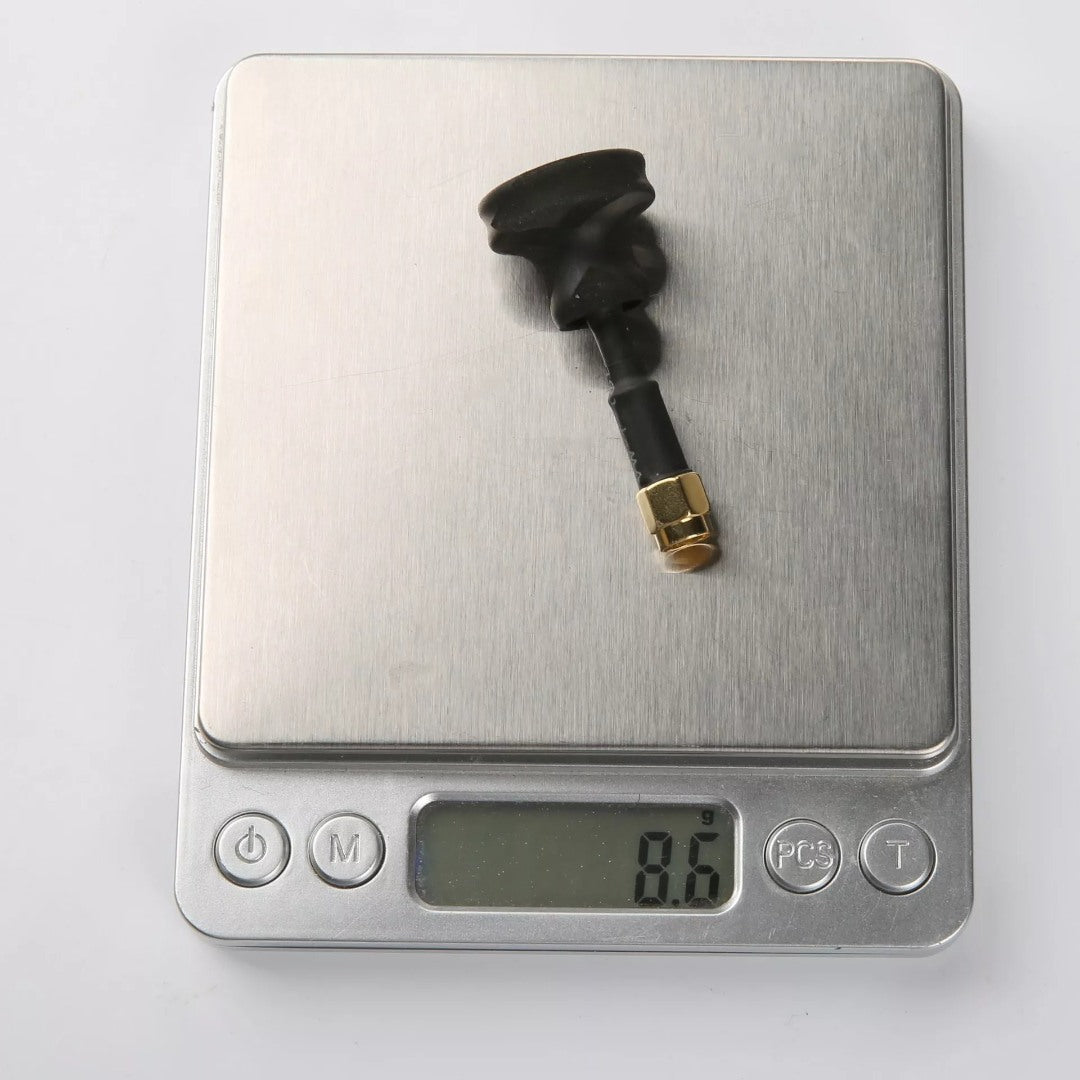

Weight: 85mm/9.9g    50mm/8.6g

Features:
* Omnidirectional circularly polarized antenna

*Light weight, small size, 22.5mm

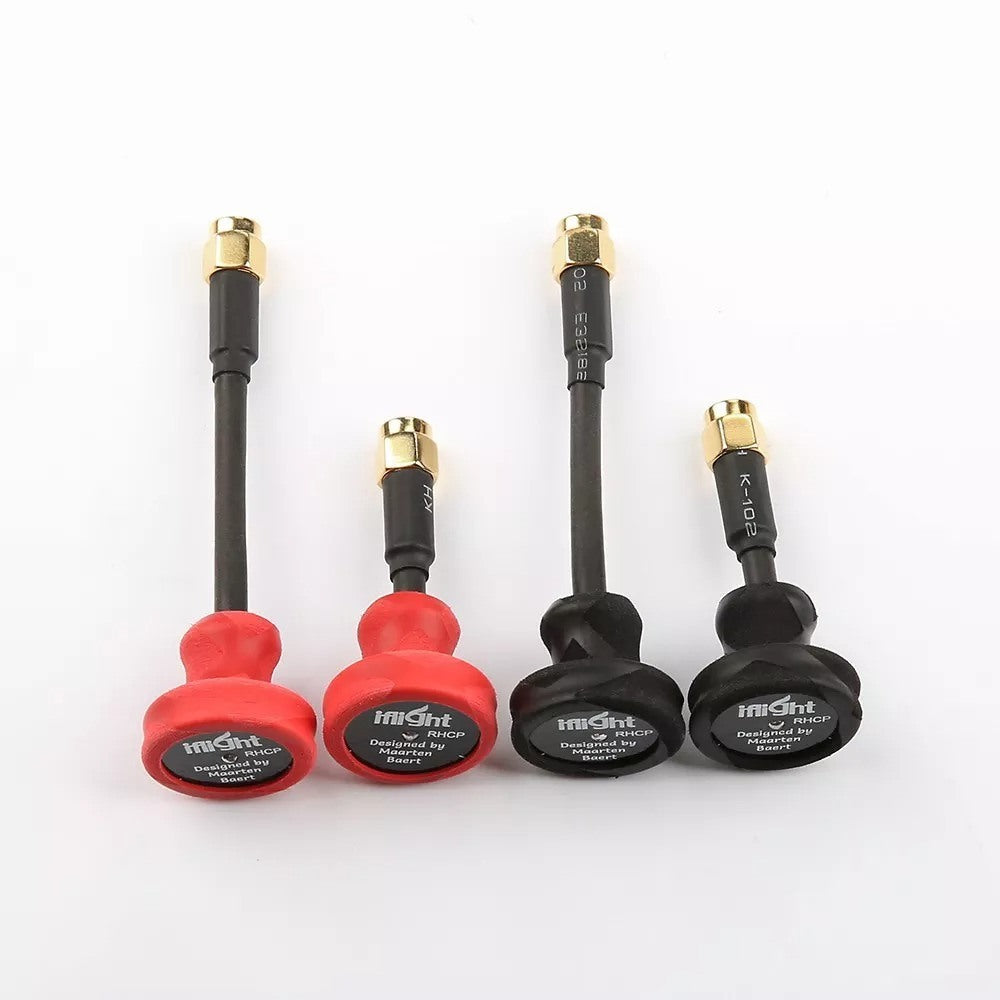

* Very durable less than the current omnidirectional antenna, 8.6 grams. Long section 85mm, short section 50mm

* Nearly perfect axial ratio of the new process metal main rod

* Very low standing wave smooth omnidirectional radiation receiving mode

Package included:
1 x Pagoda.8GHz FPV Antenna
