Invader Antenna 5.8Ghz Polarised Receiver Patch (LHCP SMA)

The INVADER antenna is a small compact receiving patch that packs outstanding performance when paired up with a circular polarised clover skew style transmitter antenna.

Features
Circular Polarized for left or right hand
Spironet Compatible
Compact low profile design on your goggles
Designed for goggles or base stations

Specification
Frequency Range: 5645 - 5945 Mhz
Gain: 6.5 dBi

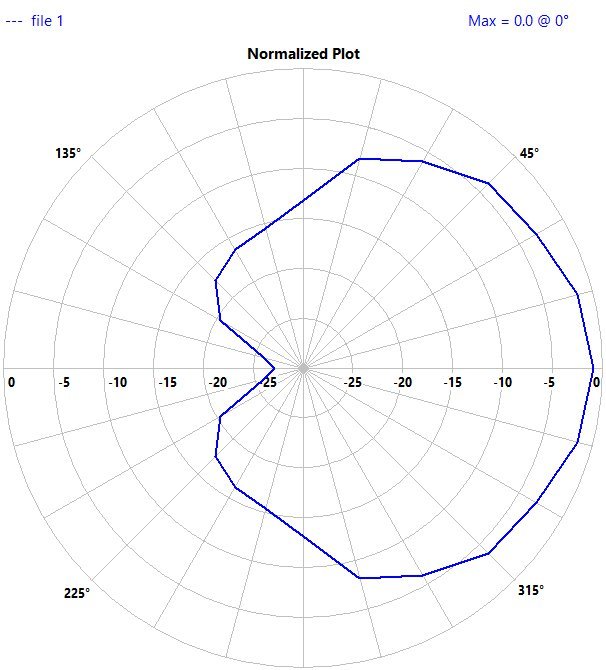

Beam Width: 150° at -7db, 120° at -5db, 90° at -3db
Left or Right Hand Circular Polarised ( LHCP or RHCP)
SMA Connector (Fits Fatshark Goggles)
Dimensions: 45mm x 41mm x 16mm
Weight: 11grams

Real World
Range in excess of 1Mile (1.6km) and 150m behind.
Tested with a 200mW Vtx
Reduced multipath propagation compared to 360 degree skew style receiving antenna’s.
