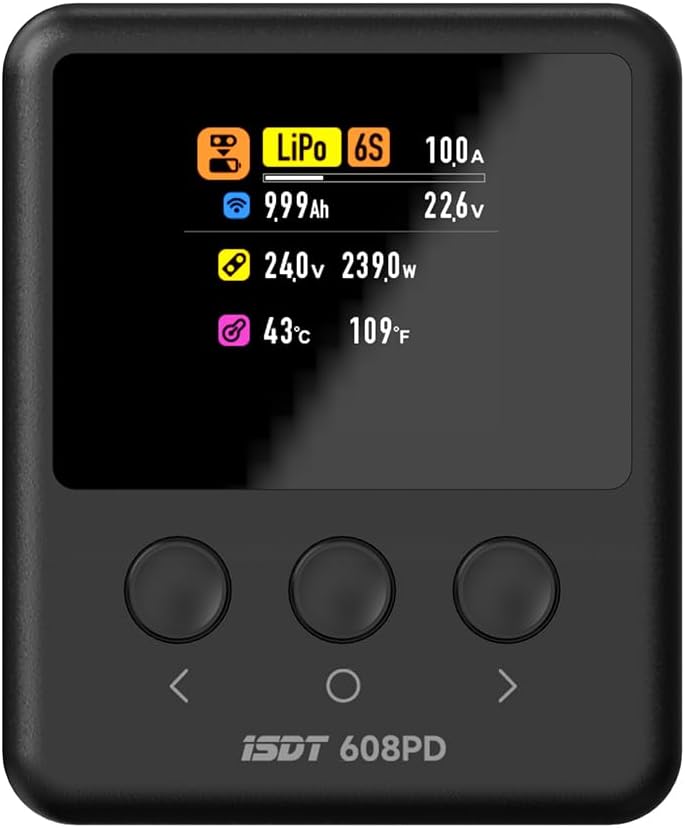

Like - the flexabilty of charging your rc batteries via USB - C then this charger is for you. charges up to 6S Lipos either via the USB-C port or the xt-60 dc port
You do require a decent USB C cable and a decent PD compatable USB power supply.Parameter :Maximum Input Current: DC 10A,USB-C 5A
Input voltage range: DC 5-30V, USB-C 5-28V
Output Voltage Range: DC 3.0~30V
Charging Current: 0.5~10.0A
Maximum charging power: 240W/10A,140W/5A
Maximum Discharge Power: USB-C 100W/5A
Support battery type and series: LiFe,LiPo,LiHv(4.35V~4.50V)1-6S/Pb 1-12S/NiMH 1-16S
Balance Current: 0.8A/Cell Max
Operating Temperature: 0~40℃ Storage Temperature: -20~60
Abnormal battery voltage alarm: Support
Alarm for string number setting error: Support
Dimension: 72.5×60×26.6mm
Weight: 85g(±10%)
Package include:1x ISDT 608PD Lipo Charger (puls a screen protector)
- 【RC battery charger with power mode! 】ISDT 608PD is equipped with a bidirectional USB-C port, which not only supports 140W input, but also supports 100W output. When the RC battery is used as a power source, it can charge our mobile phones, laptops and MacBooks with a max. output power of 100W. Yes, it is not only a 6s 240W lipo charger, but also a 100W USB C PD charger! The design allows energy to be diverted to save energy. (Power adapter and cable not included!!!)
- 【More worry and time saving】The new generation 608PD supports preset 5 battery types and battery parameters. One-click charging simplifies the operation steps for us. Charging operation is faster!

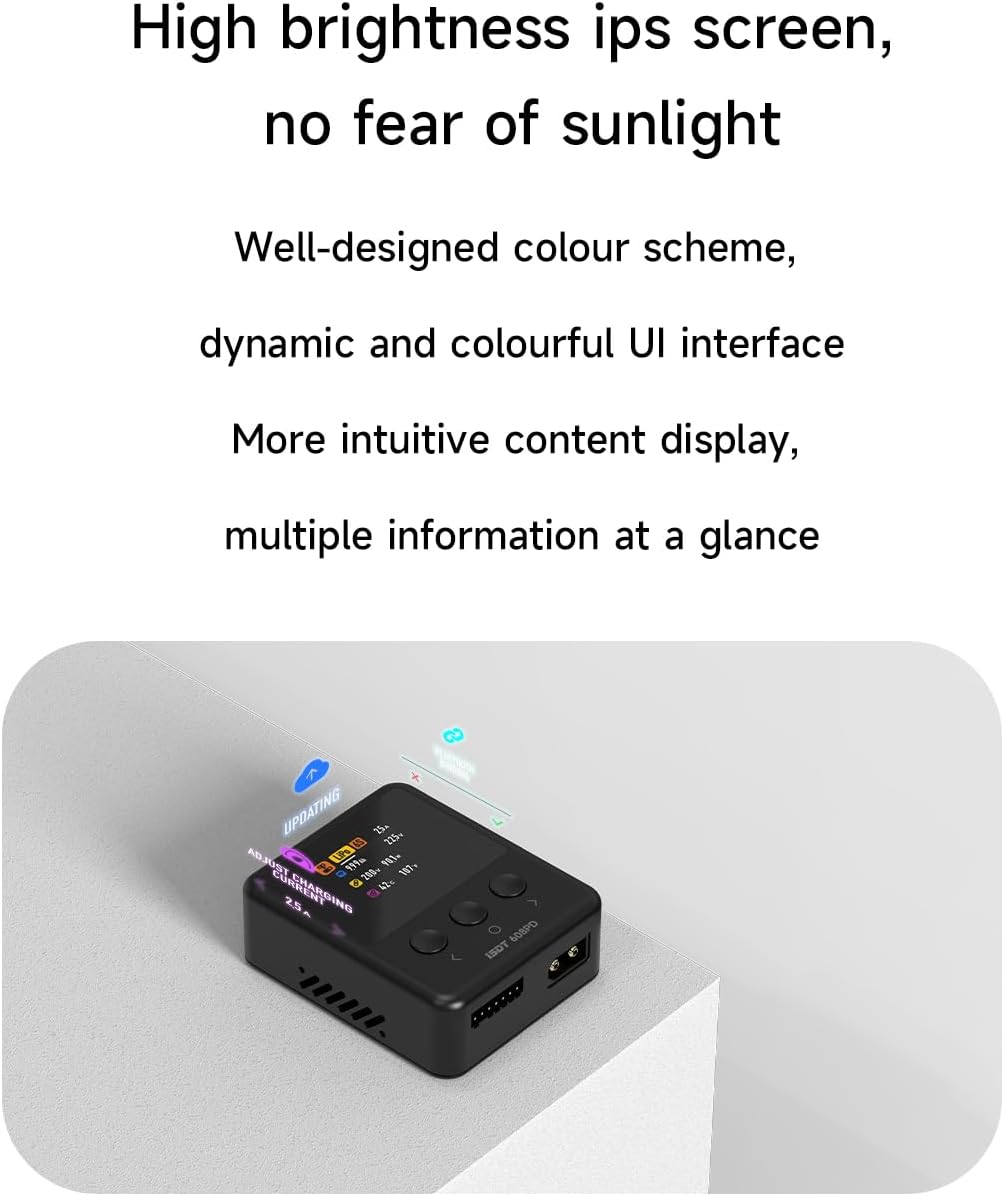

- 【IPS Screen:Low power consumption】 The lipo balance charger with a 1.5” IPS screen, auto-brightness adjustable, 178°visible angle，display clear and distinct even in varies hard environment or angles as well as in strong sunshine, reduce light damage to user’s eyes.
- 【Support "ISDLink" APP Remote Control 】In APP, you can perform an OTA upgrade of your lipo charger, preset charging tasks, monitor the charging process at any time. Wirelessly operate, awesomely simple. Besides, you also can upgrade the charger on PC by USB port.
- 【ISDT 6S charger with cooling fan】Advanced crafty cooling air duct ，Active cross-flow cooling air duct design, initiative ball bearing cooling fan, with accurate designed aluminum alloy fins and Hi-Tech silicon heat conduct pad, built up a High efficiency heat dissipation system.
Note: When 608PD uses PD input, if the computer is used as the power supply, the machine switch key will be locked due to insufficient power, but the app can operate the switch. Therefore, it is recommended to connect a power supply that supports PD output power.
