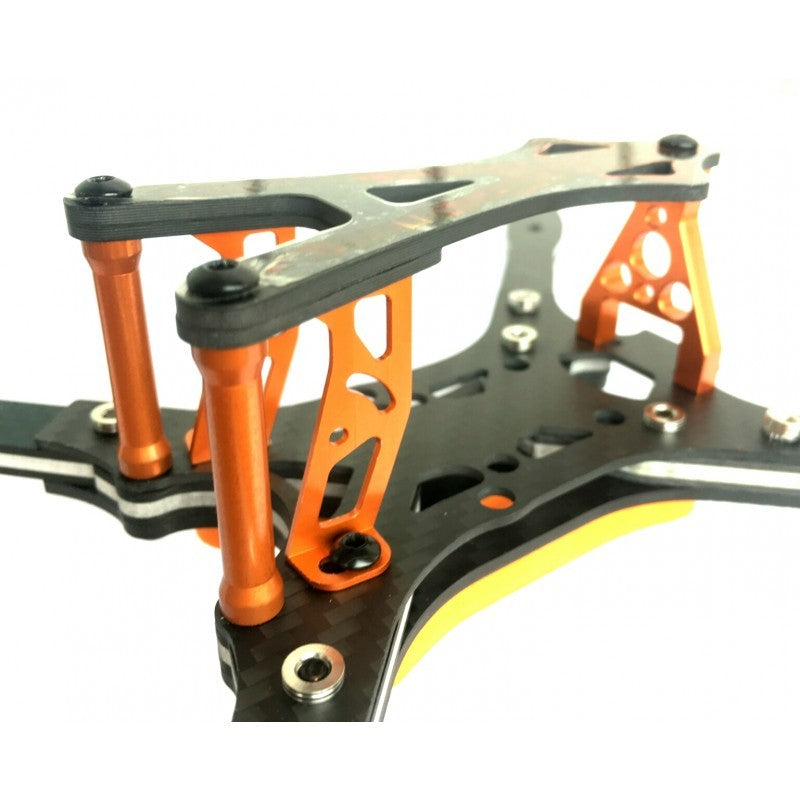

The frame is a semi stetch sitting half way between a symmetrical and full stretch. Also, the front and rear arms do not meet in the centre. Why you ask? You get most of the stretch flight benefits but none of the strength disadvantages. Essentially the arms are the same length as a regular symmetrical frame arm
Weight is approx 70g (TBC)Â
5mm thick custom foam sandwich arms.Â
Hybrid motor mount system for great strength on front arms
Fits mini cams with 4 point adj mount
Lens Check (cam bracket slides forward and aft by 3mm)Â
Thick 2mm top plate for strength
1mm integrated top front bumper
30mm 7045 standoffs
Rear 7075 multi purpose standoff
Integrated XT60 clampÂ
Integrated VTX antenna mount - regular
Compatible with unify and tramp antenna mount
Integrated 30.5 and 20x20 FC stack systemThe kit comprises of :
Front Arms - 2pcs
Rear Arms - 2pcs
Lower Bottom Plate - 2mm CF - 1pc
Upper Bottom Plate - 1.5mm CF - 1pc
Top Plate - 2mm - 1pc
Top Front Bumper - 1mm - 1pc
Bottom Front Bumper - 5mm - 1pc
Bottom Rear Bumper - 5mm - 1pc
7075 Front Standoff - 3pcs
7075Â Rear Standoff - 3pcs
Hardware Pack - 1 pack
Cam Brackets (L+R) - 1Â each
Battery Pad
Â
If you have access to a 3d Printer or have a friend with one check out the tpu pods that have been designed to fit this Frame
Make sure you tip the Author : )
