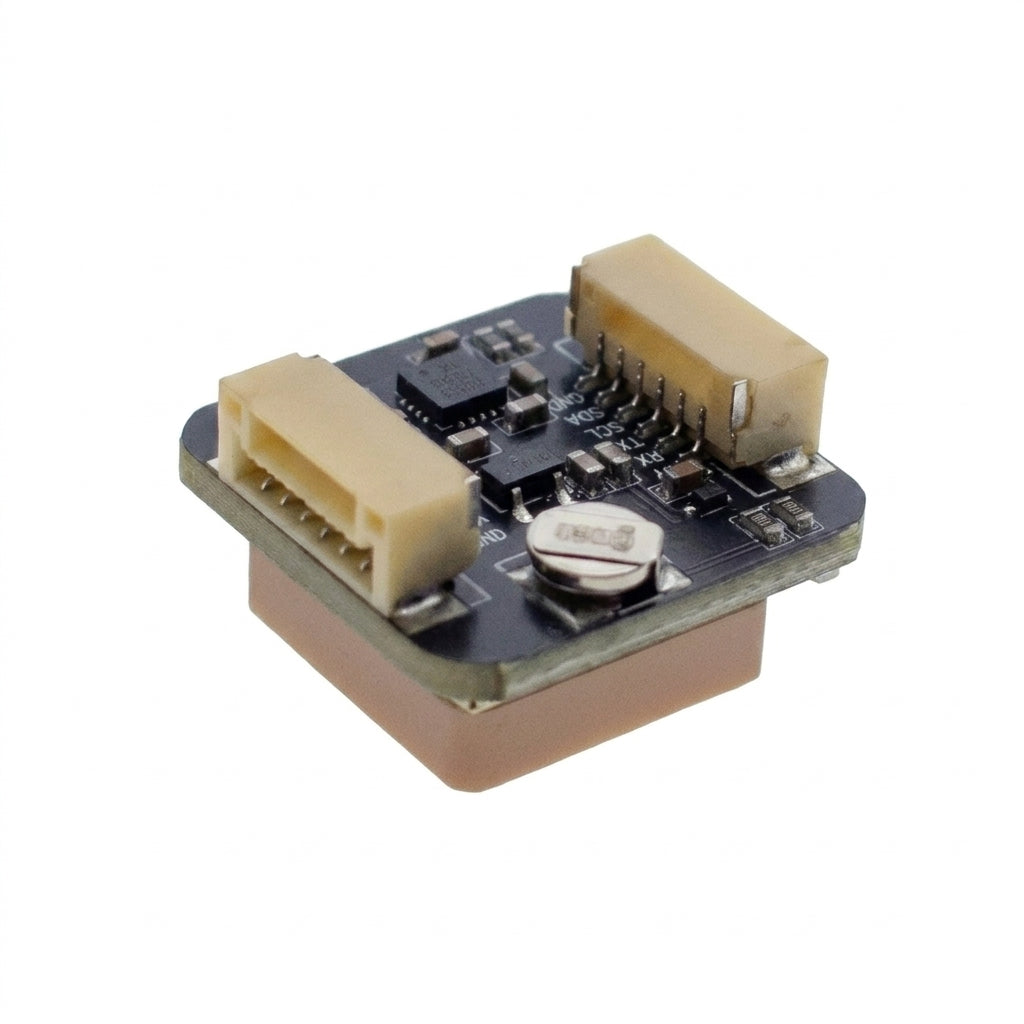

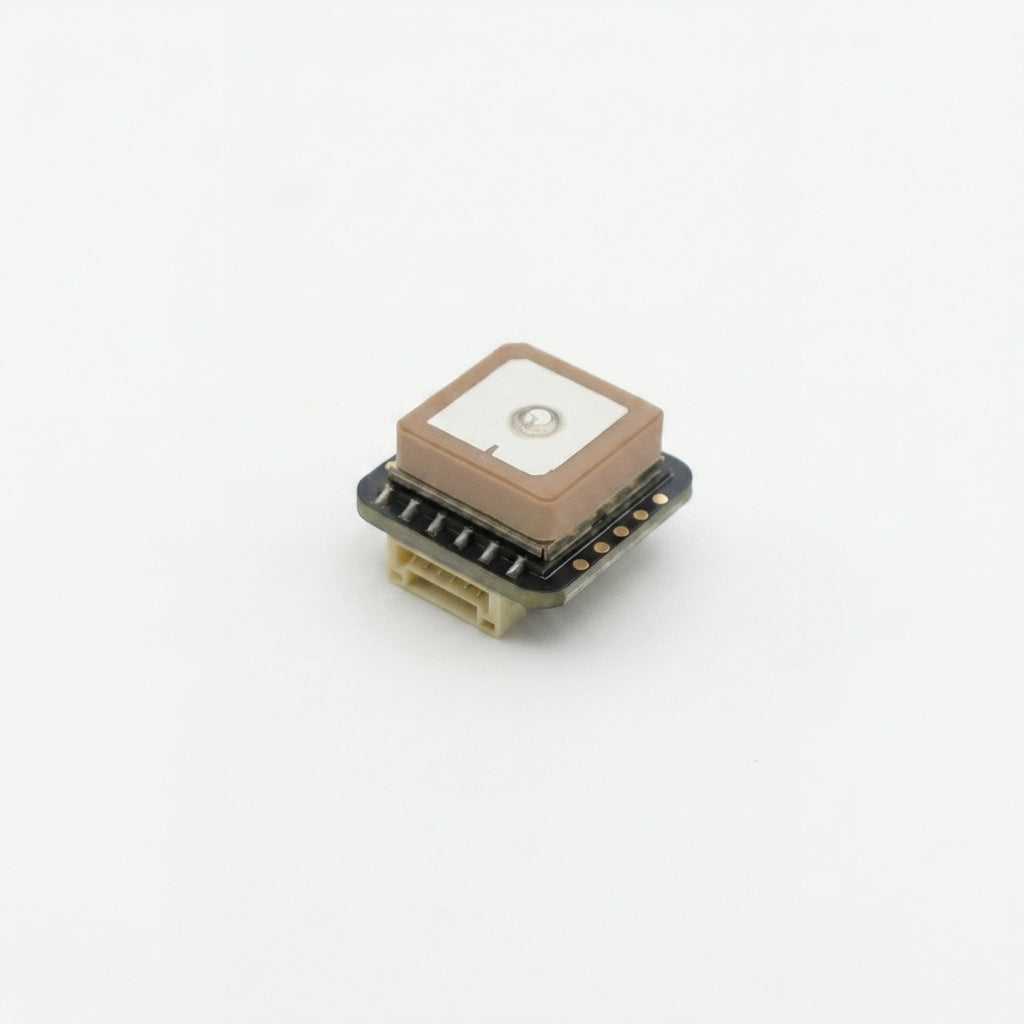

M10Q-5883 High-Precision GPS & Compass Module

Experience faster cold starts and rock-solid positioning with the M10Q-5883 GPS module. Built on the latest M10 platform, this module is designed for FPV pilots who need reliable GPS rescue and accurate heading data for long-range and cinematic builds.

Equipped with a high-gain ceramic antenna and an integrated QMC5883L compass, the M10Q-5883 offers superior satellite acquisition even in challenging environments. It's the perfect upgrade for pilots looking to replace older M8N units with a more efficient, multi-constellation solution.

Key Features

• M10 Multi-GNSS Engine: Supports GPS, GLONASS, Galileo, and BeiDou simultaneously for faster satellite locking and higher precision.

• Integrated QMC5883L Compass: Provides accurate heading information, essential for Betaflight GPS Rescue and stable navigation in INAV or ArduPilot.

• High-Gain Patch Antenna: Features a tuned ceramic antenna that provides a strong signal-to-noise ratio even when mounted near noisy electronics.

• Onboard Flash & Battery: Includes an internal memory chip and a farad capacitor for hot starts, allowing the module to re-acquire satellites almost instantly after a battery swap.

• Compact & Lightweight: Small enough for 3.5-inch builds while being powerful enough for 7-inch long-range cruisers.

Why You Need This

Legacy M8 series modules often struggle with slow lock times in the field. The M10Q-5883 utilizes the latest generation hardware to cut down waiting time, so you can get in the air faster with the confidence that your "Return to Home" will actually work when you need it.

Specifications

• GNSS: GPS / GLONASS / Galileo / BeiDou

• Magnetic Compass: QMC5883L

• Baud Rate: 9600bps - 115200bps (Default 115200bps)

• Update Rate: Up to 10Hz

• Input Voltage: 3.3V – 5.0V

• Dimensions: 25mm x 25mm x 8mm

• Weight 8g
