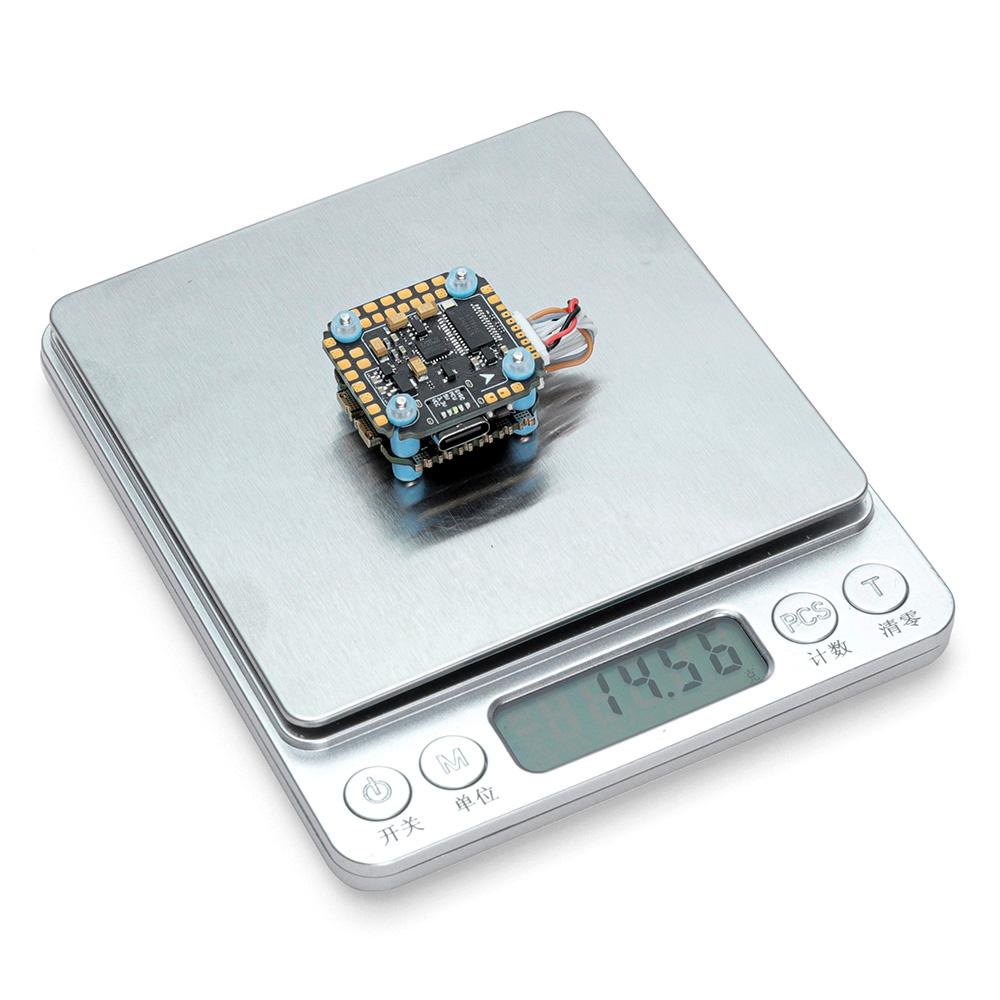

MAMBA BASIC F405 MINI MK3 STACK 30A

MAMBA Stack Basic F405 Mini MK3.5 30A 5S 8bit

Diagram Link From Help Centre Link

Fixed

1. Add I2C function
2. When you connect the USB, the receiver and OSD settings can be saved
3. Increase the pad area
4. LED signal selection （when Mamba Led sys available）
5. BEC short circuit protection
6. TVS instant high voltage protection 30V

Update

1. F405 models support F.prot（Most）
2. Upgrade the anti-interference cable
3. Use Typec（Most）
4. The pad area of Mini flight controller (20×20) increased by 140%

Added

1. Add self-recovery insurance to the receiver's 5V power supply
2. Increase the camera VCC power supply pad
3. The standard flight controller (30.5×30.5) adds a spare pad
4. Gyro uses an independent Low Dropout Regulator (Low Dropout Regulator) and reduces ripple interference

Specification:

FC Specifications
MAMAB Basic F405MINI MK3.5

MCU: 168MHz STM32F405RGT6
GYRO: MPU6000
Barometer: Yes
OSD: Yes
Blackbox: 16M Flash Memory
Uarts: 5 Set
ESC Soft: Dshot300/600
Power Led: Yes
LED Controller: BF LED

RSSI: Yes
Buzz: Yes
Input: 2~6S Lipo (8.4~25.2V)
TVS Protection: Yes
BEC:3.3V 0.5A&  5V 2.5A
MOUNTING: 20mm, M2
ESC Specifications

MAMBA F30 MINI
INPUT VOLTAGE: 2~5S Lipo (8.4V~21V)
CONTINUE CURRENT: 30A×4
BURST CURRENT: 40A (10S)
BEC: No
Target：BLHeli_S CH40
SOFT: Dshot300/600
TVS Protection: Yes
MOUNTING: 20mm, M2


Supply :
High-Frequency 470uF/35V ×1
8pin sh1.0  ×2
16AWG 60mm ×2
AMASS Original XT30
