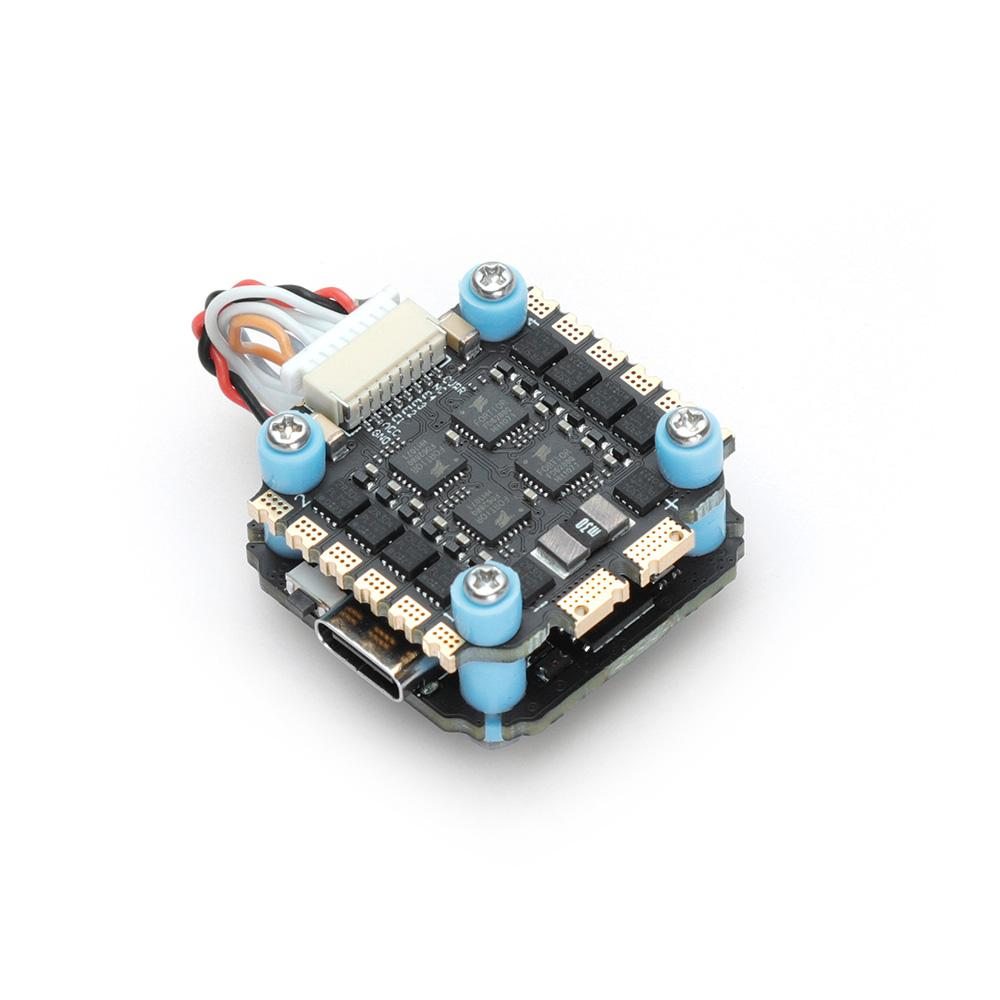

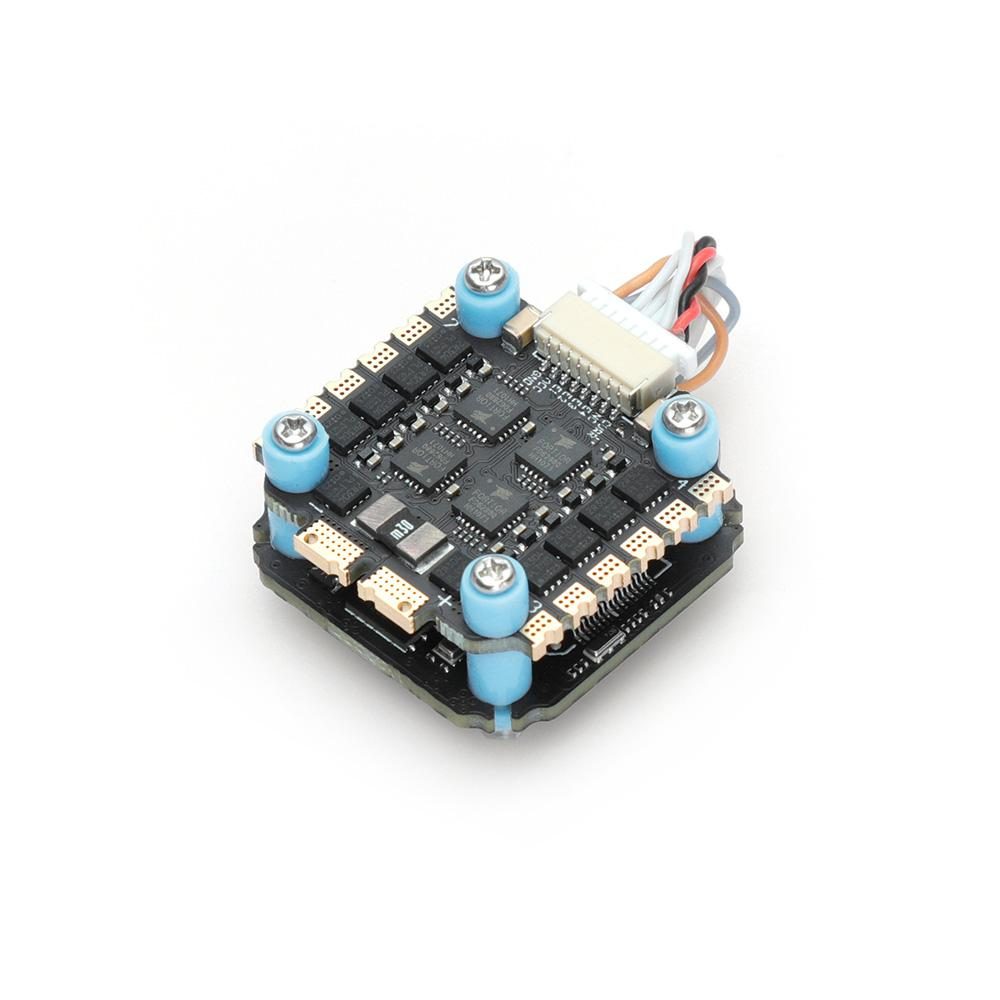

MAMBA BASIC F722 MINI MK3 STACK 40A

MAMBA Stack Basic F722 Mini MK3 40A 6S 8bit

Diagram Link From Help Centre Link

Fixed

• Add I2C function
• When you connect the USB, the receiver and OSD settings can be saved
• Increase the pad area
• LED signal selection （when Mamba Led sys avaiable）
• BEC short circuit protection
• TVS instant high voltage protection 30V

Update

• Upgrade the anti-interference cable
• Use Typec（Most）
• The pad area of the Mini flight controller (20×20) increased by 140%

Added

• Add self-recovery insurance to the receiver's 5V power supply.
• Increase the camera VCC power supply pad.
• The standard flight controller (30.5×30.5) adds a spare pad.
• Gyro uses an independent Low Dropout Regulator (Low Dropout Regulator) and reduces ripple interference.

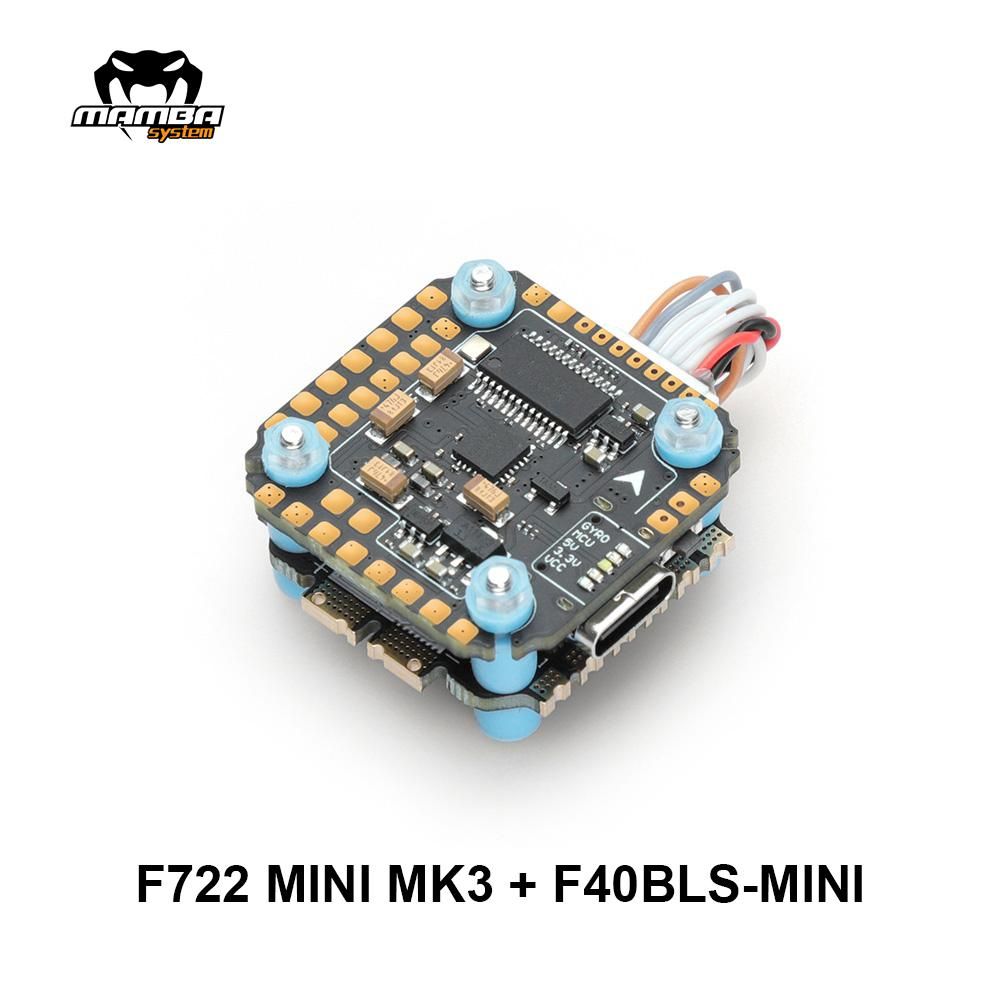

Model： Mamba Stack Basic F722 Mini MK3 40A BLS 6S

FC Specifications

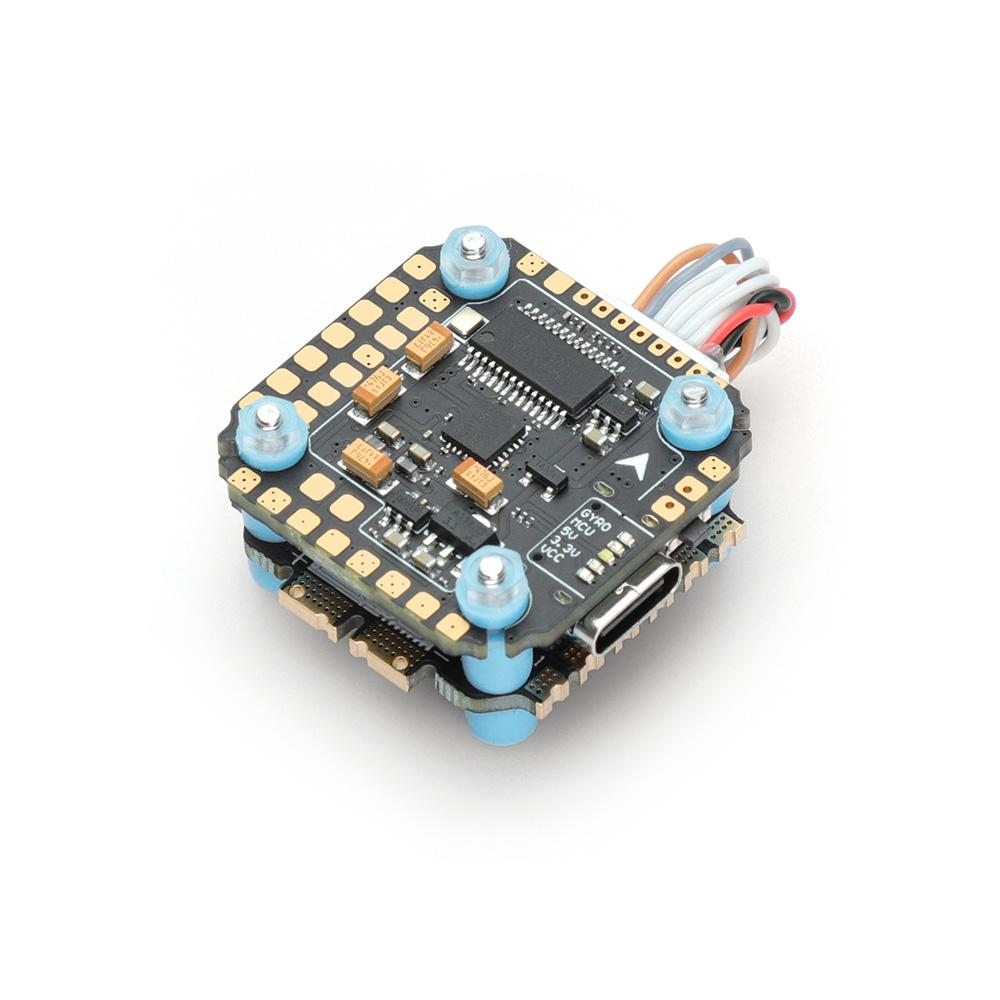

MAMBA Basic F722MINI MK3
MCU: 216MHz STM32F722RET6
GYRO: MPU6000
Barometer: Yes
OSD: Yes
Blackbox: 16M Flash Memory
Uarts: 6 Set
ESC Soft: Dshot300/600
ESC Telemetry: Yes
Power Led: Yes
LED Controller: BF LED
S/F.Port: Yes
RSSI: Yes
Buzz: Yes
Input: 2~6S Lipo (8.4~25.2V)
TVS Protection: Yes
BEC:3.3V 0.5A&  5V 2.5A
MOUNTING: 20mm, M2

ESC Specifications
MAMBA F40_BLS MINI
INPUT VOLTAGE: 2~6S Lipo (8.4V~25V)
CONTINUE CURRENT: 40A×4
BURST CURRENT: 45A (10S)
BEC: No
Target：BLHeli_S CH40
SOFT: Dshot300/600
TVS Protection: Yes
MOUNTING: 20mm, M3/M2


Supply :
High-Frequency 470uF/35V ×1
8pin sh1.0  ×2
16AWG 60mm ×2
AMASS Original XT60
