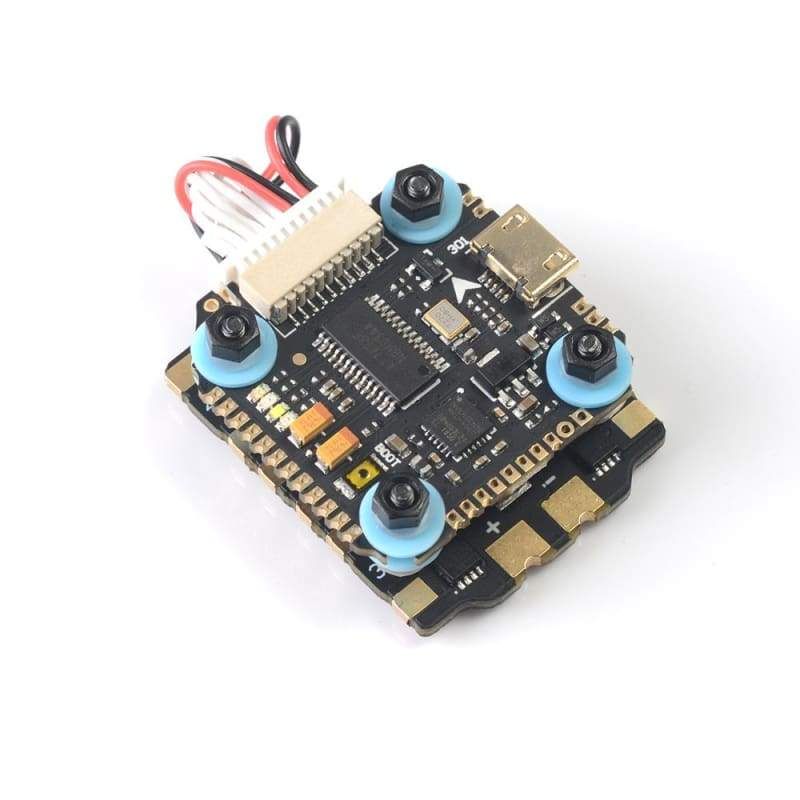

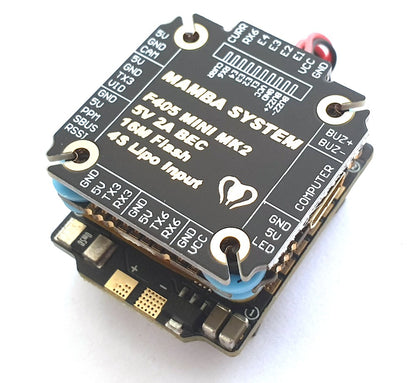

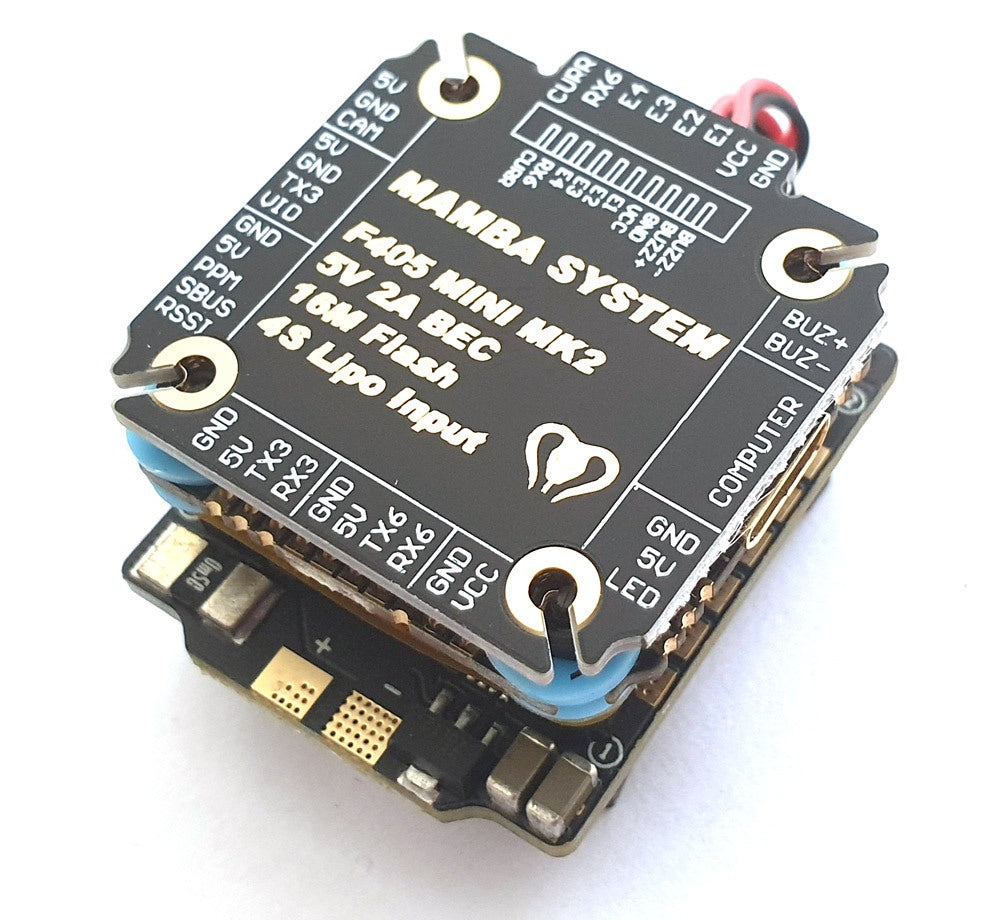

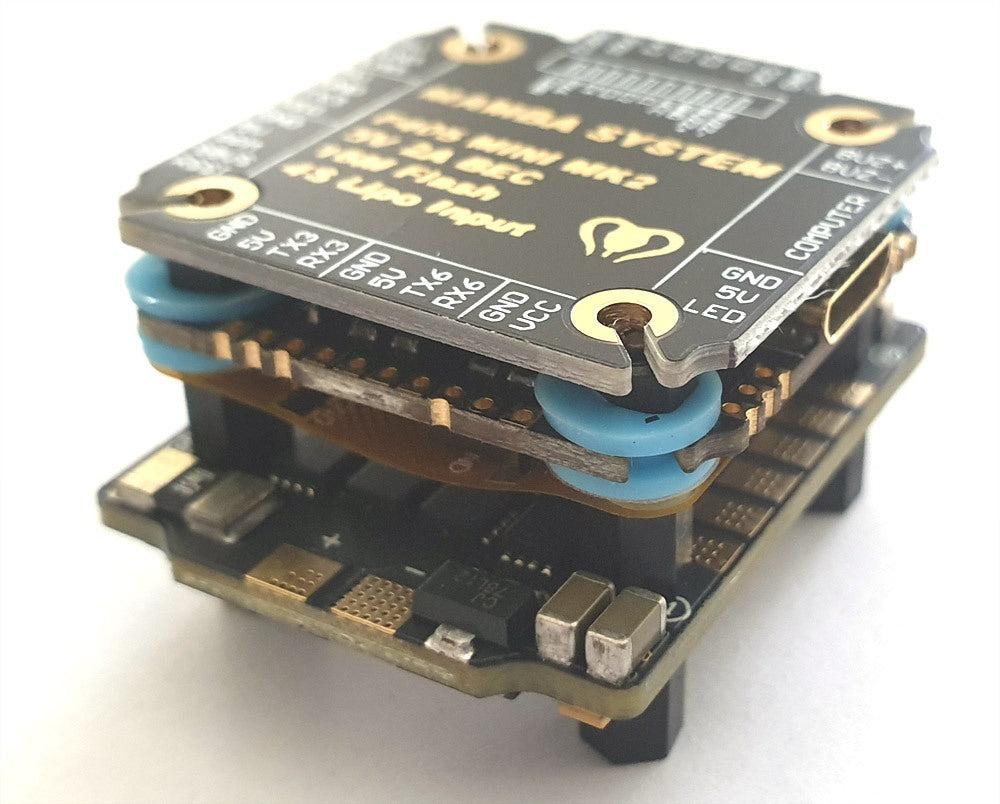

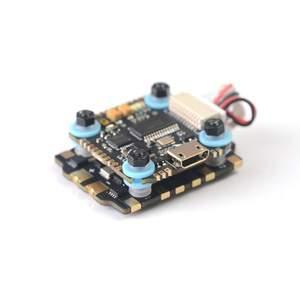

MAMBA F405 MK2 Mini Betaflight Flight Controller & F25 25A 2-4S DSHOT600 FPV Racing Brushless ESC
Latest Version with the Stacking / info plate and the EMF Shielding layer between esc and Flight controller
Specification:

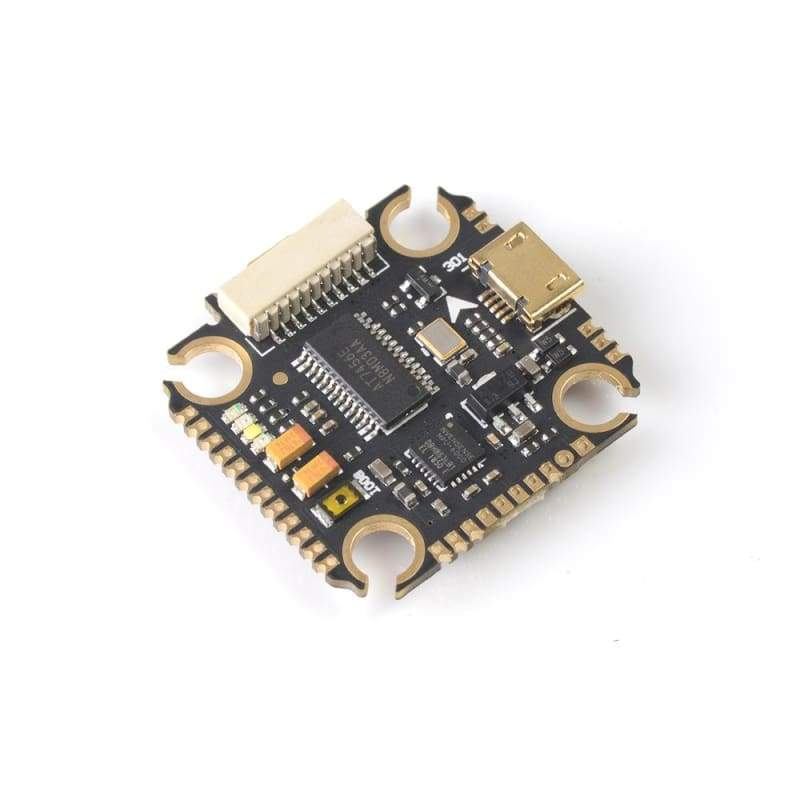

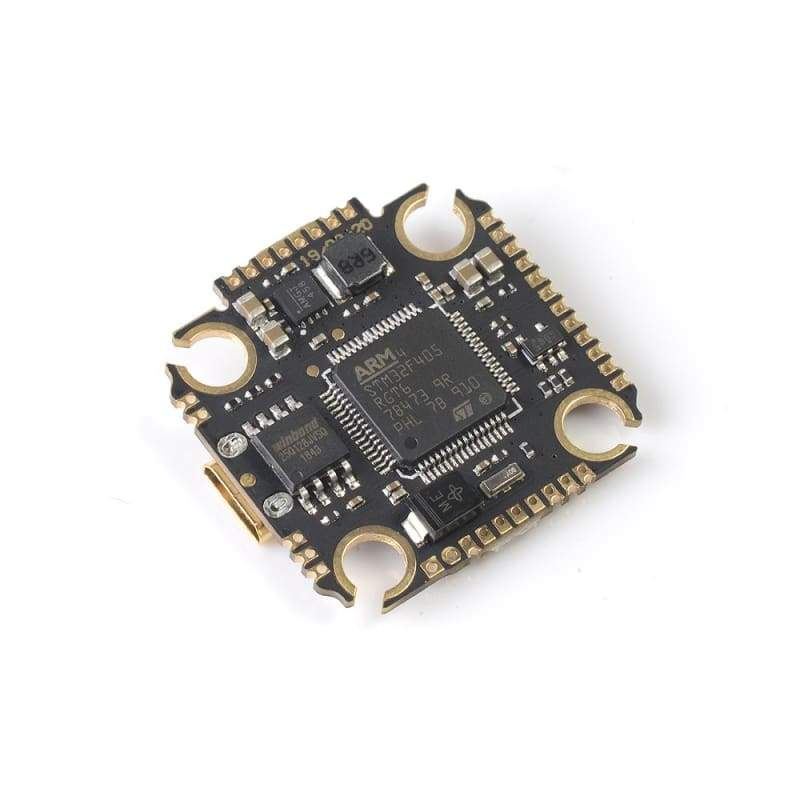

Mamba F405 Mini FC MK2
Mamba F405 Mini FC MK2
Item name: F405 mini Betaflight Flight Controller
Input: 2~4S LIPO (7.4V~16.8V)
BEC: 5V 1A
MCU: STM32F405
Gyro: MPU6000
FLASH: 16M
OSD: AT7456
Mounting: M3
Weight: 3.5g
Mamba F25 ESC
Item name: Mamba F25HV ESC
Input voltage: 2~4S (7.4V~16.8V)
Curr :139A
BEC: NO
Size: 30×30×5mm
Mounting: M3
Weight: 7g
Capacitance: Samsung 242UF(22UF×11pcs)
Package Included:
1 x Mamba F4 Mini Betaflight Flight Controller
1 x Mamba F25 HV ESC
