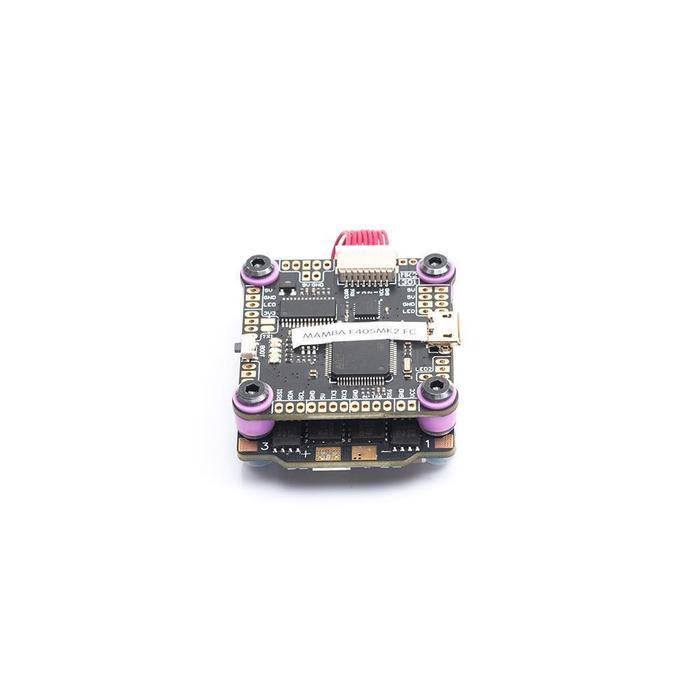

Mamba F405 MK2 Stack - 40A ESC 30x30
Mamba F405 MK2 Stack - 40A ESC 30x30
Mamba F405 MK2 Stack - 40A ESC 30x30
Mamba F405 MK2 Stack - 40A ESC 30x30
Mamba F405 MK2 Stack - 40A ESC 30x30
Mamba F405 MK2 Stack - 40A ESC 30x30

Mamba F405 MK2 Stack - 40A ESC 30x30

MAMBA F405 Betaflight Flight Controller & F40 40A 3-6S DSHOT600 FPV Racing Brushless ESCManual linkSpecification:Mamba F405 FCItem...
Vendor: DIATONE
Availability: Out Of Stock
$118.00
$118.00
Subtotal: $118.00
Mamba F405 MK2 Stack - 40A ESC 30x30

Mamba F405 MK2 Stack - 40A ESC 30x30

$118.00

Mamba F405 MK2 Stack - 40A ESC 30x30

$118.00

MAMBA F405 Betaflight Flight Controller & F40 40A 3-6S DSHOT600 FPV Racing Brushless ESC

Manual link


Specification:


Mamba F405 FC

Item name: F405 Betaflight Flight Controller

Input power: 12.6-25V (3-6S)

BEC: 5V/1.5A

MCU: STM32F405

Gyro: MPU6000

Flash: 16MB

OSD: AT7456

Mounting hole: M3

Weight: 6g





Description:

INPUT VOLTAGE: 3~6S Lipo (12.6V~25V)

CONTINUE CURRENT: 40A×4 BURST

CURRENT: 50A (10S)

BEC: NO

MOUNTING: 30.5mm/M3

CURR: 169A

Capacitance: Samsung 564UF(47UF×12pcs)

About Current: 50A/4S OR 40A/5S (The same total power)

Motor:Suggest Below  1900KV  for 6S



Mounting: 30mm / φM3

Weight: 10g




Package Included:

1 x Mamba F405 Betaflight Flight Controller

1 x Mamba F40 HV ESC
