MAMBA F722 APP F50PRO 3-6S FLIGHT CONTROLLER STACK

MAMBA F722S APP  I2C WIFI  F50PRO 3-6S Flight Controller Stack

FIRMWARE TARGET /CONFIG： MAMBA F722 I2C

About WIFI APP

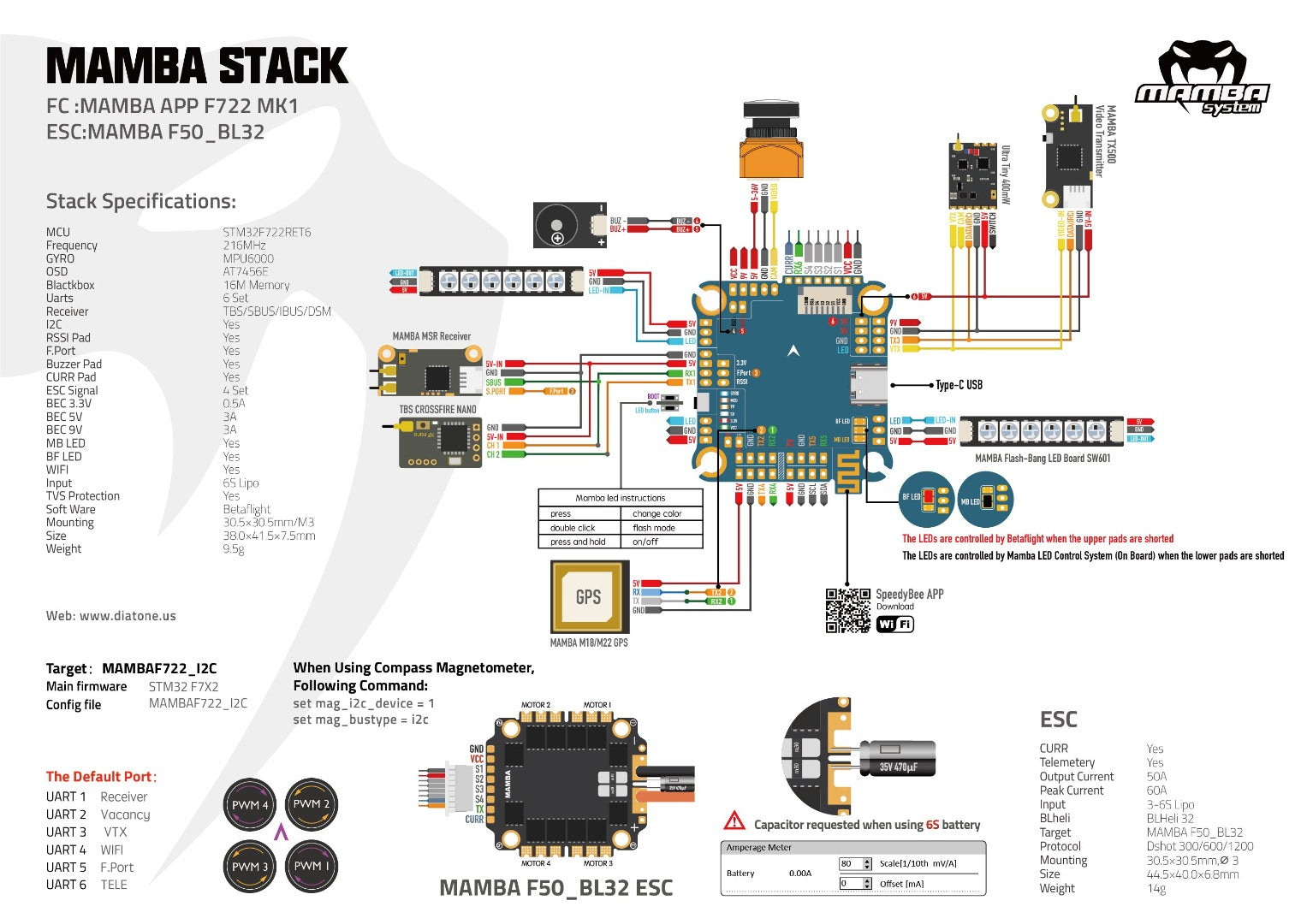

Diagram Link From Help Centre Link

Note：Since STM32F722 heat large ， please leave at least 5mm interspace at both sides of the FC with nothing covered to make sure a good air circulation.

Update Details:
BT to WiFi
USB power supply can use receiver, OSD
Add a group of I2C pads (SCL SDA)
Add inverter Dual-Way TX serial port
Add 2812 LED switch function, key can turn off led
Add 4 corner LED interface to support BF led and Mamba led
Upgrade to stronger type-C, optimize pad position

FC Specifications
MCU: 216MHz STM32F722RET6 32BIT
IMU: MPU6000
Barometer: No
OSD: BF OSD
Blacbox: 16M Flash Memory
Uarts: 6Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: RX6
LED indicator: Blue&Orange for FC Status,Green 9V,White 5V,Red 3.3V
LED Controller:BF LED/MB LED（ 4 Set 2812 LED）
WIFI: SpeedyBee APP
Smartaudio: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25V)
TVS Protection: Yes
BEC: 5V 2.5A & 9V 2A (Max 3A)
MOUNTING: 30.5mm/M3 WEIGHT: 9g
Supply :
8pin sh1.0 *1

Smartaudio: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25V)
VTS Protection: Yes

ESC Specifications

F50PRO

INPUT VOLTAGE: 3~6S Lipo (12.6V~25V)

CONTINUE CURRENT: 50A×4

BURST CURRENT: 60A (10S)

BEC: NO

ESC Dshot300/600/1200

MOUNTING: 30.5mm/M3

Supply : Panasonic High Frequency 470uF/35V

Mounting: 30.5×30.5mm,Φ3
Dimensions:
Weight: 22g
Including
1× MAMBA F722 APP <WIFI>  F50PRO

About  SpeedyBee Function：

For  WIFI

For  BlueTooth
