MAMBA F722 MINI STACK

FC Specifications
MCU: 216MHz STM32F722RET6 32BIT
IMU: MPU6000
Baro: No
OSD: BF OSD
Blacbox: 16M Flash Memory
Uarts: 6Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: RX2
LED: Blue&Orange for FC Status,,White 5V,Red 3.3V
WS2812 LED Control: BF LED Control
Smartaudio: Yes
RSSI: Yes
Buzz: Yes
Input: 2~6S Lipo (8.4~25V)
VTS Protection: Yes
BEC: 5V 2A (Max 3A)

ESC Specifications

INPUT VOLTAGE: 2~6S Lipo (7.4V~25V)

CONTINUE CURRENT: 30A×4

BURST CURRENT: 35A (10S)

BEC: NO SOFT: Dshot300/600/1200

MOUNTING: 20mm/M2

Supply : Panasonic High Frequency 470uF/35V

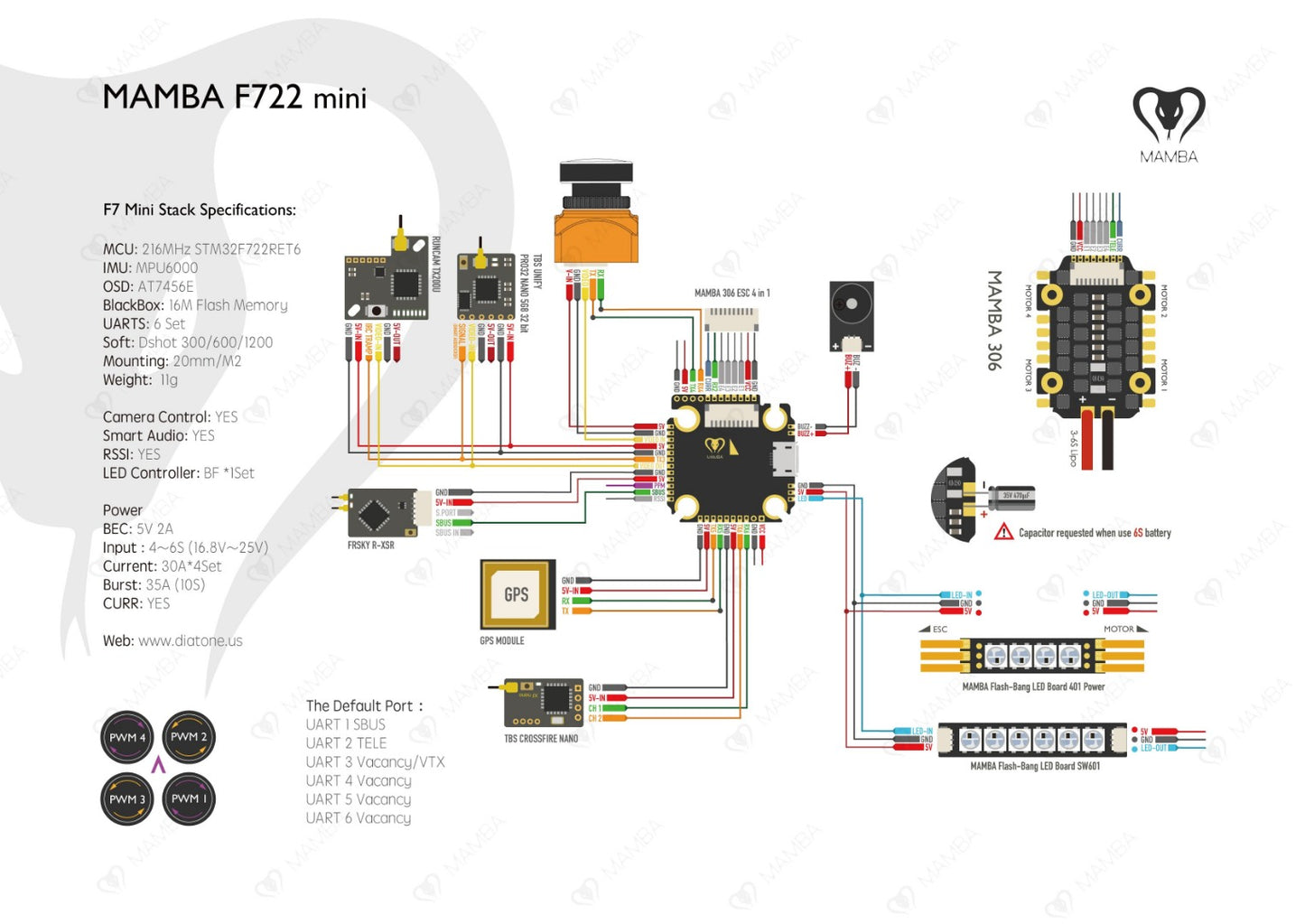

Diagram Link

FC Firmware
BetaFlight
Target: MAMBA F722 （uploading.....）

Download Link
Mounting: 20×20mm,Φ2
Dimensions: 30×36.5×13.5mm
Weight: 11g
Including
1×FC MAMBA F722MINI Stack
