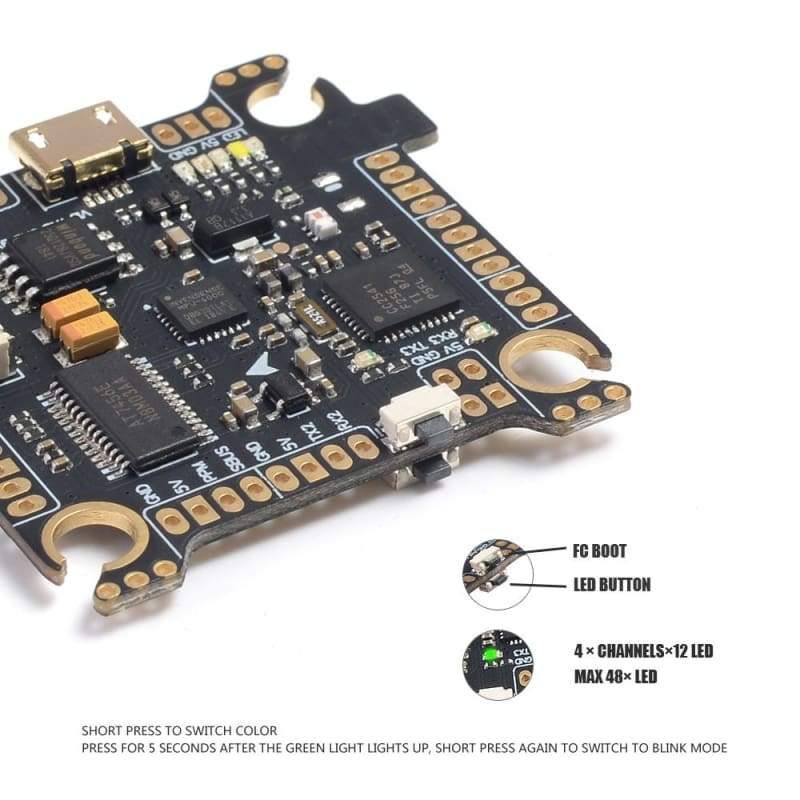

MAMBA F722S STACK-F50PRO

New Version !! 50A ESC

FIRMWARE TARGET ： MAMBA F722 （LEGACY）

 Diagram Link From Help Centre Link

Note：Because STM32F722 Produce a lot of Heat， please leave at least 5mm gap at both sides of the FC with nothing covering And ensure good air circulation.

FC Specifications
MCU: 216MHz STM32F722RET6 32BIT
IMU: MPU6000
Baro: No
OSD: BF OSD
Black Box: 16M Flash Memory
Uarts: 6Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: RX6
LED: Blue&Orange for FC Status,,Green 9V,White 5V,Red 3.3V
Controller: 4 Set 2812 LED

Bluetooth: SpeedyBee APP

Smartaudio: Yes
RSSI: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25V)
VTS Protection: Yes
BEC: 5V 2A & 9V 2A (Max 3A)

ESC Specifications

F50PRO

INPUT VOLTAGE: 3~6S Lipo (12.6V~25V)

CONTINUE CURRENT: 50A×4

BURST CURRENT: 55A (10S)

BEC: NO

SOFT: Dshot300/600/1200

MOUNTING: 30.5mm/M3

Supply : Panasonic High Frequency 470uF/35V


FC Firmware
BetaFlight
Target: MAMBA F722 （uploading...）
Download Link
Mounting: 30.5×30.5mm,Φ3
Dimensions:
Weight: 22g
Including
1×FC MAMBA F722S STACK
