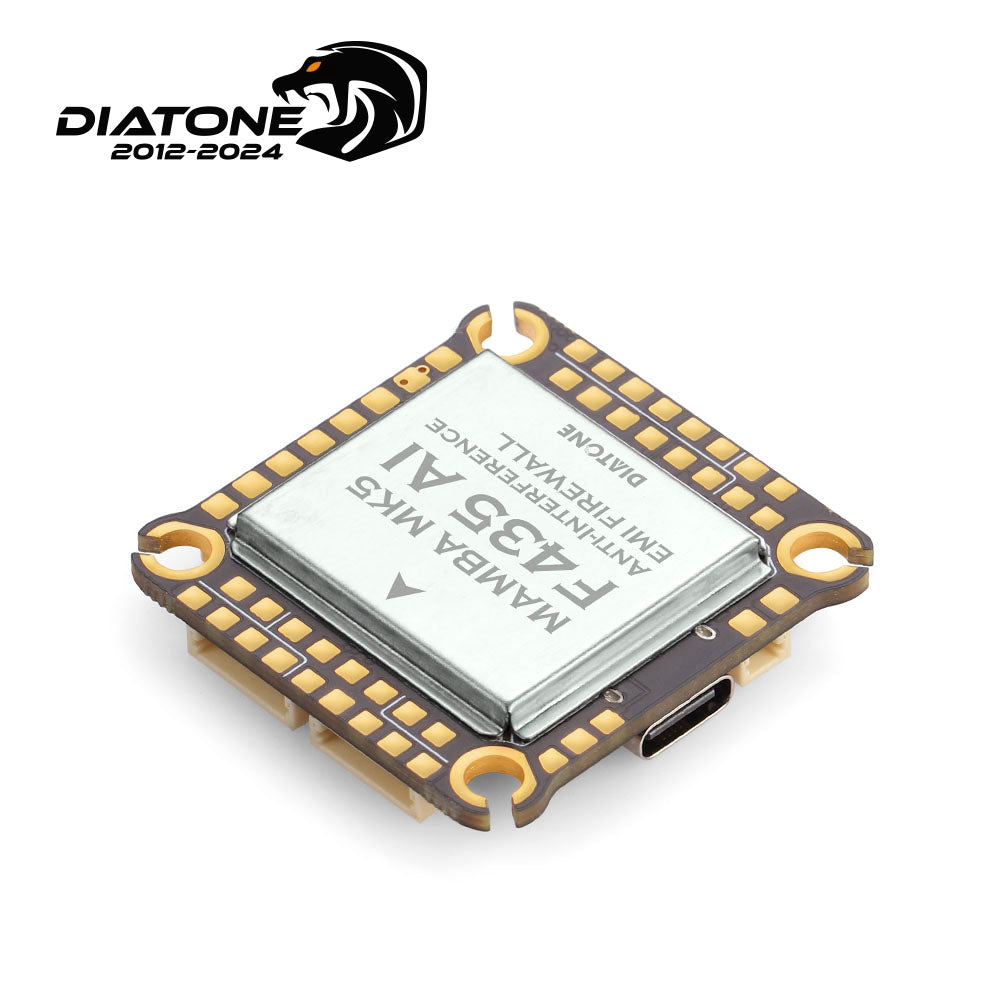

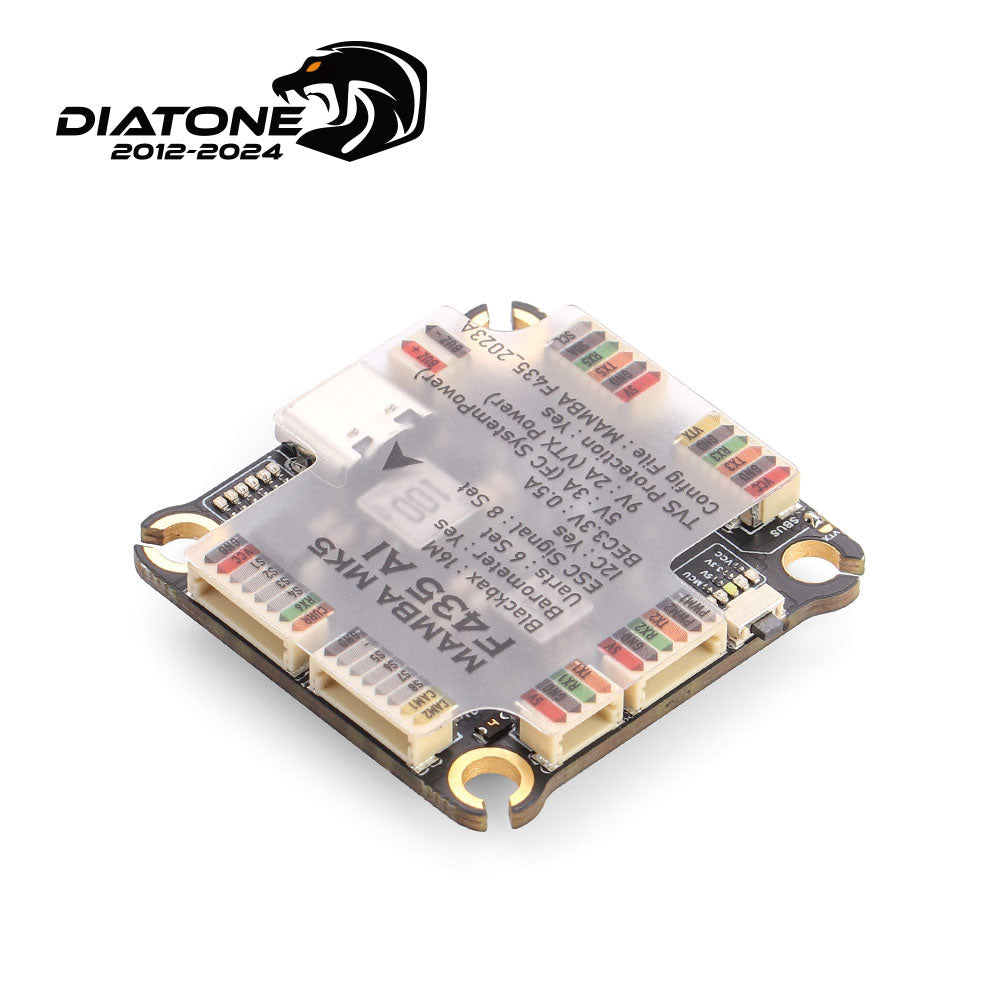

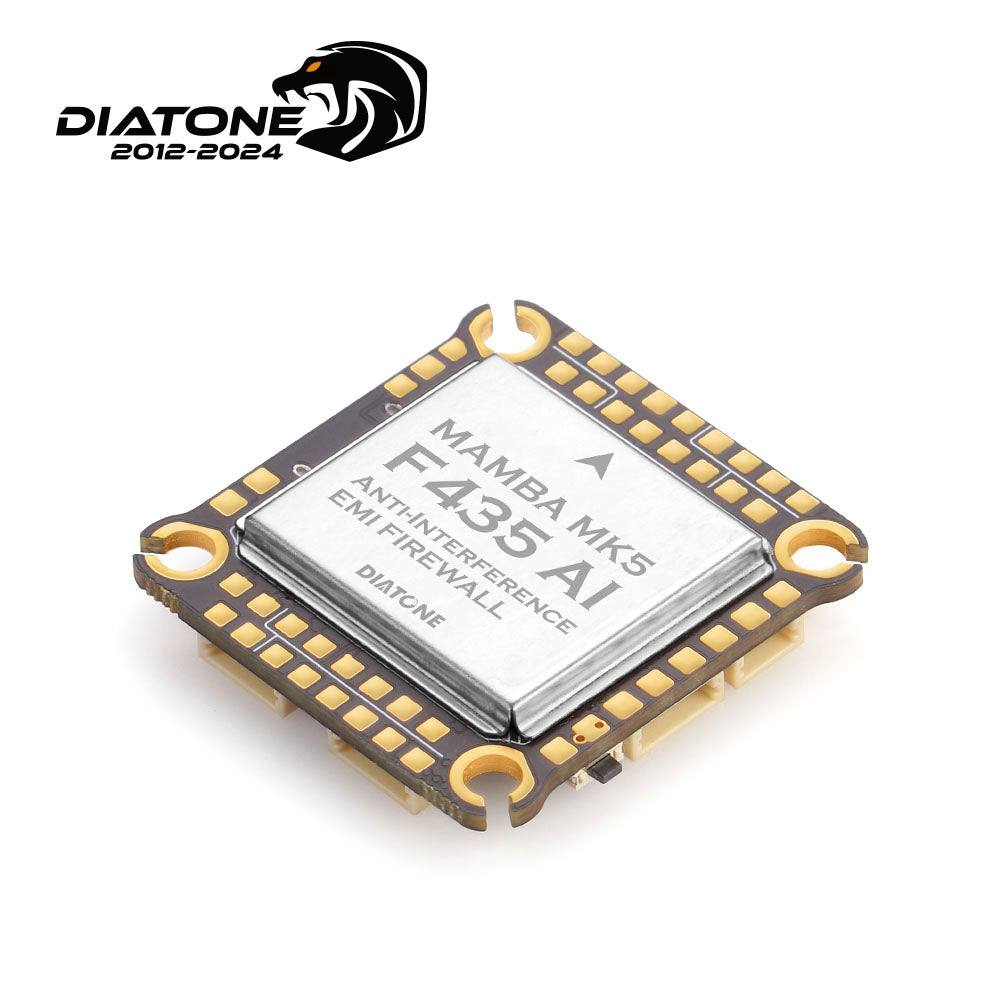

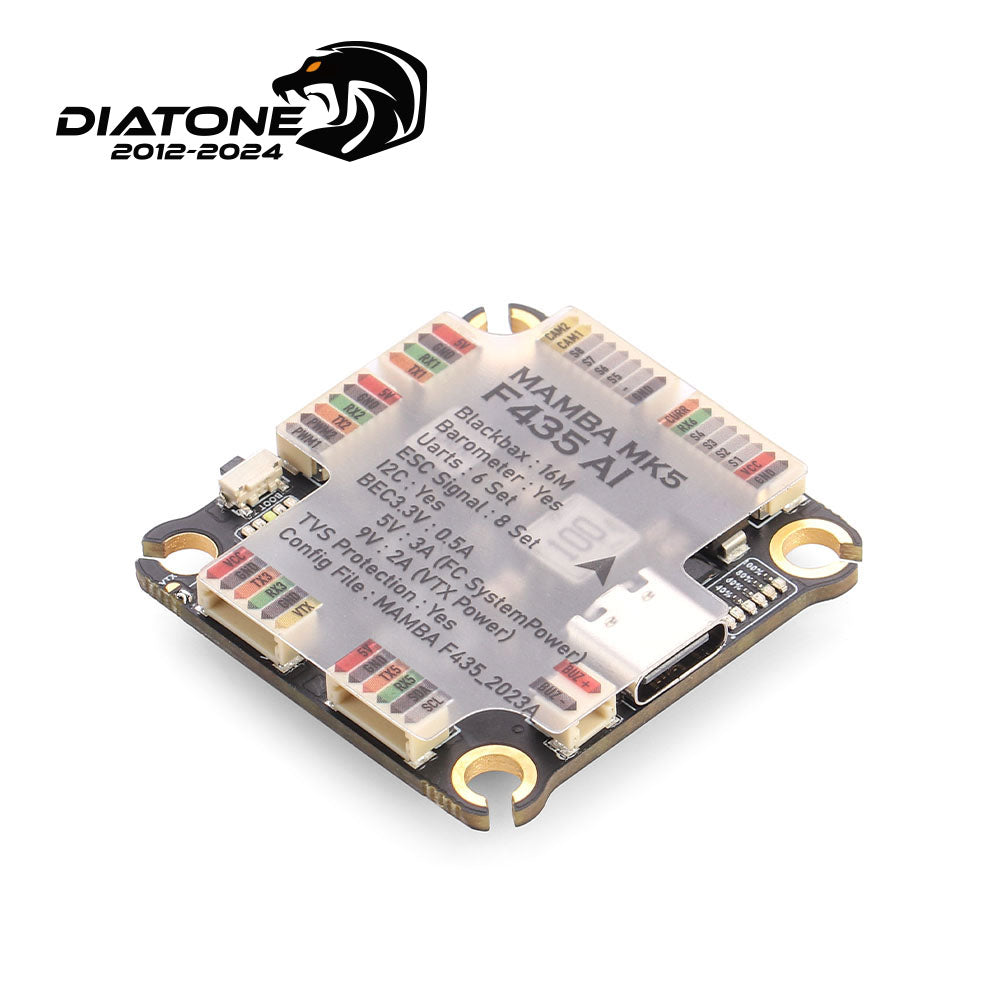

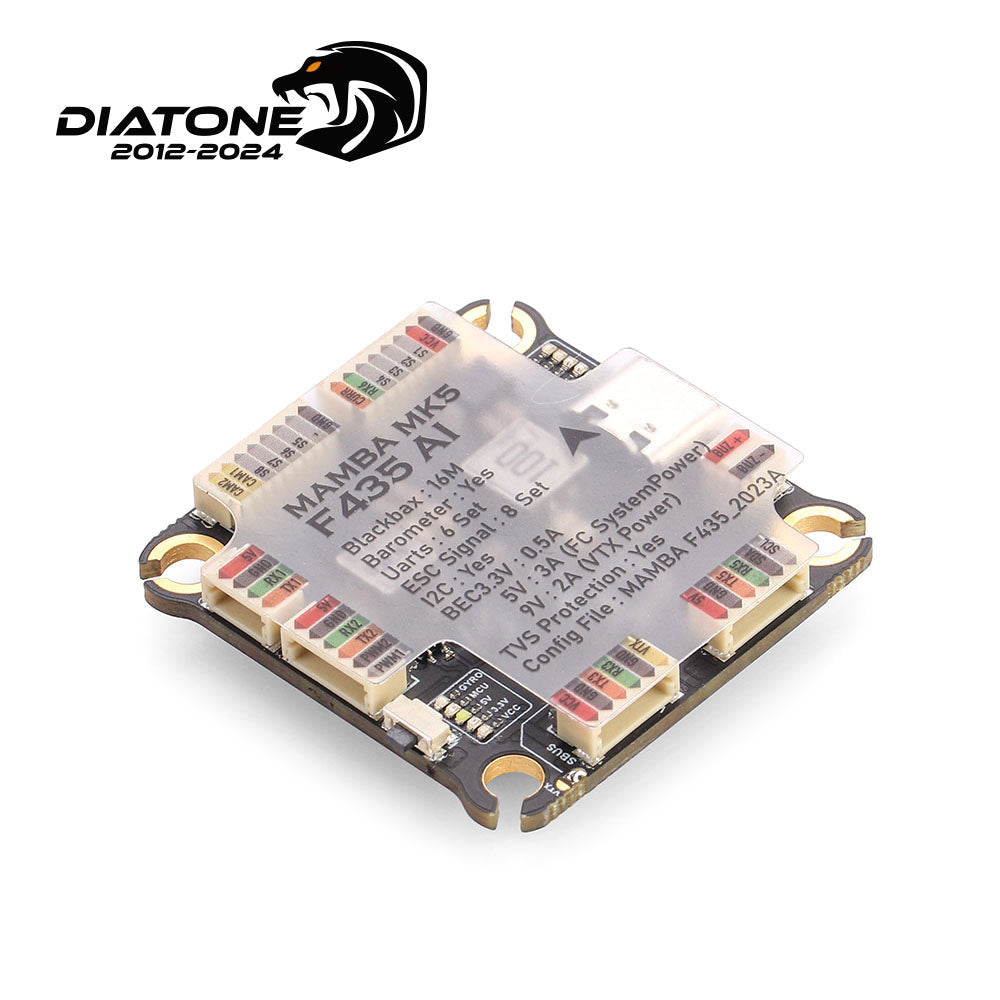

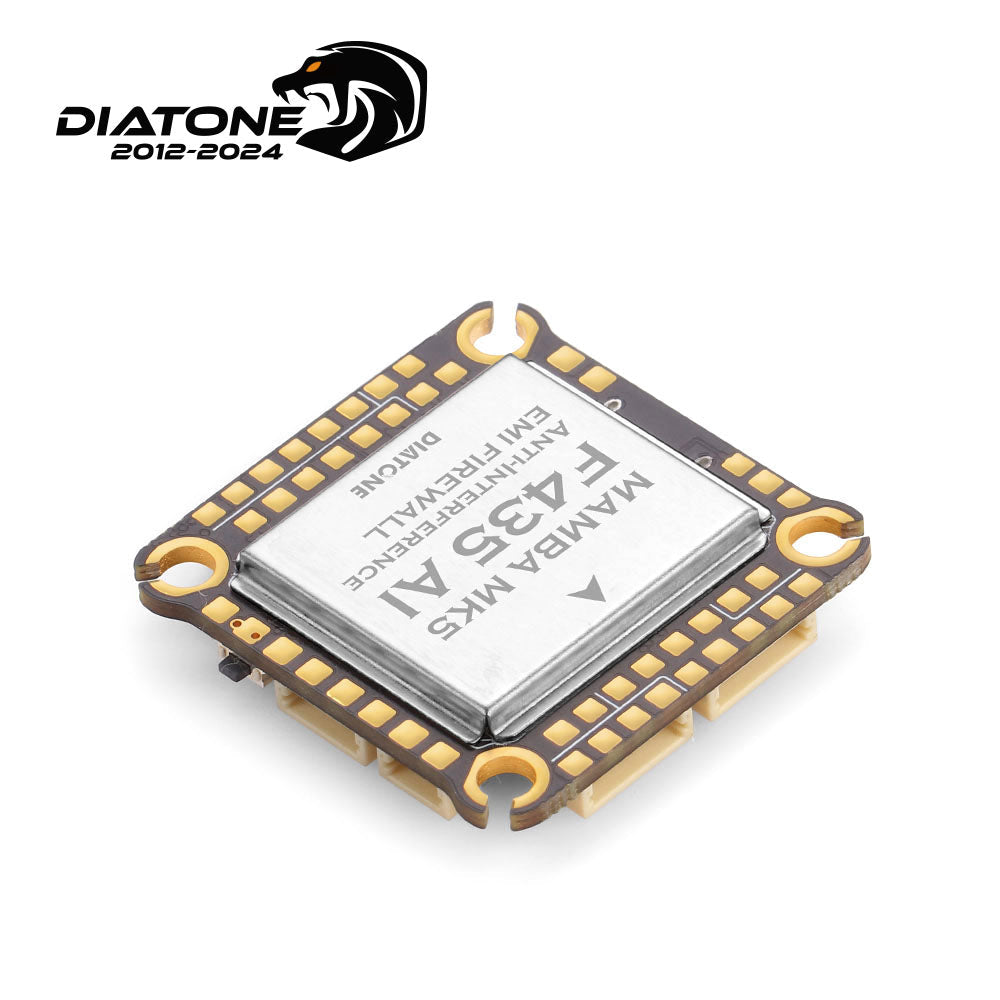

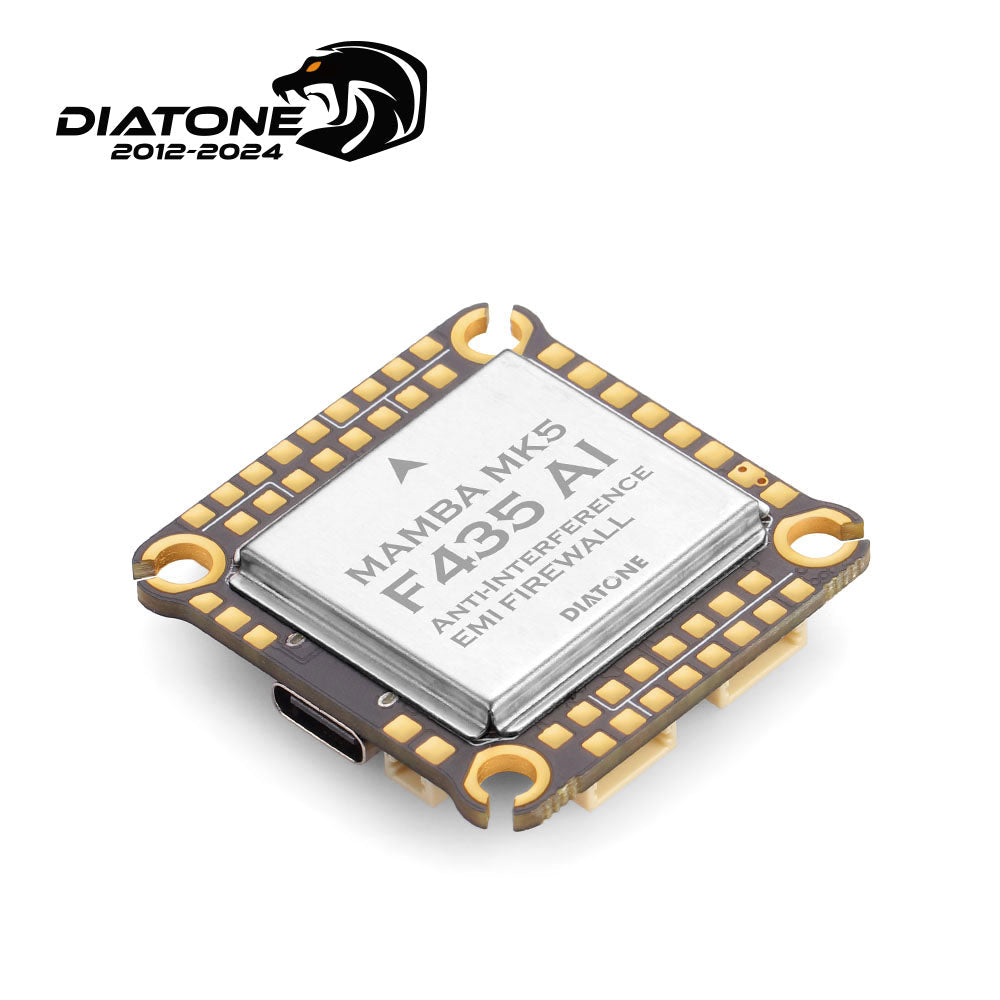

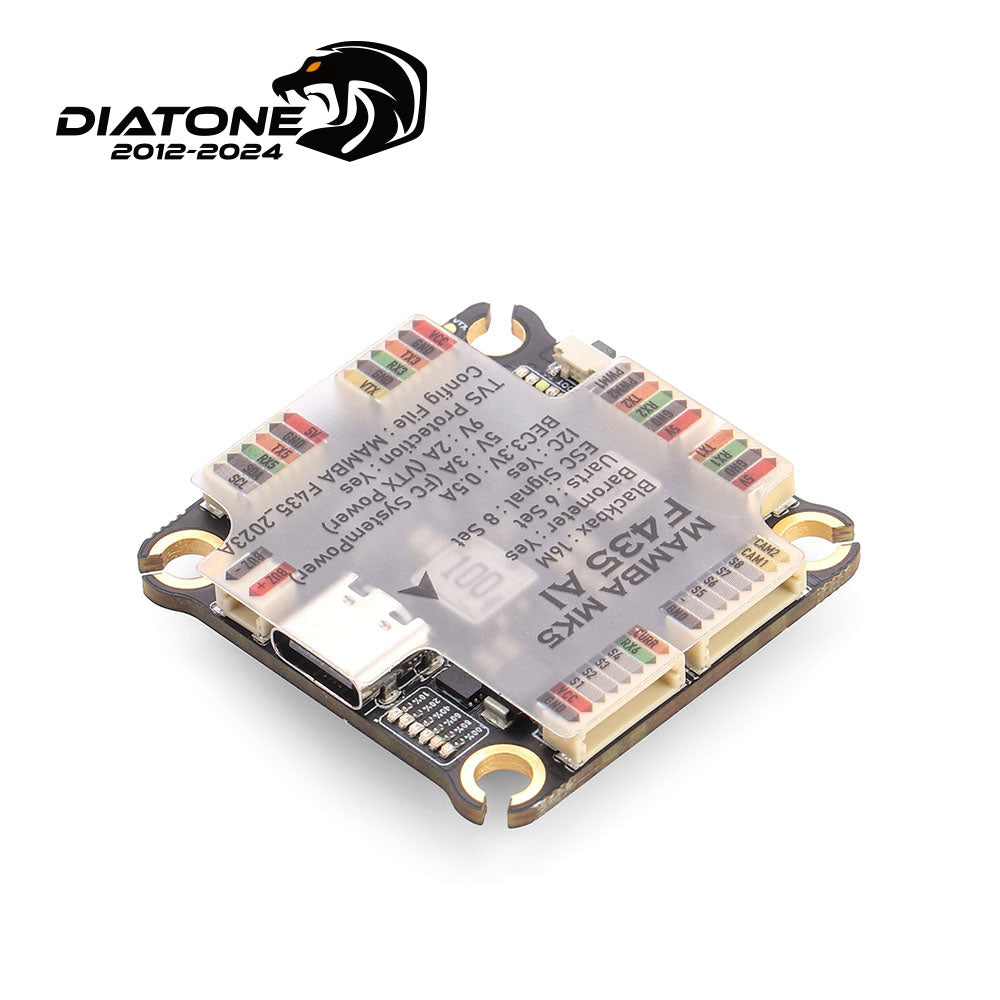

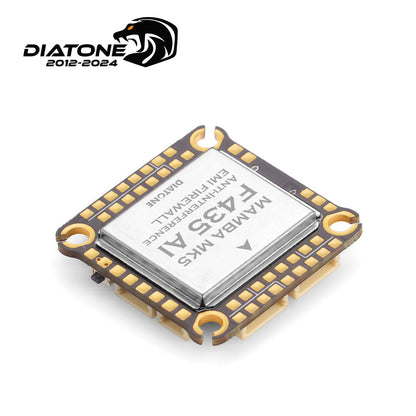

MAMBA MK5 F435AI Flight Controller ICM42688P 30.5MM-M3

F435 AI Flight Controller 30.5MM/M3MCU: 288MHz AT32F435GYRO: ICM-42688-PTarget：MAMBA F435_2023AOSD: YesBlacbox: 16M Flash MemoryBarometer: SPL06Uarts: 5 SetI2C: YesRSSI: NoBuzzer...
Vendor: DIATONE
Availability: Out Of Stock
$38.39
$38.39
Subtotal: $38.39
MAMBAMK5F435AI_1_333d9a3a-ecea-4ad1-8b4d-f81fe57c51e1

MAMBA MK5 F435AI Flight Controller ICM42688P 30.5MM-M3

$38.39
MAMBAMK5F435AI_1_333d9a3a-ecea-4ad1-8b4d-f81fe57c51e1
MAMBAMK5F435AI_2_b5a0915d-7fdc-4764-9be4-d0812d51f673
MAMBAMK5F435AI_3_c3bbecdb-9ede-45b0-aa19-1d5c4df2e92c
MAMBAMK5F435AI_4_ab8977de-e972-4329-bea9-31af9081336a
MAMBAMK5F435AI_5_d5f12abe-3d38-42e9-ab4e-da58490a9c71
MAMBAMK5F435AI_6_994691a1-cb7c-4f9e-967d-7d780fe0322d
MAMBAMK5F435AI_7_22e2742a-ee37-4f4a-a23e-00c7b8e09f10
MAMBAMK5F435AI_8_e8f5492d-453b-4c23-a4b7-a4bb250df4d4

MAMBA MK5 F435AI Flight Controller ICM42688P 30.5MM-M3

$38.39
Description


F435 AI Flight Controller 30.5MM/M3


MCU: 288MHz AT32F435
GYRO: ICM-42688-P
Target：MAMBA F435_2023A
OSD: Yes
Blacbox: 16M Flash Memory
Barometer: SPL06
Uarts: 5 Set
I2C: Yes
RSSI: No
Buzzer Pad: Yes
CURR Pad: Yes
ESC Signal: 8 Set
ESC Soft: Dshot300/600
ESC Telemetry: Yes
Power Led: Yes
LED Controller:BF LED
AIR UNIT Port: Yes
CAM2 Port: Yes
Receiver Protection: Yes
TVS Protection: Yes
BEC:3.3V 0.5A& 5V 3A& 12V 2A
Input voltage: 4~6S Lipo（14.8~25.2V)
Mounting size: 30.5mm,M3

Supply :
8pin sh1.0 ×1
AIR UNIT sh1.0 ×1
