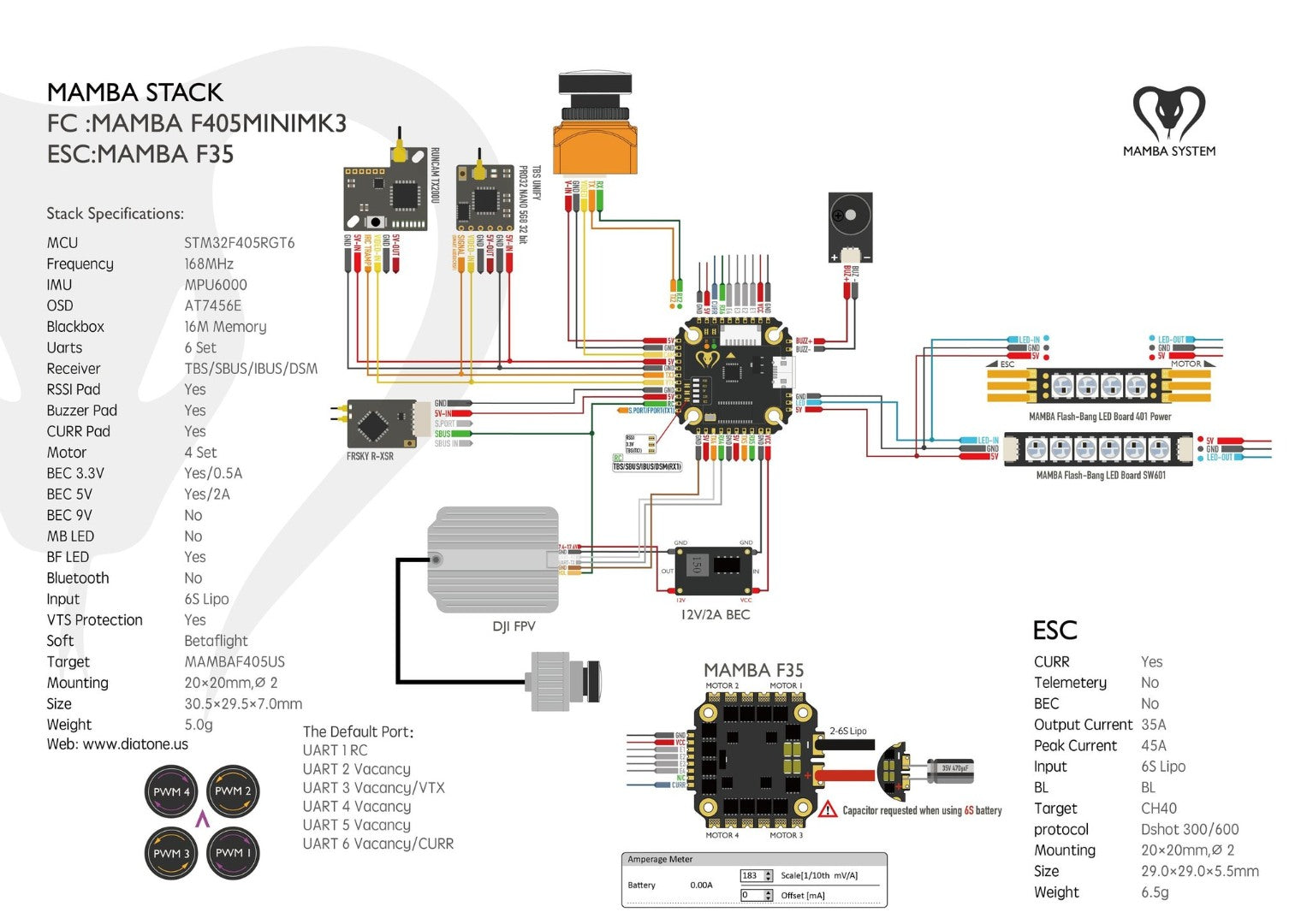

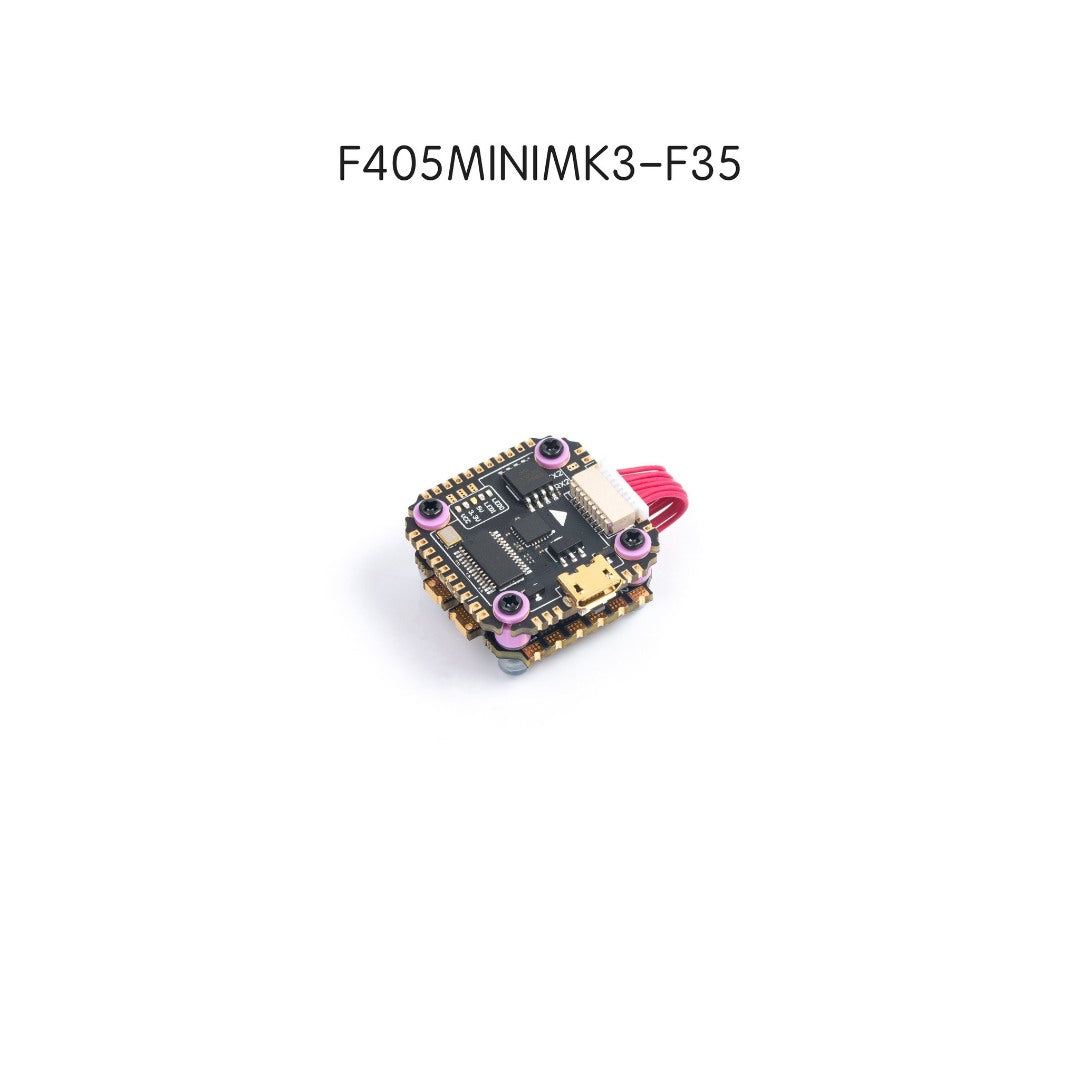

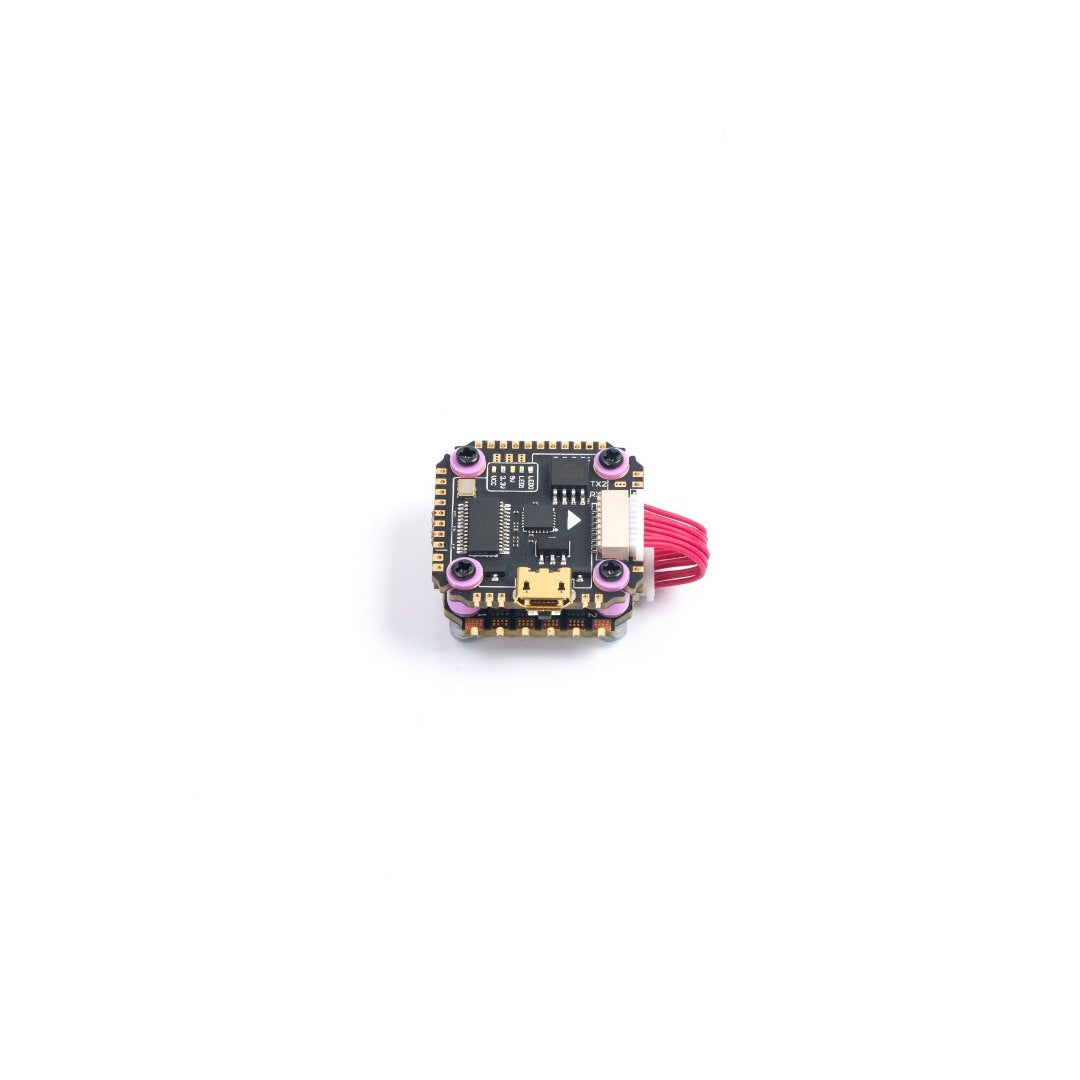

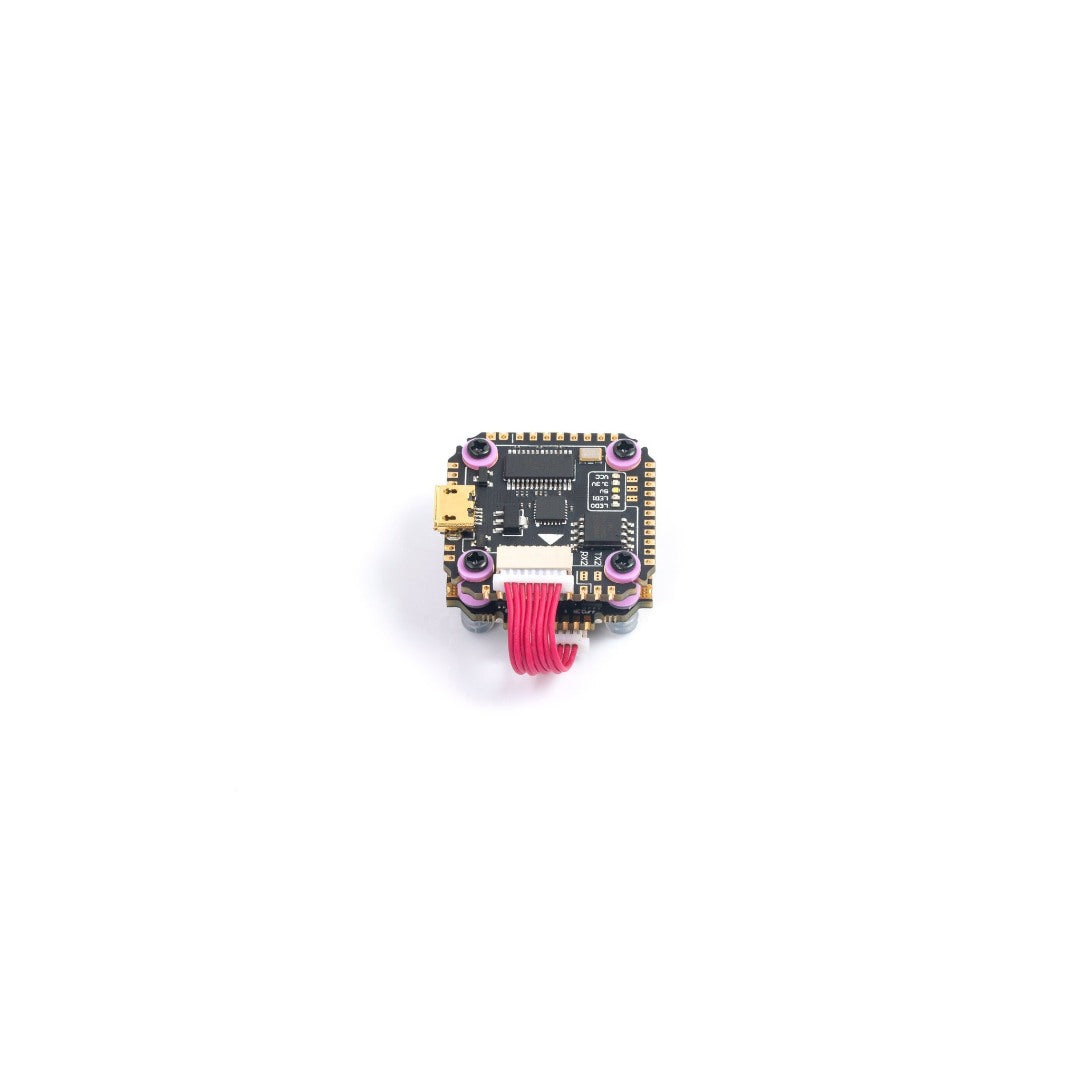

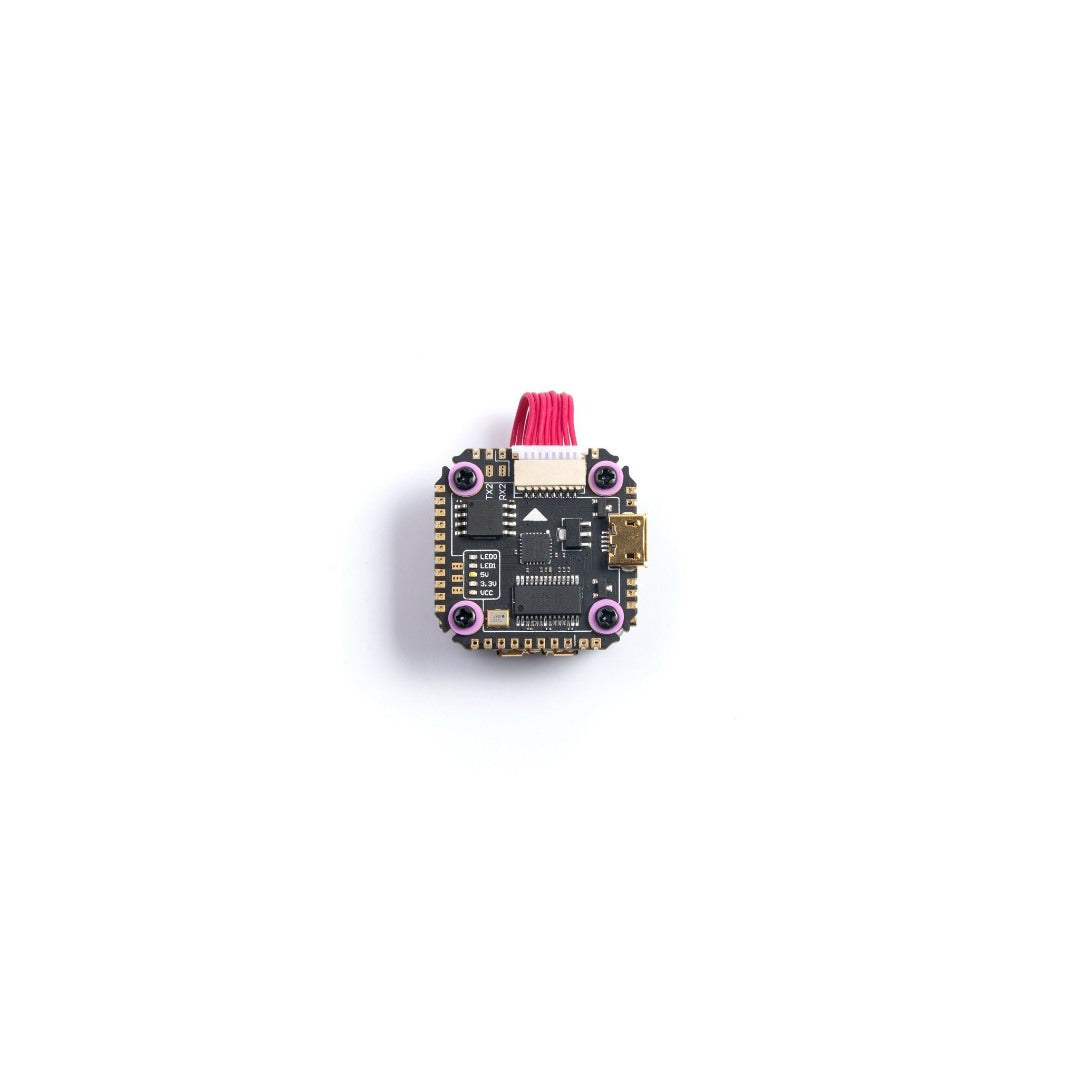

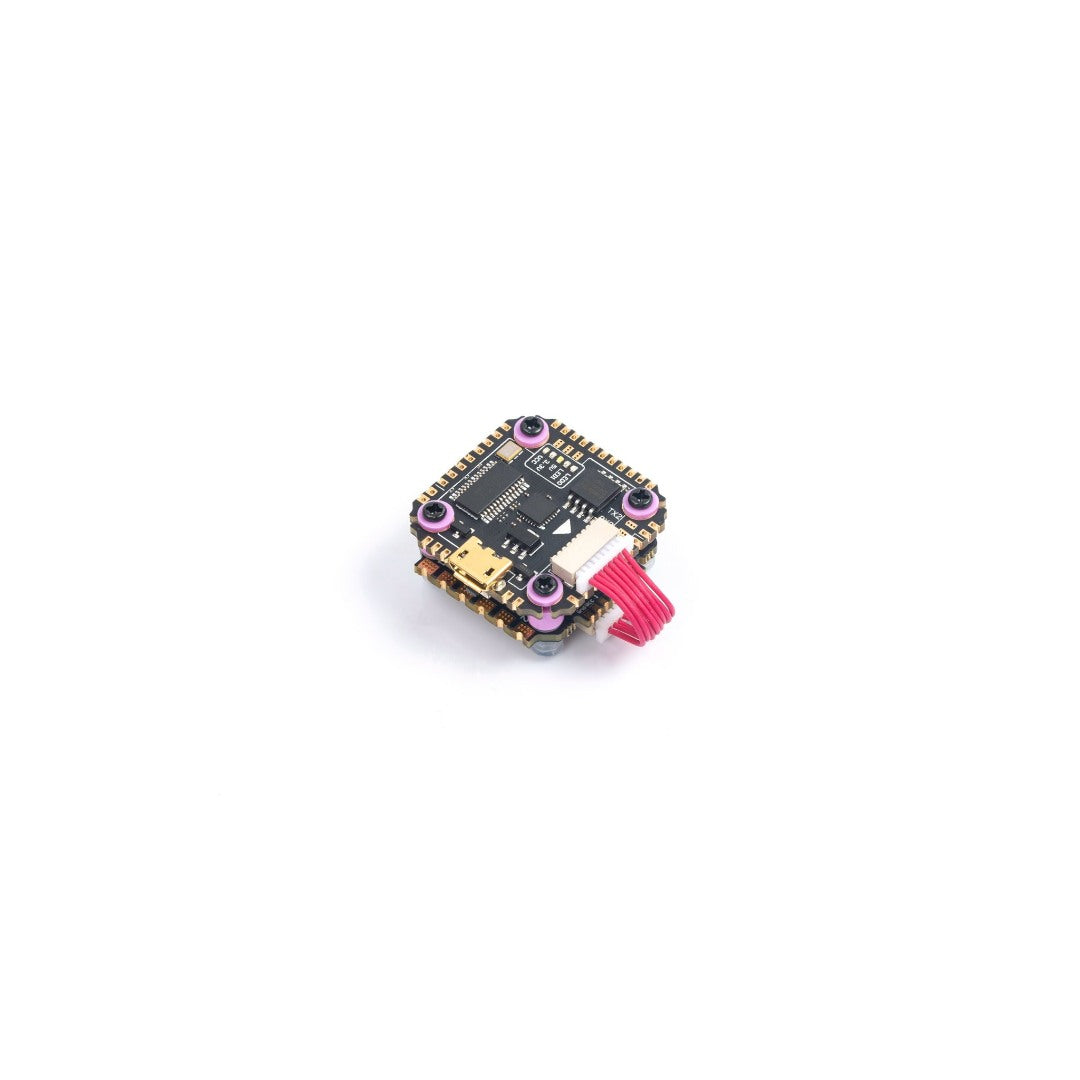

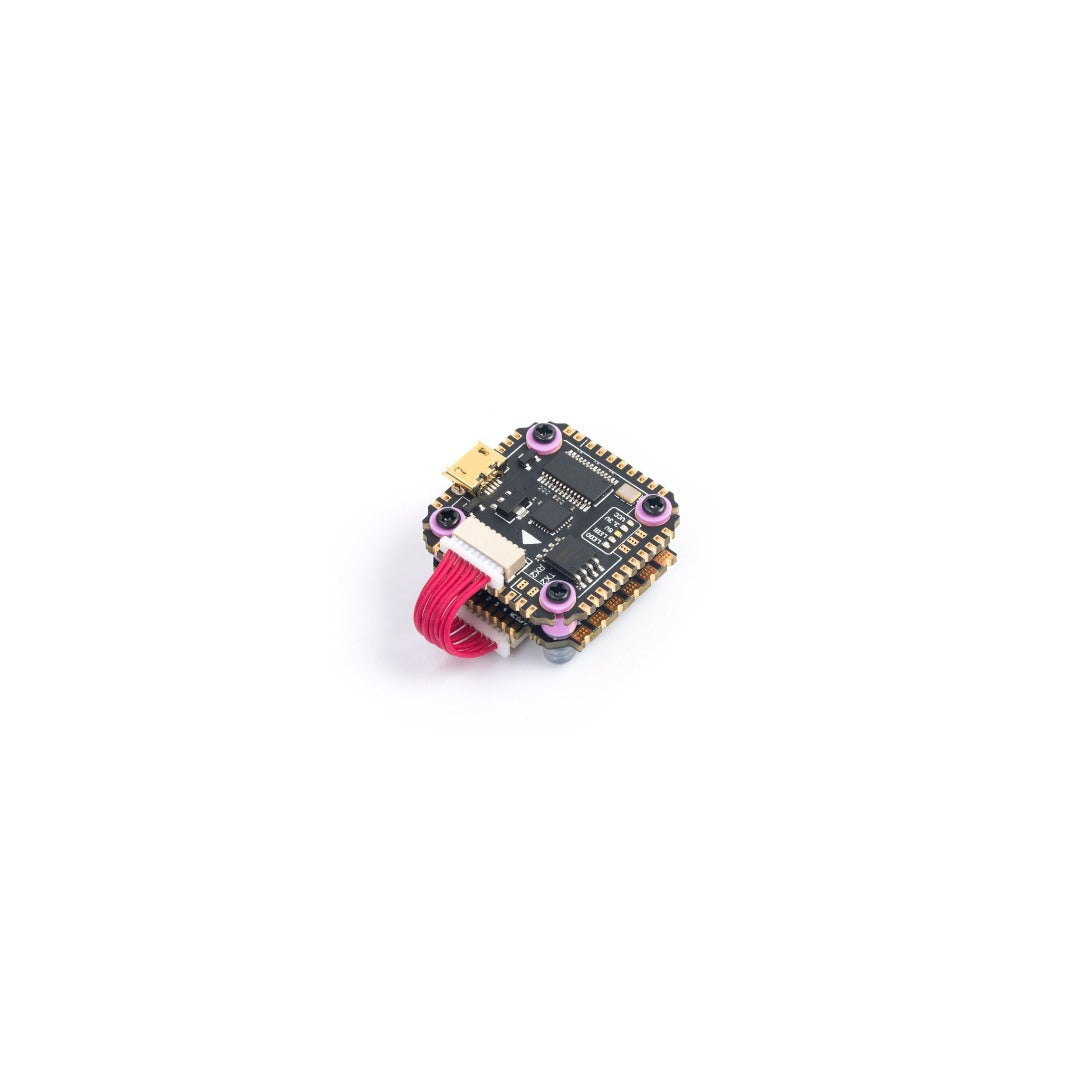

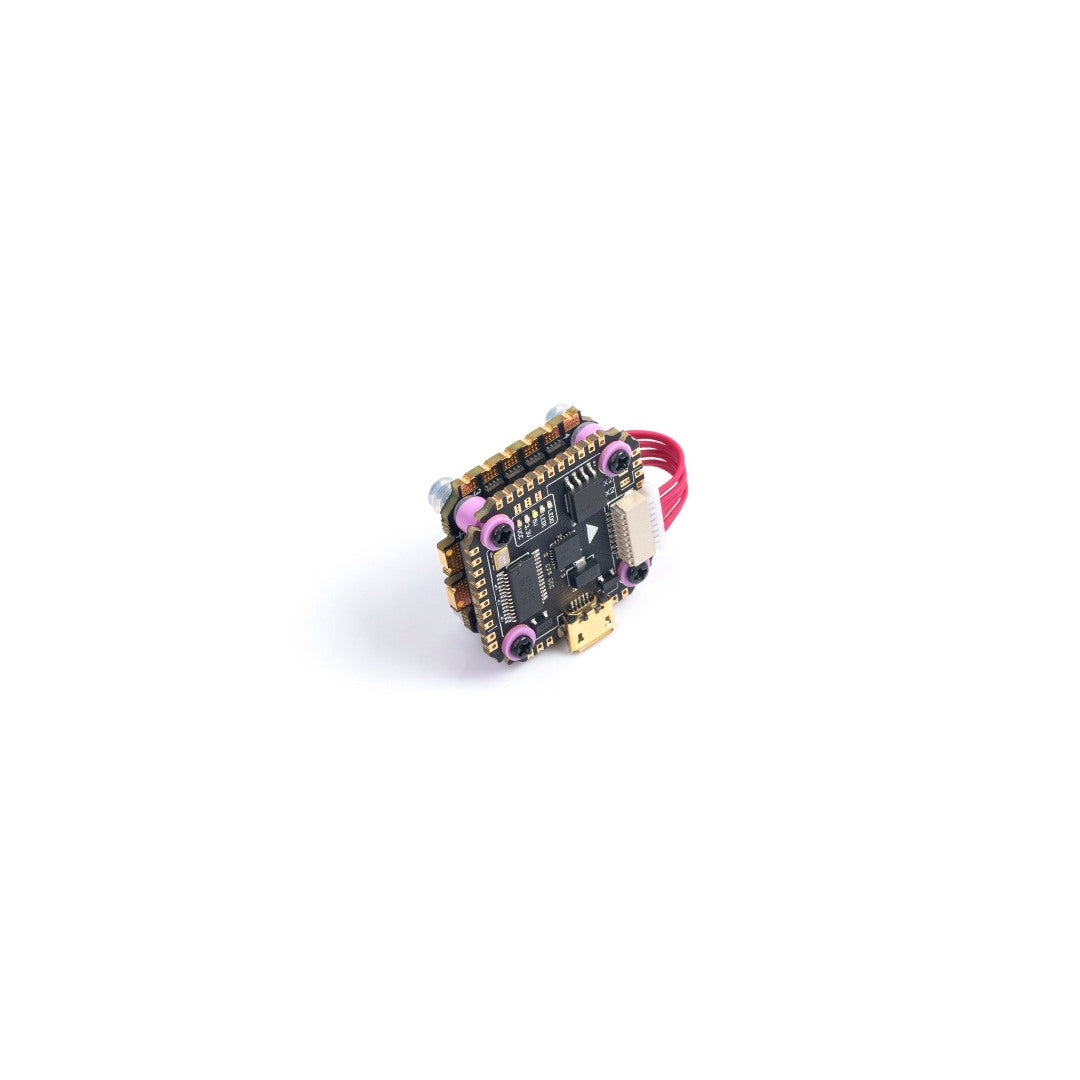

MAMBA F405US MK3 Mini Betaflight Flight Controller & F35 35A 4-6S DSHOT600 FPV Racing Brushless ESC
FIRMWARE TARGET ： MAMBA F405US
Specification:
Mamba F405 Mini FC MK3
Item name: F405 Mini MK3 Betaflight Flight Controller
Input: 3-6S LIPO (12.5- 25V)
UARTS:6 Ports
BEC: 5V 2A
MCU: STM32F405
Gyro: MPU6000
FLASH: 16M
OSD: BF OSD
Mounting Hole: M2
Weight: 4g
Mamba F35 35A ESC
Item name: Mamba F35HV ESC
Input voltage: 3-6S LIPO (12.5- 25V)
Curr :200A
MAX:45A(8S)
BEC: NO
Mounting Size: 20×20mm,⌀ 2
Mounting Hole: M2
Weight: 7g
Package Included:
1 x Mamba F4 Mini Betaflight Flight Controller
1 x Mamba F35 35A 6SHV ESC
