Description

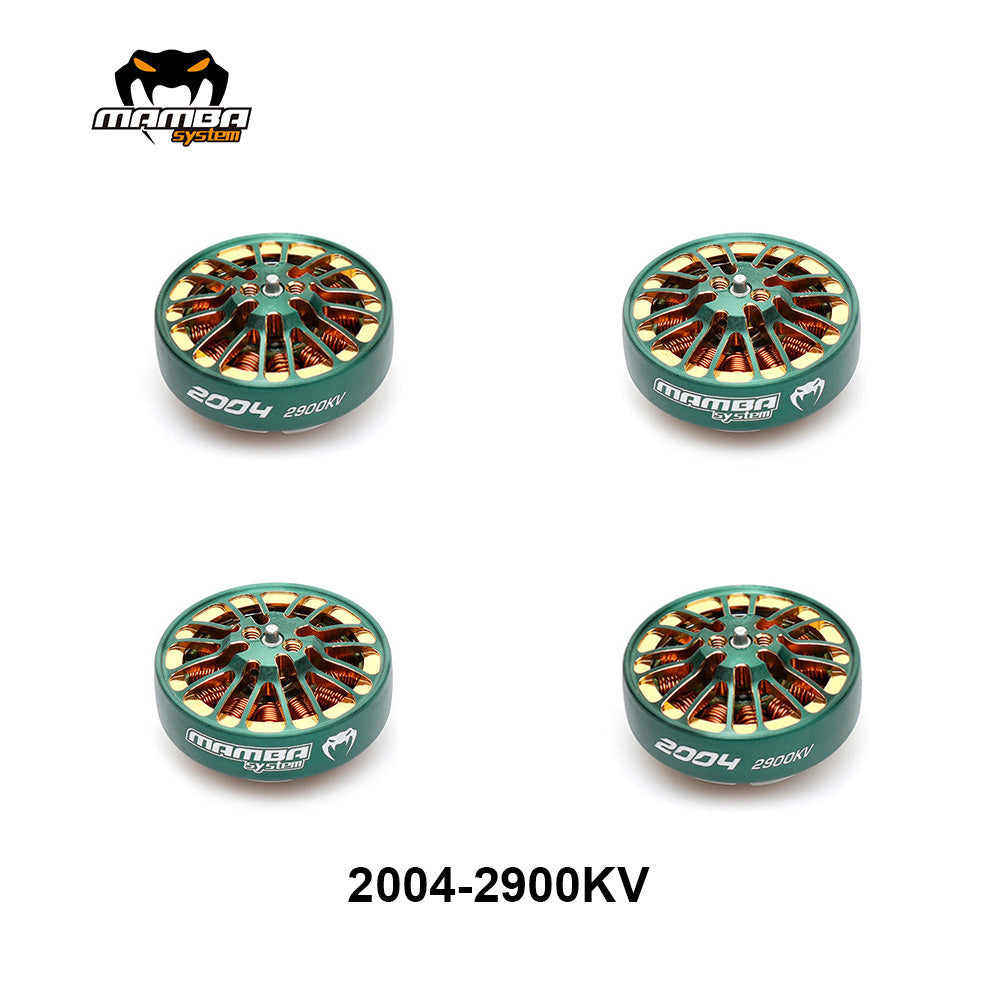

Mamba Toka 2004 2900KV Racing Motor


Overall Dimension:Φ26.2×15.3mm
prop mounting shaft diameter:1.5mm
Installation hole position:12×12mm，M2
Prop: 3.5inch~5inch
Bearing：7*3*3
Shaft Diameter:3.0mm
Lead Wire Size：24AWG×150mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：20mm
Stator Height:4mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 31.63A
ldle Current：10V/0.9~1.5A
Maximum Power: 418.1W
Internal Resistance：90mΩ
Weight: 16.3g
2004 2900KV motor table
