Manual :

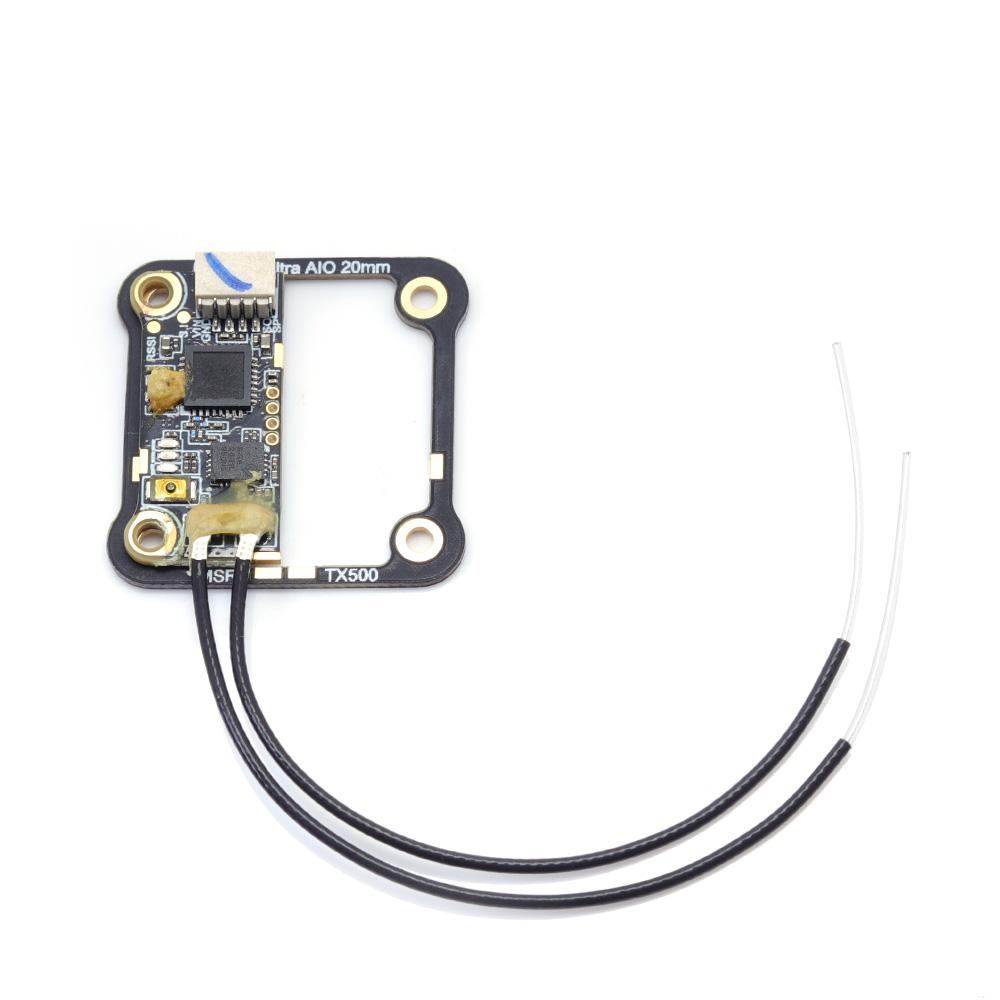

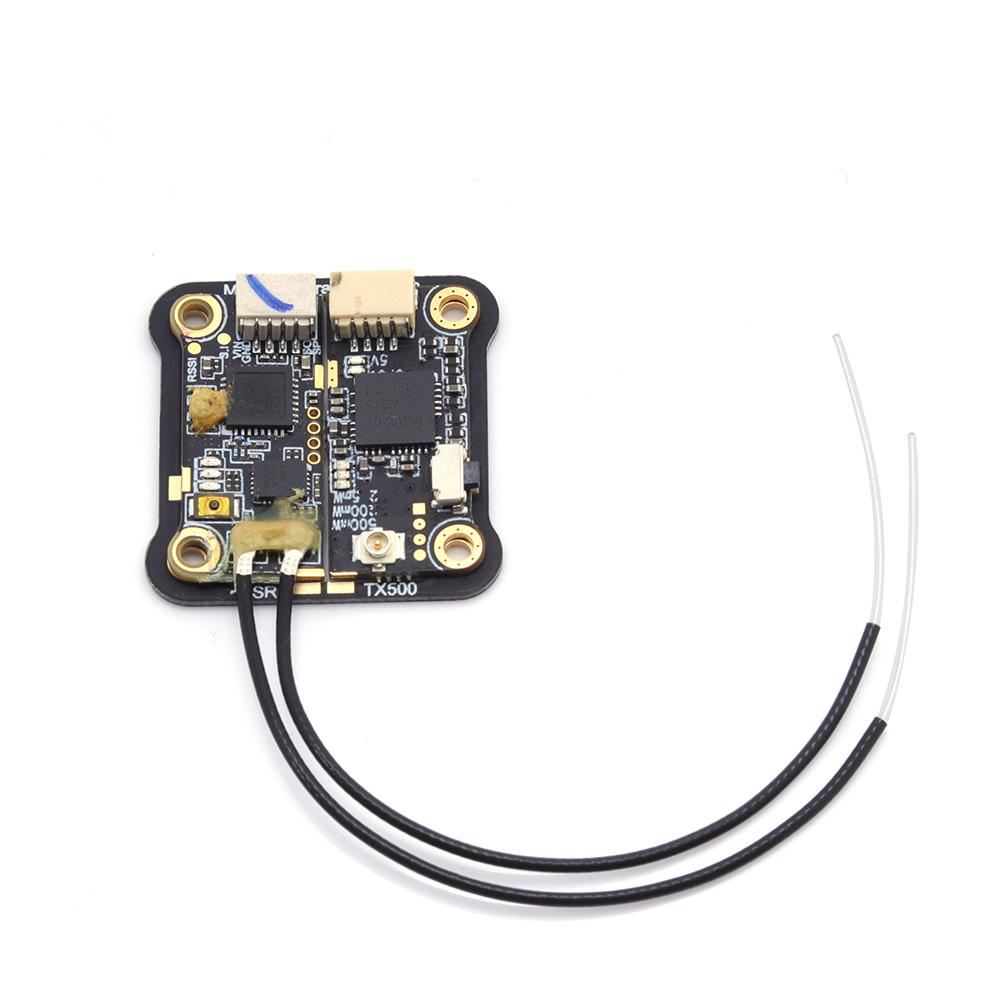

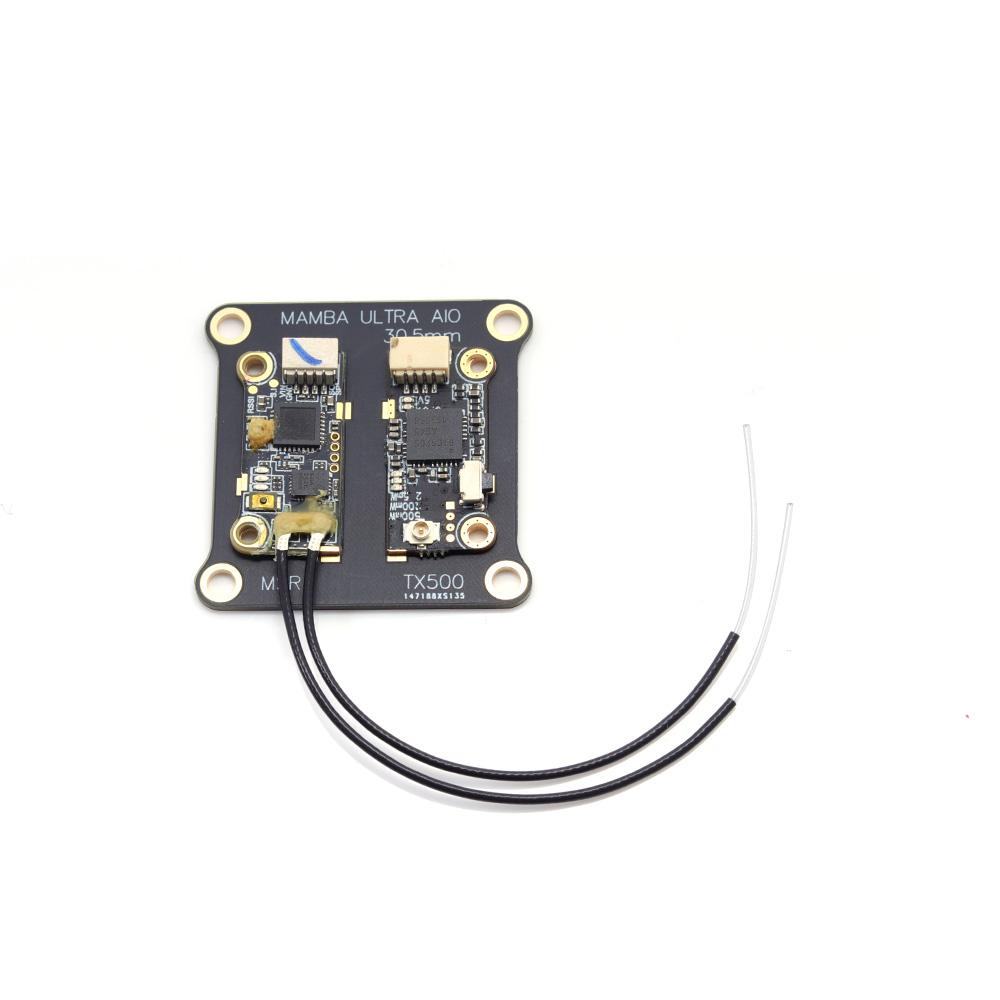

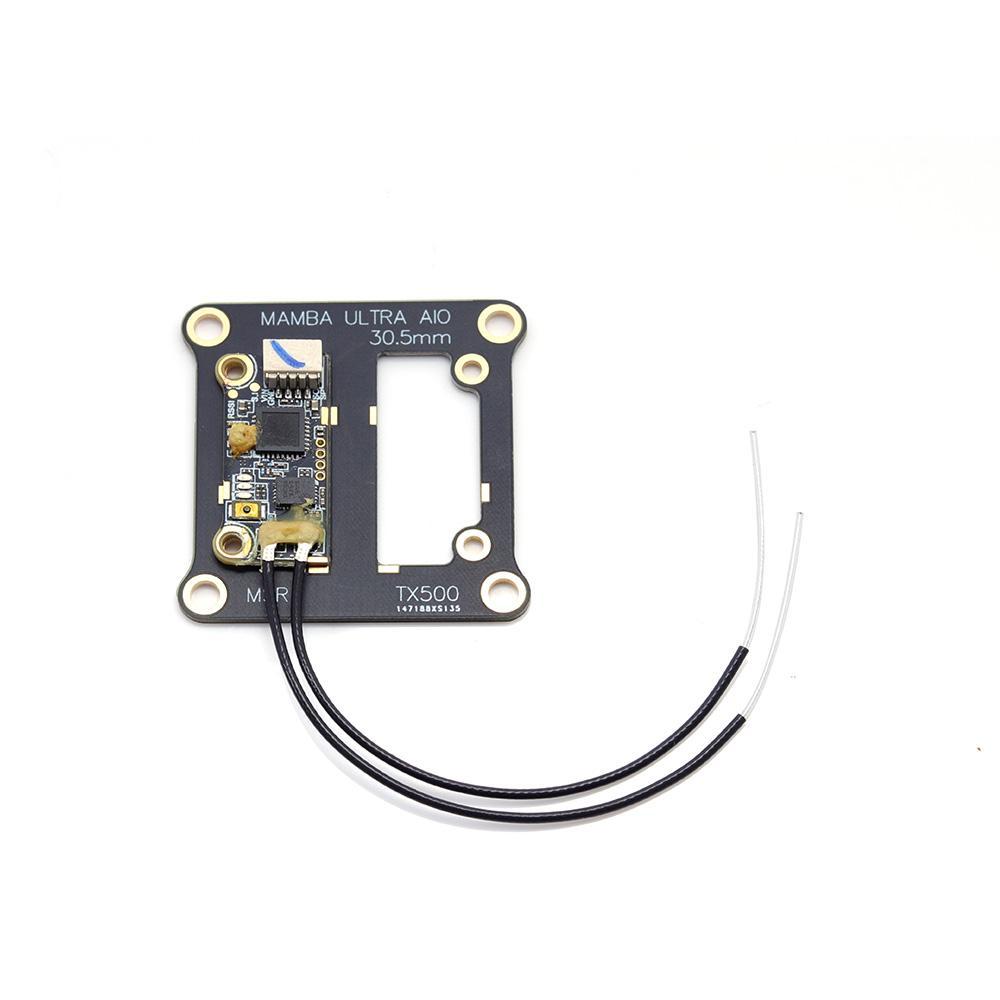

MAMBA MSR D16 ACCST Receiver（FCC）
Working Voltage:3.5- 10V
Working Current: 70mA /5V
Channel:16CH(1~16CH: SBUS,1~8CH:CPPM)
Size: 24×11.7×4.4mm
Antenna Connector: IPEX4
Protocol： ACCST D16/
（ACCESS needs to upgrade
the corresponding protocol）
Product Size:24×11.7×4.4mm M2（20mm×2）
Weight:1.6g

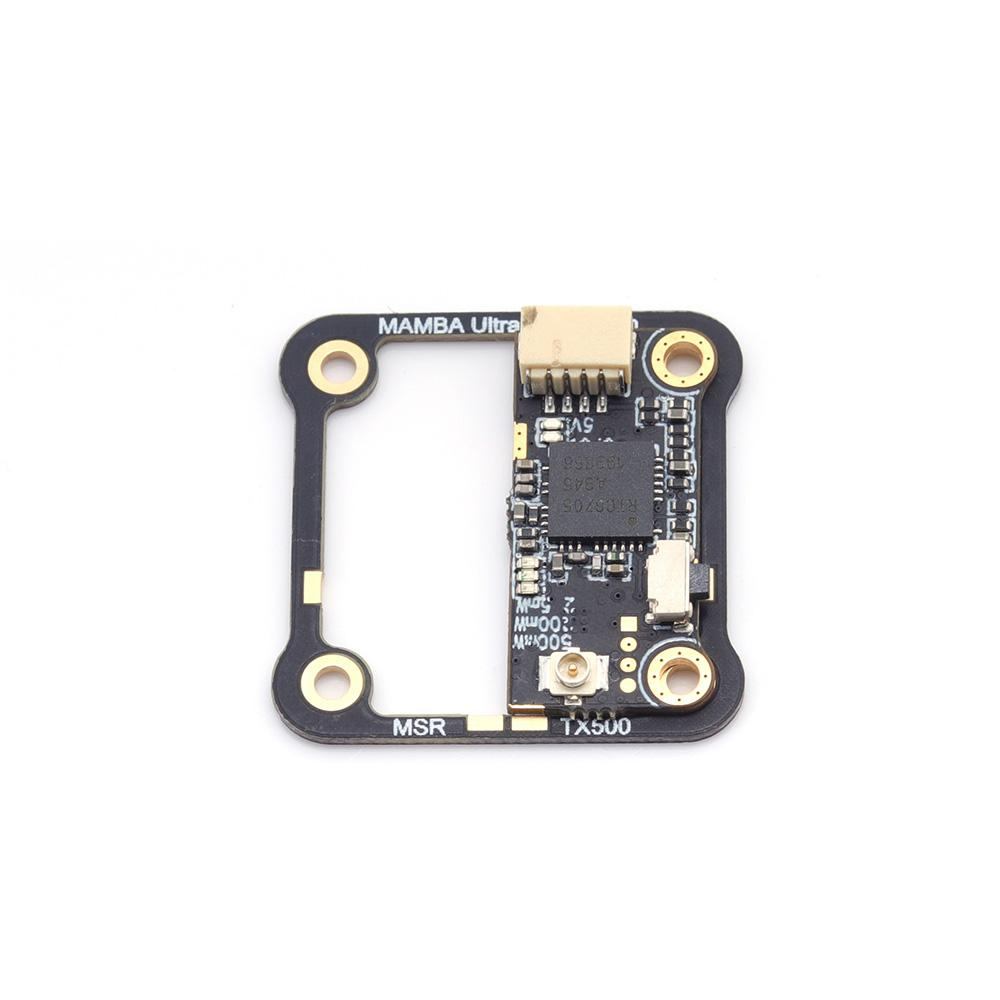

MAMBA TX500 Video Transmitter
Working Voltage:4.5- 5.5V
Working Current: 380mA (5V/500mw)
Working Temperature: 90 ℃
Video Input Impedance:50Ω
Size: 24×11.7×5.5mm
Antenna Connector: IPEX
Video Format: NTSC / PAL Protocol：IRC
Output Power: 25mw/200mw/500mw/
Product Size:24×12×5.5mm M2（20mm×2）
Weight:2g
Supply : 5.8G sleeve dipole antenna×1
4pin Cable×4

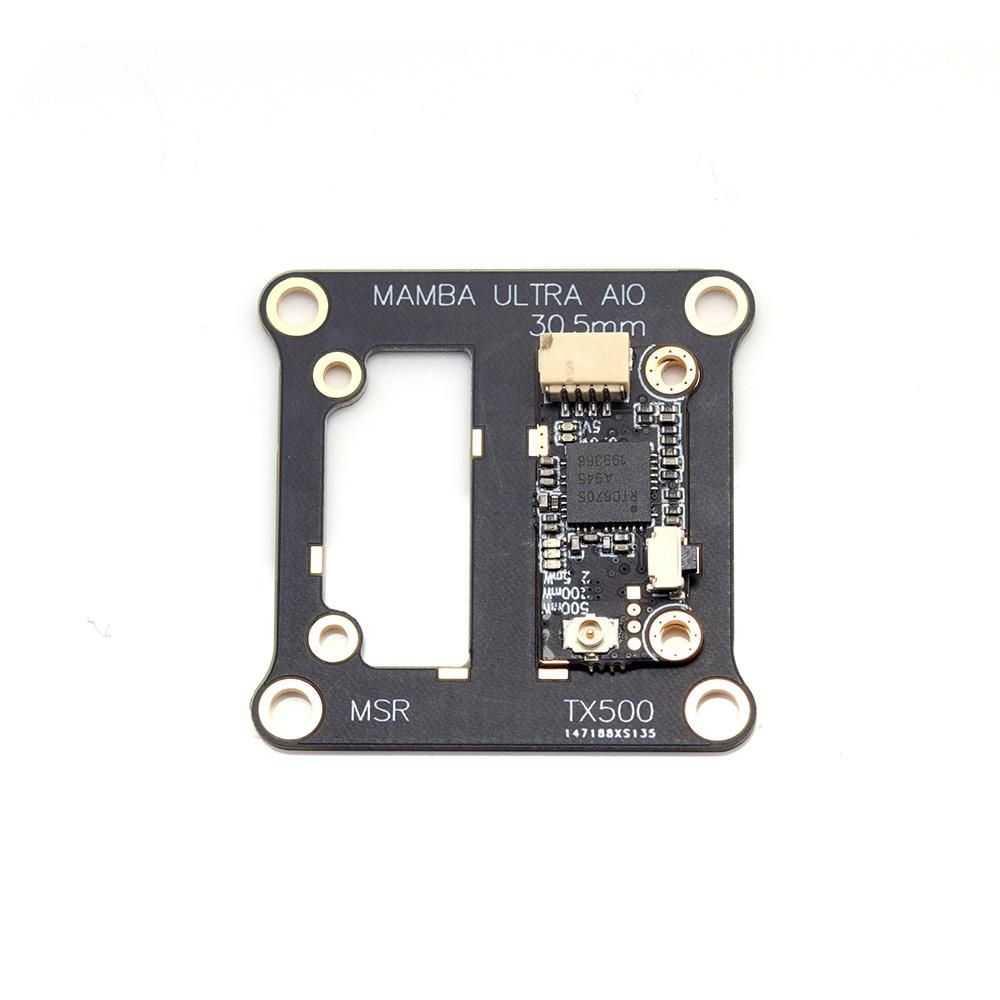

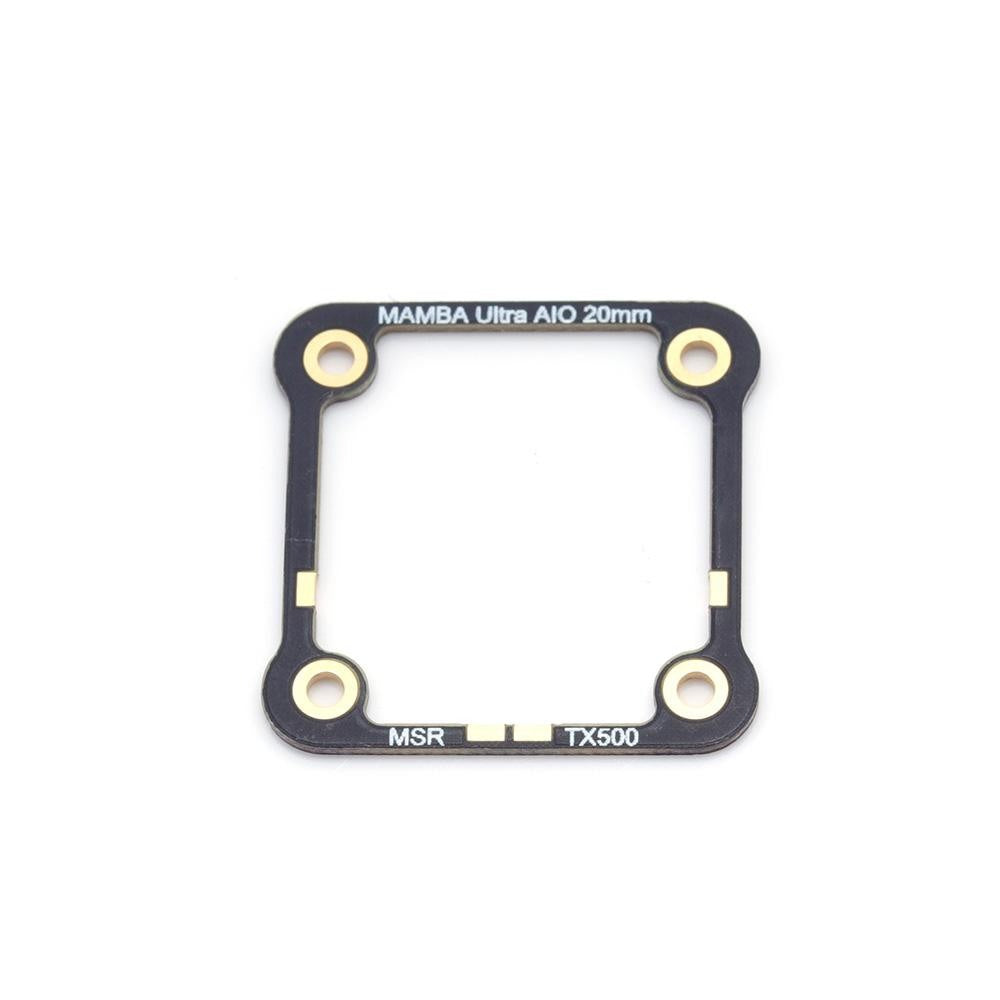

20mm PCB Adaptor Board×1

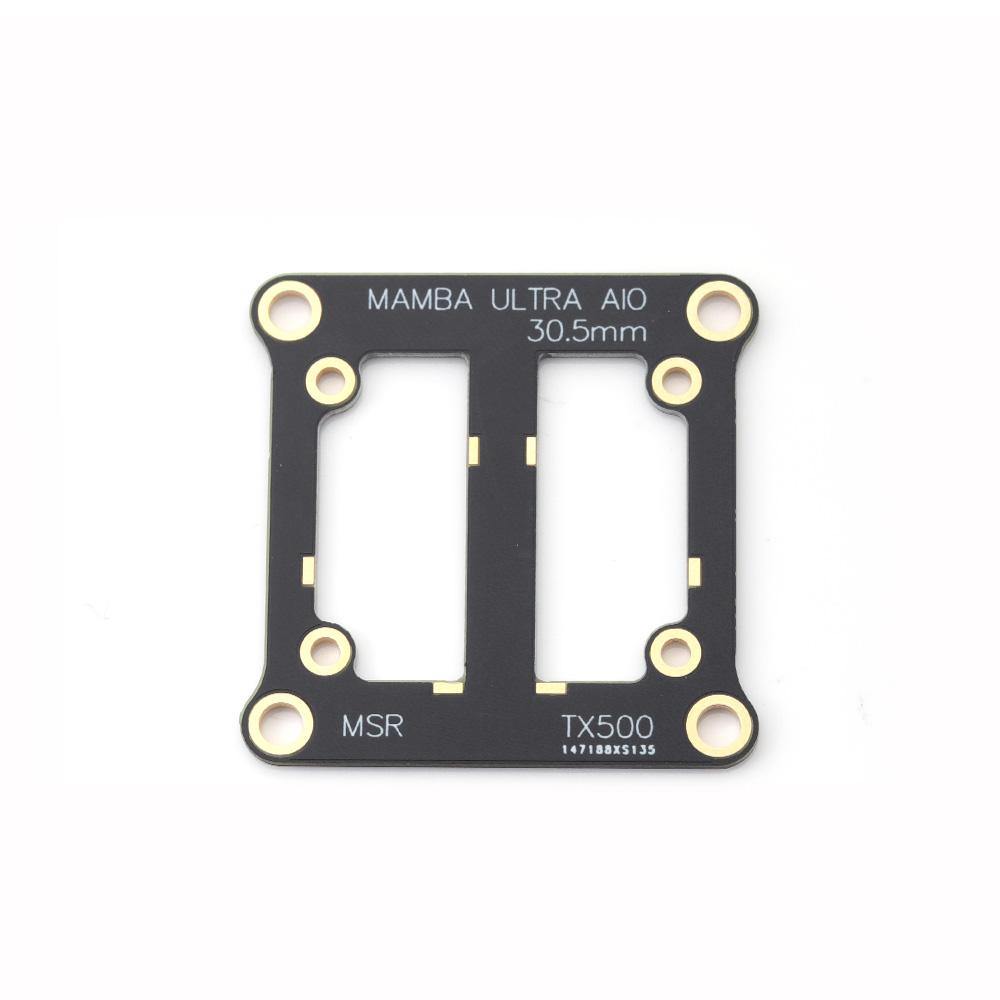

30.5mm Adaptor Board ×1"
