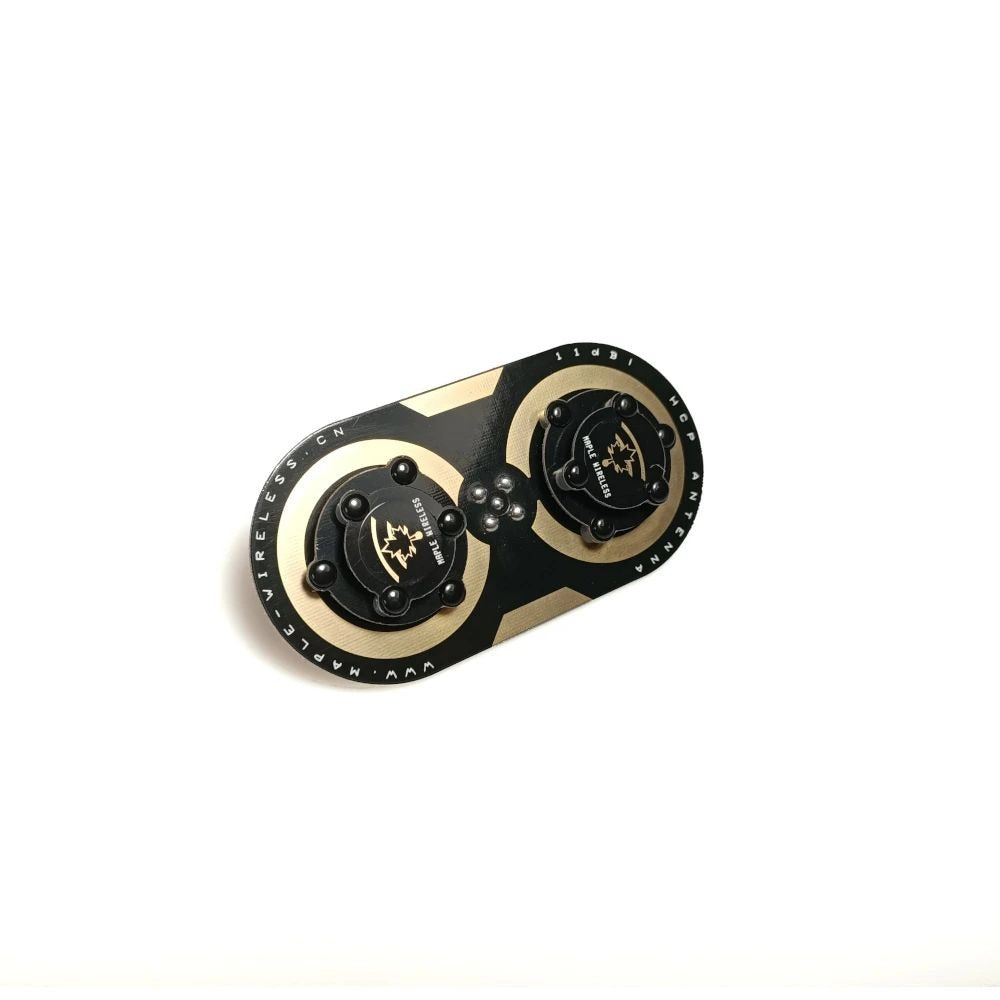

MAPLE 5.8Ghz 11dBi RHCP FPV Antenna SMA

Specification
Frequency range(MHz) : 5500-5800
Impedance(Ω) : 50
VSWR<1.5
Gain(dBi) : 11

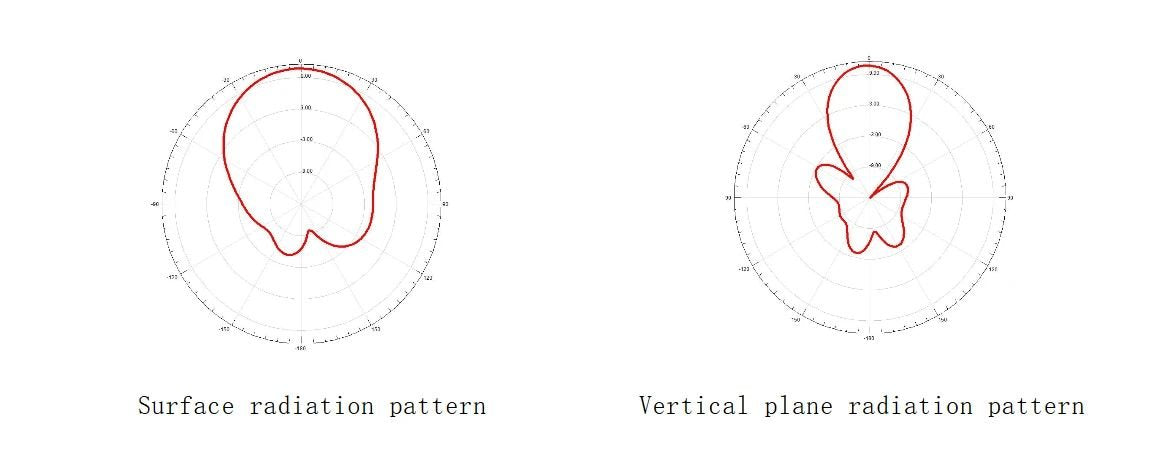

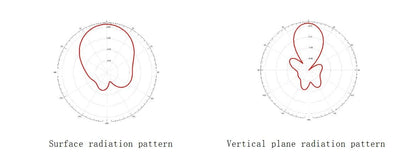

Half power beam : 75°H-plane 40°E-plane
Front-to-backratio(dB) : >10
Max.Powe(W) :10
Polarization :Right circular polarization
Input : SMA
Ambient temperature(°C) : -40~+6
Antenna size(mm) : 82*42*24
Net weight(g): 19


Package Included
1 x MAPLE 5.8Ghz 11dBi RHCP FPV Antenna SMA
