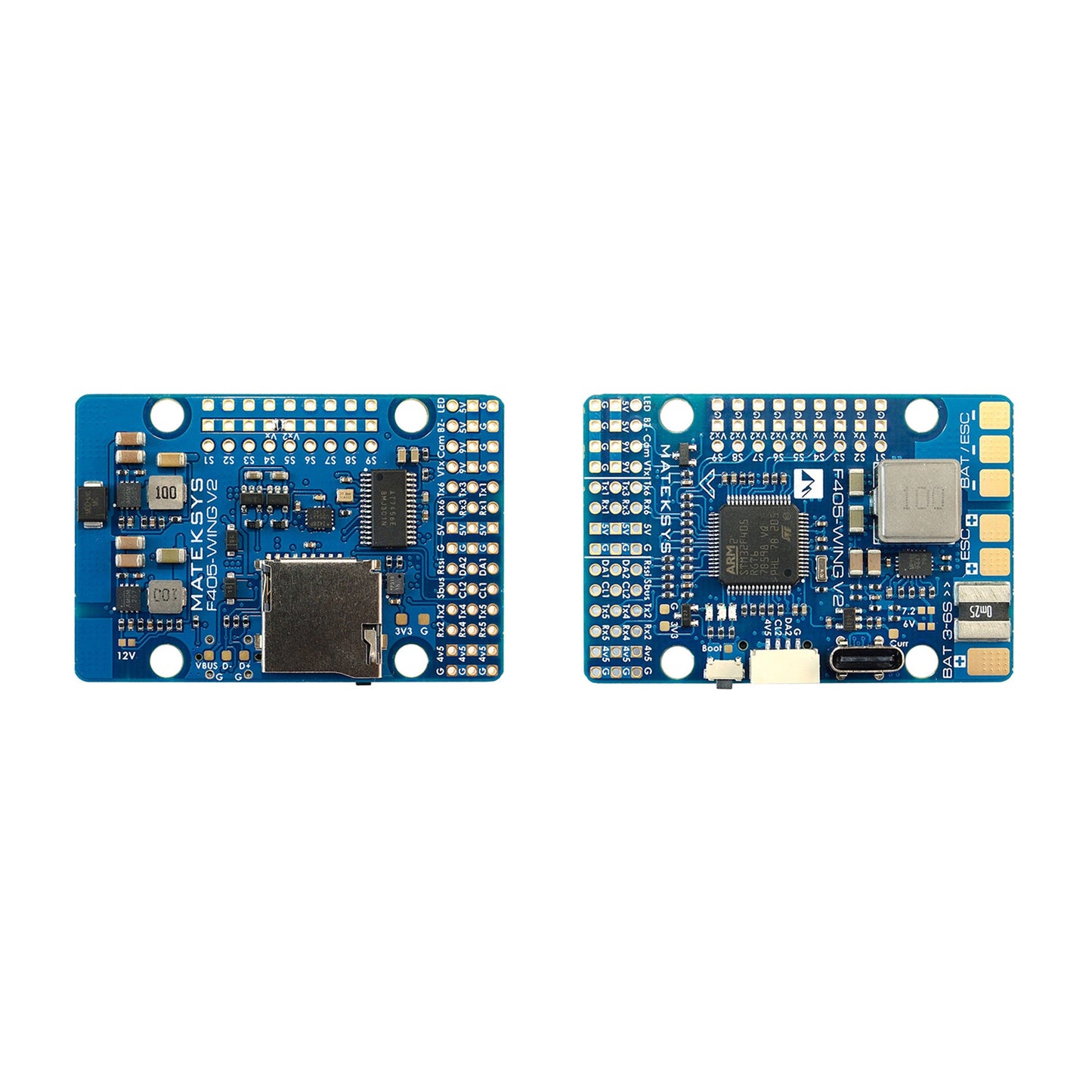

Matek F405 Wing V2 Flight Controller
Matek F405 Wing V2 Flight Controller
FC Specifications MCU: STM32F405RGT6, 168MHz , 1MB Flash IMU: ICM42688-P Baro: DPS310 OSD: AT7456E Blackbox: MicroSD card...
Vendor:
MATEK
Availability:
In Stock
$82.95
$82.95
Unit price
/
per
Subtotal:
$82.95
Quantity:
Decrease quantity for Matek F405 Wing V2 Flight Controller
Increase quantity for Matek F405 Wing V2 Flight Controller
Add to cart
Add to wishlist
Share
Share
Close
Copy link
Link
Copy link
Link copied to clipboard!
Share
Leave your email and we will notify as soon as the product / variant is back in stock
Subscribe
Matek F405 Wing V2 Flight Controller
$82.95
Quantity:
Decrease quantity for Matek F405 Wing V2 Flight Controller
Increase quantity for Matek F405 Wing V2 Flight Controller
Add to cart
Quantity:
Decrease quantity for Matek F405 Wing V2 Flight Controller
Increase quantity for Matek F405 Wing V2 Flight Controller
Add to cart
Add to wishlist
Matek F405 Wing V2 Flight Controller
$82.95
Description
Description
FC Specifications
MCU: STM32F405RGT6, 168MHz , 1MB Flash
IMU: ICM42688-P
Baro: DPS310
OSD: AT7456E
Blackbox: MicroSD card slot
6x UARTs, Â 1x Softserial_Tx option(INAV)
10x PWM outputs
2x I2C
3x ADC (VBAT, Current, RSSI)
Built in inverter for SBUS input
USB Type-C(USB2.0)
FC Firmware
ArduPilot: MatekF405-Wing (ArduPlane 4.4 or newer)
INAV: MATEKF405SE (INAV 6.0 or newer)
PDB
Input voltage range: 9~30V (3~6S LiPo) w/TVS protection
Current Senor: 220A, Â 3.3V ADC Â (INAV scale 150, Â ArduPilot 66.7A/V)
Sense resistor: 100A continuous, 220A peak
Battery Voltage divider 1K:10K (Scale 1100 in INAV, Â BATT_VOLT_MULT 11.0 in ArduPilot)
BEC 5V output
Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
Continuous current: 2 Amps
BEC 9V/12V output
Designed for Video Transmitter, Camera, Gimbal ect.
Continuous current: 2 Amps
12V option with Jumper pad
for stable 9V/12V output, input voltage should > output voltage +1V
BEC Vx output
Designed for Servos
Voltage adjustable, 5V Default, 6V or 7.2V options
Continuous current: 5 Amps, Â 6A Peak
for stable Vx output, input voltage should > Vx voltage +1V
BEC 3.3V output
Designed for external 3.3V peripherals
Linear Regulator
Continuous current: 200mA
Physical
Designed for external 3.3V peripherals
Linear Regulator
Continuous current: 200mA
Includes
1x F405-Wing-V2
1x 20cm JST-GH-4P to JST-GH-4P cable for I2C port
Dupont 2.54 pins  (Board is shipped unsoldered)
