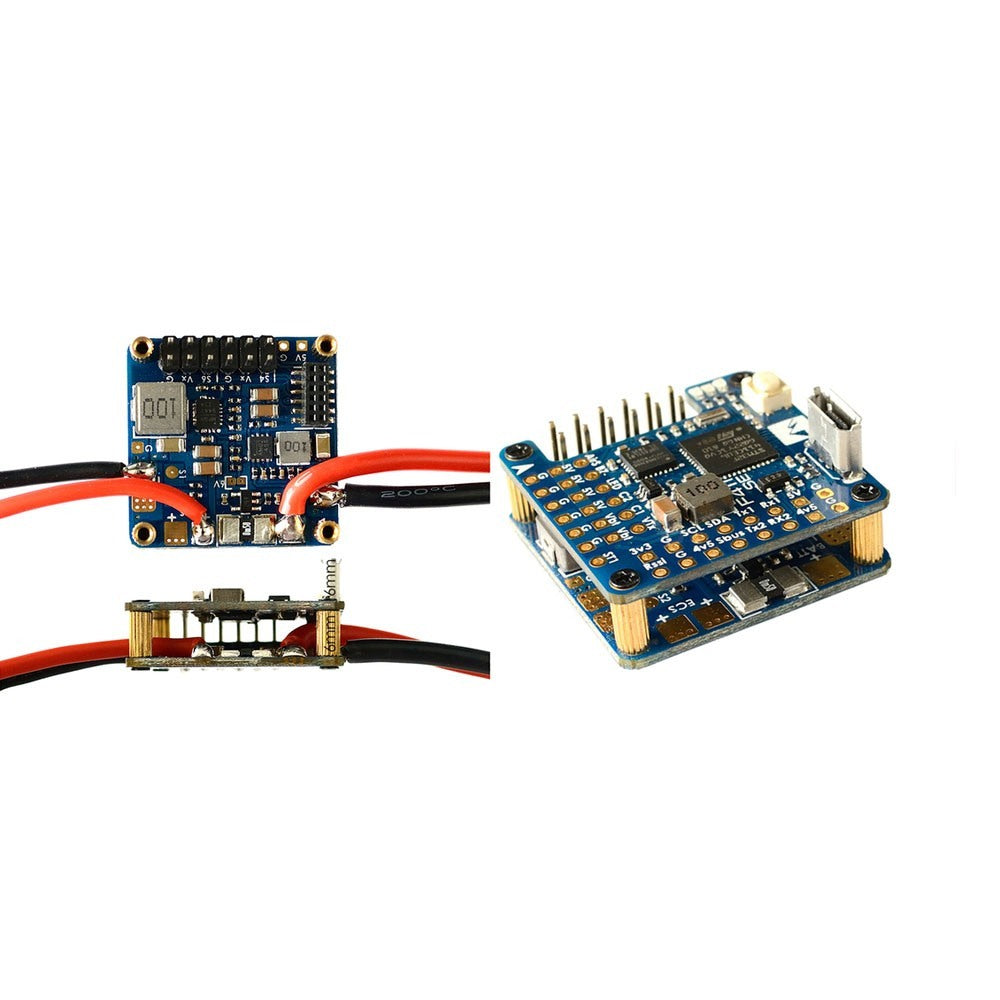

The Matek's line of F4 flight controllers brings a host of new possibilities to your fixed wing or multirotor. This F4 Flight Controller features TM32F411, MPU6000, BMP280, OSD, 2x UARTs, 2x Softserial_TX, I2C, 2x Motors & 4x Servos, 2x BEC, Camera switcher.
Specifications
- MCU: 100MHz STM32F411CEU6
- IMU: MPU6000 (SPI)
- Baro: BMP280 (I2C)
- OSD: AT7456E (SPI)
- Blackbox: No
- 2x Uarts
- 2x Softserial-Tx
- 2x Motors, 4x Servos outputs
- 1x I2C
- 4x ADC (VBAT, Current, RSSI, AirSpeed)
- 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
- Switchable Dual Camera Inputs
- TR/SA VTX control: Yes
- WS2812 Led control: Yes
- Beeper output: Yes
- RSSI: Yes
- Voltage divider for Analog Airspeed sensor: Yes
FC Firmware
PDB
- Input voltage range: 6~30V (2~6S LiPo)
- 2x ESC power pads
- Battery Voltage Sensor: 1:10 (Scale 1100)
- Current Senor: 78A, 3.3V ADC, Scale 423
BEC 5V output
- Designed for Flight controller, Receiver, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed module
- Continuous current: 2 Amps, Max.3A(5seconds/minute)
BEC Vx output
- Designed for Servos
- Voltage adjustable, 5V Default, 6V option
- Continuous current: 3.5 Amps, Max.5A(5seconds/minute)
BEC 3.3V output
- Designed for Baro / Compass module/OLED and Spektrum RX
- Linear Regulator
- Continuous current: 200mA
Physical
- Mounting: 24 x 24mm, Φ2mm
- Dimensions: 28 x 28 x 14 mm
- Weight: 8.5g
