This FC has everything covered - even cheater Kwad mode
FC Specifications

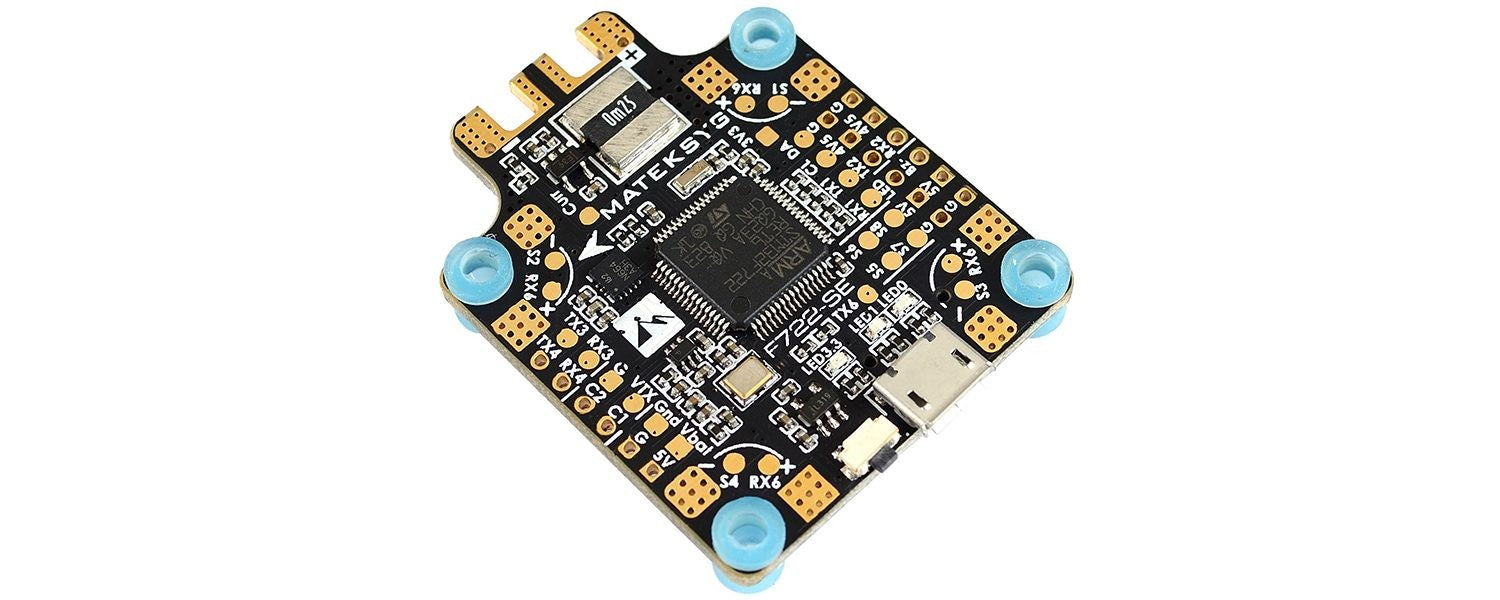

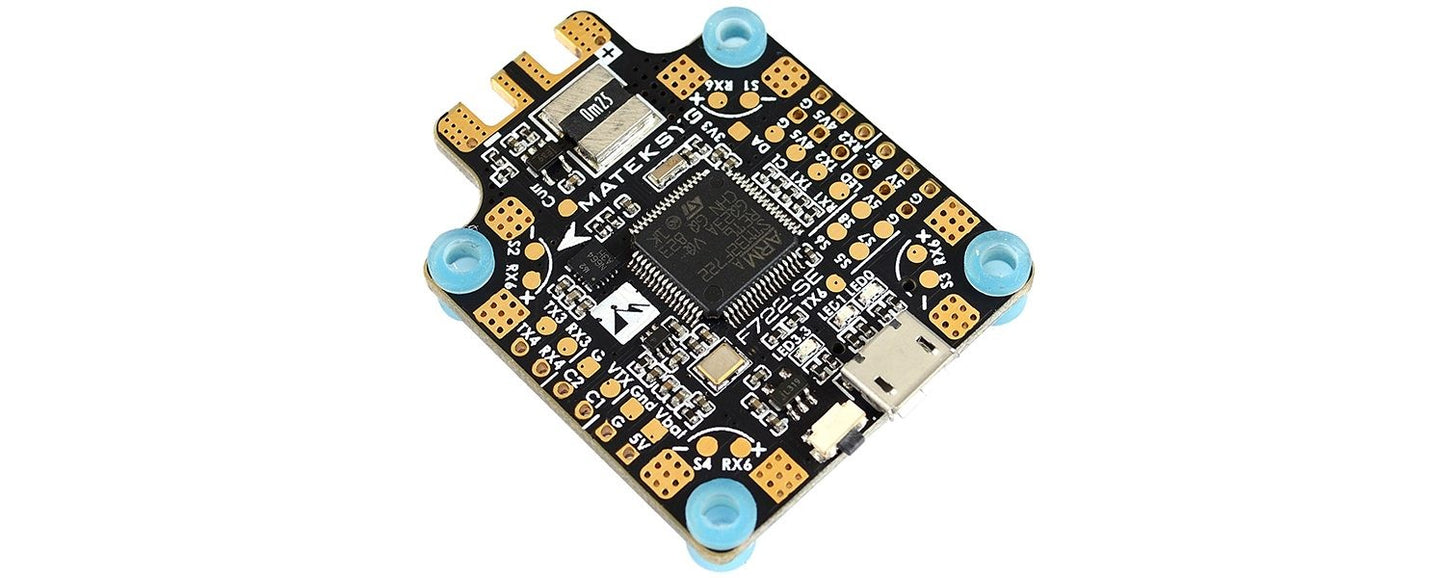

- MCU: 216MHz STM32F722RET6
- IMU: MPU6000 & ICM20602, Dual Gyros built-in (SPI)
- Baro: BMP280 (I2C)
- OSD: AT7456E (SPI)

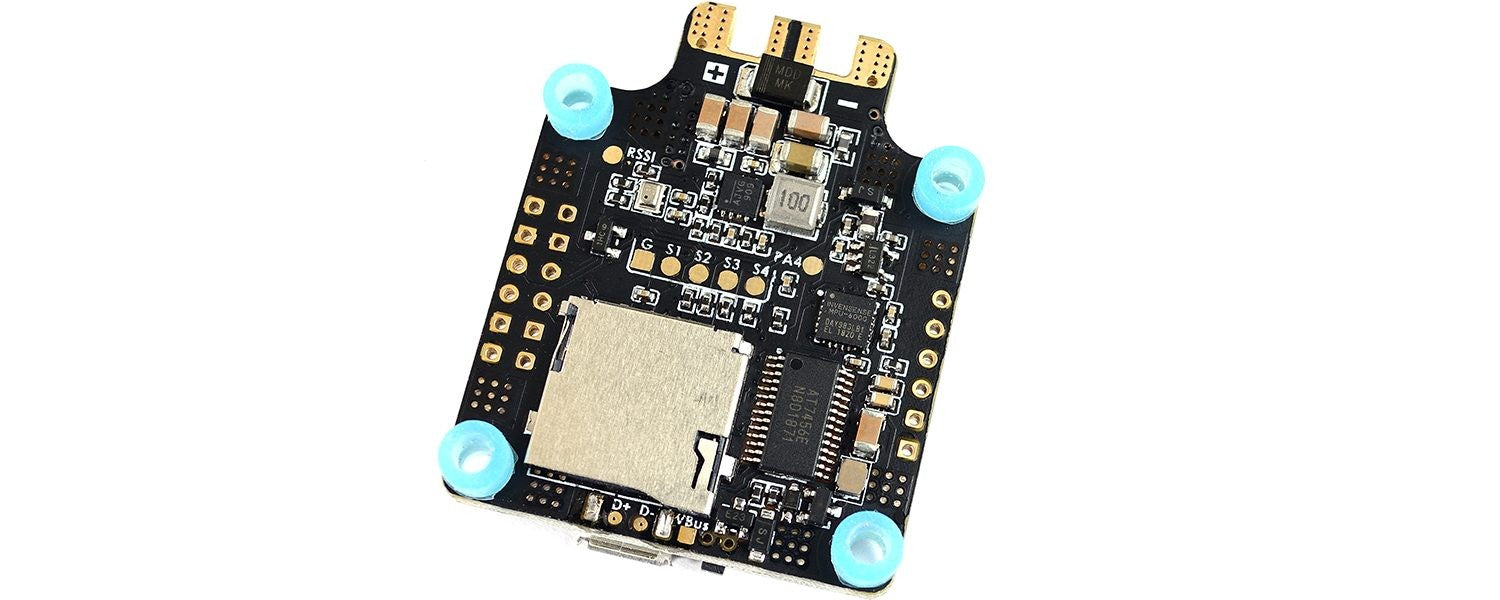

- Blackbox: MicroSD card slot (SPI)
- 5x Uarts (1,2,3,4,6) with build-in inversion
- 1x Softserial supported
- 8x Dshot/Proshot/oneshot outputs
- 1x I2C
- 4x RX6 pad(one per cornet) for BLheli32 ESC telemetry
- 4x individual ESC power/signal pads
- 1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
- 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator (Red)
- Vbat filtered output power for VTX, Switchable via AUX (modes tab-user1)
- Dual Camera image switchable via AUX (modes tab-user2)
- Camera control: Yes
- Smartaudio & Tramp VTX protocol: Yes
- WS2812 Led Strip : Yes
- Beeper : Yes
- RSSI: Yes
- Additional ADC for INAV analog airspeed
PDB Specifications
- Input: 6~36V (3~8S LiPo) w/TVS protection
- PDB: 4x35A (Max.4x46A)
- BEC: 5V 2A cont. (Max.3A)
- LDO 3.3V: Max.200mA
- Current Sensor 184A (Scale 179)
- Battery Voltage Sensor: 1:10 (Scale 110)
FC Firmware
- BetaFlight / INAV
- Target: MATEKF722SE
Physical
- Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
- Dimensions: 36 x 46 mm
- Weight: 10g

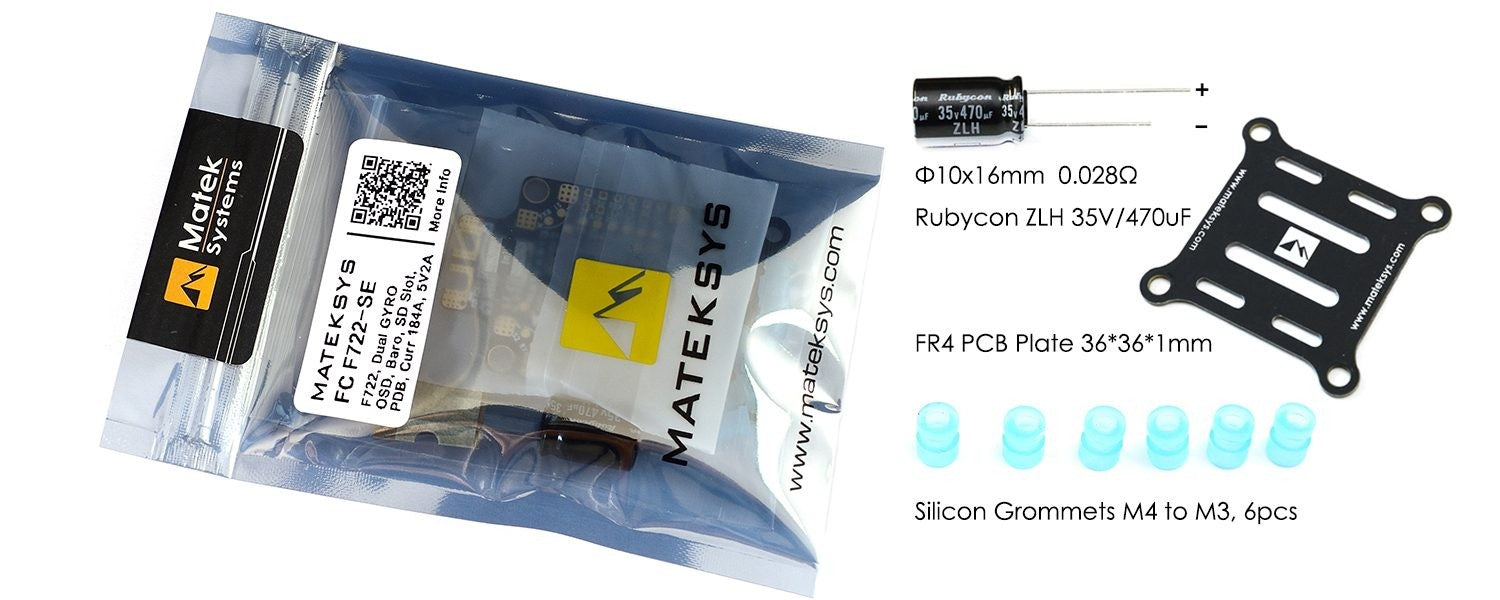

Including
- 1x FC F722-SE
- 6x silicon grommets M4 to M3
- 1x FR4 PCB Plate 36*36*1mm

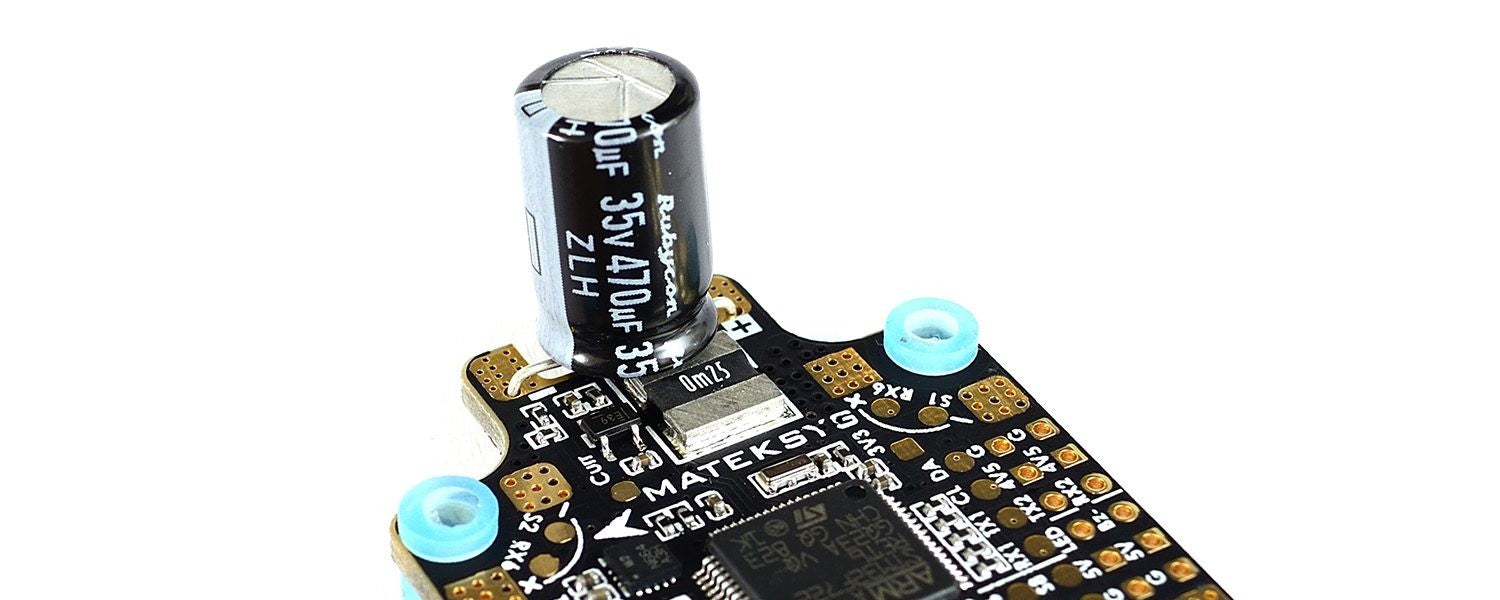

- 1x Rubycon ZLH 35V/470uF (Low ESR)
