Product Details

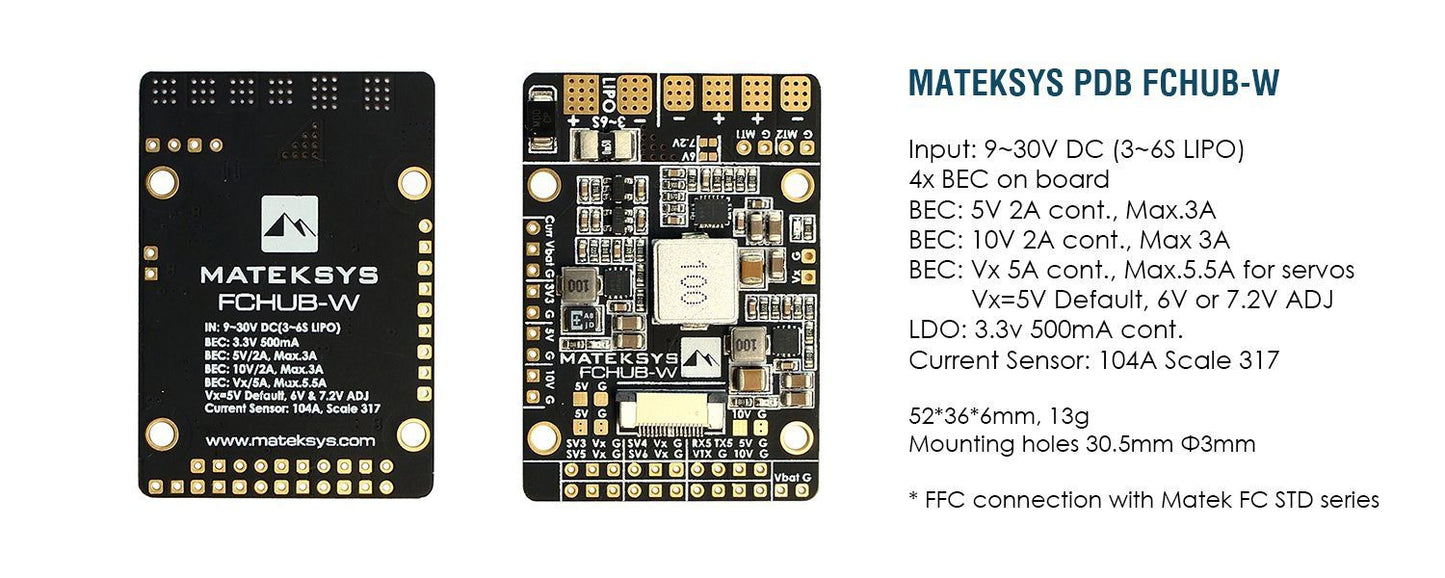

PDB
Input voltage range: 9~30V (3~6S LiPo) w/TVS protection
2x ESC power pads
Current Sensor: 104A,  3.3V ADC,  Scale 317
4x BEC on board
3x LED indicators for 5V, 10V & Vx
Soldering Holes & Pads
+ & – : Battery & ESC power pads
Curr: Current sensor output
Vbat: Battery voltage
G: Ground
3V3: LDO 3.3V
5V: BEC 5V
10V: BEC 10V
Vx: BEC 5V/6V/7.2V ADJ
FFC connection
Compatible with MATEKSYS FC F405-STD, F722-STD, F405-OSD
MT1: Motor1 of INAV Flying Wing & Airplane
MT2: Motor2 of INAV Flying Wing & Airplane
SV3~SV6: Servo 3~6 of INAV Flying Wing & Airplane
VTX: Video Transmitter signal
TX5 & RX5: UART5 of F405-STD/F722-STD/F405-OSD
BEC 5V output
Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, GPS module
DC/DC synchronous buck regulator
Voltage: 5.0 +/- 0.1VDC
Continuous current: 2 Amps, Max.3A
Output Ripple: 20mV (VIn=24V, VOut=5V@2A load)
Short-circuit tolerant (2 seconds)
BEC 10V output
Designed for Video Transmitter, Gimble
DC/DC synchronous buck regulator
Voltage: 10.0 +/- 0.2VDC (Input voltage >11V)
Continuous current: 2 Amps, Max.3A
Output Ripple: 20mV (VIn=24V, VOut=10V@2A load)
Short-circuit tolerant (2 seconds)
BEC Vx output
Designed for Servos
DC/DC synchronous buck regulator
Voltage adjustable, 5V Default, 6V or 7.2V via jumper
Continuous current: 5 Amps, Max.5.5A
Output Ripple: 50mV (VIn=24V, VOut=5V@5A load)
Short-circuit tolerant (2 seconds)
BEC 3.3V output
Designed for Baro / Compass module and Spektrum RX
Linear Regulator
Continuous current: 500mA
Physical
Mounting: 30.5 x 30.5mm, Φ3mm
Dimensions: 52 x 36 x 6 mm
Weight: 13g
