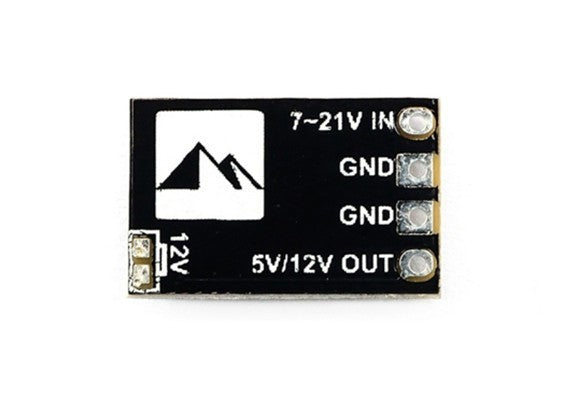

(Pololu size - not the same pin order)

Matek Micro BEC 5V/12V-Adj

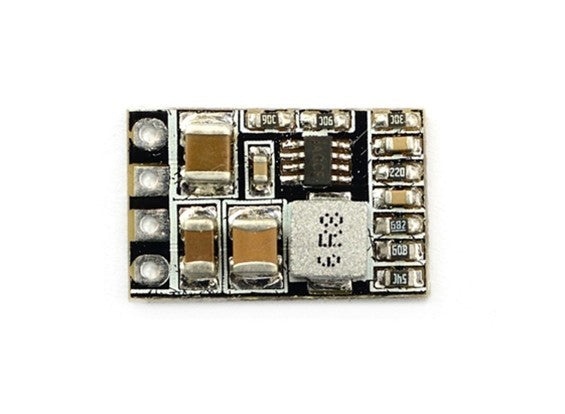

A Highly efficient synchronous rectified step-down switch mode converter. It offers a very compact solution to achieve 1.5A continuous output current over a wide input supply voltage (7 to 21V).

Features:

• High-Efficiency Synchronous Mode

• Wide 7V to 21V Input range

• Voltage output can be 5V or 12V adjustable. (default is 5V)

• OCP Protection and Hiccup

• Thermal Shutdown

• Output Short-circuit tolerant (5 sec/minute)

Specs:

Continuous load current: 1.5A (Max2.5A 5sec)

Vout: 5V or 12V (default 5V)

Vout Load Regulation: 2%

Max Duty Cycle: 95%

Output Ripple: 20mV (Vin=16V, Vout=12V@1.5A)

                          40mV (Vin=16V, Vout=5V@1.5A)

Pins distance: 2.54mm

Size: 17x11x3mm

Weight: 1g
