Matek Micro BEC 6-30V to 5V-9V-ADJ 3pc

High Efficiency Synchronous Step-down regulator Wide 6V to 30V Operating Input Range Continuous load current: 1.5 Amps...
Vendor: MATEK
Availability: Out Of Stock
$13.87
$13.87
Subtotal: $13.87
Matek Micro BEC 6-30V to 5V/9V-ADJ 3pc

Matek Micro BEC 6-30V to 5V-9V-ADJ 3pc

$13.87
Matek Micro BEC 6-30V to 5V/9V-ADJ 3pc
Matek Micro BEC 6-30V to 5V/9V-ADJ 3pc
Matek Micro BEC 6-30V to 5V/9V-ADJ 3pc

Matek Micro BEC 6-30V to 5V-9V-ADJ 3pc

$13.87

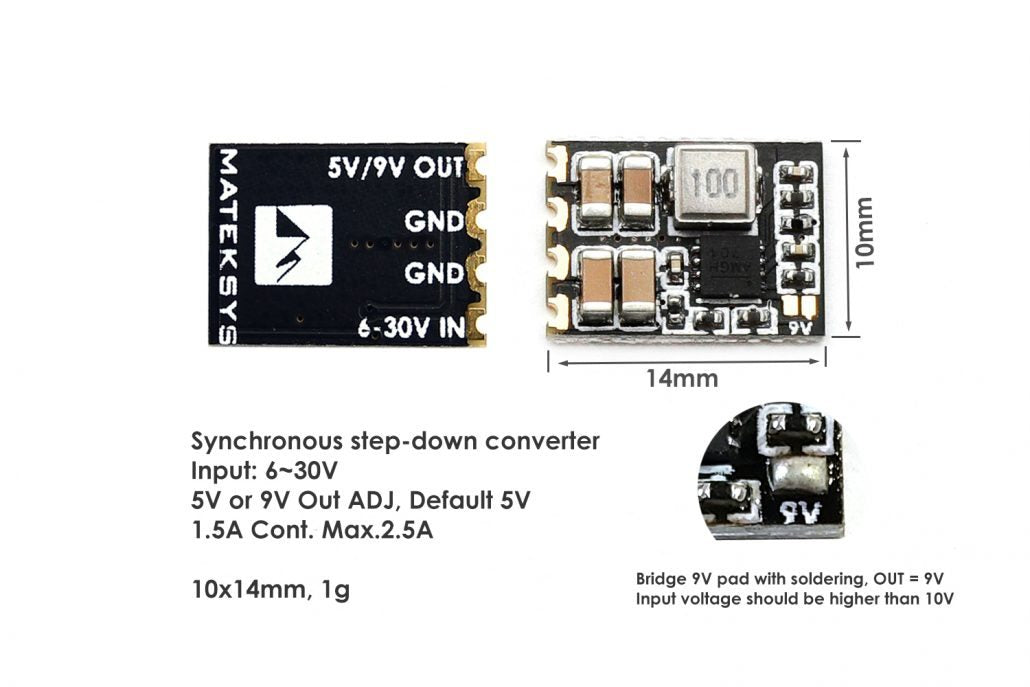

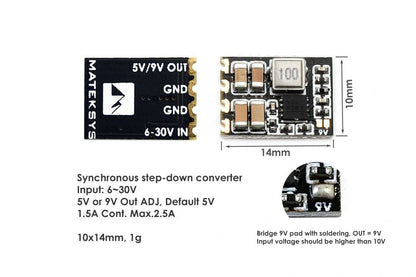

Description
  • High Efficiency Synchronous Step-down regulator
  • Wide 6V to 30V Operating Input Range
  • Continuous load current: 1.5 Amps (Max.2.5A 5s/minute)
  • VOut 5V or 9V Adj. Default is 5V.
  • VOut Load Regulation: 2%
  • Standby current: <5mA
  • Maximum Duty Cycle: 95%
  • OCP Protection and Hiccup
  • Thermal Shutdown
  • Output Short-circuit tolerant (5 seconds/minute)
  • Pins distance: 2.54mm

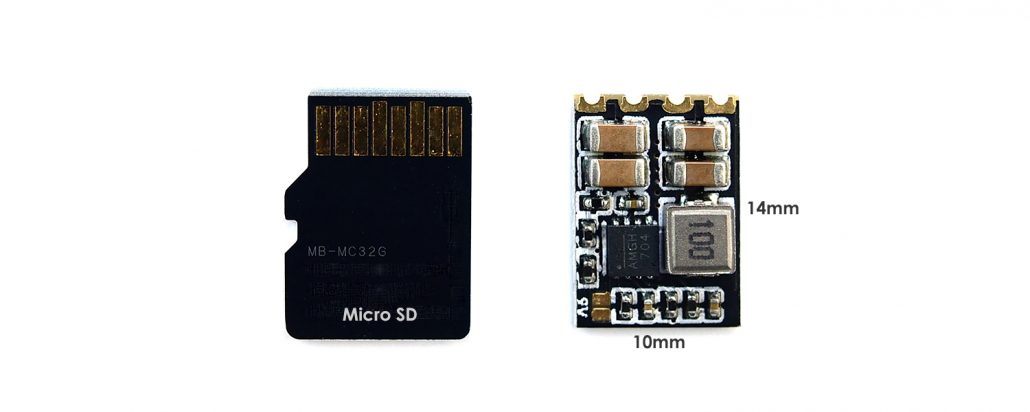

  • Size & Weight: 10x14x3mm, 1g

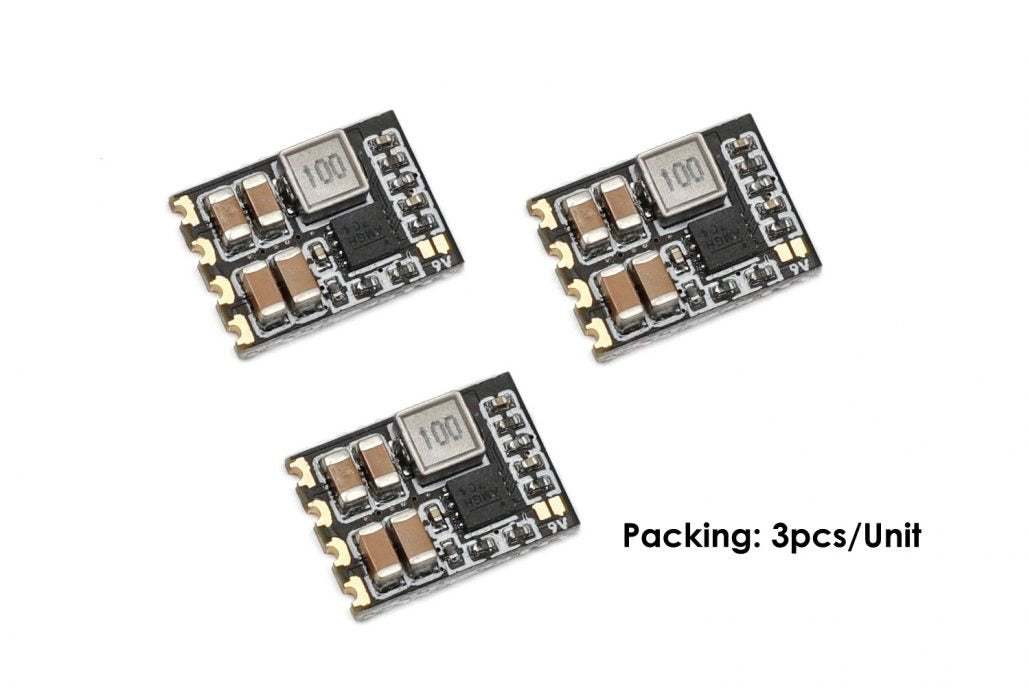

  • Packing: 3pcs/unit
