APPLICATIONS:
- Flight controllers without dedicated BEC for servos
- Reduces circuit loss and voltage drop on servo power wires for big scale RC Airplane
SPECIFICATIONS:
- 5.5V to 36V Operating Input Range
- Vx for servos, 5V, 6V, 7.2V, 8.2V Adj. Default is 5V.
- 4A Continuous load current, 7A Burst
- Maximum Duty Cycle: 100%, when input voltage< setting value, Regulator output voltage = Input voltage
- Output Short-circuit tolerant (3 seconds)
- No protection for reversed input polarity
- Pins distance: 2.54mm

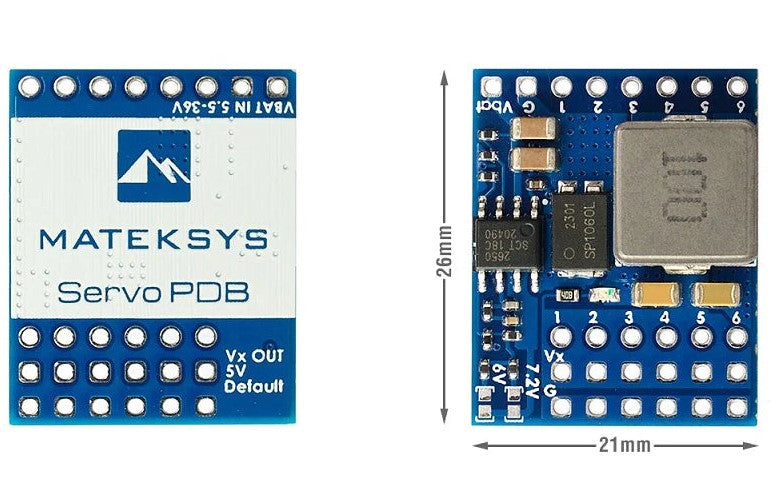

- Size & Weight: 26 x 21 x 5mm, 4g
INCLUDES

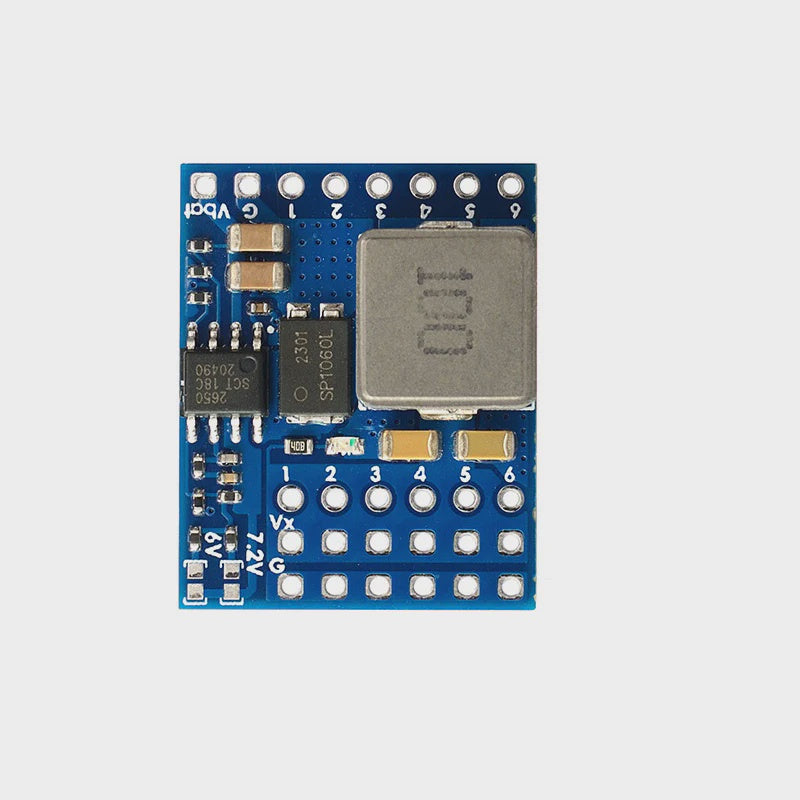

- 1 x Matek Servo PDB W/ BEC 5.5-36V to 5-8.2V
- Dupont 2.54mm pins
WIRING DIAGRAM:
