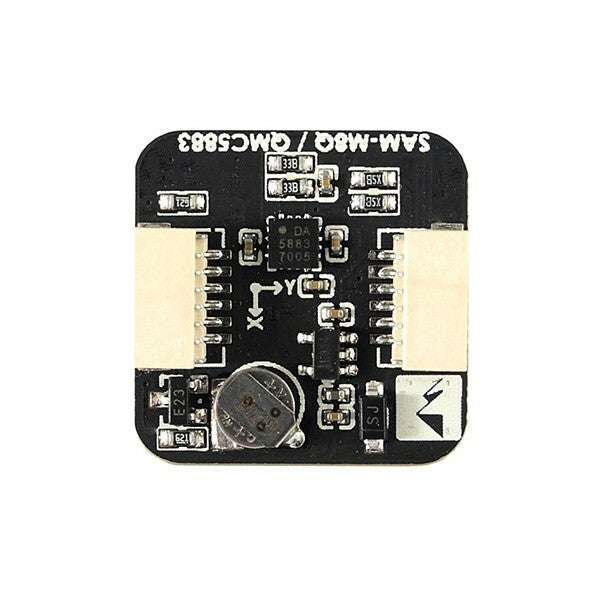

Matek Ublox M8Q-5883 GPS + Compass Module
Matek Ublox M8Q-5883 GPS + Compass Module
Matek Ublox M8Q-5883 GPS + Compass Module

Matek Ublox M8Q-5883 GPS + Compass Module

The Ublox M8Q-5883 GPS with GLONASS, Galileo, QZSS and SBAS receiver technology and built-in micro patch antenna....
Vendor: MATEK
Availability: Out Of Stock
$50.95
$50.95
Subtotal: $50.95
Matek Ublox M8Q-5883 GPS + Compass Module

Matek Ublox M8Q-5883 GPS + Compass Module

$50.95

Matek Ublox M8Q-5883 GPS + Compass Module

$50.95

The Ublox M8Q-5883 GPS with GLONASS, Galileo, QZSS and SBAS receiver technology and built-in micro patch antenna. For your UAV systems, Robots, RC, FPV or other projects. Compass QMC5883L integrated.

Features

  • 72-channel u-blox M8 engine GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, Galileo E1B/C
  • On-board Ultra low noise 3.3V voltage regulator and RF filter for noise blocking
  • Features an additional front-end LNA for optimized performance and a front-end SAW filter for increased jamming immunity
  • Built-in embedded GNSS patch antenna, low power consumption
  • The 15 x 15 mm patch antenna provides the best compromise between the performance of a Right Hand Circular Polarized (RHCP) antenna and a small size to be integrated into any design.
  • Magnetic sensor QMC5883L integrated

Specifications

  • Max navigation update rate
    • Single GNSS up to 18 Hz
  • 2 Concurrent GNSS(GPS & GLONASS) up to 10 Hz
  • Horizontal position accuracy(GPS & GLONASS) 2.5 m CEP
  • Velocity accuracy 0.05m/s
  • Cold start 26 s
    • Aided cold starts: 2 s
    • Hot start 1 s
  • Sensitivity
    • Tracking & Navigation: –165 dBm
    • Reacquisition: –158 dBm
    • Cold start: –146 dBm
    • Hot start: –155 dBm
  • Input voltage range: 4~6V
  • Uart (Tx, Rx) interface for GPS SAM-M8Q
  • I2C (DA, CL) interface for Compass QMC5883L
  • Battery for HOT module start
  • Power LED(Red) & Time pulse LED(Blue)
  • Dimensions: L20 x W20 x H10 mm
  • Weight: 7 gram
  • Supported by INAV/Betaflight/Ardupilot, etc.

Includes

  • M8Q-5883 module, 1 pc
  • SH1.0-6P 20cm silicon wire, 1 pc
  • Transparent PVC Heat-shrink tube

Tips

  • GPS, GLONASS, SBAS, QZSS are enabled by default
  • Blue PPS LED blinking(1Hz) means 3D fixed
  • update rate 1Hz & baud rate 9600 default
  • Baud 9600~115200 supported by INAV/BF/Ardupilot
  • update rate 5Hz with INAV UBLOX Protocol
  • update rate 10Hz with INAV UBLOX7 Protocol
  • Compass Alignment(Arrow forward):
    • INAV/BF: CW 270° Flip
    • Ardupilot/Mission Planner: Rotation None
  • BF doesn’t support GPS position hold and RTH, GPS Rescue mode is supported by BF3.5 or latest
  • No need compass for Fixed wings with INAV firmware
  • The scratches on the ceramic antenna are the result of tuning the antenna by ublox.
