Matek VTX-HV w/ BFCMS Control - MMCX
Matek VTX-HV w/ BFCMS Control - MMCX
Matek VTX-HV w/ BFCMS Control - MMCX

Matek VTX-HV w- BFCMS Control - MMCX

The Matek Video Transmitter is revolutionary in form, function, and price. Able to handle direct battery input,...
Vendor: MATEK
Availability: Out Of Stock
$46.29
$46.29
Subtotal: $46.29
Matek VTX-HV w/ BFCMS Control - MMCX

Matek VTX-HV w- BFCMS Control - MMCX

$46.29

Matek VTX-HV w- BFCMS Control - MMCX

$46.29

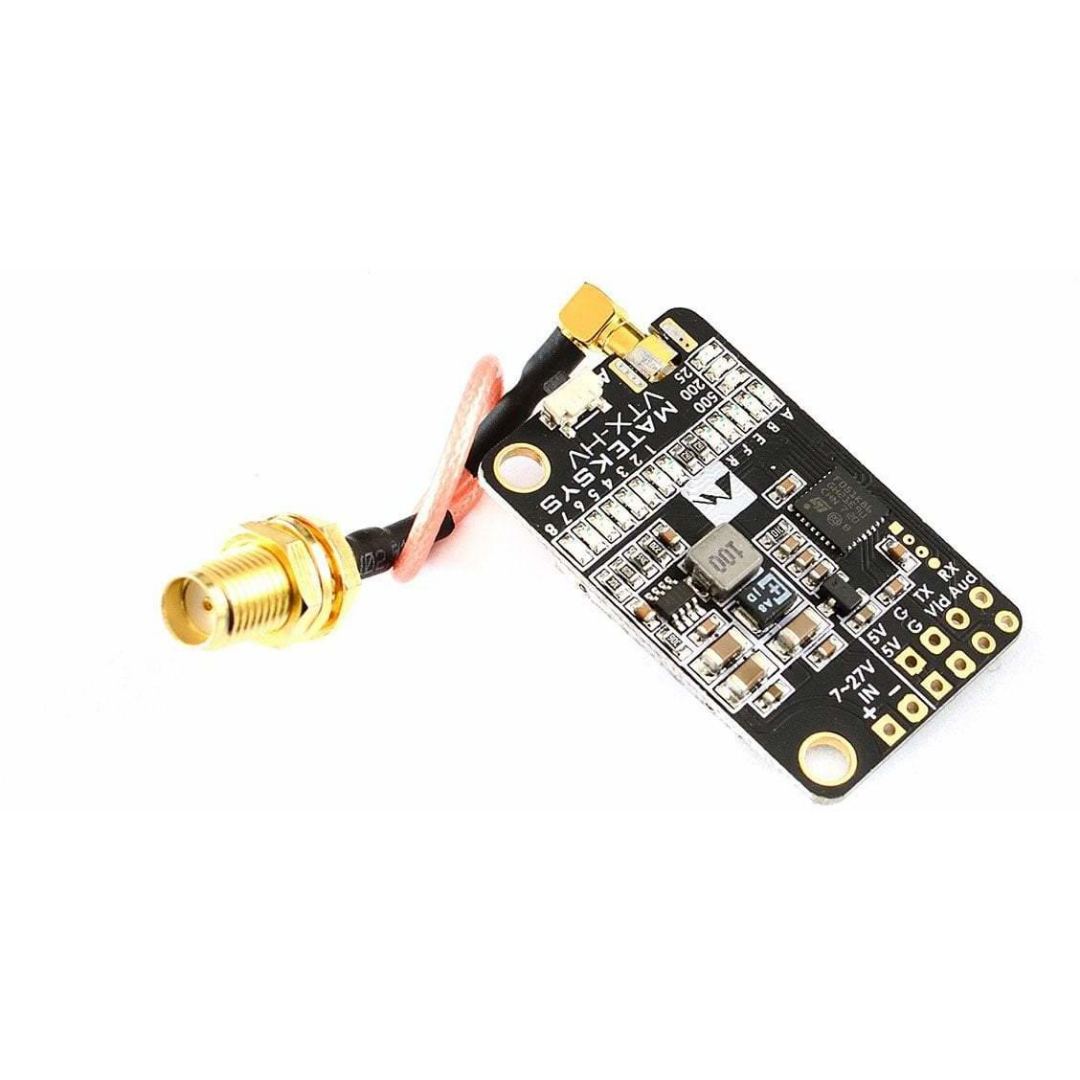

The Matek Video Transmitter is revolutionary in form, function, and price. Able to handle direct battery input, this VTX offers Multiple power options. Additionally, it features direct solder for easy repair (none of those fragile white connections), and the ability to change channel through your transmitter and goggles via BFCMS control on your Flight Controller's UART (similar to the IRC Tramp). Easy to read LED channel and power display, and it can be easily mounted in your stack

Note:

  • The Smart Audio is similar to that on the Tramp Vtx
  • SMA Pigtail


Specifications & Features

  • Input voltage: 7~27V(2~6S LiPo)
  • BEC Output: 5V/1A for Camera or FC
  • Traditional button+LED control of frequency and power
  • BFCMS (BFOSD & LUA Script) control via FC UART _TX
  • Firmware upgradeable
  • Power Consumption: 3.1W Max. @ 500mW
  • Video Input Impedance: 75 Ohm
  • Audio Subcarrier Frequency: 6.5 MHz

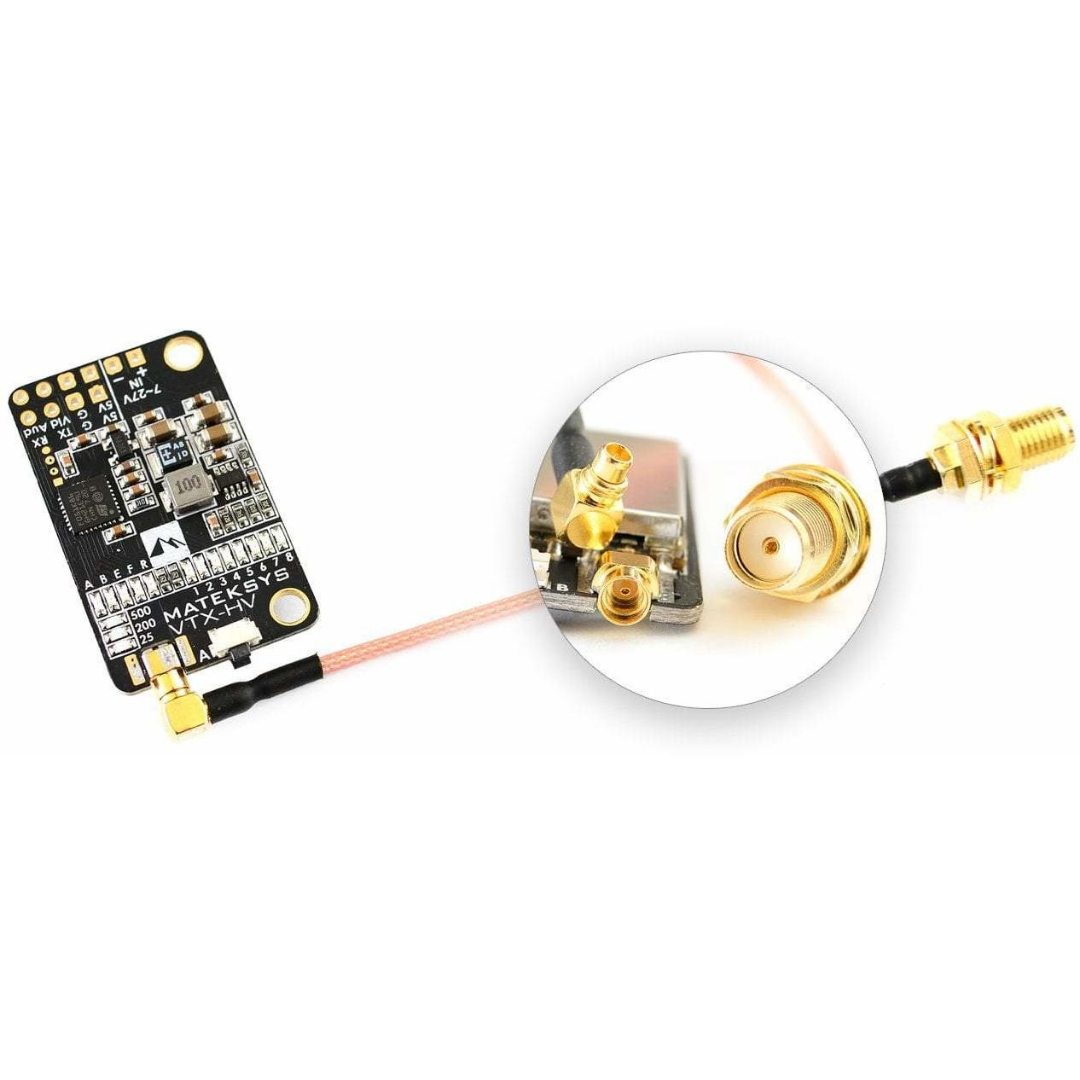

  • RF Connector: MMCX
  • Video Format: NTSC/PAL
  • Weight: 6g (Tx only, w/o SMA cable)
  • Size: 36*22*6.5mm w/30.5mm mounting

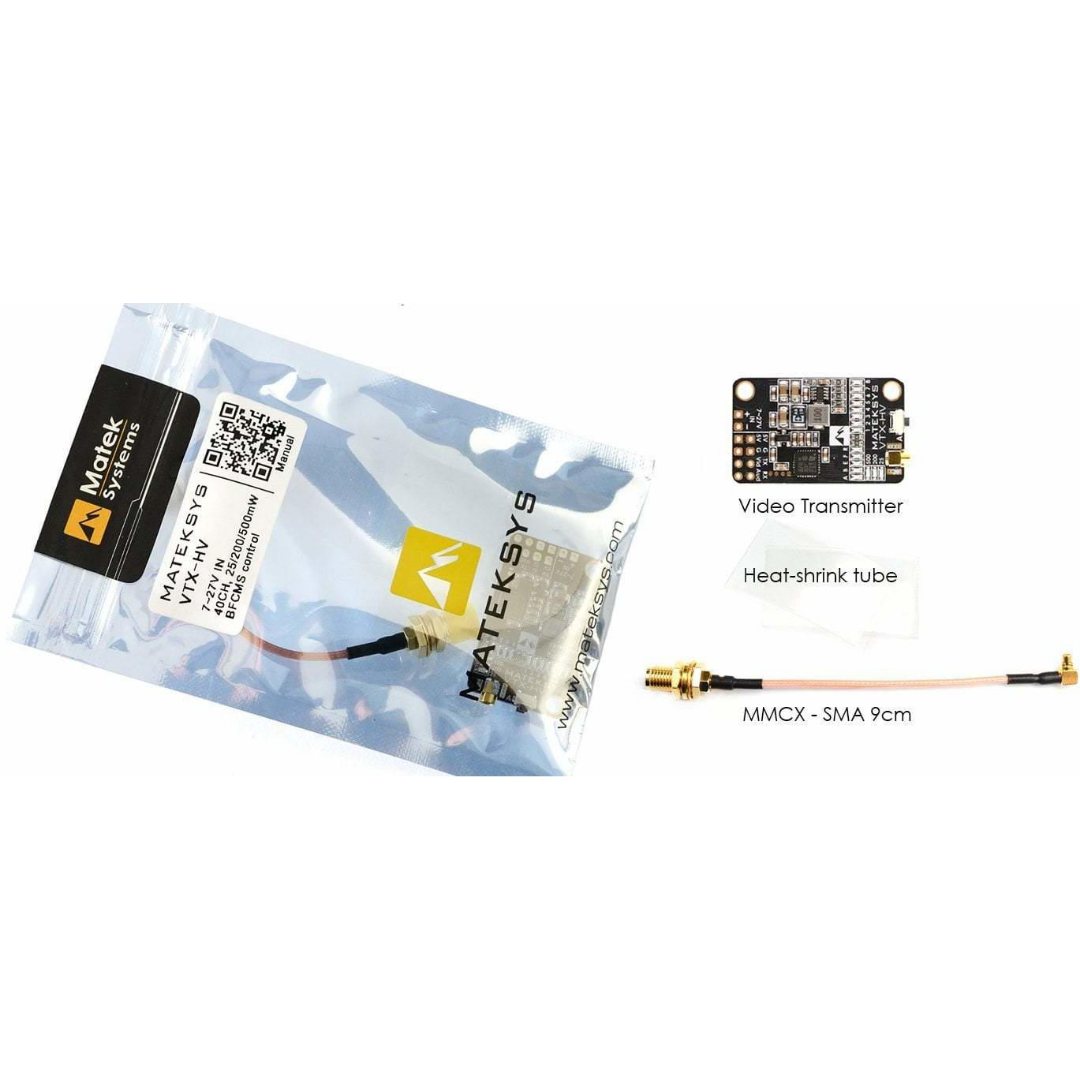

MMCX version Packing

  • 5.8G Video transmitter (MMCX)
  • PVC Heat-shrink tube
