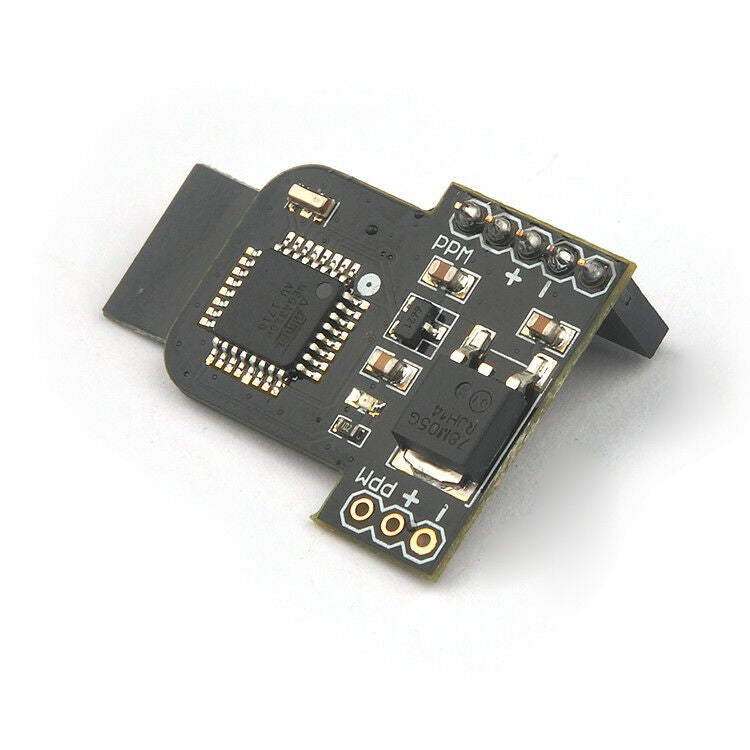

Multiprotocol TX Module For Frsky X9D X9D Plus X12S Flysky TH9X 9XR PRO Transmitter

This Multiprotocol TX Module is suitable for many brand's quadcopters, airplanes .helicopters.You can control RC quadcopter models.RC helicopters or RC airplanes flexibility when you insert  the TX Module to your Frsky X9D/X9D Plus/X12S,flysky TH9X,Turnigy 9XR/9XR PRO transmitter. You will get many new ways to control models.

Description:
Item name: Multi-protocol Radio-frequency Head
Signal frequency: 2400-2483.5Mhz
Controllable range: about 100m
Input voltage: 6V-13.5V
Supported remote controls: Frsky X9D/X9D Plus/X12S,flysky TH9X,Turnigy 9XR/9XR PRO
Supported Remote control channel order: AETR
Supported brand: Cheerson, Syma, Wltoys , Eachine E010(Most of these brand's quadcopters, helicopters and airplanes are compatible but not every model.Specific models please check instruction under the note)

Binding Procedure:
1. Create a model in OpenTX using the external module in PPM mode, 12 channels, and AETR sequence order.
2. Turn off Taranis.
3. Power up quad.
4. While holding the appropriate stick pattern listed below, power up Taranis.

Note:
This  Multiprotocol TX Module only supports remote control of AETR remote control channel order. Optimal system is Opentx/ER9X .But JR and TAER remote control channel order is not available now.

More instruction of  Multiprotocol TX Module, please click here

Package included:
1X Multiprotocol TX Module
