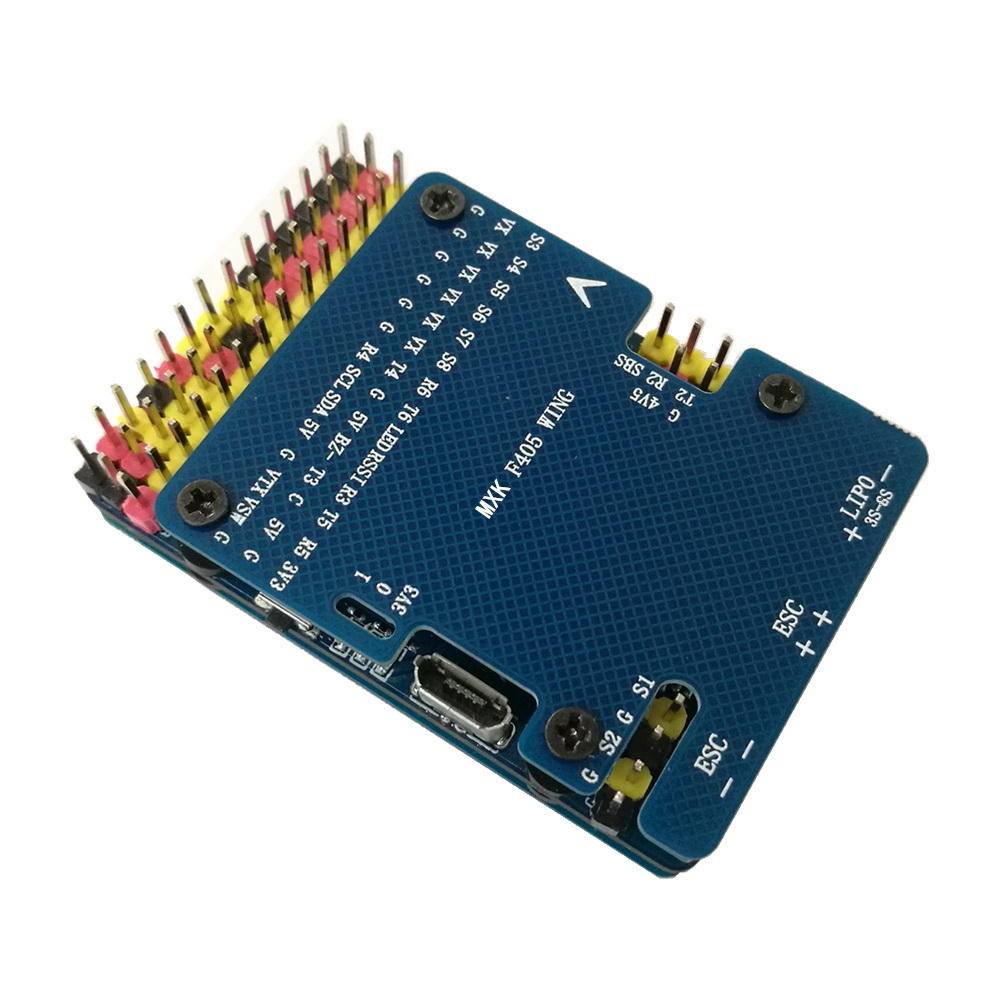

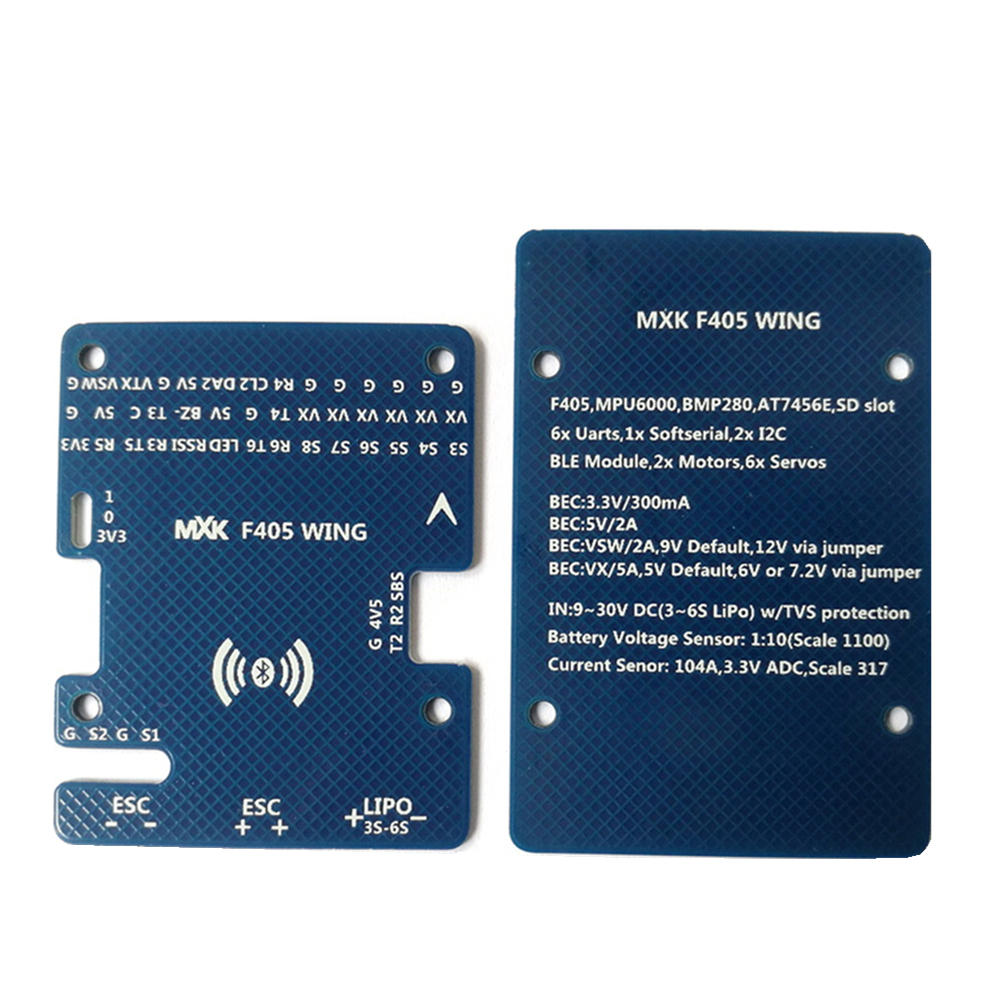

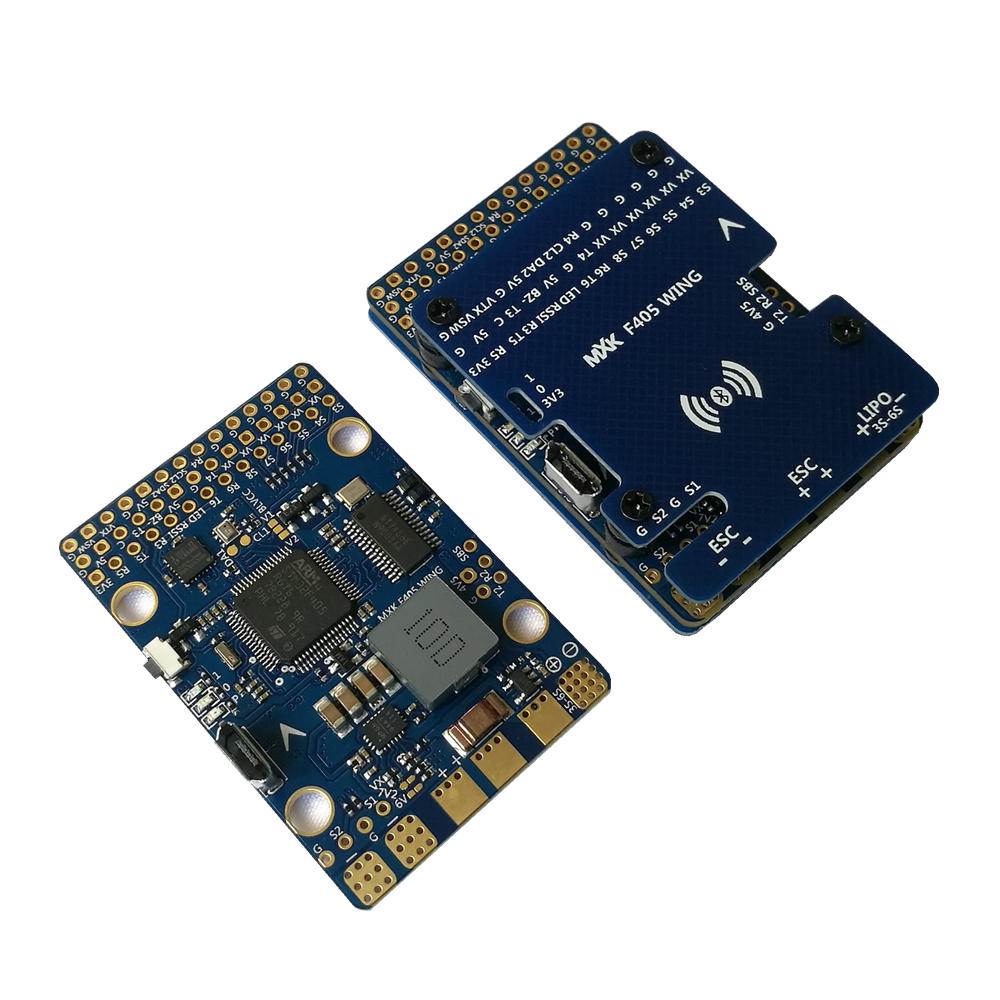

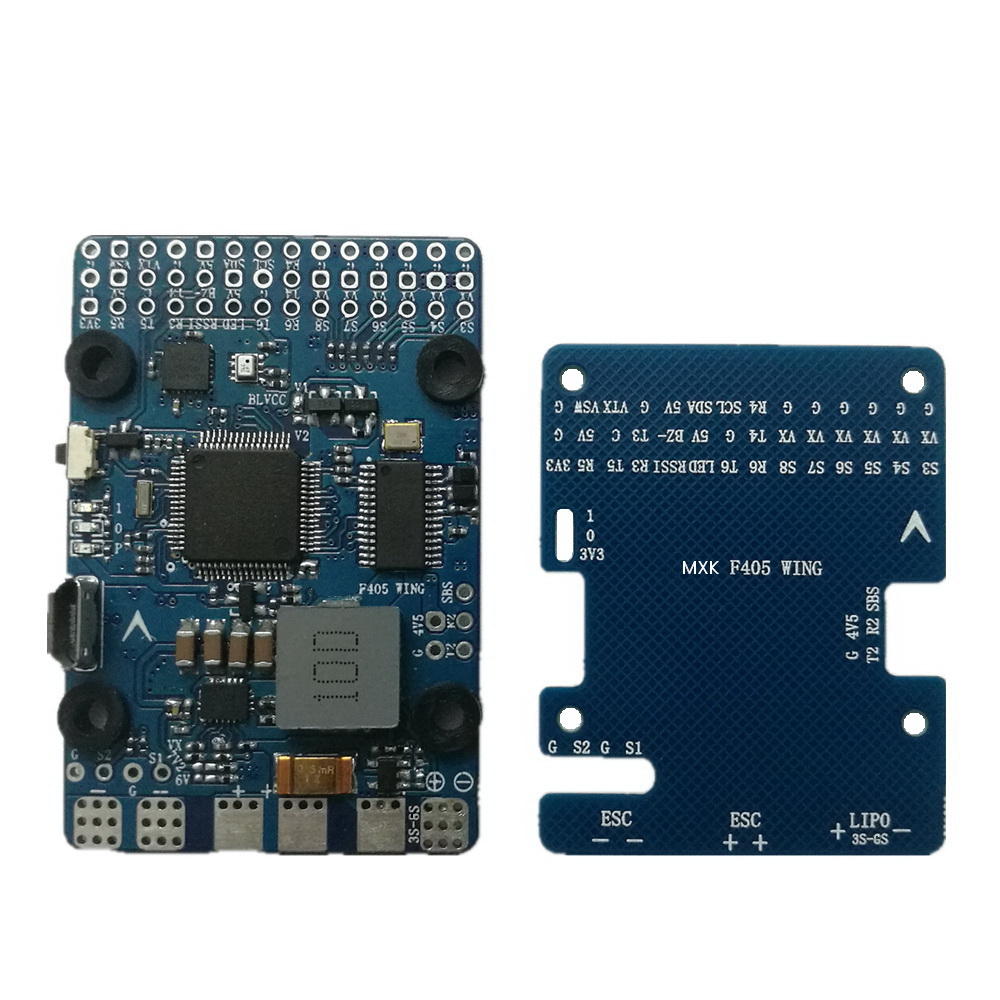

MXK F405WING STM32F405 Flight Controller Built-in OSD Support bluetooth For RC Airplane Fixed Wing

MCU: 168MHz STM32F405

IMU: MPU6000 accelerometer/gyro

Baro: BMP280

OSD:  AT7456E

Blackbox: MicroSD card slot (SD/SDHC)

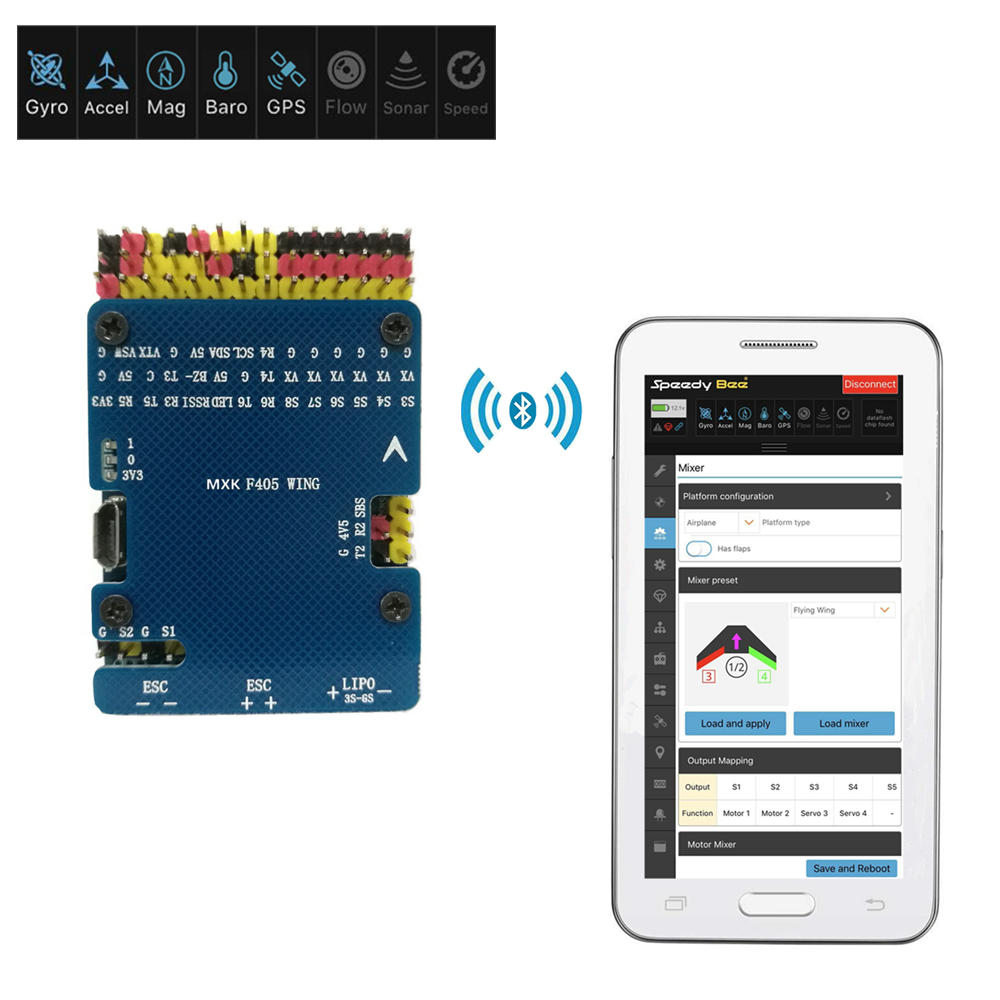

BLE Module: Inner connect to UART5(MSP & Baud 9600)

for remote setting with SpeedyBee App or other similar apps

6x Uarts (1,2,3,4,5,6)

1x Softserial-Tx(SoftSerial on TX2 pad)

2x Motors, 6x Servos outputs

2x I2C

3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)

Built in inverter for SBUS input (UART2-RX)

PPM/UART Shared: UART2-RX

WS2812 Led Strip : Yes

Battery Voltage Sensor: 1:10 (Scale 1100)

Current Senor: 104A,  3.3V ADC,  Scale 317

Beeper : Yes

RSSI: Yes

2x ESC power pads

Input Voltage Range: 9~30V (3~6S LiPo) w/TVS protection
3.3V(3V3)  0.3A BEC(Designed for Spektrum RX)
5V(5V) 2A BEC(Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, GPS module, AirSpeed etc)
9V/12V(VSW)  2A BEC(Designed for Video Transmitter, Gimbal ect),12V option with Jumper pad
5V/6V/7.2V(VX)  5A BEC(Designed for Servos),Voltage adjustable, 5V Default, 6V or 7.2V via jumper

INAV-Rada.r

INAV

APM(ArduPilot)
