NameLessRC AIO412T F4 AIO(F411+12A ESC) 2-4S HV DShot600

NLRC AIO412T

SPECIFICATION:

BRAND NAME: NAMELESSRC

PROCESSOR: STM32F411

SENSOR: MPU-6000

INPUT VOLTAGE: 2-4S LIPO OR 2- 4S HV LIPO

SIZE: 33×33MM (MOUNTING HOLE 26.5MM)

WEIGHT: 4.7G (W/O BATTERY WIRE)

FEATURES:

- CAPACITANCE & BUZZER PAD BUILT-IN

- SUPPORT CONNECT WITH MOTORS VIA CONNECTORS OR SOLDER DIRECTLY

- COMPATIBLE WITH MORE TYPES FRAMES

- THE LARGEST SUPPORT 4S LIPO HV BATTERY, WITH CURRENT METER

- F411 FLIGHT CONTROLLER, BEC 5V 2.5A

- MPU6000 GYRO

-INVERT AND NON-INVERT SBUS PORT

FC SPECIFICATIONS：

-BUILT-IN 5V 2.5A BEC WITH LC FILTER

-OSD: BUILT-IN BETAFLIGHT OSD

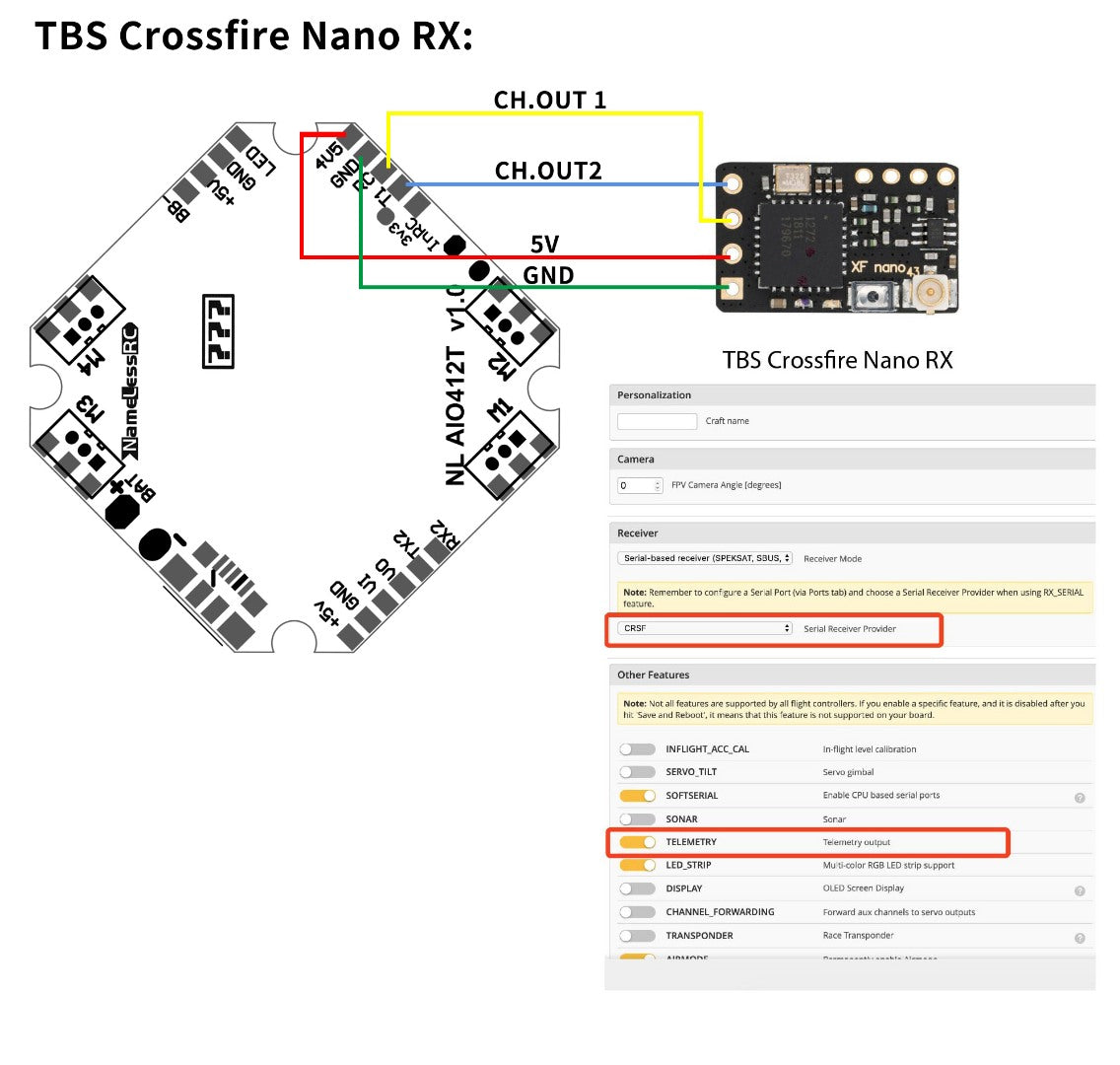

-RECEIVER: SUPPORT DSM2/X RECEIVER, FRSKY XM/XM+ RECEIVER, FRSKY R9M - FUTABA RECEIVER, FLYSKY RECEIVER, TBS CROSSFIRE RECEIVER

-SUPPORT PROGRAMMABLE LED

-BUILT-IN CURRENT SENSOR

ESC SPECIFICATIONS：

-POWER SUPPLY: 2-4S LIPO/LIPO HV (7.4V/17.4V)

-CONTINUE CURRENT: 12A

-PEAK CURRENT: 15A

-FIRMWARE: BLHELI_S

-MOTOR CONNECTORS: 1.25MM HEADER PINS CONNECTOR

-DEFAULT PROTOCOL: DSHOT600
