Description
Our best pre-built drone just got better! Another breakthrough in FPV
visuals from DJI with our upgraded frame and electronics. A new standard
of Bind-And-Fly drones that are simple to get started with but the
durability and performance for enthusiasts. Welcome to the iFlight
experience!
Highlights
Smooth and Powerful XING2 Motors
The latest upgrade of
our bestseller XING motors, no compromises taken! Durable unibell
(one-piece bell) technology, strong titanium alloy shaft with reinforced
bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting
Japanese NSK bearings, center slotted N52H curved arc magnets and our
XING O-ring bushing gap protection.
Latest Nazgul Frame for Maximum Protection
The old days are over, getting your electronics full of dirt
and wet grass every time you crash. Our latest frame reduces
contamination that could build up on your flight controller or ESCs,
preventing failure or short circuits. Strategic airflow to keep your
components cool and clean without taking any shortcuts in weight or
performance. Illuminated side panels and 360-degree TPU protective
parts.
DJI O3 HD Air Unit Low-Latency digital transmission
Up to 10 km video transmission range, enjoy a crisp and smooth real-time
view in your goggles, even in environments with interference. (Source
DJI)
4K Stabilized Video with 155° Ultra-Wide Angle
Together with high-grade imaging performance, it delivers
exceptional visuals that will keep your audience on the edge of their
seats. (Source DJI)
Secured Battery Plug with Anti-Spark Filter
Plugging in a battery can create a loud spark at the
connector which is caused by the high battery current rushing into the
low ESR capacitor first as well as filling up ESC capacitance. We’ve
added a protective circuit to extend the lifespan of XT60 connectors and
prevent rapid voltage or current spikes which can protect your
electronics from damage.
Specially Designed Heatsink for DJI O3 HD Air Unit
Improved cooling performance for the high power draw of the
DJI O3 video transmitter. We’ve added a custom CNC heatsink for
excellent heat dissipation without overheating, even on high power
levels.
Changelog
December 13, 2022: New silicone inserts have been designed to replace the TPU ones,which are holding the 03 cam in the side panels.
Specification

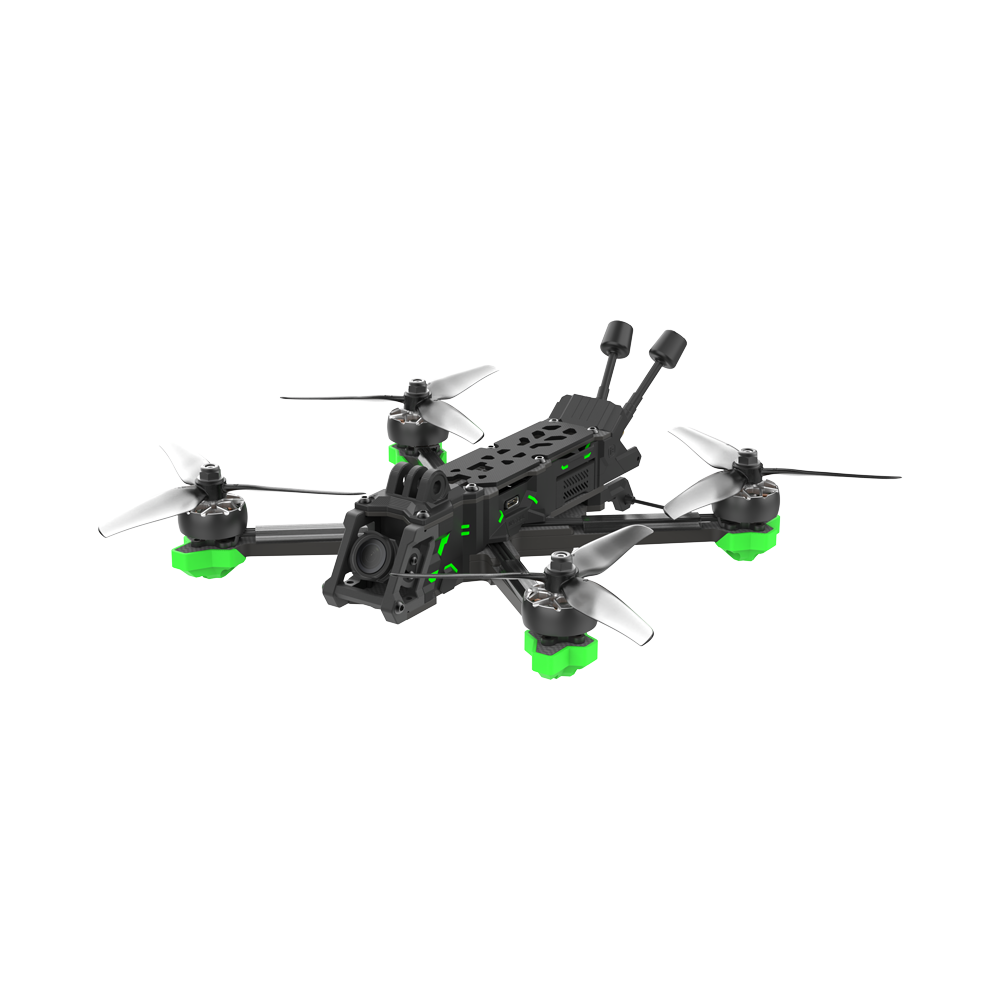

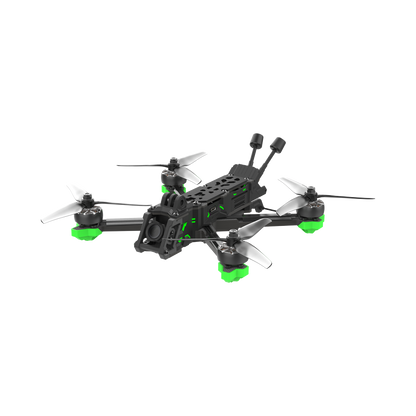

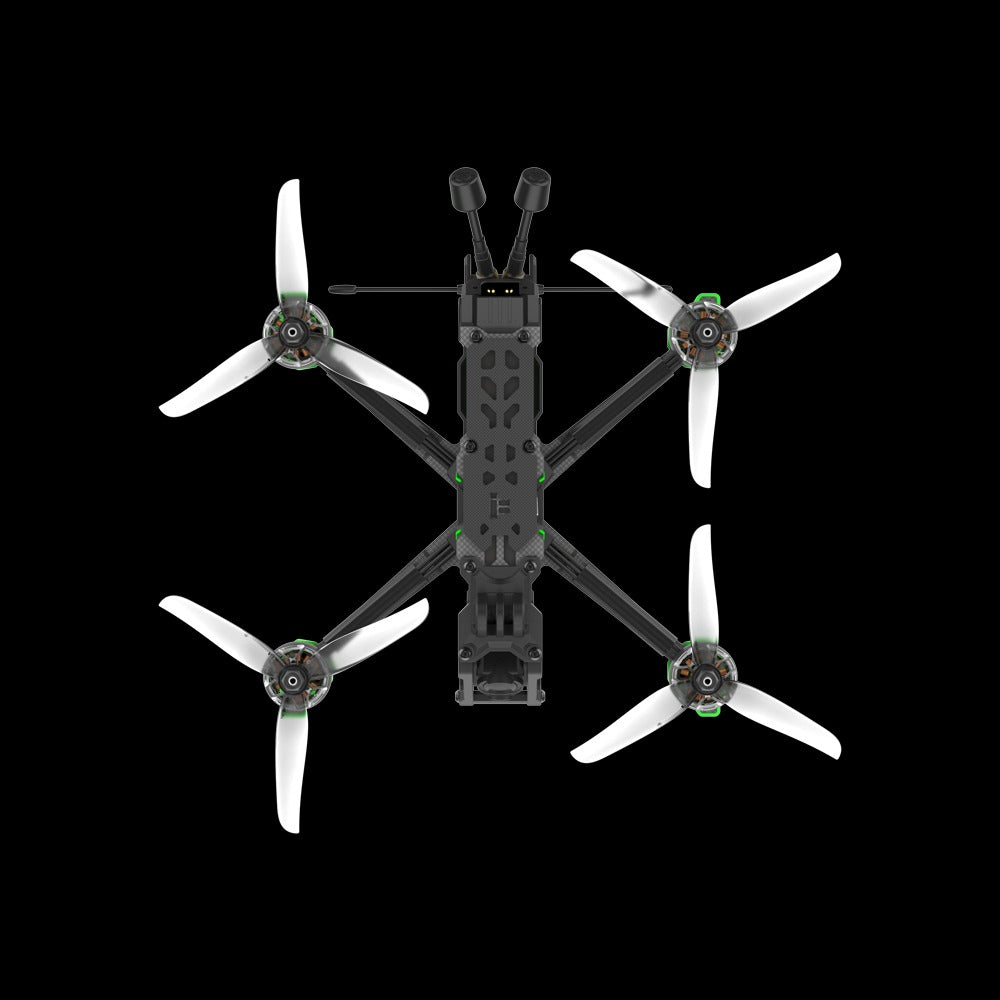

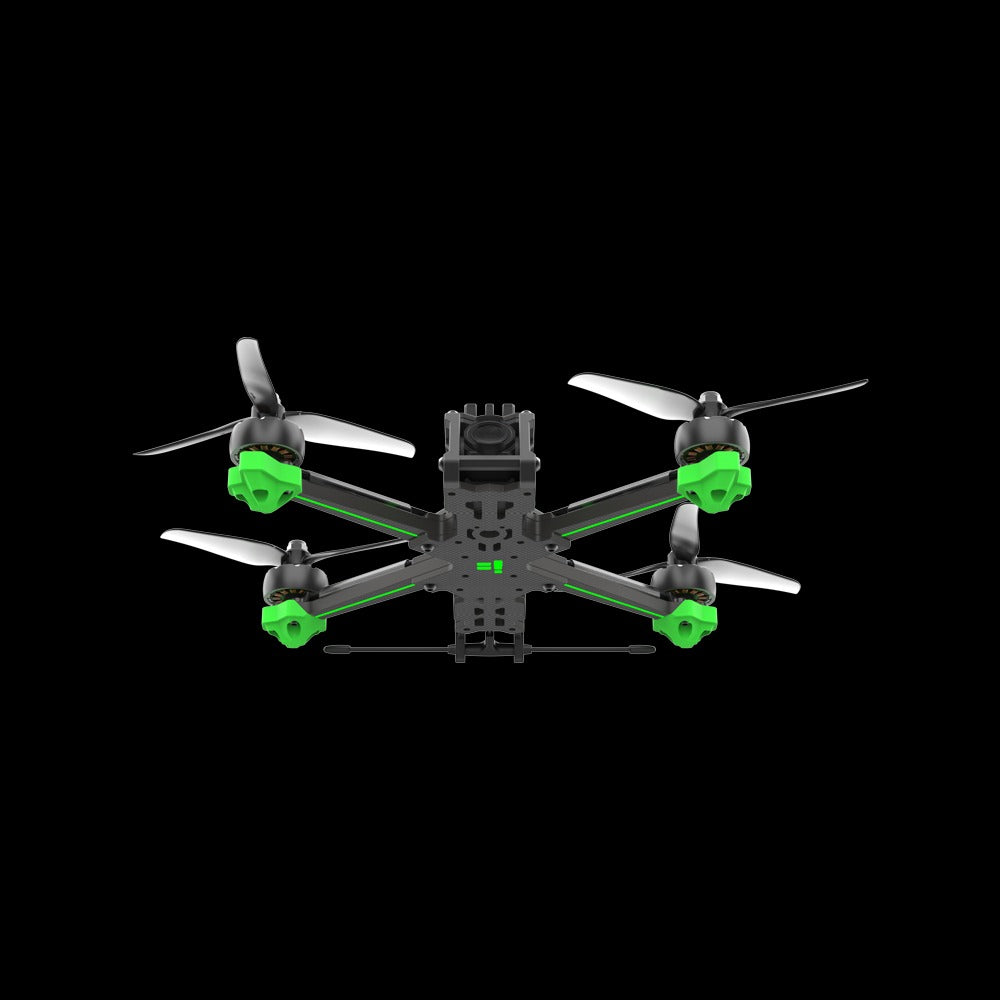

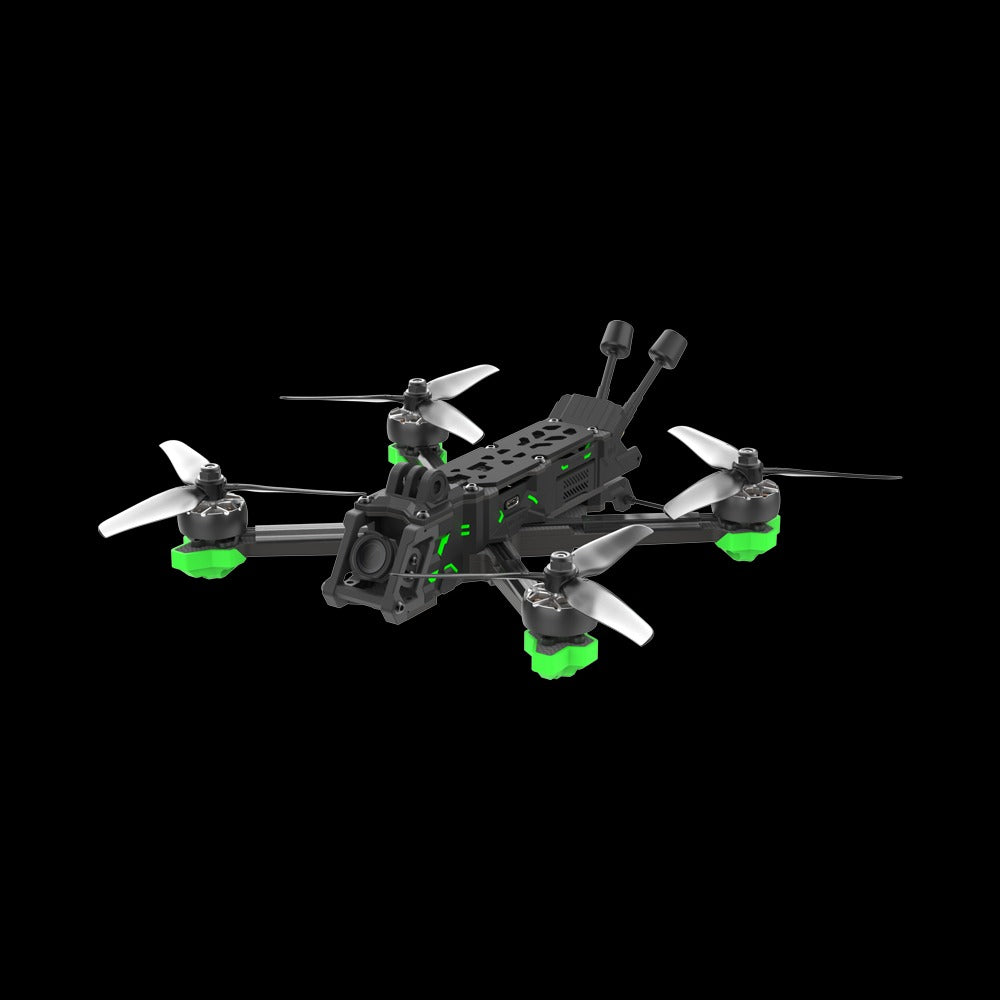

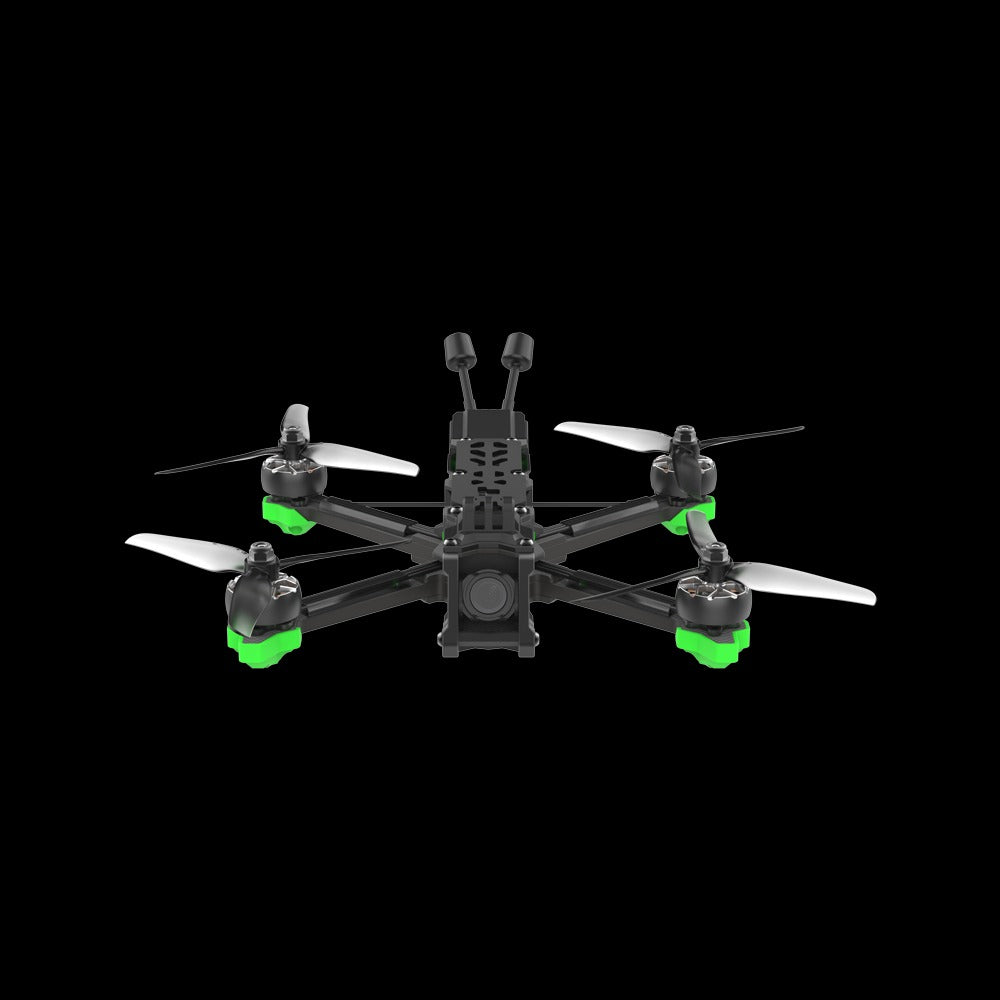

Product Name: Evoque F5 V2
FC: BLITZ Mini F722 Flight Controller
ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
Video Transmission: DJI O3 Air Unit
Frame wheelbase: 225mm (Squashed X)
Motor: XING2 2207 motors
Prop: Nazgul 5 inch propellers
Weight: 445grams
Takeoff Weight: Approx. 610 g
Dimensions (L×W×H): 190×136×36 mm
Diagonal Distance:Â 225Â mm
Max Speed: 190 Km/h (Manual Mode)
Maximum Takeoff Altitude: 5000 m
Max Hover Time: Approx. 8 mins
Max Flight Distance: 5 km
Max Wind Speed Resistance: Level 7
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual Antennas
Video Transmission
Product Name: DJI O3 Air Unit
Weight: Approx. 36.4 grams(headband included)
Communication Bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication Frequency:2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
End-to-End Latency
With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Bitrate: 50 Mbps
Max Video Transmission Range:10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating Temperature Range: -10º to 40º C (14° to 104° F)
Power Input: 7.4-26.4 V
Audio Transmission: N/A
Packing List
1 x Evoque F5 6S HD BNF
2 x Antennas
1 x Battery pad
2 x propeller(Pairs)
2 x Battery strap
Important
All iFlight BNFs are tested before shipment to guarantee highest quality.
If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
