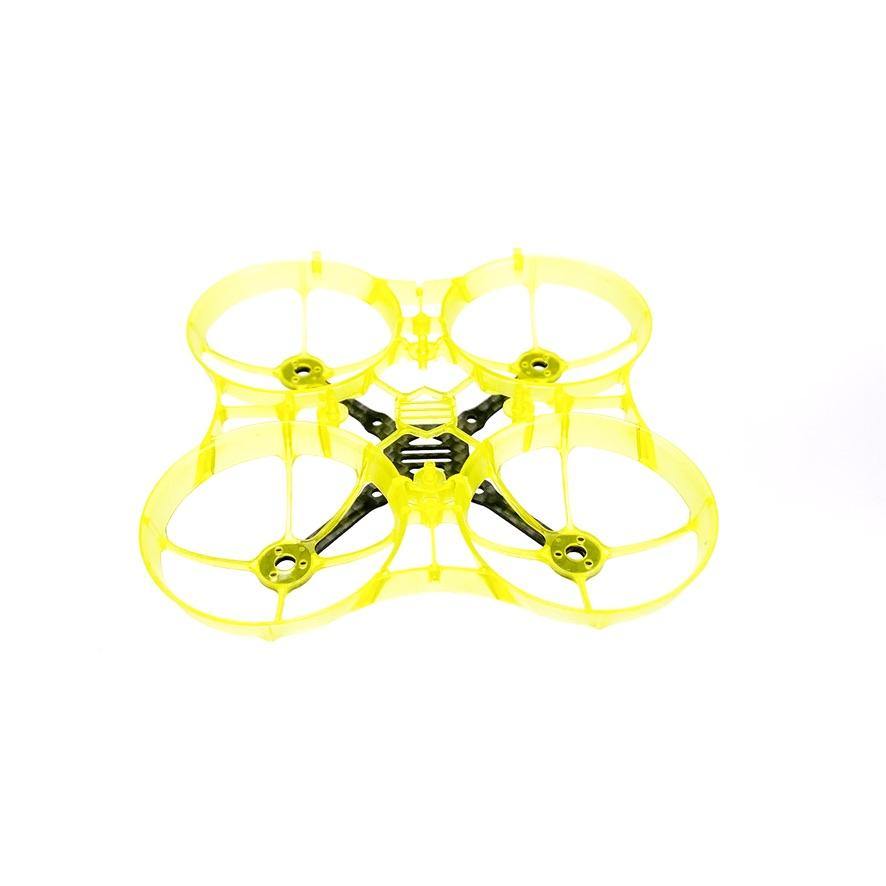

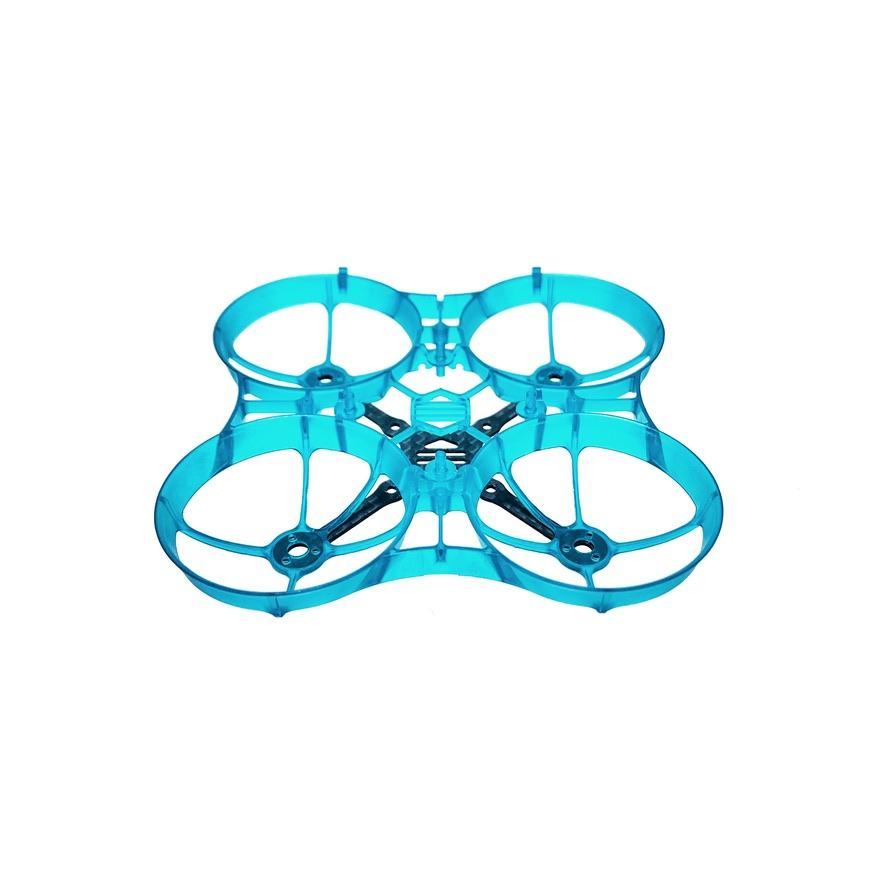

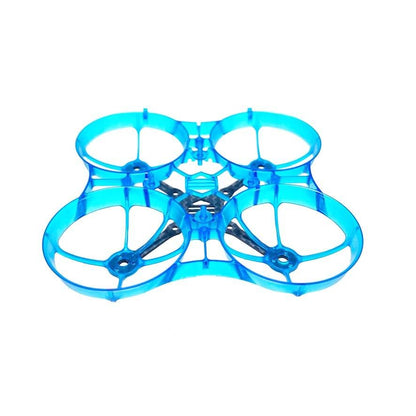

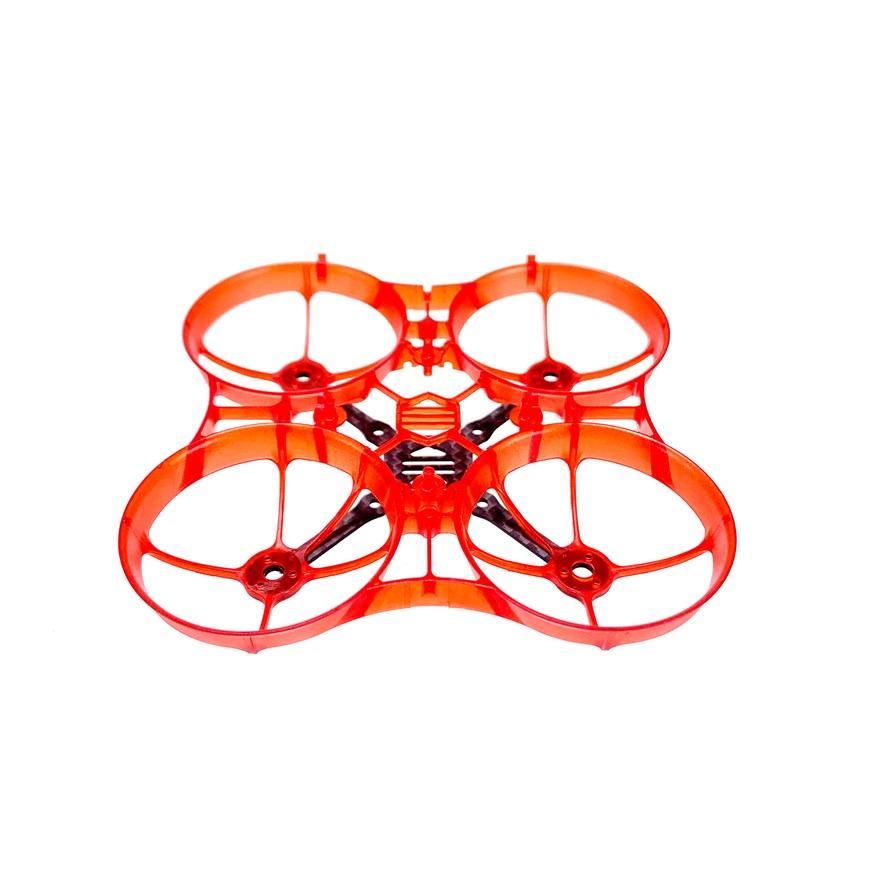

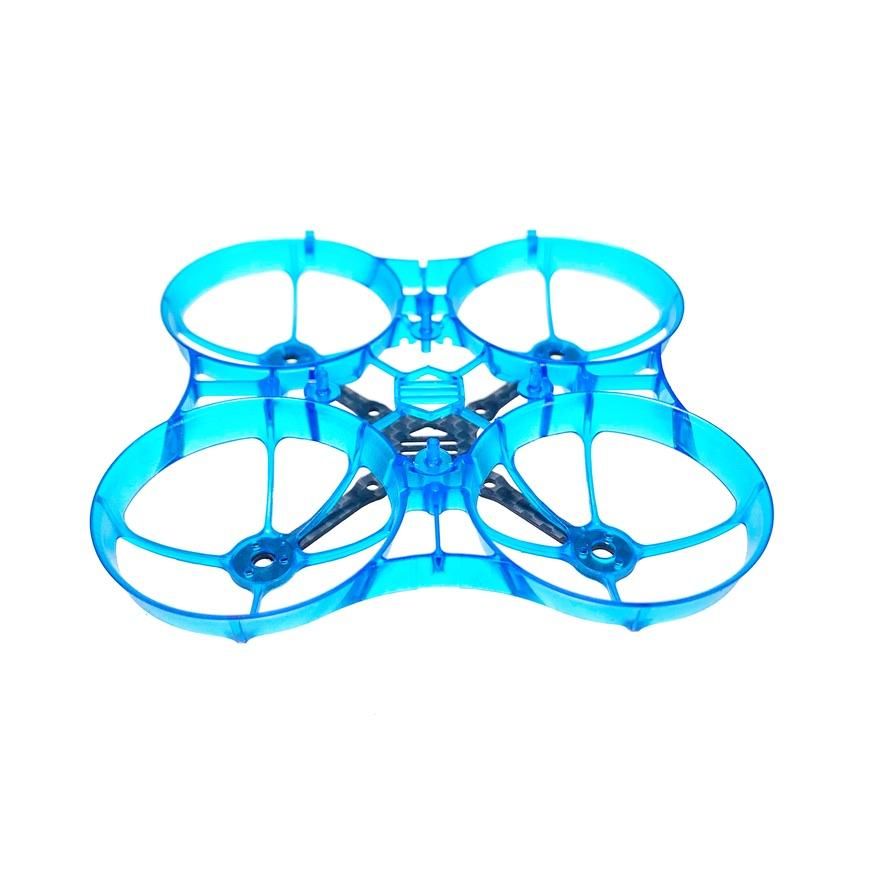

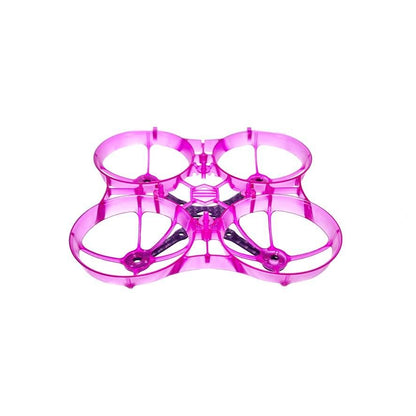

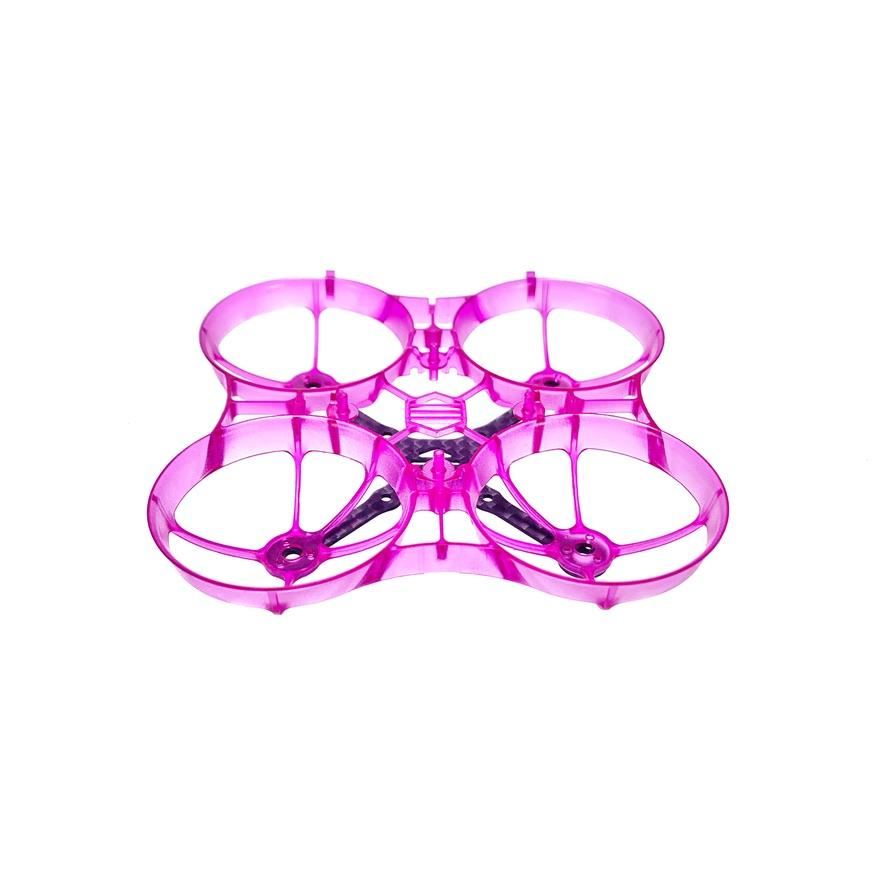

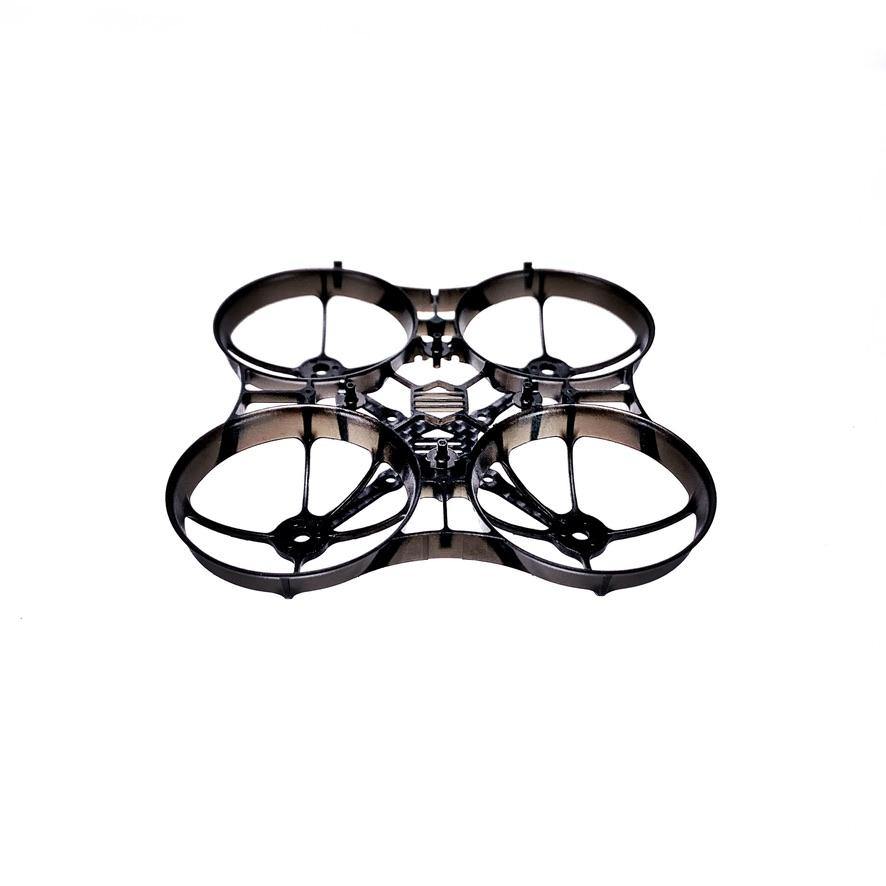

NewBeeDrone Cockroach Brushless Extreme-Durable Frame 75mm - No Carbon

Carbon frame sold seperatly - link

Design Intent Behind the Frame:

For this frame we worked to develop a platform that would neither fall below expectations nor limit the creativity of the FPV community. Lightweight and versatile. We improved durability and worked to deliver a vibrational signature that made tuning easier so you can get the most performance out of the NewBeeDrone flight controllers and motors. Every gram of frame material was either added or taken away to ensure that what was left, was there for a reason.

Lightweight and Durable:
We found a more forgiving and resilient material that doesn't sacrifice in weight or stiffness. Struts and other key support components have been redesigned to distribute and dissipate stress from crashes and falls with a total weight 6.98g.

Traditional Looks and Geometry:
This 75mm Cockroach frame has adaptable FC locations and a multitude of additional mounting points across the frame. We delivered a frame that has 2 board locations with 1x1inch or 25.4x25.4mm hole spacing. One mounting location on top and another below to mount an additional board like a DVR or a 4K HD recording board. The 2-board mounting adaptability allows for the possibility for a pusher-style flying configuration to be used as well.

1mm Carbon Fiber Plate - Sold seperatly now
carbon fiber frame & accessorie kit

Flexible Battery Solutions

This 75mm frame does not come with just one limiting battery mounting solution. We understand that depending on the utility and flying style, many people want to run one or two 300mah Nitro Nector Golds in the traditional battery position or in a ‘toilet-tank’ position. We have developed several printable, TPU, battery mount solutions to use with the frame and are always open to your suggestions.

Easy and Inexpensive. None of this is any good if its super difficult to use and/or super expensive. So we made sure we set out to make something affordable. Key tolerances have also been fine tuned to make installation and removal much easier.

Any of our other whoop BNF's can be directly dropped-in into the 75mm frame. However, in some cases, the motor wires are just a touch too short. We recommend picking up some longer motor wires just in case.

JST Whoop Motor Wire Replacement Set

Recommended Setups:

Controlled Indoor:

NBD BeeBrain Brushless v2

BeeEye Camera with Goober Canopy

1x 1s Battery – 300mah Nitro Nector Gold

NBD Gold Motors 18000kv

NBD 40mm Azi Props

*Optional:

1mm Carbon Fiber Plate

1s TPU Battery Mount Setup

1s Battery Sling (if not using the Carbon Fiber Plate)

 Insta360 Go Mount

Outdoor or long range:

NBD BeeBrain Brushless v1

BeeEye Camera with Goober Canopy

Crossfire nano receiver

NBD Silver Motors 16420kv

NBD 40mm Azi Props

2S Series adaptor cable

*Optional:

1mm Carbon Fiber Plate

2x 1s TPU Battery Mount Setup

2x1s Battery Sling (if not using the Carbon Fiber Plate)

Battery mount for 1s Nitro Nectar included

3D Print parts:

1S 1NitroNectar Gold Battery mount

2S 2NitroNectar Gold Battery Mount For HD Whoop

1S 1xNitroNectar  GoldBattery Mount without Carbon fiber plate

2S 2x NitroNectar Gold Battery mount without carbon fiber plate

1S Large size battery 450mah
