Description:

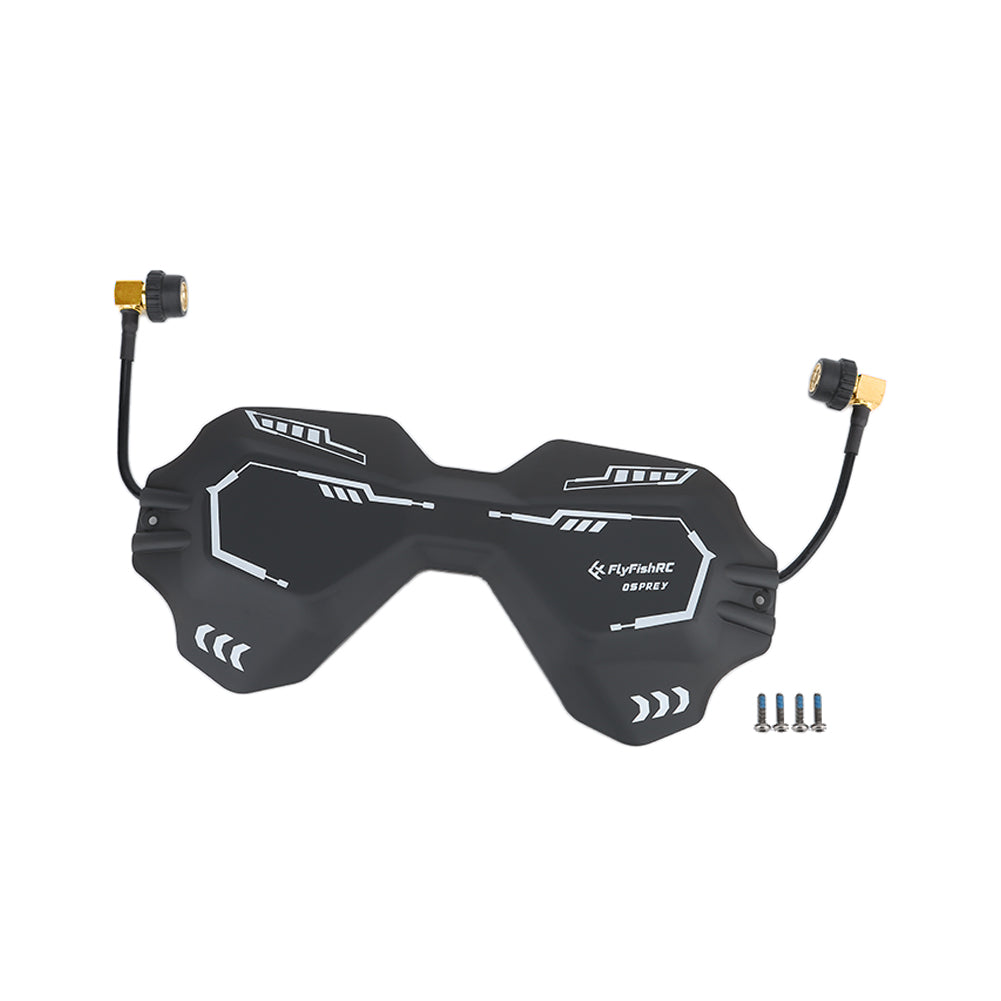

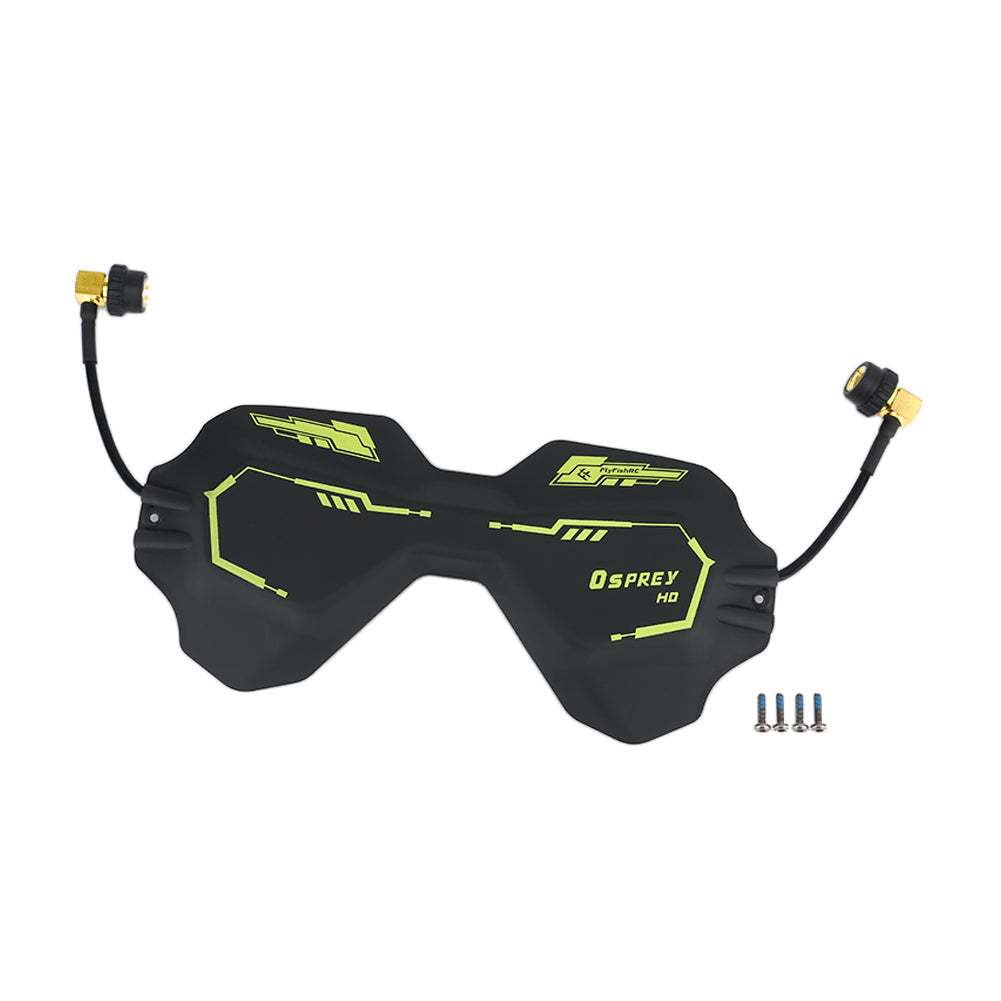

FlyFishRC OSPREY HD LHCP Patch Antenna, a directional antenna designed for DJI FPV goggles, fits perfectly, and provides long-range, reliable, strong signal reception.
Two flat patch antennas are hidden inside, and the exterior comes with stylish patterns. With a stable gain of 8Dbi, it provides long-range reception for flight, and better penetration in environments with lots of trees and other difficult terrains. ≤1.5 VSWR makes the signal reception more stable and reliable.
The 106-degree horizontal beam and 76-degree vertical beam receiving width allows for the aircraft to be flown over a wider area, without worrying about additional delay due to antennas not being pointed accurately at the aircraft.
This face-plate patch antenna is made using injection moulding technology. Ultra-compact shape and different color schemes to choose from. Not only does it look slick but does its job better than anyone would expect! And at such a reasonable price, we believe, it will be an ideal choice for many FPV pilots!
Specifications
Model: FlyFishRC OSPREY LHCP HD Patch Antenna
Frequency: 5.8GHz
Bandwidth: 5600~5900 Mhz
Gain: 8.0dBi
V.S.W.R: ≤1.5
Radiation Efficiency:96%
Beam Width:106°H.76°V.
Polarisation: LHCP
Connector: RP-SMA（Plug&Play with DJI Goggles）
Cable: RG405

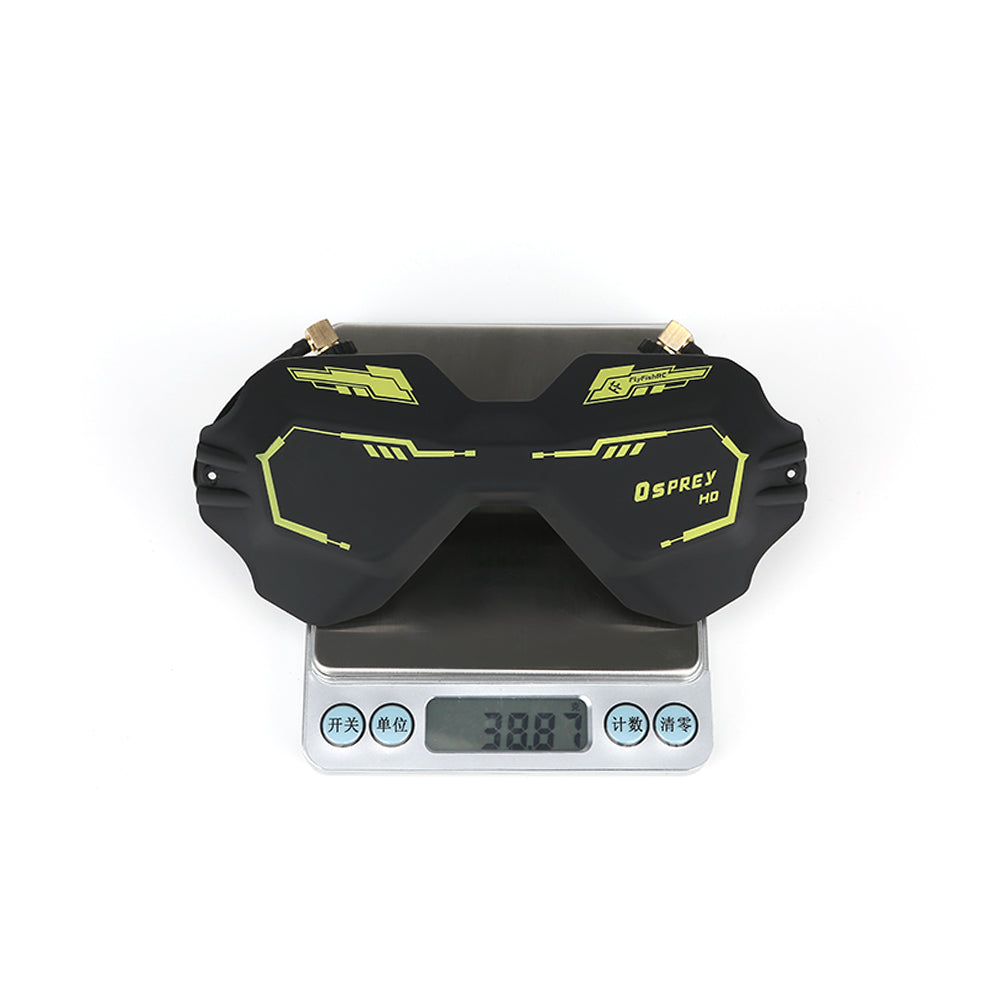

Weight: 38g
