SPEC
Input voltage AC 100-240V@MAX 100W
DC 7-28V@MAX 10A 200W
Main output 1.0-10.0A @MAX AC 100W/DC 200W
1.0-30.0V @MAX AC 100W/DC 200W
TYPE-C output 5.0-20.0V @MAX 65W
TYPE-C protocol PD 3.0/PD2.0/PPS/QC4/QC3.0/QC2.0
AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC
Protection time <1ms (Short circuit, OC ,OV)
Control cycle 8ms
LCD IPS 1.54″ 240×240 pixel
Main port 4.0mm banana female port
USB port TYPE-C Fast charge, upgraded
Work temp -10℃ – 40℃

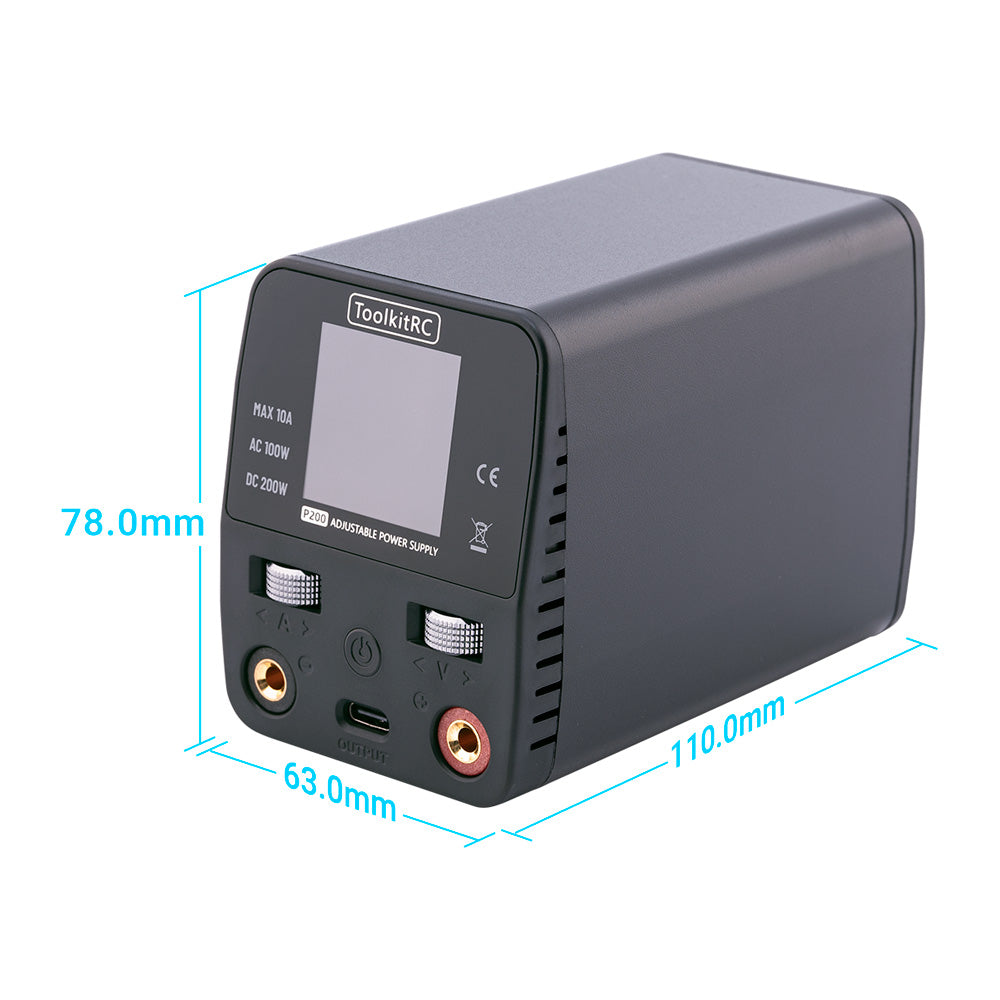

Product size 110.0×63.0×78.0 mm
Product weight 425g
Pack size 160.0×150.0×73.0 mm
Pack weight 735g
In the Box
P200 V2 Power Supply × 1
AC Input Cable × 1
DC Input Cable-1(Cable with XT60 Female) × 1
DC Input Cable-2(4.0 Banana to XT60 Female) × 1
DC Output Cable(4.0 Banana to Alligator Clips) × 1
USB-C Cable × 1
Manual × 1
Screen Protector × 1
