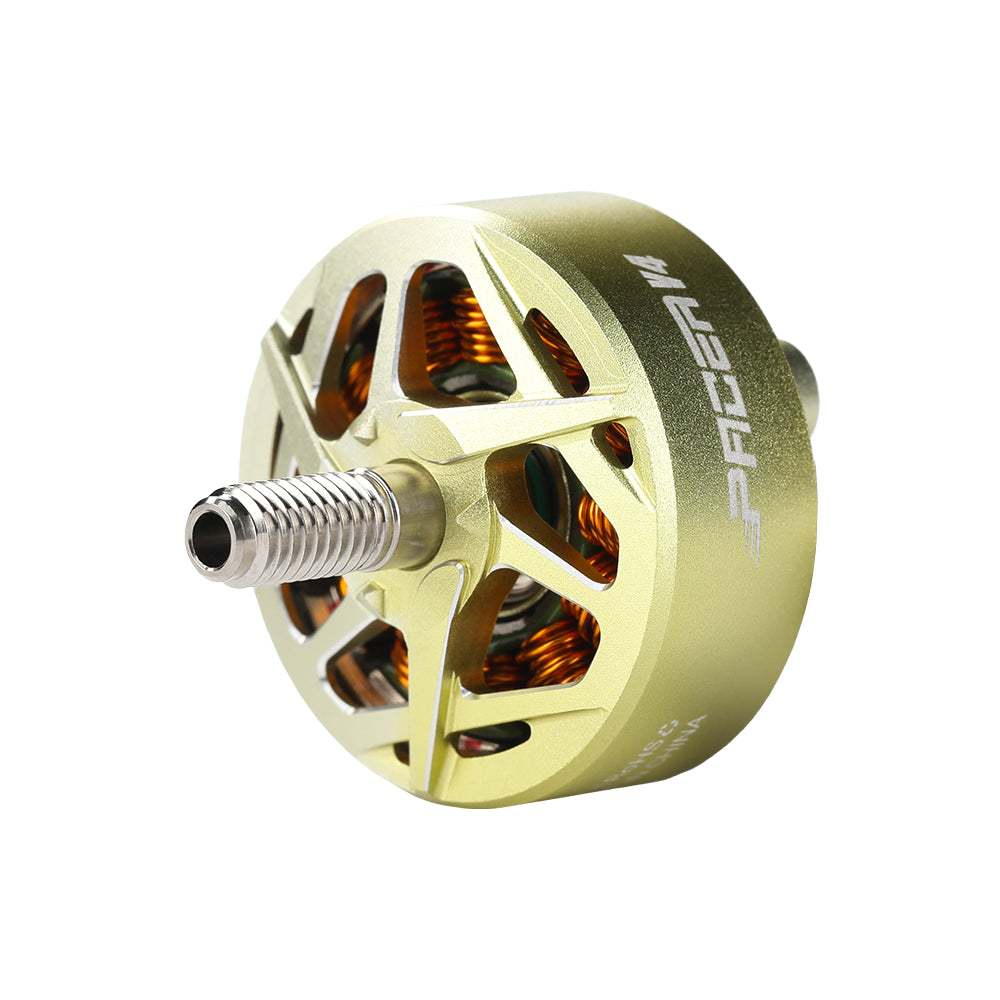

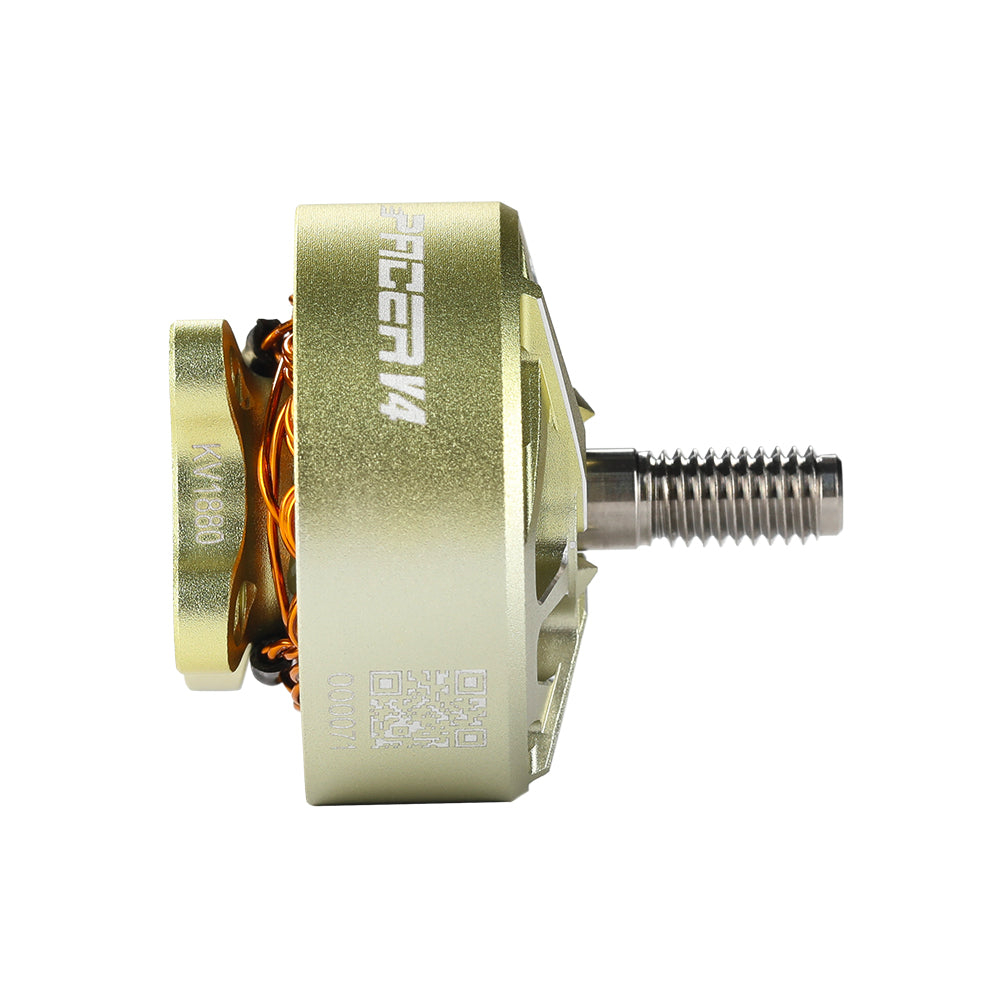

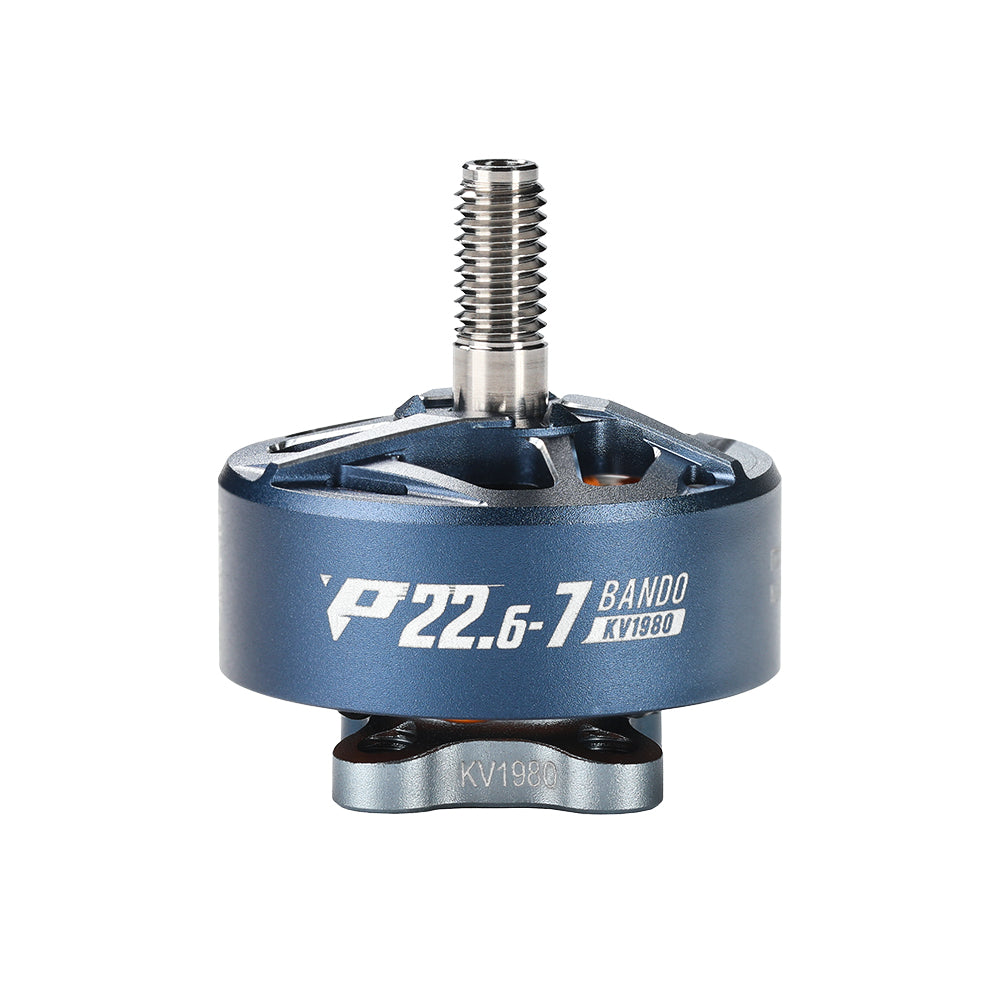

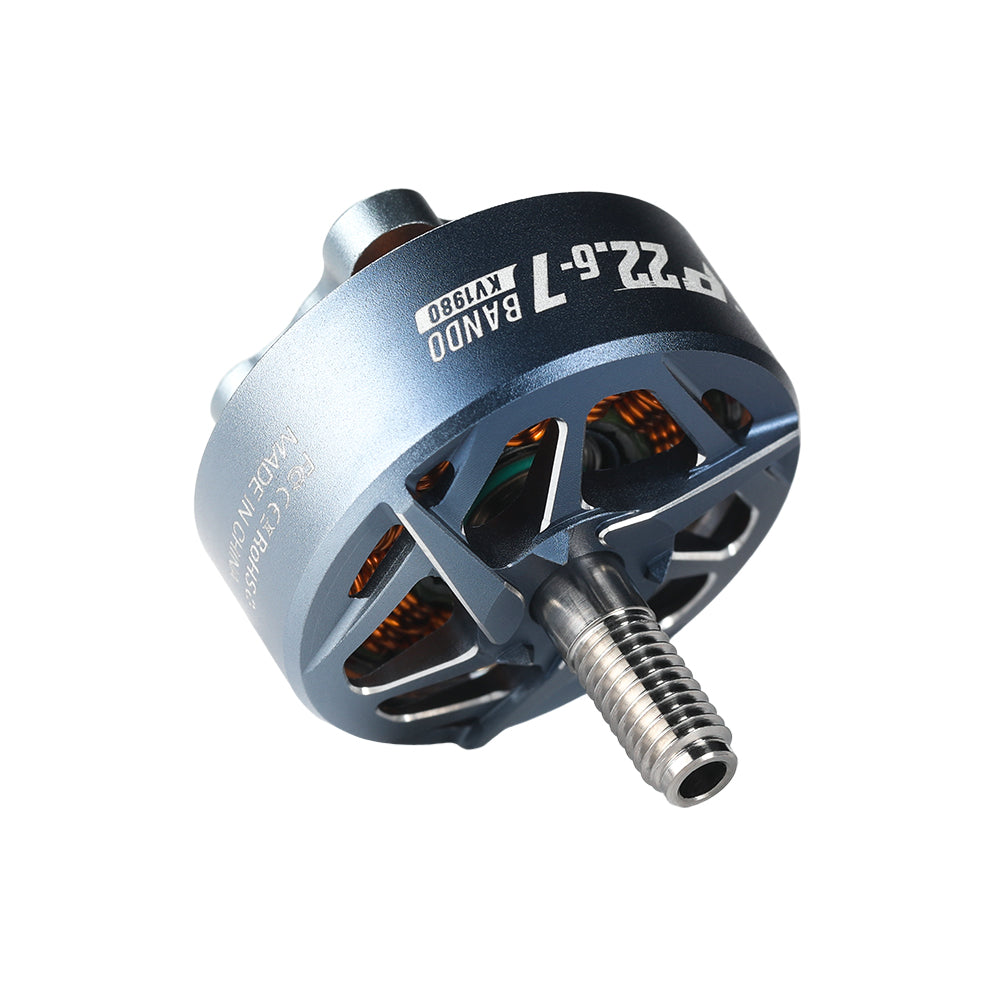

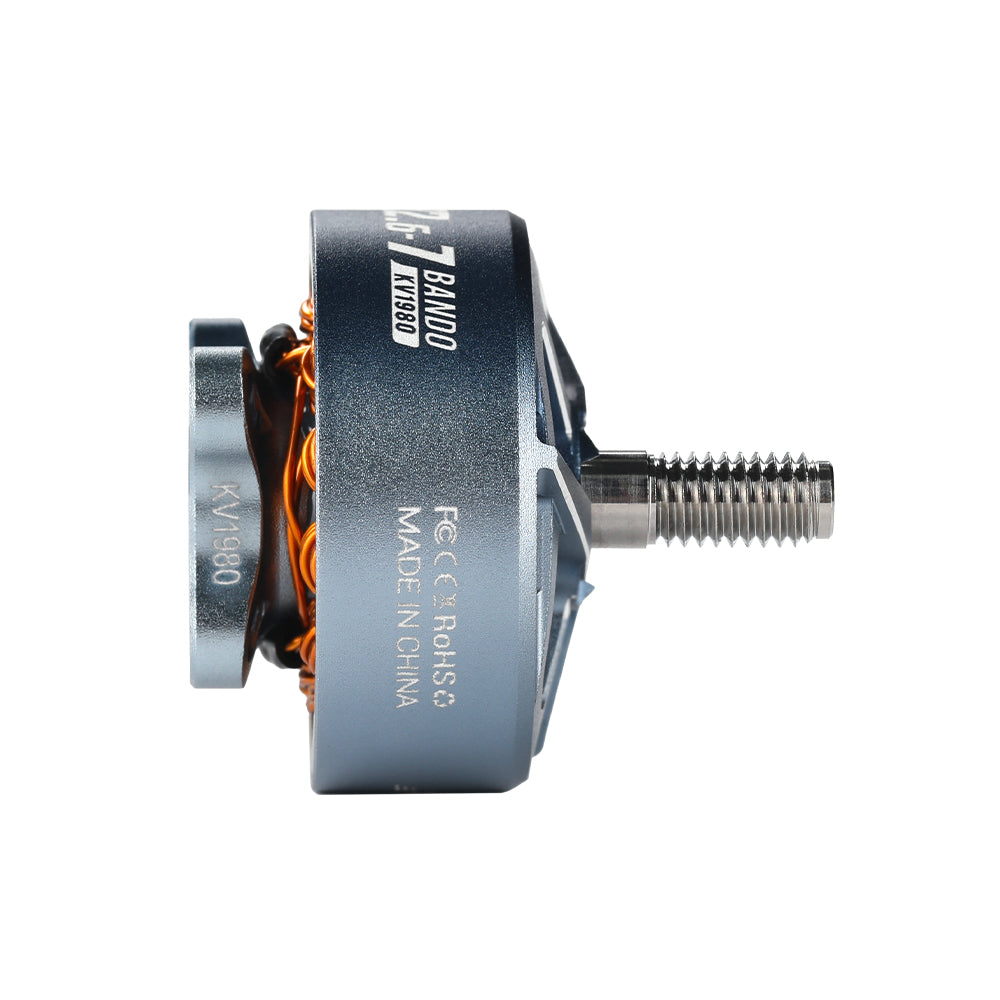

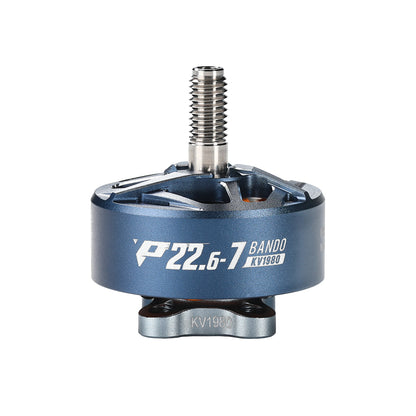

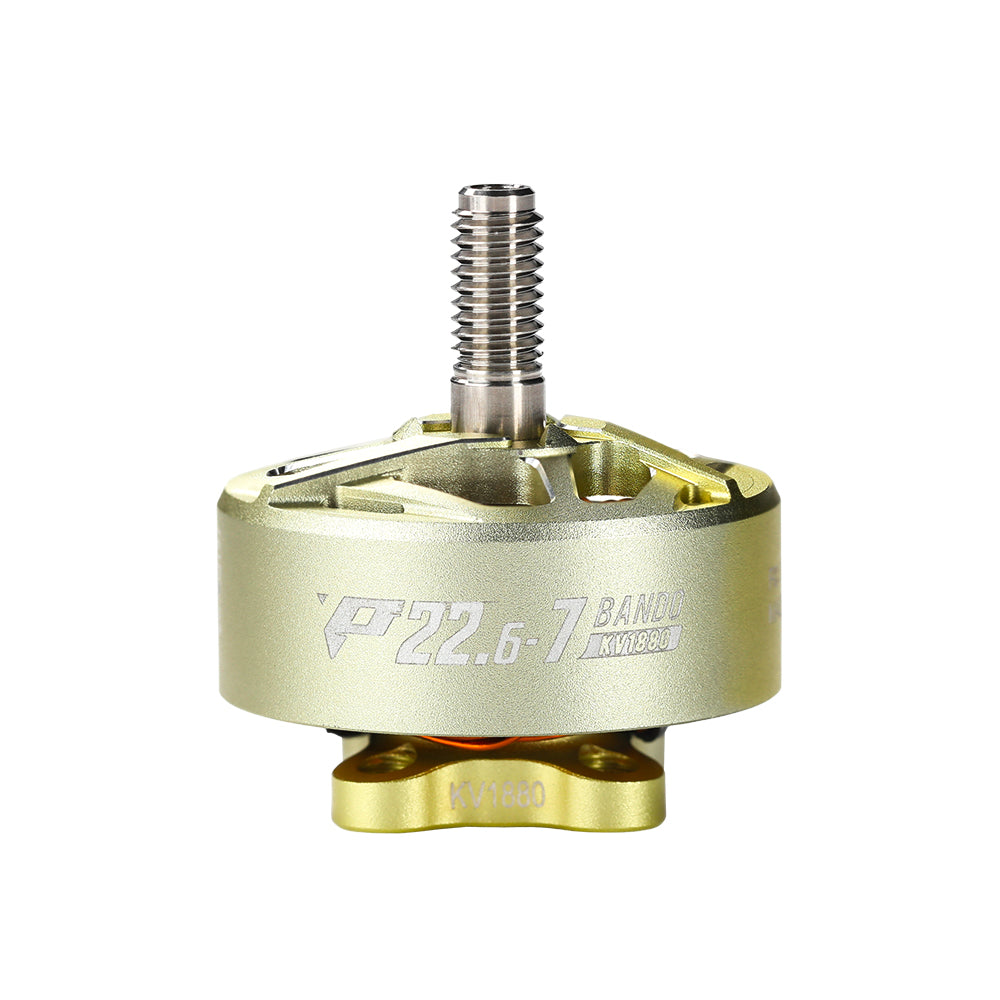

T-HOBBY P22.6-7 Bando Motor features a strong 5mm inner shaft, extreme crash resistance, and smooth throttle control. Ideal for 5-inch freestyle FPV drones including flow, bando, acro, and mind-bending moves.
Key Features:
- 5mm upgraded inner shaft reduces bending and increases durability.
- Reinforced structure for extreme crash resistance.
- Smooth and precise throttle response.
- Reduced jamming risk with strong shaft & balance.
- Ideal for freestyle: Flow, Bando, Acro, and tight gaps.
Specifications:
- Model: P22.6-7
- Motor Size: Φ29 × 32.2mm
- Magnet: Nickel Plated Arc Magnet
- Configuration: 12N14P
- Shaft Diameter: 5mm Inner Shaft
- Prop Thread: M5
- Mounting: Φ16 – M3 – 4
- Bearings: MR105 Imported
- Wire: 20AWG PTFE 170mm
- Dynamic Balance: ≤5mg
- Weight: 36–36.5g
Performance:
KV1880:
- Max Power: 173W
- Max Thrust: 1646g
- Peak Current: 39A
KV1980:
- Max Power: 193W
- Max Thrust: 1739g
- Peak Current: 43A
Recommended Setup:
- ESC: F55A PROIII / V50A SE / P60A V2 6S
- FC: Velox F7 SE
- Props: T-Hobby F5146 / GF 5127 / T5143S
- Battery: 6S LiPo 1000–1300mAh
- Frame: 5-inch Bando Frame (X style)
