Pavo25 V2 Brusless Whoop Frame

Pavo25 V2 Brushless Whoop Frame is the revolutionary Cinewhoop that the product team has come up with after spending countless hours applying aerodynamics. The whoop duct can enhance an additional 200g thrust and a CNC 7075 Aluminum Y shape standoff to eliminate distortion and bending during flight while also accommodating mainstream HD VTX and Naked Action Cams, guaranteeing it is the smoothest, most powerful, and most responsive flight among all 2.5" cinewhoops.

Bullet Point

• Pavo25 V2 is specifically designed to seamlessly integrate with the DJI O3 Air Unit, addressing the previous limitation of Pavo25's inability to accommodate O3 compatibility.
• The innovative Y-shaped CNC metal support structure can improve the structural strength, torsion resistance, and vibration characteristics of the entire machine compared to aluminum columns, making it respond faster and more smoothly.
• Rocket engine-inspired duct design improves lateral stability and increases thrust by 200g compared to without a propeller guard, giving the Pavo25 V2 stronger power and a better flying feel.
• The whoop duct is riveted and assembled, and the new appearance and design concept enables more effortless installation and a stronger structure.
• The COB light strip assembly that can be switched on and off remotely allows pilots to enjoy flying in any scene.

Specification

• Item: Pavo25 V2 Brushless Whoop Frame
• Wheelbase: 112mm
• Top Plate: 2.5mm T700 carbon fiber
• Base Plate: 1.5mm T700 carbon fiber
• Gimbal Carbon Plate: 2mm T700 carbon fiber
• Column: 7075 aluminum alloy CNC
• Battery Holder: 7075 aluminum alloy CNC
• Whoop Duct: PC injection-molded translucent gray
• Whoop Duct Diameter: 65.5mm
• Battery Connector: Fixed XT30
• Camera Installation Size: 20mm (compatible with 19mm)
• HD VTX Installation Size: 25.5*25.5mm M1.6/20*20mm M2
• HD VTX Antenna Mounting Hole Size: 4mm
• Flight controller Mounting Hole Size: 25.5*25.5mm
• Motor Mounting Hole Size: 4*M2 EQS ø9mm/ø12mm

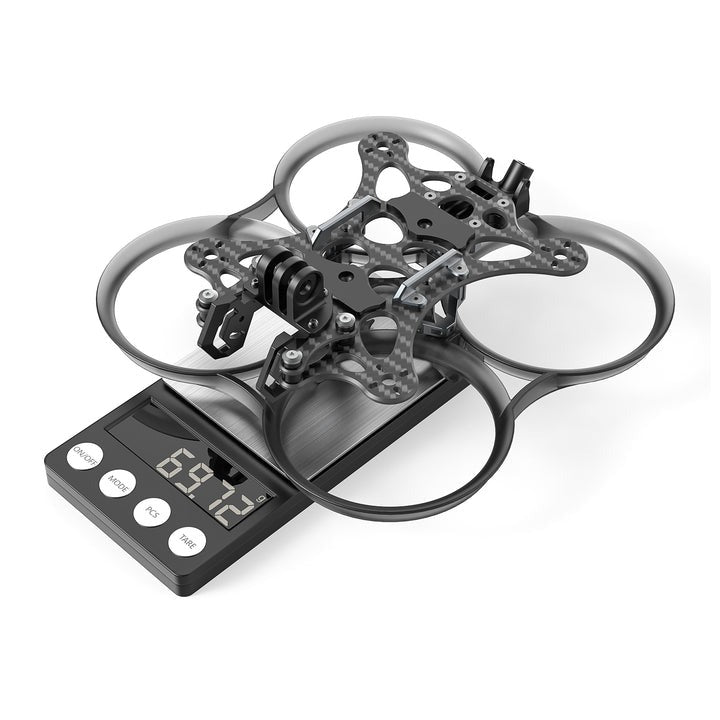

• Weight: 70g

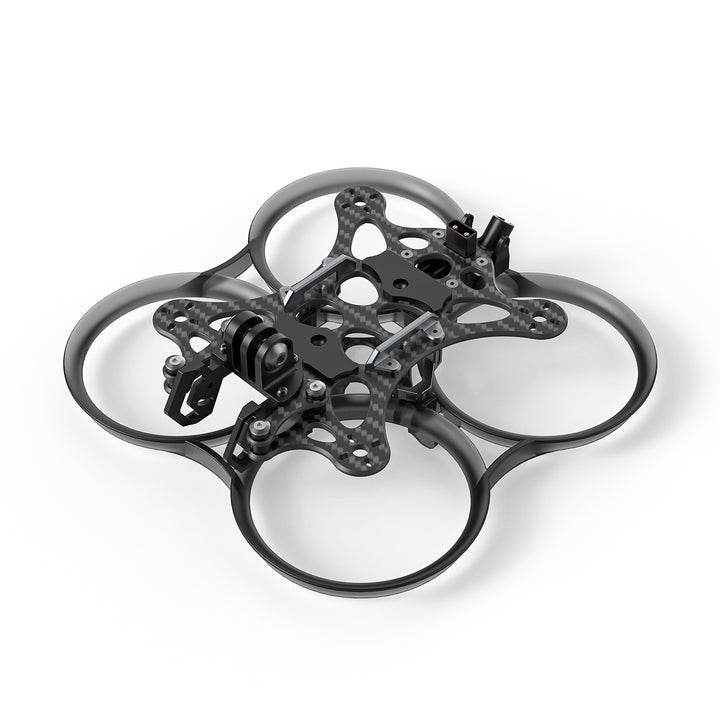

Pavo25 V2 Frame Kit

Pavo25 V2 whoop duct can enhance an additional 200g thrust and also a CNC 7075 Aluminum Y shape standoff to eliminate distortion and bending during flight. Powerful and smooth flying is guaranteed. The modular design of the frame guarantees a streamlined appearance, with no protruding wires and the fixed power port design enables effortless one-handed connection. Assembling the frame is a breeze, requiring the simple tightening of the four bottom screws and utilizing the riveting design for convenient detachment of the duct.

The design of the whoop duct fully refers to the aerodynamic principle of the rocket engine nozzle and utilizes different heights and thicknesses, through the compression of the inlet air within the duct, a substantial increase in exhaust pressure is achieved. Consequently, an additional thrust of 200g is generated, while simultaneously enhancing the horizontal stability of the cinewhoop. With augmented power and exceptional flight stability, executing challenging maneuvers such as flips and turns on the Pavo25 V2 results in remarkably steady and precise responses. Pilots will experience an enhanced flying sensation.

The Y structural Shape standoff means 8 support force is on the top plate, increasing the structural strength of the quad, which results in smoother turns and minimal vibrations during flight. The CNC standoff is made with aircraft standard material - 7075 Aluminium Alloy to increase strength for ensure that pilots can embark on powerful flights with confidence. Additionally, the duct is securely fastened with only 4 screws, while the remaining connections employ the time-honored Chinese traditional riveting technique to ensure fast assembling and disassembling also including fixed power port design.

Shine in Night Cruise

The Pavo Series COB LED Strip is a 5V-powered LED strip measuring 560 mm*4 mm. Pavo25 V2 Brushless Whoop Quadcopter offers the remarkable feature of controlling the onboard COB light strip via a radio transmitter. This convenient functionality allows for flexible control of the light strip's brightness and on/off status. Since light pollution should be eliminated when shooting videos, COB needs to be turned off. However, COB can be turned back on when racing and freestyle, enhance the ambiance, and provide navigation indicators, empowering pilots to seamlessly switch between various scenes anytime such as entertainment, sports, or film creation, catering to their specific needs.

ND Filter for DJI O3 Camera

BETAFPV ND Filter for DJI O3 Camera, UV, CPL, ND8, ND16, ND32, is specifically designed for the Pavo25 V2, Pavo20 and Pavo Pico Brushless Whoop Quadcopter. Meanwhile, the DJI O3 Air Unit ND Filters are tailored for the DJI O3 Air Unit and are capable of reducing the amount of light that enters the camera lens. With this feature, you can achieve slower shutter speeds or wider apertures when flying. These lightweight filters are crafted from high-quality optical class ensuring optimal image clarity and are too easy to install on the build.

Recommend Parts

• FC: F722 35A AIO V2
• Motor: 1505 4600KV Brushless Motor
• Propellers: Gemfan D63 3-Blade Propellers 1.5mm Shaft
• Battery: LAVA Series 4S 850mAh LiPo Battery
• Battery Strap: Pavo Series Battery Strap(2PCS)
• Filter: BETAFPV ND Filter for DJI O3 Camera
• VTX: DJI O3 Air Unit, Walksnail Avatar HD Pro Kit, Caddx Vista Kit, RUNCAM Link, Analog

FAQ

• Click to watch the installation guide video for the DJI O3 Air Unit on Pavo25 V2

Package

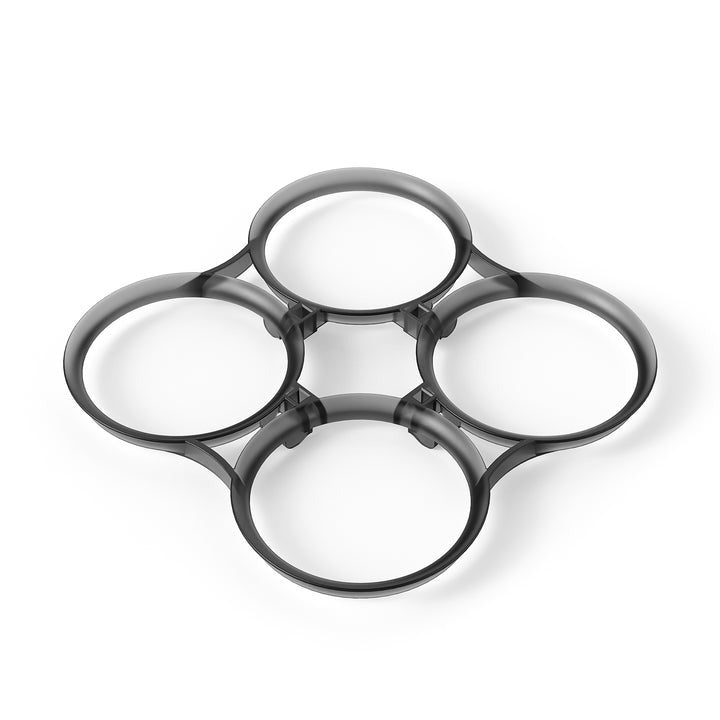

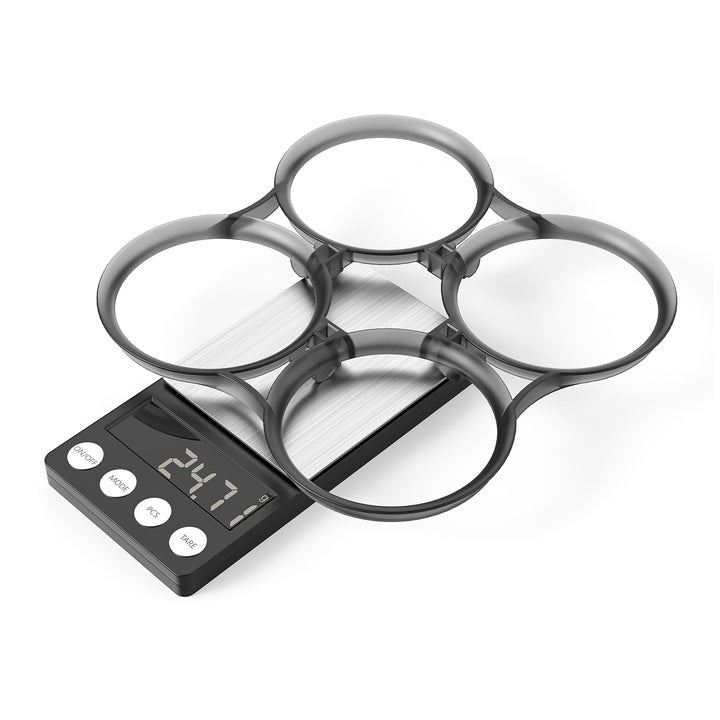

Item: Pavo25 V2 Brushless Whoop Duct

• 1 * Whoop Duct
• 1 * Service Card

Item: Pavo25 V2 Brushless Whoop Frame

• 1 * Top Plate
• 1 * Gimbal Carbon Plate
• 1 * Base Plate
• 2 * Battery Tie Holder
• 4 * Y-shaped Aluminum Alloy Bracket
• 1 * Whoop Duct
• 1 * Receiver Holder
• 1 * Socket Holder
• 1 * Amass XT30U-M Socket (Black)
• 1 * XT30 Socket Adapter Board
• 2 * Battery Anti-slip Mat
• 1 * Battery Tie 180mm
• 4 * Flight Controller Amping Ball M2
• 4 * Pan/Tilt Vibration Reduction Ball M3
• 4 * Pan/Tilt Screws
• 8 * Inner Hex Flat Head Screw M2*6
• 4 * Inner Hex Flat Head Screw M2*8
• 6 * Inner Hex Flat Head Screw M2*10
• 4 * Nylon nut M2
• 1 * Accessory package
• 1 * Service Card
• 1 * Frame Manual
