Description:
Brand Name: Frsky

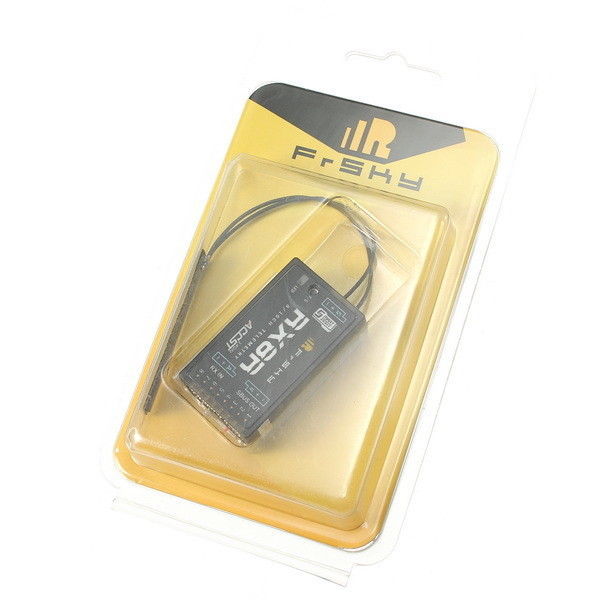

Item Name: RX8R
Band: 2.4GHz ACCST
Channel: 16CH (1-8ch from conventional channel output, 1-16ch from SBUS port, or combine two RX8R to become a 16 channels receivers)
Dimension: 46.25×26.6×14.2mm (L×W×H)
Weight: 12.1g
With RSSI Output on Board: Analog 0-3.3V
Operating Voltage Range: 4.0-10V
Operating Current: 100mA@5V
Operating Range: Full range (>1.5km)
Firmware Upgradeable
Compatibility: FrSky radios/transmitter modules in D8/D16 mode
Features:
Parallel two RX8R to become a 16 channel receiver
Smart Port enabled, realizing two-way full duplex transmission
Supports redundant transmission of two Tx modules in parallel (Sbus input: the signal from the slave receiver(Sbus receiver) for backup)
The Redundancy Function:
For the master and slave receivers, when the master receiver goes into failsafe, the output signal from the slave receiver will be used until the master receiver works again.
Note:
When both the master and slave receivers go into failsafe, the failsafe signal from the master receiver will be output;
The slave receiver should be in no telemetry mode.
English Manual, Click Here
Package Included:
1x Frsky RX8R receiver
