PRODUCT DESCRIPTION

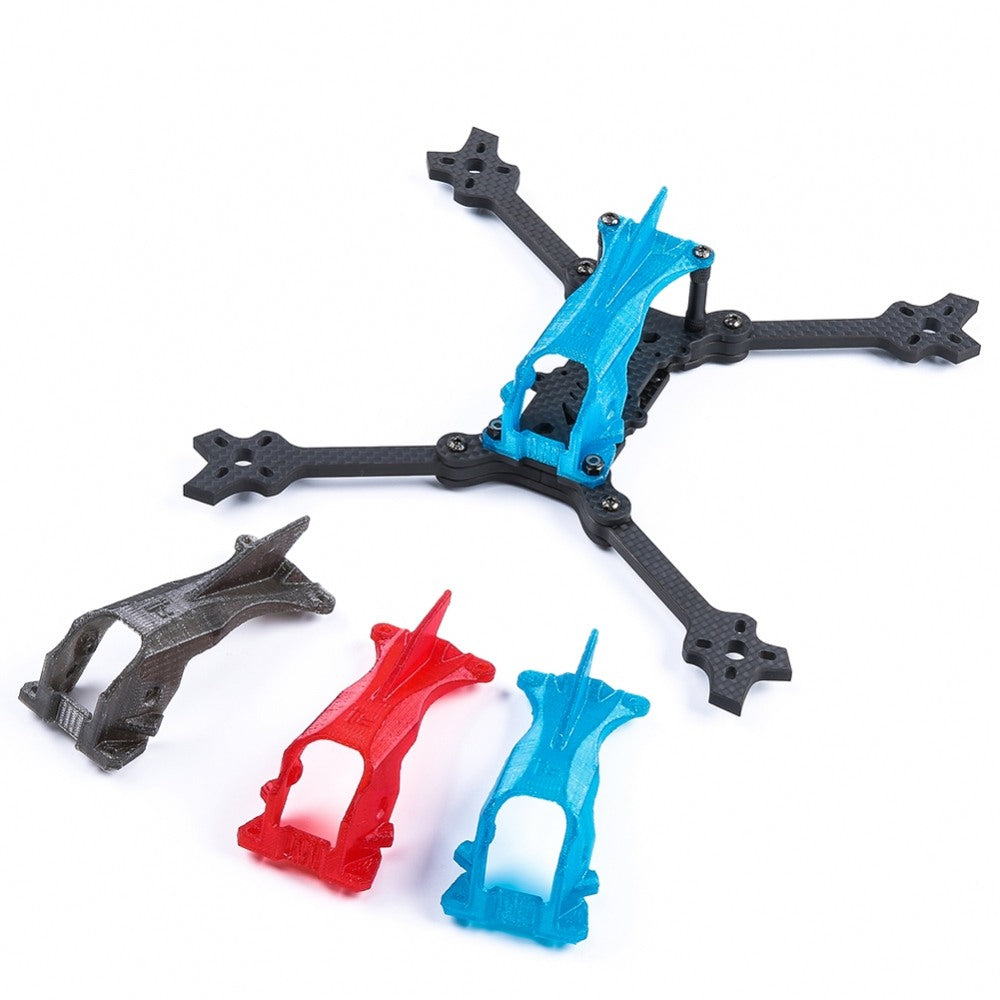

The RACE H5 H-Quad is a low weight standard Sport FPV Quadcopter frame. This H-Quad is designed with standard 30.5x30.5mm & mini 20x20mm electronic equipment. Perfectly compatible with SuccceX F4 and SucceX mini F4 flytower system. Designing with quick-release arms, various color canopy (pink, purple, blue) for your selection.
Features：
-Full 3K Carbon Fiber airframe
-Easy arm swaps -205mm wheelbase, 75.8g
-Popular H-Quad configuration
-Fits both 30.5x and 20x stacks
Specifications:
- Type: 5" FPV Race frame
- Frame wheelbase: 205mm
- Dimensions: 148*143mm (body dimension)
- Frame weight:75.8g approx
- Standoff: M3*25mm(2pcs)
- 5mm thickness, 8mm width arms
- Mounting Holes: 30.5*30.5mm/20*20mm
- Support camera size: 19*19mm
- Recommended motors: 22xx, 23xx
Recommended pack list: (not included)
SucceX mini F4 TwinG Stack w/500mw VTX
SucceX mini F7 TwinG Stack w/500mw VTX
SucceX F4 TwinG V2.1 + SucceX 50A 4in1 ESC Stack
SucceX F7 TwinG V2.1 + SucceX 60A 4in1 ESC Stack
Package included:
1set x H5 frame
1pack x screws
1pc x TPU Canopy
2pcs x battery anti-slip mat
1pc x battery straps
