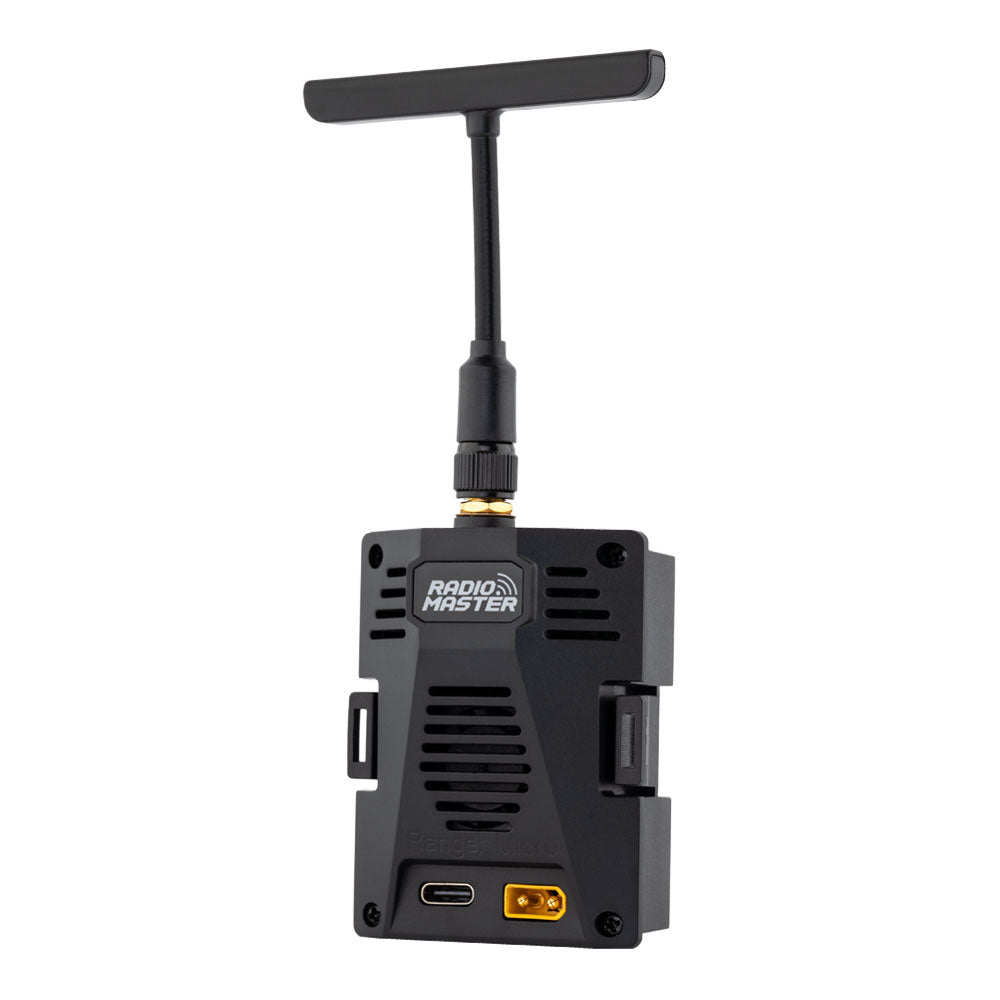

Item: Ranger Micro Module
-
Regulatory Domain: ISM2400
-
MCU: ESP32(main), ESP8285(aux,as ESP backpack)
-
RF chip: SX1281IMLTRT
-
Frequency Range: 2400 MHz - 2480 MHz
-
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
-
Minimum receiver refresh rate: 25Hz
-
Wifi Support: Yes
-
Bluetooth support: Yes
-
XT30 Power supply voltage: DC 6V - 16.8V
-
Weight: 50g (with antenna) / 40.5g (without antenna)
-
Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)
Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered!
Featuring F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (TX16S, TX16S MkII, TX12, TX12 MkII and more) to enjoy all that ELRS has to offer.
The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.
*Note: The Ranger Micro 2.4GHz ELRS Module fits JR style micro module bays, for Nano connectors, please consider the Ranger and the Ranger Nano modules. For more information on the Ranger series, please check here.
Features
- Built-in ExpressLRS Backpack
-
High-efficiency cooling system
-
Wifi and Bluetooth support
-
Packet rates up to F-1000Hz
-
T-antenna included
-
With the Micro connector, support TX16S MKII and TX12 MKII radio
Specification
Size
Ranger Series
We wish to thank the ExpressLRS team for their support and testing during the development of the Ranger series. To learn more and support the ExpressLRS project visit https://www.expresslrs.org/
- Ranger 2.4GHz ELRS Module
- Ranger Micro 2.4GHZ ELRS Module
- Ranger Nano 2.4GHZ ELRS Module
- 2.4GHz T Antenna
- 2.4GHz Moxon Antenna
Download
Package Includes COMBO !
-
1 * Ranger Micro Module
-
1 * T Antenna
- 2 * RP1 ExpressLRS 2.4ghz Nano Receiver
- 1 * RP2 ExpressLRS 2.4ghz Nano Receiver
