Model: Rekon5 Frame KitMaterial: 3K Carbon FiberType: 5" frameWheelbase: 210mmSize: 240*155mmTop plate thickness: 1.5mmBottom plate thickness: 1.5mmMiddle...
Vendor: HGLRC
Availability: Out Of Stock
$64.88
$64.88
Subtotal: $64.88
Rekon 5 Frame Kit 5 Inch Frame Kit - Long Range

Rekon 5 Frame Kit 5 Inch Frame Kit - Long Range

$64.88

Rekon 5 Frame Kit 5 Inch Frame Kit - Long Range

$64.88



Model: Rekon5 Frame Kit
Material: 3K Carbon Fiber
Type: 5" frame
Wheelbase: 210mm
Size: 240*155mm
Top plate thickness: 1.5mm
Bottom plate thickness: 1.5mm
Middle plate thickness: 1.5mm
Arm thickness: 4mm
Arm brace thickness: 3mm
Maximum stack height: 23mm
Stack mounting pattern: 20x20mm
FPV camera mount: 19mm
Weight: 72.2g

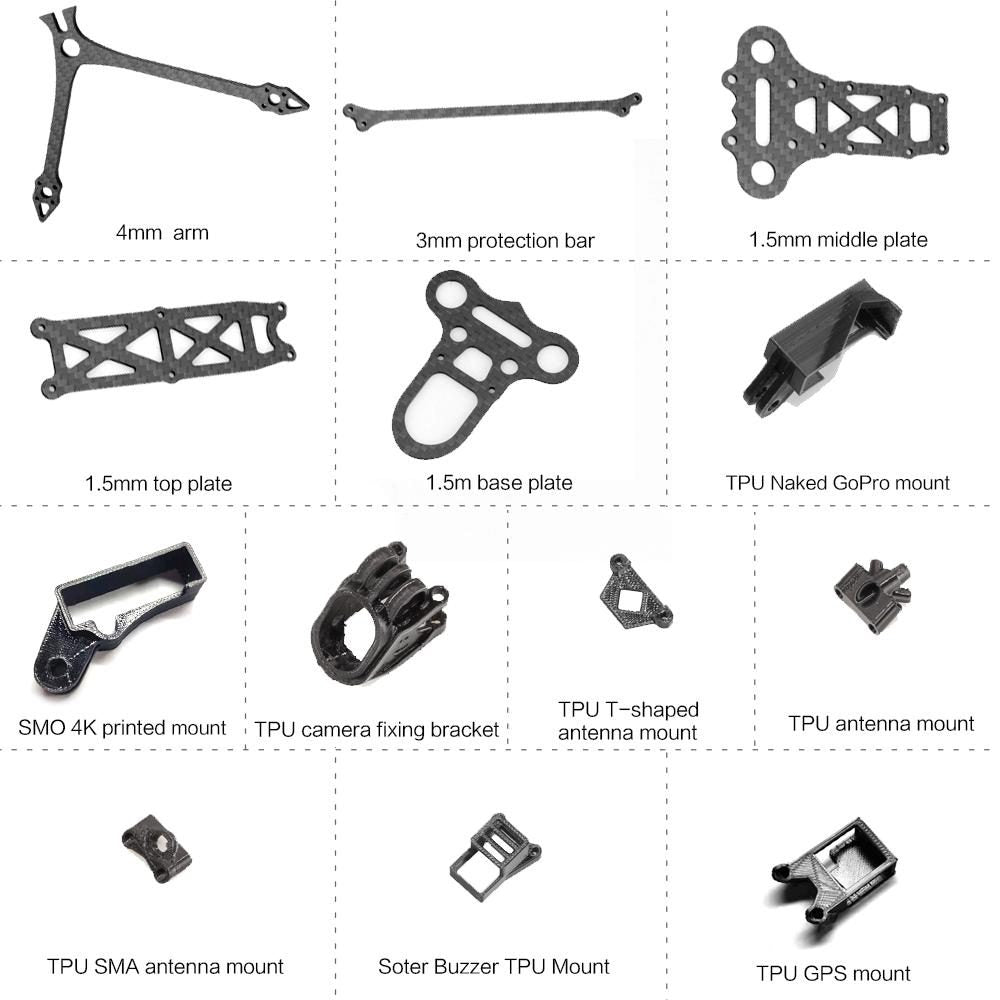

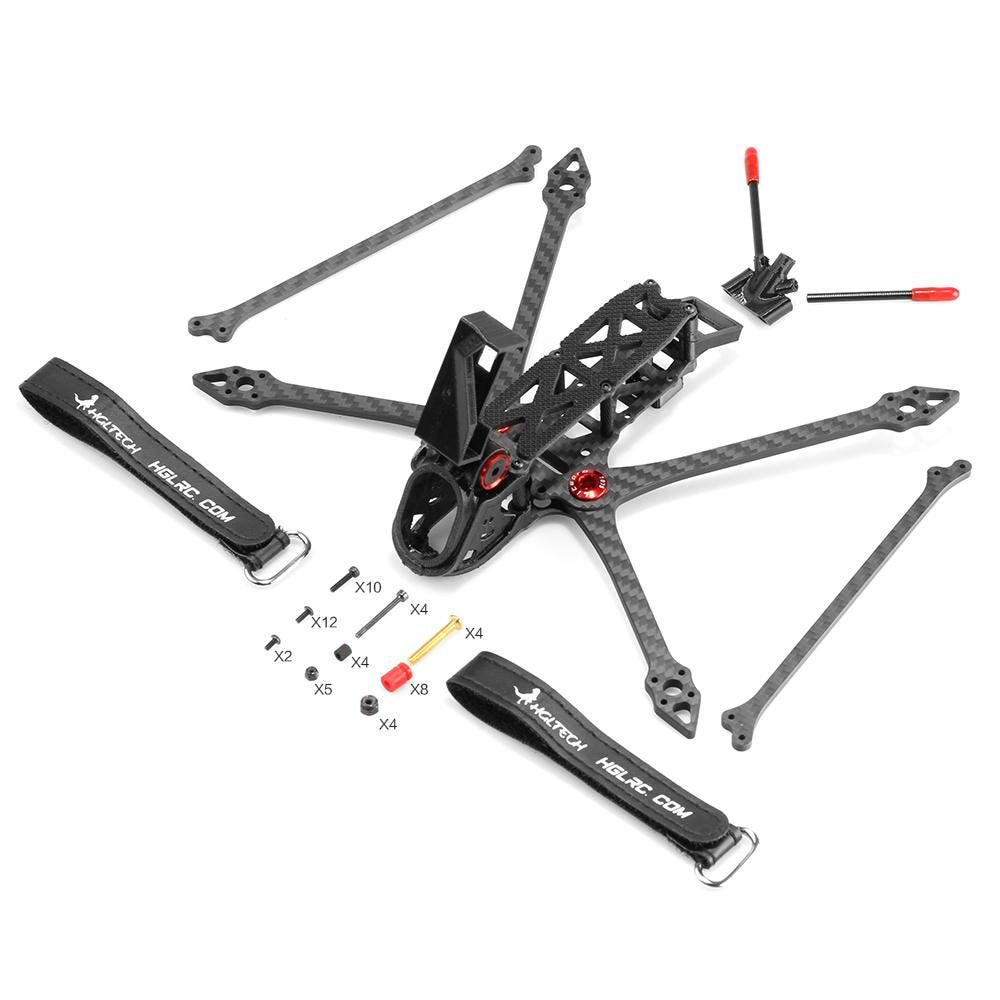

Package Includes:
1x 1.5mm top plate
1x 1.5mm bottom plate
1x 1.5mm middle plate
2x 4mm arms
2x 3mm protective bars
2x M2*25mm aluminum standoff
4x M2*20mm aluminum standoff
4x round head screws M3*20
4x cup head screws M2*20
1x cup head screws M2*12
10x cup head screws M2*9
12x round head screws M2*5
1x countersunk screws M5*20
1x M5 countersunk head screws washer (red)
1x M5 self-locking nut (red)
2x 7075 crankset Screws (red)
2x round head screw M2*4
4x M3 Self-tightening nut
5x M2 Self-tightening nut
8x M3*8 shock-absorption balls
4x M2*4 shock-absorption balls
2x Battery cable straps 20x200mm
1x Battery pad
1x TPU SMA antenna base
1x TPU antenna base
1x TPU camera mount
1x TPU naked Gopro mount
1x TPU GPS mount
1x TPU buzzer holder
1x TPU T antenna mount

Recommended parts (not included).
Flight Controller: F4/F7 with 20x20 mounting pattern
Motors: 2004 with 12x12 M2 mounting pattern
ESC:25A-40A 20x20 mounting pattern
Camera:19X9mm size
Propellers: Max. 5.1 Inch
