if you need a receiver installed just add one to the cart and leave us a note to install.
Features:
- Full DJI Air Unit (Digital Version)
- Custom 2806.5 1250kV motors
- Extra large M80 Pro GPS for faster and better satellite lock
- Compatible with dual antenna crossfire diversity RX and Express LRS systems
- Low profile, extra-long frame to fit large batteries
- Arms mounted with extra sturdy M4 hardware

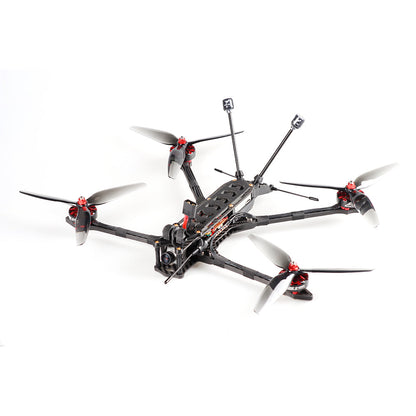

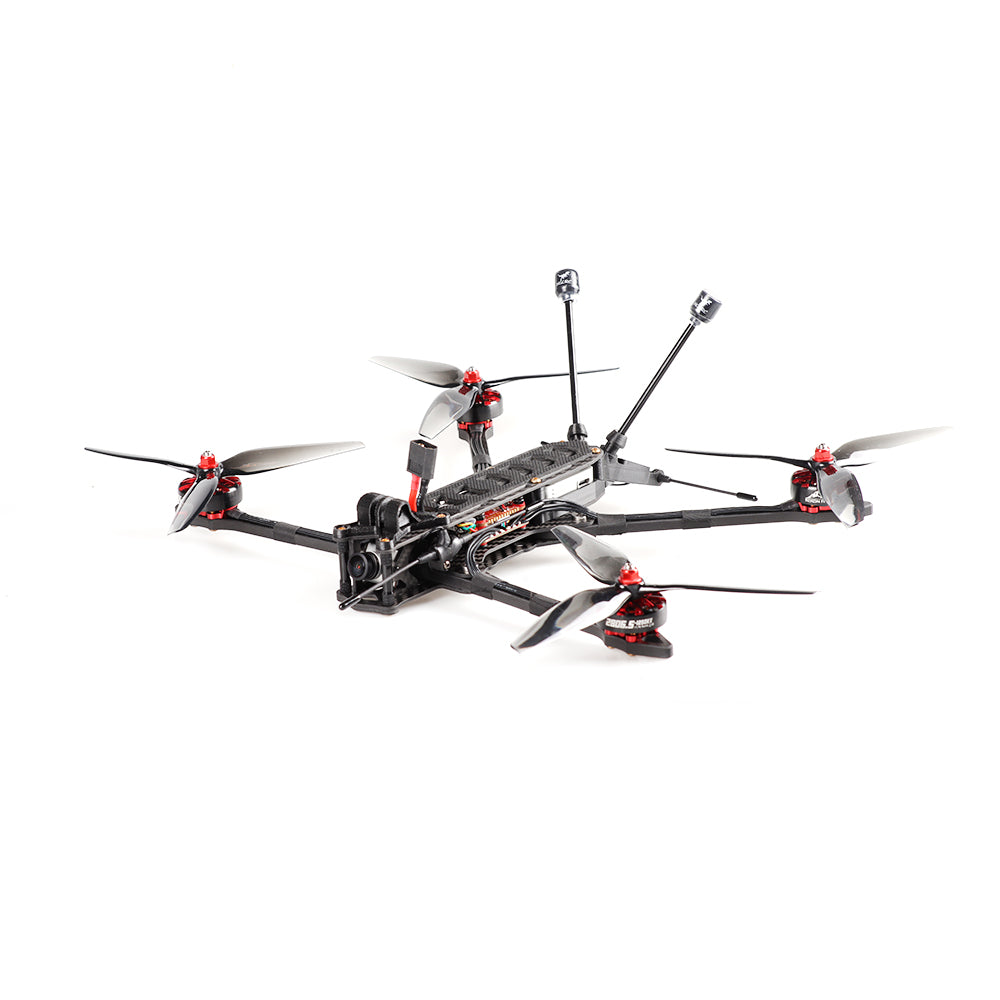

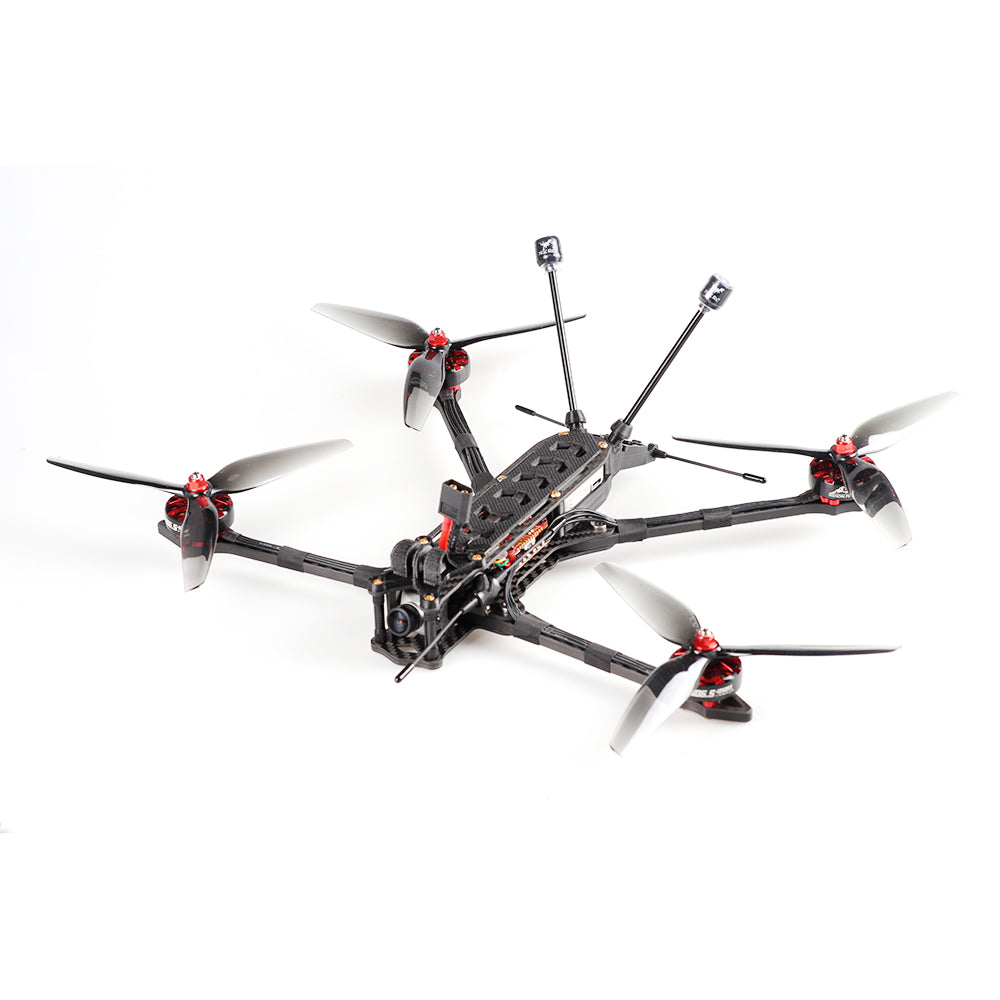

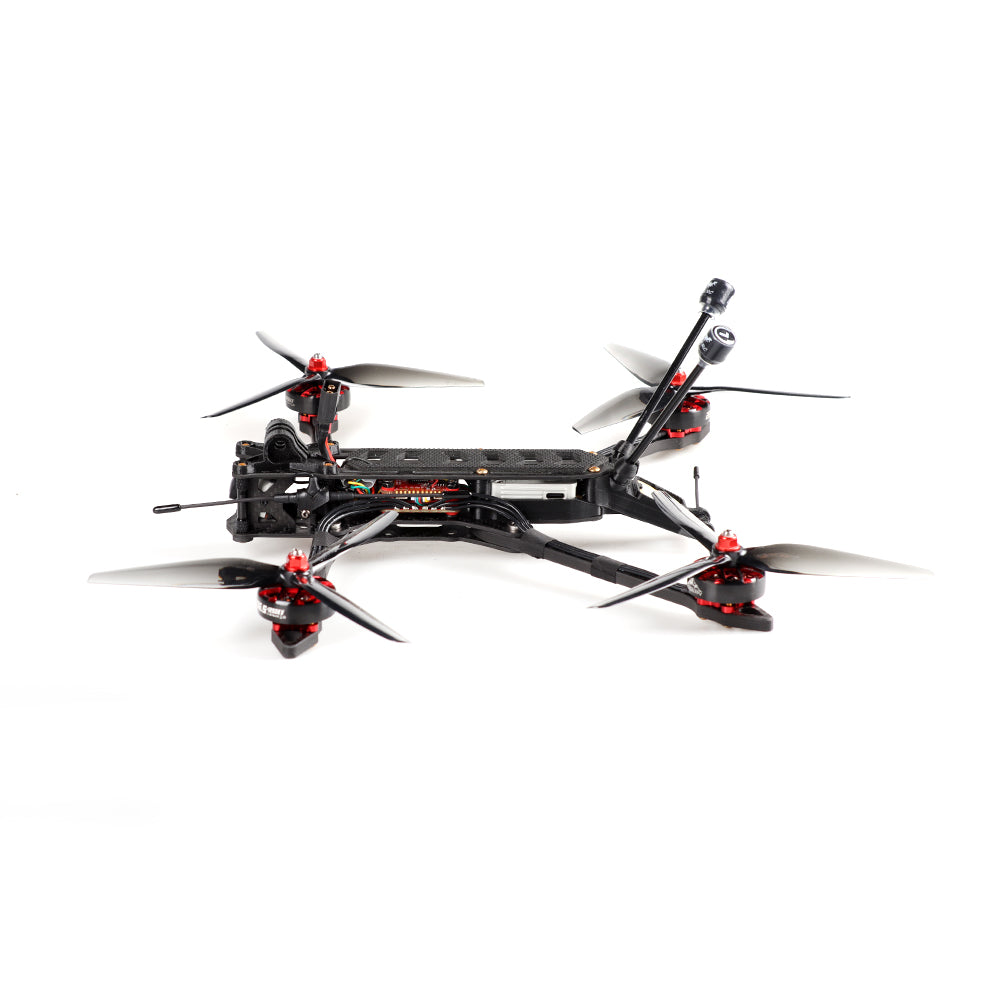

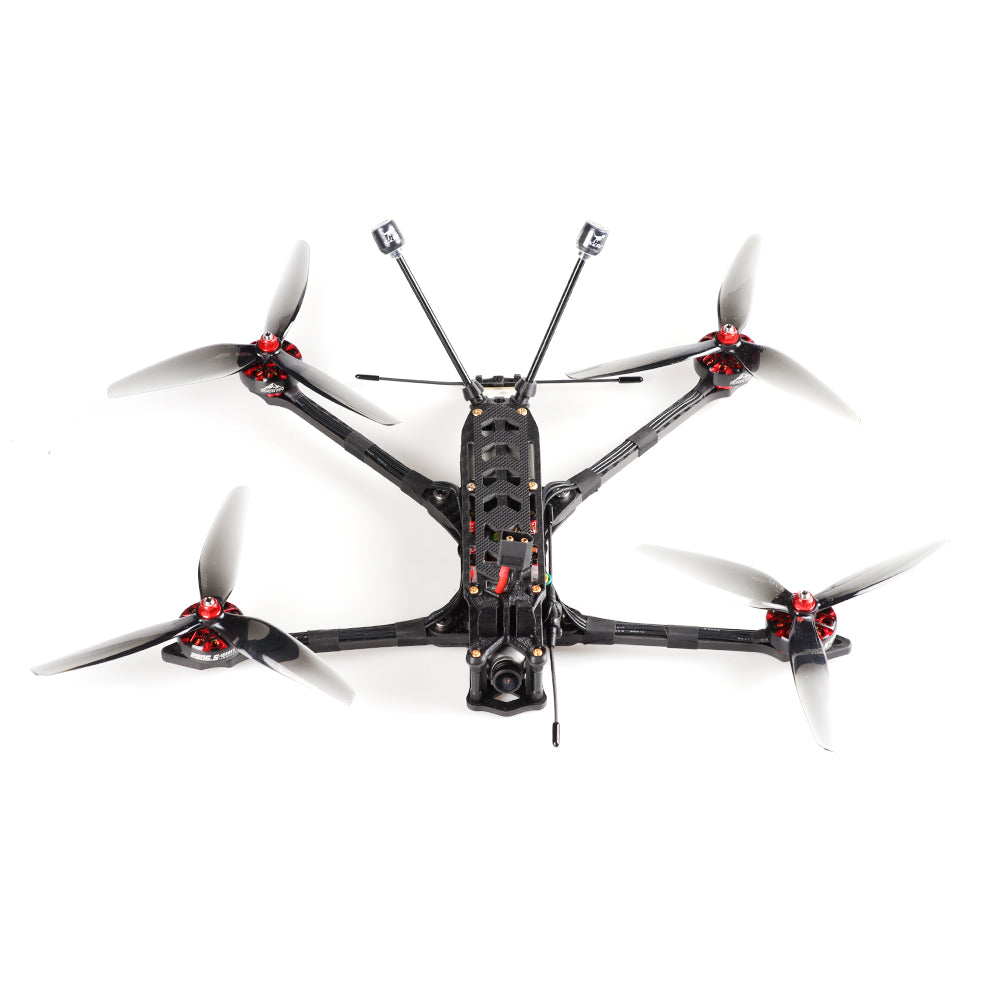

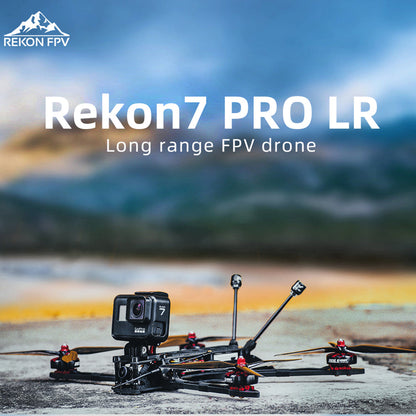

The Rekon 7 Pro is built for the most challenging long-range missions. Powerful yet efficient 2806.5 motors and 7" props ensure it can carry high payloads like a GoPro Hero 9 and large batteries (I recommend 2200mah 6S Lipos or 6S 21700 Li-Ion packs). The design philosophy I followed for the 7 Pro was "zero compromises"! It has a Full DJI Air Unit, M80 Pro GPS with an extra-large ceramic antenna, dual antenna mounts for Crossfire diversity receivers, and Express LRS as well as a fully-sized 30x30 stack. It's ready to conquer the highest mountain peaks!
Dave_C FPV
Product Name:Rekon7 PRO Long Range FPV Racing Drone 6S Digital Version

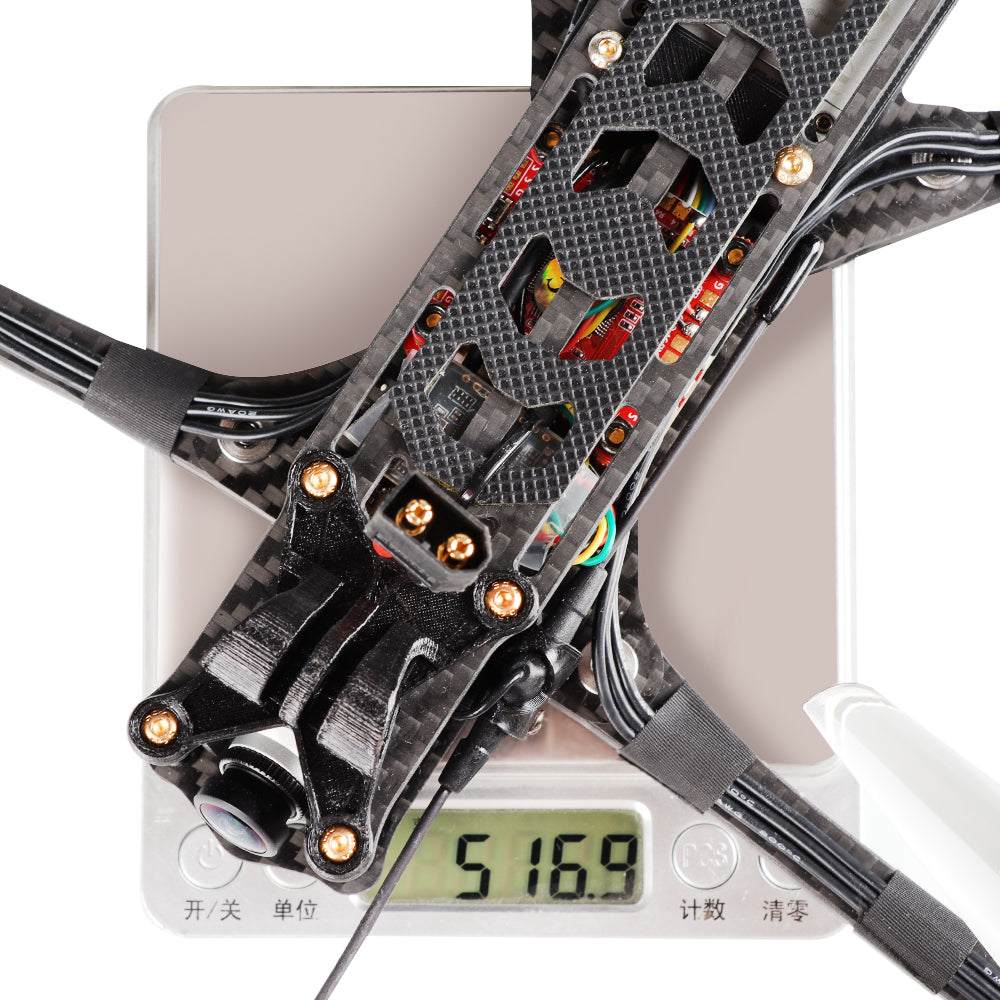

Weight:516.9g( without receiver)
Rekon7 PRO Long Range Frame 7 inches
Model:7 Inch Frame
Wheelbase:324mm
Size:337 * 246mm
Zeus F722 Flight Controller
MPU:BMI270
CPU:STM32F722 RET6
Input Voltage:3-6S Lipo
BEC:5V/2A,9V/1A
Zeus 48A BL_S 3-6S 4in1 ESC
Input:3-6S Lipo
Continuous current:48A
Peak curren:55A（10 Sec）
CADDX AIR UNIT
Operating Frequency:5.725-5.850 GHz
Input Power:7.4-17.4V
Channels:8
AEOLUS 2806.5 1250KV Motor
Input voltage:25.2 V (6S)
Recommended blade:7 Inches
M80 PRO GPS
Power Supply:5V
Size:25mm x 25mm x 8.3mm
Soter FPV Drone Buzzer
Input voltage:5V
Size:22mm x 12mm x12mm
HQProp DP7X4X3 7 Inch 3-Blades Propeller
Quantity:2 CW & 2 CCW
DALPROP Fold 7 Inch 3-Blades Propeller
Quantity:2 CW & 2 CCW

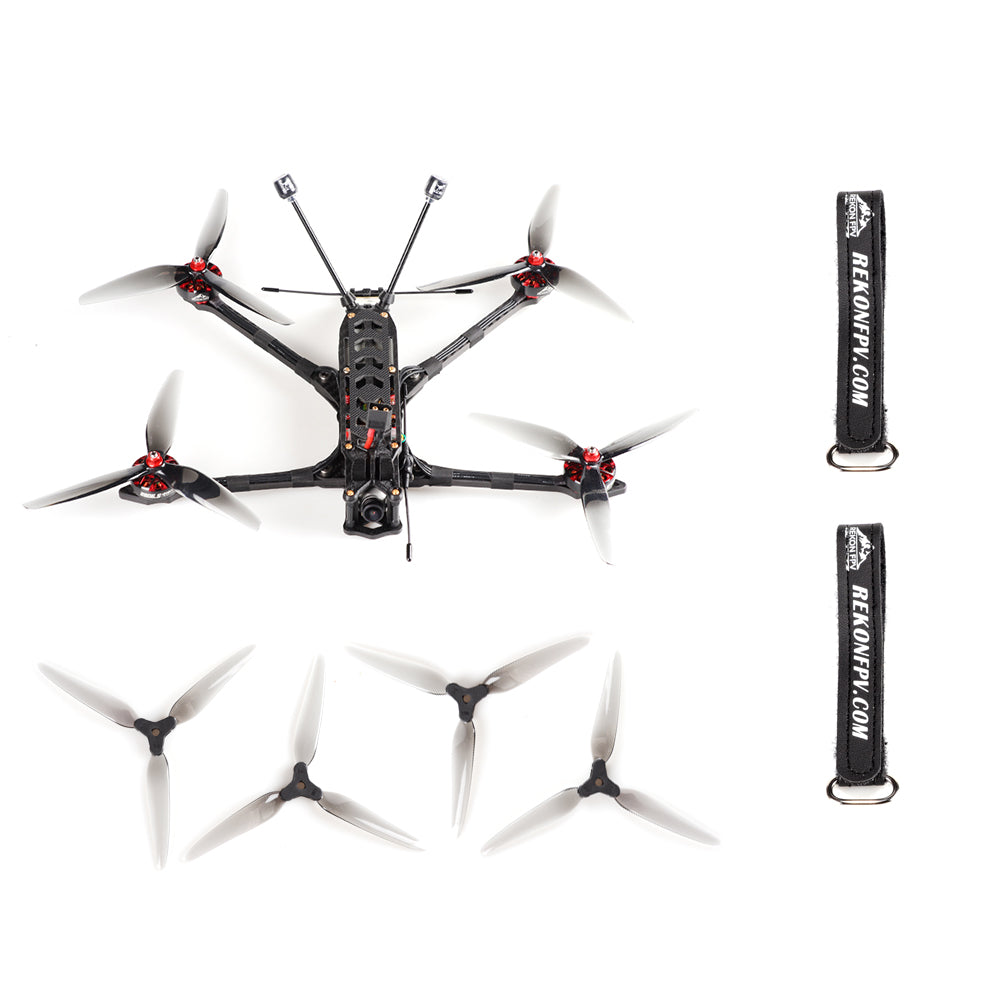

Package includes:
1x Rekon7 PRO LR Frame
1x Zeus F722 Flight Controller
1x Zeus 48A BL_S 3-6S 4in1 ESC
1x CADDX AIR UNIT
4x AEOLUS 2806.5 1250KV Motors
1x M80 PRO GPS
1x Soter FPV Drone Buzzer
4x HQProp DP7X4X3 propeller
4x DALPROP Fold 7 propeller
2x Long Range Hammer Mini Antenna (LHCP)
2x 20*250mm Battery Straps
1x Receiver（Optional）
Recommended battery:
6S:1800mAh-4200mAh
Download Manual here
Download CLI file for iNAV setup here
