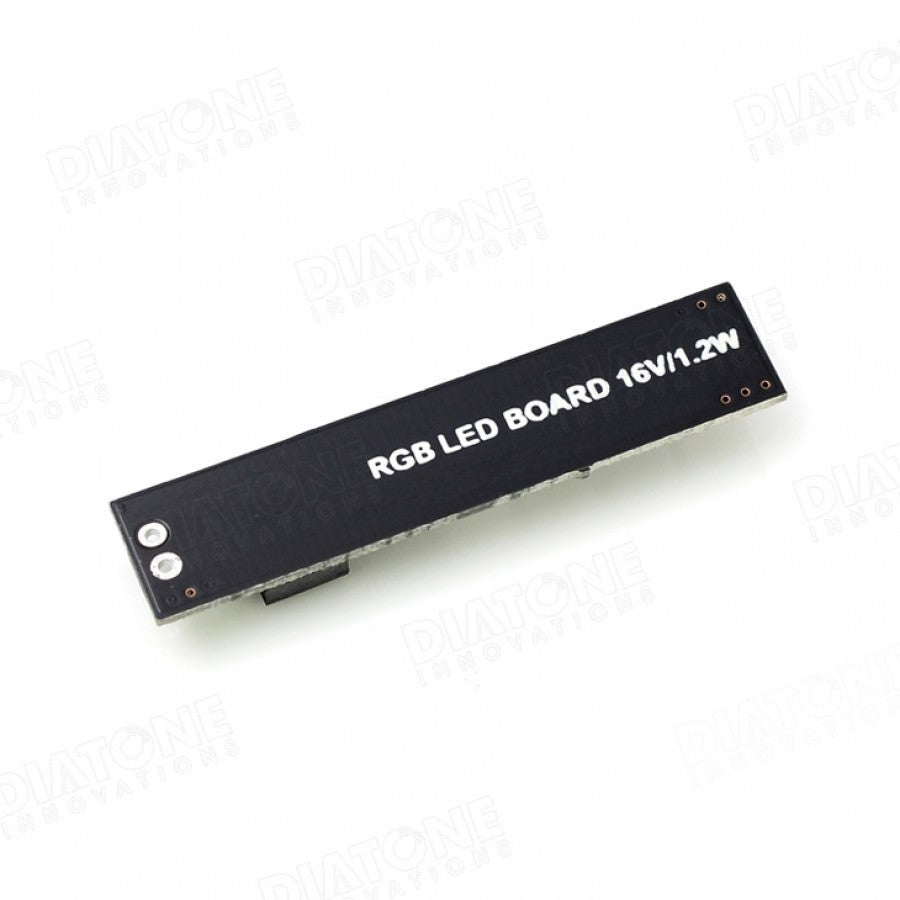

RGB THREE LED BOARD 5050 SWITCHABLE COLOR 12V TO 17V

Description:

RGB LED Board 5050  comes with three RGB 5050 LEDs & one color switch. Seven colors are selectable by means of code switches. This LED board gives an eye-catching effect to your multirotors or planes when illuminated.

Features:

Comes with a 0.3m long cable, users can cut it to a suitable length;

Be ware of the positive and negative poles, as well as the insulation;

Switch the related codes to ON, seven colors are selectable;

The input is in a range of 12V ~ 17V DC, can be powered by 4S Lipo.

Specifications:

INPUT: 12V ~ 17V DC

Size: 47*10mm

Weight: 2g

Selectable Colors & Power:

B ON =Blue, 0.35W, 0.03

R ON =Red, 0.35W, 0.03A

G ON =Green, 0.35W, 0.03A

B+R =Megenta, 0.70W, 0.06A

B+G =Cyan, 0.70W, 0.06A

R+G =Yellow, 0.70W, 0.06A

B+R+G =White, 1.05W, 0.09A

Package included:

LED BOARD & Cable 0.3m
