Specifications
Power: DC 4-5.5V
Net Weight: 0.5 g
Dimensions: 14 x 10 mm

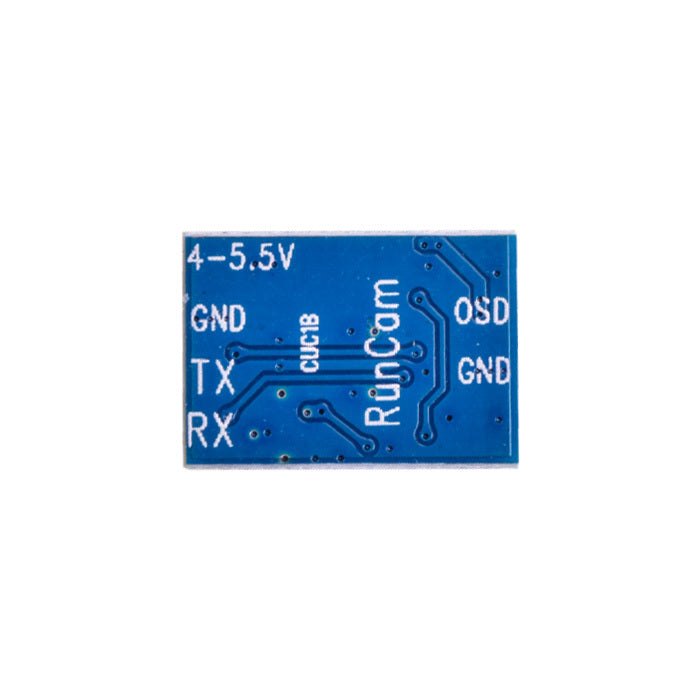

RunCam Control Adapter
Control Your FPV Cameras Remotely!
1. Flight controller wiring
Note: Take UART3 for example
2. Betaflight 3.3 or above setting
3. Remote control
Note: Take Mode-2 for example
Compatible Flight Controllers
BetaFlight 3.3 or above / ButterFlight 3.4 or above / Cleanflight 2.2 or above
Operating Video Demo showed below
Part of camera list confirmed compatible
| Camera | Compatible | Camera | Compatible |
| RunCam Swift 2 | Yes | RunCam Micro Eagle | Yes |
| RunCam Micro Swift 2 | Yes | RunCam Eagle 2 Pro | Yes |
| RunCam Swift 2 Rotor Riot | Yes | RunCam Night Eagle 2 | Yes |
| RunCam Micro Swift | Yes | RunCam Eagle 2 | Yes |
| RunCam Swift Mini 2 | Yes | RunCam Eagle | No |
| RunCam Swift Mini | Yes | RunCam Owl 2 | Yes |
| RunCam Sparrow | Yes | RunCam Owl | No |
| RunCam Micro Sparrow | Yes | RunCam Nano | No |
Package
- 2 X Control Adapter
- 2 X 2P Menu Cable 30mm
- 8 X Cable 80mm
- 2 X Heat shrink tube
- 2 X Double-sided adhesive
