- Evolution For Racing Drone
- 6MS Ultra Low Latency
- Super-WDR
- Micro Size
- FOV 160 (1.8mm lens)
- FOV 145 (2.1mm lens)
AIO Switchable
- 4:3
- Widescreen
- NTSC
- PAL
- Joystick Control
- UART Control
- Joystick Control & UART Control Switchable
- The top left corner of the screen will shortly display the current control mode.
The default is Joystick control mode. - Short the two camera control pins
- Then power on, camera will auto switch between the two modes
-
- The mode can be saved after power off. After switching to the desired mode, please unplug the short-circuit cable.
- UART Control works with Flight Controllers:
- BetaFlight 3.3 or above / ButterFlight 3.4 or above / CleanFlight 2.2 or above / Kiss Flight RC36 or above
Dimensions
Package
-
1x Camera -
1x 1928 ABS bracket -
1x 6pin FPV silicone cable -
1x Set of screws -
1x SELECTOR -
1x Manual
Parameters

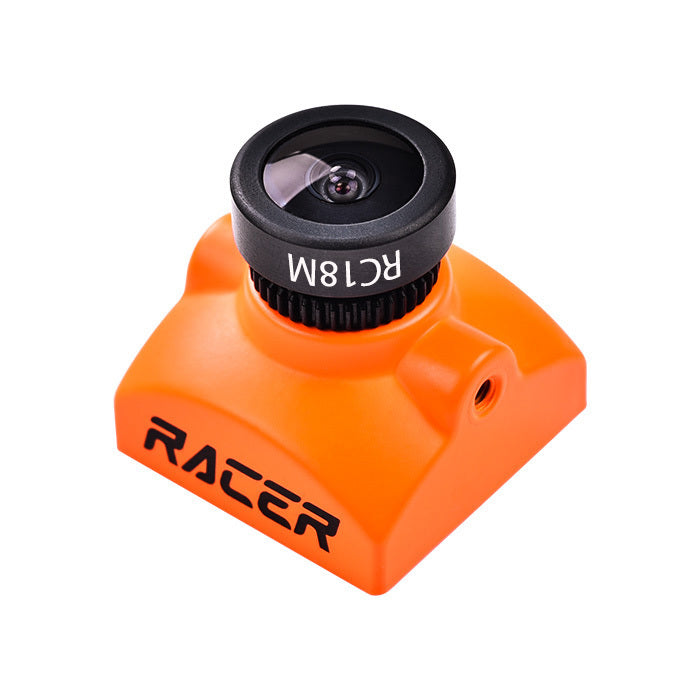

| Model | RunCam Racer 2 | ||
| Image Sensor | Super WDR CMOS Sensor | ||
| Horizontal Resolution | 700TVL | ||
| Lens |
|
||
| Screen Format | 4:3 / Widescreen Switchable | ||
| Signal System | NTSC / PAL Switchable | ||
| Mirror/Flip | Available | ||
| Integrated OSD | Yes | ||
| One Touch Scene Setting | Personal / Lightrax / Outdoor / Indoor / Cloudy / Twilight | ||
| S/N Ratio | >50dB | ||
| Electronic Shutter Speed | Auto | ||
| Min. Illumination | 0.01Lux@1.2F | ||
| WDR | Super WDR | ||
| Day/Night | Auto | ||
| Menu Control | Joystick Control / UART Control Switchable | ||
| Power | DC 5-36V | ||
| Current | 110mA@5V / 40mA@12V | ||
| Housing Material | ABS | ||
| Net Weight | 5.5g | ||
| Dimensions | L19mm*W19mm*H18mm |
