The first FPV camera integrated gyro displays
accurately your impressive perspective.
accurately your impressive perspective.
Pilots will find their best flight angle with this by continuously fine-tuning their camera elevation.
The camera can independently display the real-time angle, it also can connect with the betaflight
flight control serial port to calculate and display the flight control angle.*
The camera can independently display the real-time angle, it also can connect with the betaflight
flight control serial port to calculate and display the flight control angle.*
*For betafligh versions before 4.3, turn on the MSP switch of the connected serial port first.
With betaflight 4.3, select runcam device, camera remote control + flight control
gyroscope combo directly.
https://github.com/betaflight/betaflight/pull/10214
With betaflight 4.3, select runcam device, camera remote control + flight control
gyroscope combo directly.
https://github.com/betaflight/betaflight/pull/10214
More vivid images,
easier to distinguish everything during flying.
Support firmware upgrade
through SpeedyBee APP,
through SpeedyBee APP,
there will be more value-added space.
Separate Cable control/remote control;
the flight controller with insufficient serial port can be controlled by CC.
Dimensions & Installation
Package
1x Camera-
1x 6pin FPV silicone cable
1x Manual
1x Set of screws
Parameters

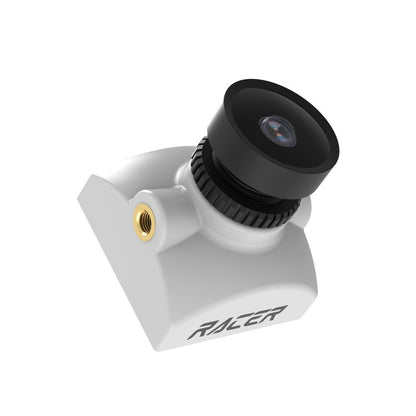

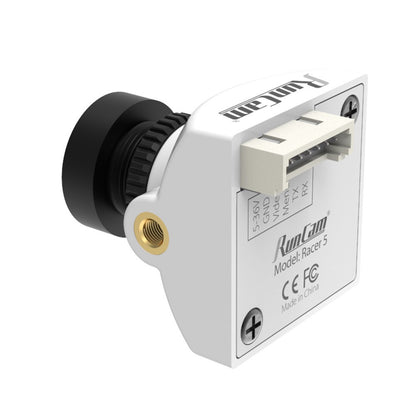

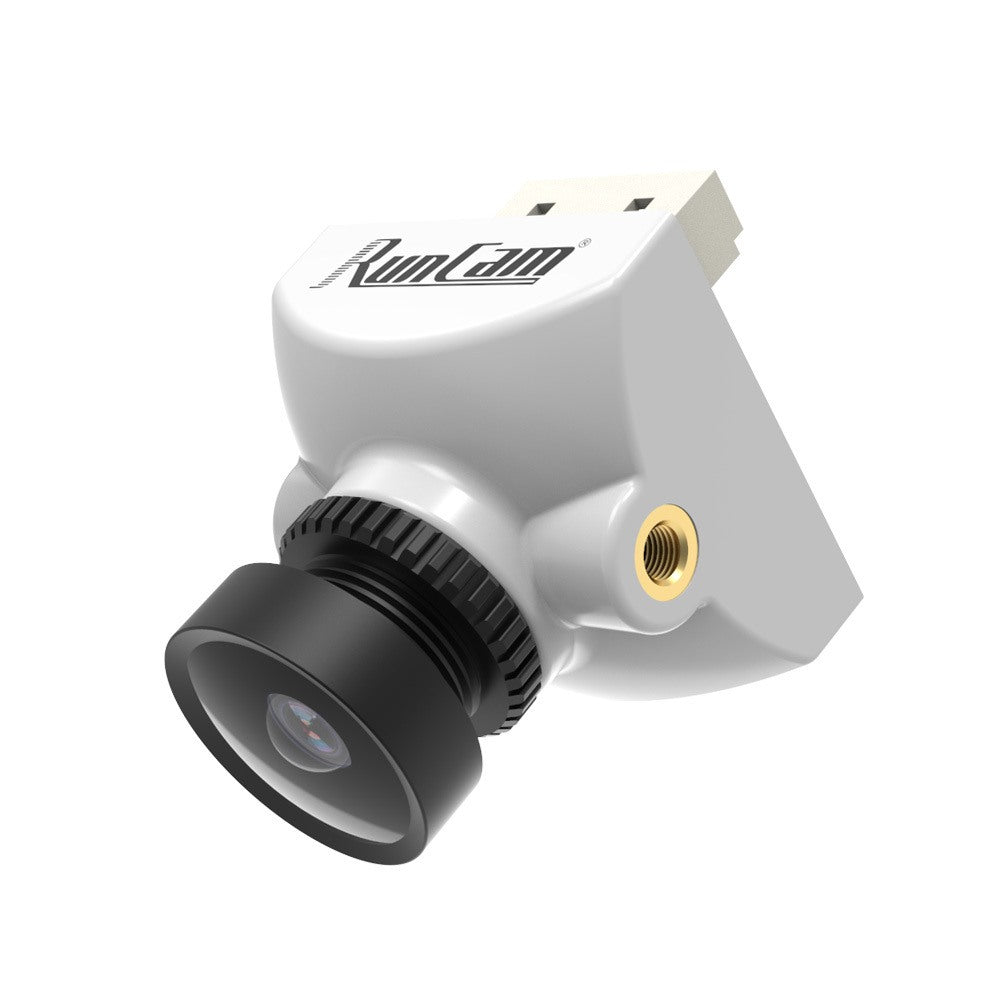

| Model | RunCam Racer 5 | ||
| Image Sensor | Super WDR CMOS Sensor | ||
| Horizontal Resolution | 1000TVL | ||
| Lens |
|
||
| Screen Format | 4:3 / Widescreen Switchable | ||
| Signal System | NTSC / PAL Switchable | ||
| Mirror/Flip | Available | ||
| Integrated OSD | Yes | ||
| Built-in gyro | Yes | ||
| One Touch Scene Setting | Personal / Lightrax | ||
| S/N Ratio | >50dB | ||
| Electronic Shutter Speed | Auto | ||
| Min. Illumination | 0.01Lux@1.2F | ||
| WDR | Super WDR | ||
| Day/Night | Color | ||
| Menu Control | Cable Control / Remote Control | ||
| Power | DC 5-36V | ||
| Current | 110mA@5V / 40mA@12V | ||
| Housing Material | ABS | ||
| Net Weight | 6.1g | ||
| Dimensions | L19mm*W19mm*H21mm |
